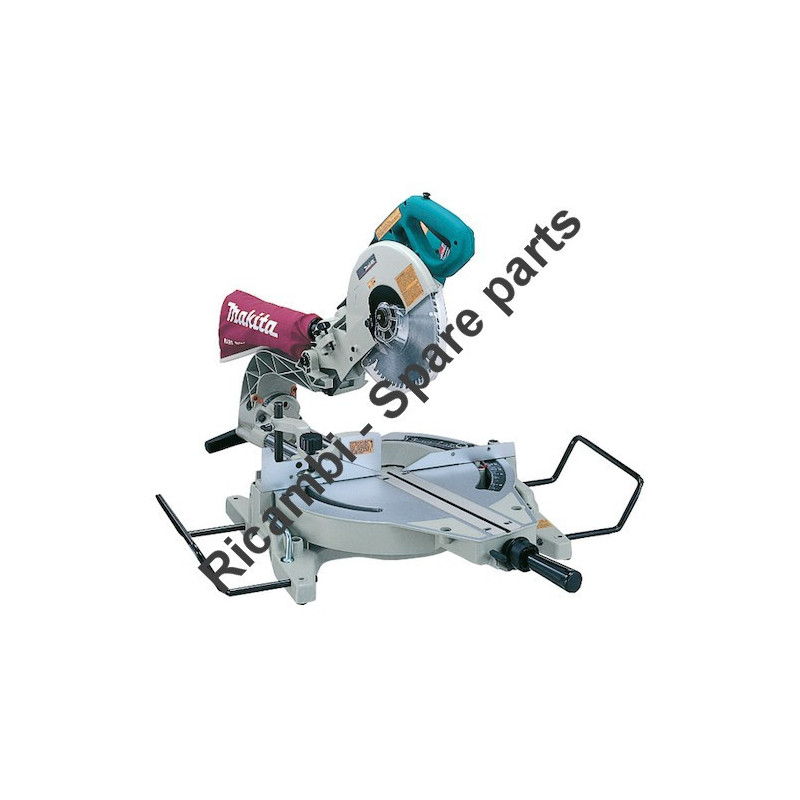

Makita Spare Parts for Slide Compound Mitre Saw LS1013
€1.32
Tax included
Makita Spare Parts for Slide Compound Mitre Saw LS1013
We have the original Makita Spare Parts for Slide Compound Mitre Saw LS1013, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Slide Compound Mitre Saw LS1013. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Slide Compound Mitre Saw LS1013
Fix Your Slide Compound Mitre Saw LS1013. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Bench Saw and the respective parts of the code.
| LS1013 10” SLIDE COMPOUND SAW With Electric Brake pag.1 | ||
| # | Part Num. | Description |
| 1 | 911373-5 | PAN HD SCREW M6x50 LS1013 |
| 2 | 159963-8 | MOTOR HOUSING COMP LS1013 |
| 3 | 265A48-7 | PT SCREW 4X18 UH4570/55/65/55 |
| 4 | 416075-3 | REAR COVER X LS1013 |
| 5 | 631219-6 | CONTROLLER 110V LS1013 |
| 6 | 265A48-7 | PT SCREW 4X18 UH4570/55/65/55 |
| 7 | 181044-0 | CARBON BRUSH CB-153 (150/52/54) |
| 8 | 643650-4 | BRUSH HOLDER CAP |
| 10 | 599506-8 | FIELD ASSY 240V LS1013 |
| 11 | 266352-1 | PT SCREW 5X65 5703R |
| 12 | 911223-4 | PAN HD SCREW 5X16 W/CP/DLS714 |
| 13 | 233165-5 | COMPRESSION SPRING 28 LS1013 |
| 14 | 344464-1 | SPRING HOLDER LS1013/LS1040F |
| 15 | 257461-7 | RING 6 |
| 16 | 253804-1 | BLUE WASHER 6 CS DST112/DLS71 |
| 17 | 922331-6 | CAP HD SCREW M6X20 HM1800/181 |
| 18 | 344415-4 | LINK PLATE LS1013 |
| 19 | 257461-7 | RING 6 |
| 20 | 253804-1 | BLUE WASHER 6 CS DST112/DLS71 |
| 21 | LC961018-5 | STOP RING E-5 |
| 22 | 231240-1 | COMPRESSION SPRING 736BR / 12BR / 2412N / 14 |
| 23 | 256633-1 | PIN 6 X LS1013 |
| 24 | 231928-3 | RING SPRING 8 |
| 25 | 961057-5 | RETAINING RING S17 |
| 26 | 210301-0 | BALL BEARING 6003DDW RT0700C |
| 27 | 285686-3 | BEARING RETAINER 94 LS1013 |
| 28 | 240001-8 | FAN 80 X LS1013 |
| 29 | 516723-5 | ARMATURE ASSY 240V LS1013 |
| 30 | 681642-5 | INSULATION WASHER LS1013 |
| 31 | 211061-7 | BALL BEARING 6000DD 6221DW |
| 32 | 416107-6 | BAFFLE PLATE LS1013 |
| 34 | 682505-8 | CORD GUARD JN1601 |
| 35 | 687063-9 | STRAIN RELIEF 4304T |
| 36 | 265A48-7 | PT SCREW 4X18 UH4570/55/65/55 |
| 37 | 414546-4 | CAM LS10130 |
| 38 | 416000-4 | LOCK OFF LEVER LS1013 |
| 39 | 417113-4 | SWITCH BUTTON REMOVABLE LS121 BLS713 |
| 40 | 182911-2 | HANDLE SET LS1013 |
| 41 | 231457-6 | COMPRESSION SPRING 3 HM1303B/ UH4510A / 6310A |
| 42 | 651923-1 | SWITCH TG70B X 5903R |
| 43 | 459017-4 | SWITCH LEVER |
| 44 | 266050-7 | SCREW PT 4X30 |
| 46 | 921467-8 | HEX HD SCREW M8X45 |
| 47 | 262003-4 | RUBBER RING 6 HM1400/1304 |
| 48 | 911323-0 | PAN HD SCREW M6x16 LS1013 |
| 49 | 421562-9 | GRIP LS1013 |
| 50 | 344420-1 | GRIP HOLDER LS1013 |
| 51 | 911323-0 | PAN HD SCREW M6X16 X LS1013 |
| 52 | 188386-3 | BLADE CASE COMPLETE LS1013 |
| 54 | 344045-1 | STOPPER ARM PLATE LS1013 |
| 55 | 911113-1 | PAN HEAD SCREW M4X10 DLS714 LS1013 |
| 56 | 213460-9 | O RING 35 HM1303B/LS800DWB/HR HK / HR1800 / HM12 |
| 57 | 419277-0 | DUST NOZZLE LS1013 |
| 58 | 265717-4 | SCREW M6X43 LS1013 |
| 59 | 262001-8 | URETHANE RING 5 6906 / 6905B |
| 60 | 317176-9 | STOPPER ARM LS1214F |
| 61 | 211021-9 | BALL BEARING 607LLB |
| 62 | 961054-1 | EXT DIN 471 CIRCLIP S14 |
| 63 | 226742-0 | SPIRAL BEVEL GEAR 33 LS1013 |
| 64 | 262074-1 | RUBBER RING 20 LS1013 |
| 65 | 267035-6 | HARD WASHER 14 6805BV |
| 66 | 316836-0 | BEARING BOX LS1013 |
| 67 | 254202-2 | KEY 4 |
| 68 | 322899-6 | SPINDLE LS1013 |
| 69 | 210301-0 | BALL BEARING 6003DDW RT0700C |
| 70 | 285828-9 | BEARING RETAINER 66 LS1013 |
| 71 | 257022-3 | RING 16-25 LS1040F/2400/B |
| 72 | 224333-1 | FLANGE 53 LS1013/LS1040F/LF100 |
| 73 | 257262-3 | RING 16 LH1040F |
| 74 | 224333-1 | FLANGE 53 LS1013/LS1040F/LF100 |
| 75 | 265355-2 | HEX HD SCREW M8X20 L THR WITH LS1030 |
| 76 | 343639-9 | CENTER PLATE LS1030/40&LH1040 LS1030 |
| 77 | 345226-0 | CENTRE COVER LS1040&LH1040 LS1013 |
| 78 | 265324-3 | HEX HD SCREW M8X12 WITH COLLAR |
| 79 | 231593-8 | TORSION SPRING 36 LS1030/40F |
| 80 | 450047-8 | AFETY COVER LS1013 |
| 81 | 267136-0 | FLAT WASHER 5 |
| 82 | 911213-7 | PAN HEAD SCREW M5X12 5143R EBH252L |
| 83 | 265008-3 | FLAT HEAD SCREW M5 LS1013 |
| 84 | 911223-4 | PAN HD SCREW 5X16 W/CP/DLS714 |
| 158 | 645006-7 | NOISE SUPPRESSOR LS1013 |
| 159 | 645006-7 | NOISE SUPPRESSOR LS1013 |
| 160 | 688106-0 | LINE FILTER 2414B/NB/LC1230 LS1013 |
| 161 | 651941-9 | SWITCH V-15-2A5 LS1013 |
| 162 | 324654-2 | LOCK PIN 8 LS1013 |
| 163 | 231633-2 | TORSION SPRING 8 LS1040/1214 LS1040F |
| 164 | 911108-4 | PAN HEAD SCREW M4X8 5103R |
| 165 | 421589-9 | CAP LS1013 |
| 166 | 345616-7 | LOCK PLATE LS1013 |
| 167 | 324640-3 | ROD 8 LS1013 |
| 168 | 345829-0 | LOCK LEVER X LS1013 |
| 169 | 911113-1 | PAN HEAD SCREW M4X10 DLS714 LS1013 |
| 171 | 911114-9 | PAN HD SCREW M4X10/DLS714 |
| 172 | 345610-9 | GUARD PLATE LS1013 |
| 173 | 421916-0 | GUARD LS1214L/LS1013 |
| 175 | 266050-7 | TAPPING SCREW 4X30 |
| 176 | 419075-2 | ROD HOLDER LS1214L/LS1013 |
| 180 | 961012-7 | STOP RING E-6 |
| 181 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X10 |
| LS1013 - SEGA DA BANCO 260MM pag.2 | ||
| 85 | 265406-1 | HEX HD SCREW M10X130 2414B/NB |
| 86 | 253024-7 | FLAT WASHER 10 LS1013/LF1000 |
| 87 | 331428-4 | PIPE 16-113 2414B/NB 2414B |
| 88 | 252105-4 | HEX. LOCK NUT M8-13 |
| 89 | 941201-0 | FLAT WASHER 8 |
| 90 | 317983-0 | ARM LS1013 |
| 91 | 324183-5 | STOPPER PIN LS0714FL |
| 92 | 213021-5 | O RING 5 LS1013 |
| 93 | 687042-7 | STRAIN RELIEF LS1013 |
| 94 | 266026-4 | CT SCREW M4X12 UC3530A/KP0810 |
| 95 | 252130-5 | HEX. LOCK NUT M10-17 2414B |
| 96 | 253024-7 | FLAT WASHER 10 LS1013/LF1000 |
| 97 | 265455-8 | HEX HD SCREW M8X30 |
| 98 | 265412-6 | HEX HD SCREW M8X20 |
| 99 | 216003-6 | STEEL BALL 10 HM1200 |
| 100 | 345418-1 | GUIDE PLATE LS1214 LS1214F |
| 101 | 231626-9 | TORSION SPRING 28 LS1013/1214 |
| 102 | 413067-3 | INDICATION PLATE LS1013 |
| 103 | 911114-9 | PAN HD SCREW M4X10/DLS714 |
| 104 | 233168-9 | COMPRESSION SPRING 5 LS1013 |
| 105 | 266131-7 | HEX SOCKET HD BOLT M12xX12 LS1 |
| 106 | 253852-0 | FLAT WASHER 8 LS1013 |
| 107 | 265442-7 | HEX. BOLT M8X40 LS1013 |
| 108 | 415209-5 | KERF BOARD LS1013 |
| 109 | 266026-4 | CT SCREW M4X12 UC3530A/KP0810 |
| 110 | 252014-7 | HEX. LOCK NUT M6-10 |
| 111 | 344463-3 | SUB FENCE PLATE LS1013 |
| 112 | 154564-7 | SUB FENCE COMPLETE LS1013 |
| 113 | 253715-0 | FLAT WASHER 6 6510PBL / LVR / 43SB |
| 114 | 912357-6 | COUNTERSUNK HEAD SCREW M6X35 |
| 115 | 251887-5 | SCREW M6X10 N500 |
| 116 | 921451-3 | HEX BOLT M8X30 LS1040F LS1013 |
| 117 | 316840-9 | GUIDE RULE LS1013 |
| 118 | 266132-5 | SCREW M8X320 |
| 119 | 931402-8 | HEX NUT M8 LS1013 |
| 120 | 273444-9 | GRIP 37 LS1013 |
| 121 | 331491-7 | PIPE 9-200 X LS1013 |
| 122 | 152541-3 | KNOB 48 COMPLETE LS1013 |
| 123 | 421563-7 | CAP 10 LS1013 |
| 124 | 322924-3 | COIL SPRING LS1013T |
| 125 | 322909-9 | LOCK PIN LS1013 |
| 126 | 266034-5 | CT SCREW M4X16 HS6100/DLS714 |
| 127 | 232075-3 | LEAF SPRING LF1000 LS1013 |
| 128 | LC961018-5 | STOP RING E-5 |
| 129 | 231307-5 | COMPRESSION SPRING 6 LS1013 |
| 130 | 316899-6 | PIN HOLDER LS1013 |
| 131 | 344411-2 | SLIDE STOPPER LS1013 |
| 132 | 251267-5 | PAN HEAD SCREW M6 |
| 133 | 256196-7 | PIN 5 LS1013 |
| 134 | 266034-5 | CT SCREW M4X16 HS6100/DLS714 |
| 135 | 344412-0 | STOPPER HOLDER LS1013 |
| 136 | 331493-3 | TURN STOPPER LS1013 |
| 137 | 266034-5 | CT SCREW M4X16 HS6100/DLS714 |
| 138 | 266026-4 | CT SCREW M4X12 UC3530A/KP0810 |
| 139 | 816128-2 | POINTER 5103R |
| 140 | 153832-5 | TURN BASE COMPLETE LS1013 LS1214F |
| 141 | 921356-7 | HEX HDSCREW M6X35 W/SP LS1013 |
| 142 | 152542-1 | SQUARE ROD COMPLETE LS1013/121 |
| 143 | 151459-5 | ARM HOLDER COMPLETE LS1013/241 |
| 144 | 251668-7 | HEX HD SETSCREW M10X90 LS1013 |
| 145 | 911113-1 | PAN HEAD SCREW M4X10 DLS714 LS1013 |
| 146 | 416006-2 | LEVER 100 LS1013 |
| 147 | 252144-4 | HEX NUT M10-17 LS1013 |
| 148 | 253024-7 | FLAT WASHER 10 LS1013/LF1000 |
| 149 | 152540-5 | BEARING BOX LS1013/LS1214 |
| 150 | 922451-6 | HEX SOCKET HD BOLT M8X30 |
| 151 | 266026-4 | CT SCREW M4X12 UC3530A/KP0810 |
| 152 | 816326-8 | MITER SCALE LABEL LS1013 LS101 |
| 153 | 344477-2 | SLIDE PLATE LS1013 |
| 154 | 251887-5 | SCREW M6X10 N500 |
| 155 | 286212-1 | CAP 20 LS1013 |
| 156 | 153837-5 | BASE COMPLETE LS1013 |
| 157 | 911108-4 | PAN HEAD SCREW M4X8 5103R |
| 162 | 253804-1 | BLUE WASHER 6 CS DST112/DLS71 LS1013 |
| 166 | 421863-5 | CAP LS1214/LS1013 LS1214F |
| 167 | 345494-5 | STOPPER LS1214/LS1013 LS1214F |
| 168 | 271601-3 | KNOB LS1030 |
