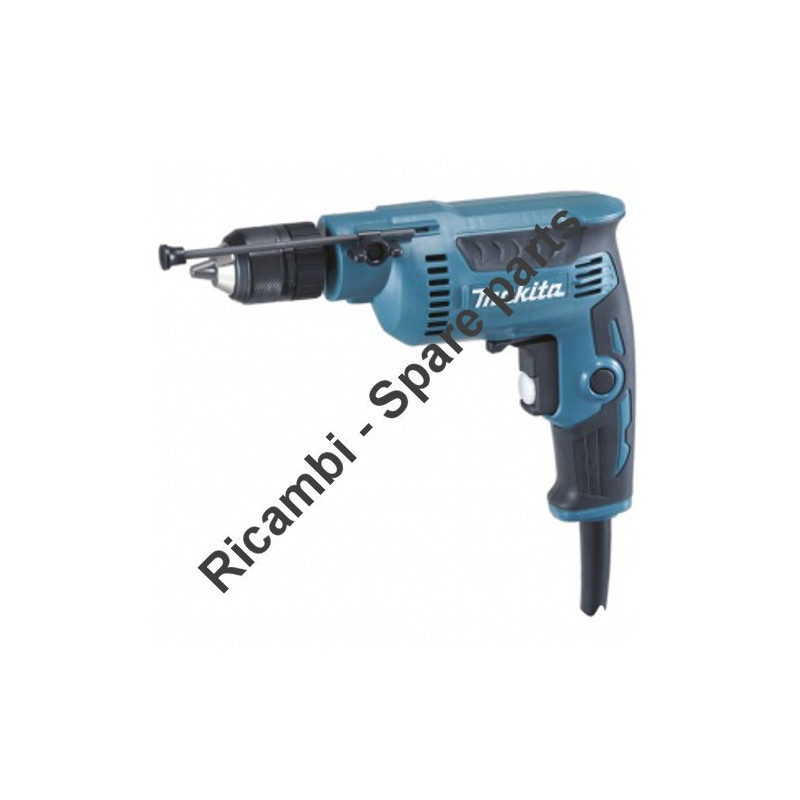

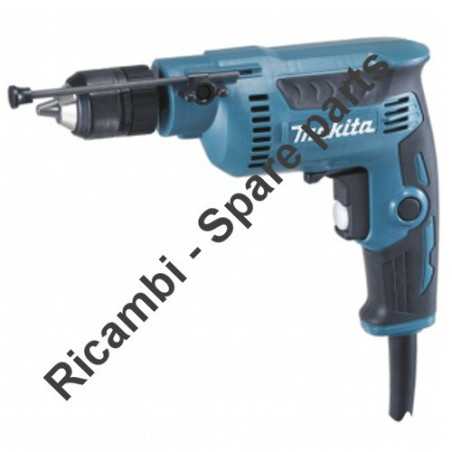

Makita Spare Parts for Screw Drill DP4011

€8.68
Tax included

Makita Spare Parts for Screw Drill DP4011

We supply original Makita spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Screw Drill DP40111.

- High torque: 73 Nm
- Side handle Large
- Gears direct drive for a high tightening torque
ITEM CODE: 152668-9
Quantity

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Screw Drill DP4011

We supply original Makita spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Screw Drill DP40111.

- High torque: 73 Nm
- Side handle Large
- Gears direct drive for a high tightening torque
- Electronic switch
- Reversible
- Key insertion Standing continuous use

In the following table, look for the model of Screw Drills and the respective parts of the code.
Makita DP4011

Screw Drills DP4011
# Part Num. Description
1 194254-0 CHUCK KEYLESS 13
2 285806-9 BEARING 19-36
3 324835-8 POST DP4011
4 211206-7 BEARING 6202V
5 961055-9 RETAINING RING S15
6 921923-8 SCREW M 8 X 120 X HR2020
7 417630-4 HANDLE BASE X X HR2020
8 153503-4 GRIP X MT811
9 345280-4 WASHER X HP2051F
10 266351-3 SCREW 4 X 35 X 9557PB
11 318187-7 GEAR BOX DP4011
12 210028-2 BEARING 606ZZ
13 153622-6 GEAR CPL X HP2071F
14 210028-2 BEARING 606ZZ
15 227119-2 GEAR 29-37 X HP2071F
16 210029-0 BEARING 608Z X MT601
17 421810-6 RING X HP2050
18 158412-2 COVER GEAR BOX DP4011
19 213122-9 RING 12 X HP2071F
20 417805-5 LEVER B HP2050
21 256251-5 PIN 4 HP1500
22 232143-2 SPRING CROSSBOW HP2030
23 345225-2 LEVER LOCK X HP2050
24 417804-7 HOLDER 12 X HP2050
25 345223-6 HOLDER LEVER B HP2050
26 268092-7 PIN 4 X HP2050
27 262087-2 RING 8 X 6823
28 210005-4 BALL BEARING 608 DDW
29 241881-5 FAN 52 X 6408
30 517414-1 ARMATURE HP2050
31 681636-0 INSULATION WASHER
32 211021-9 BEARING 607LLB
33 421494-0 RUBBER 19 X 9521NB
34 417803-9 BAFFLE X HP2050
35 266340-8 SCREW 4X65 GA5010
36 633528-9 STATOR 220 X HP2050
37 417807-1 HOUSING MOTOR DP4011
38 450179-1 COVER DP4011
40 191962-4 CARBON BRUSHESC B-419 (406.407) 6408
41 643989-5 BRUSH X HR2020
42 864033-7 LABEL MOD. DP4011
43 689111-0 DISTANCE X HR2020
44 643988-7 HOLDERS X HR2020
45 650524-2 SWITCH X HP2050
46 153284-0 COVER HANDLE X HR2020
47 266374-1 SCREW 4X25 FOR GA9020
48 266326-2 SCREW 4x18 X MT601
49 687124-5 STRAIN RELIEFE MT953
50 645200-1 CAPACITOR
51 682559-5 SAVE CABLE X 6822

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
