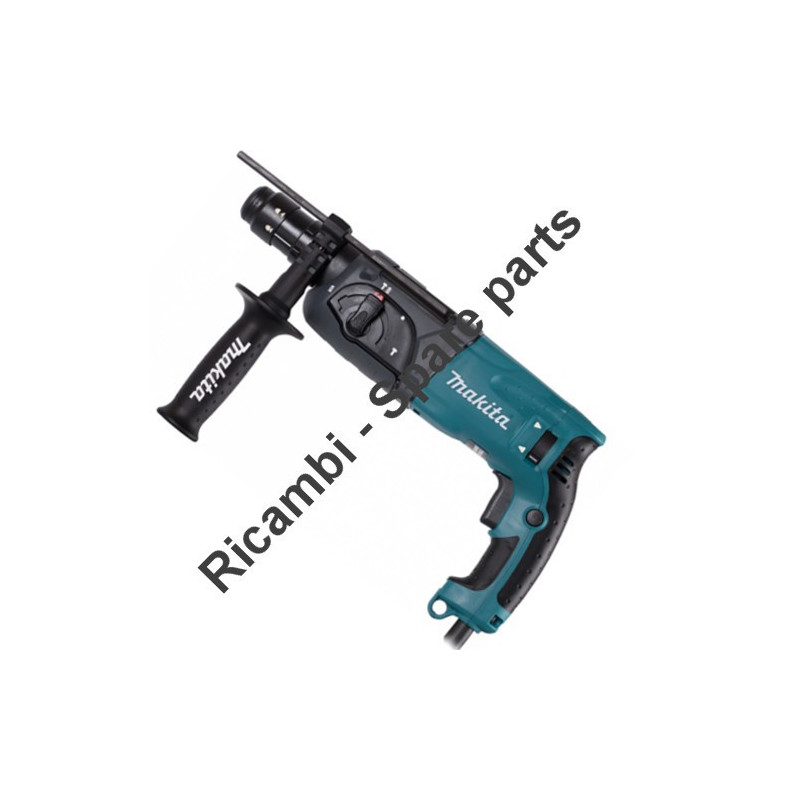

Makita Spare Parts for SDS-Plus Rotary Hammer HR2470FT
€7.97
Tax included
Makita Spare Parts for SDS-Plus Rotary Hammer HR2470FT
Makita genuine spare parts for replacement or for to repair Rotary Hammer SDS-PLUS 780 W 24 mm W/Led HR2470FT.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for SDS-Plus Rotary Hammer HR2470FT
Makita genuine spare parts for replacement or for to repair Rotary Hammer SDS-PLUS 780 W 24 mm W/Led HR2470FT.
In the following table, look for the model of the hammerr and the respective parts of the code.
| ROTARY HAMMER 780 W 24 mm W/Led HR2470FT | ||
| # | Part Num. | Description |
| 7 | 921923-8 | SCREW M8 X 120 X HR2020 |
| 8 | 345280-4 | WASHER X HP2051F |
| 9 | 417630-4 | BASE HANDLE X X HR2020 |
| 10 | 158057-6 | HANDLE 36 CPL HR2230 |
| 13 | 162245-9 | LEVER HR2470F / FT |
| 14 | 233459-8 | COMPRESSION SPRING 3 HR1830 |
| 15 | 419192-8 | KEY LOCK HR1830 |
| 16 | 213278-8 | RING 13 X HR2020 |
| 17 | 158216-2 | GEAR CASE HR2470F / FT |
| 18 | 266351-3 | SCREW 4 X 35 X 9557PB |
| 19 | 153290-5 | BEARING X HR2020 |
| 20 | 233929-7 | SPRING RING 29 X HR2450FT |
| 21 | 267460-1 | WASHER 31 X BHR240 |
| 22 | 233401-9 | COMPRESSION SPRING 32 HR2450FT |
| 23 | 227109-5 | GEAR 51 X HR2450FT |
| 25 | 158307-9 | TOOL HOLDER X HR2470FT |
| 26 | 267229-3 | WASHER 28 X HR2020 |
| 27 | 331769-8 | SLEEVE 9 FOR HR2230 |
| 28 | 324796-2 | IMPACT BOLT HR2811FT |
| 29 | 324402-9 | O-RING 10 X HR2450FT |
| 30 | 421955-0 | CUSHION RING 13 |
| 31 | 324216-6 | O-RING CASE X HR2020 |
| 32 | 213073-6 | O-RING 9 X HR2020 |
| 33 | 233917-4 | SNAP RING 28 X HR2020 |
| 34 | 324733-6 | STRIKER X HR2460 |
| 35 | 213227-5 | O-RING 16 X HK0500 |
| 36 | 318132-2 | CYLINDER PISTON X HR2470F / FT |
| 37 | 267104-3 | FLAT WASHER 12 X HR2400 |
| 38 | 324215-8 | PISTON PIN X HR2020 |
| 39 | 267104-3 | FLAT WASHER 12 X HR2400 |
| 40 | 213727-5 | O-RING 63 BHR240 |
| 41 | 211012-0 | BALL BEARING 606ZZ X 9524NB |
| 42 | 961003-8 | RETAINING RING S7 |
| 43 | 233343-7 | COMPRESSION SPRING X HR2450 |
| 44 | 331992-5 | CLUTCH CAM BHR262RDE |
| 45 | 324668-1 | CAM SHAFT BHR240 |
| 46 | 219014-0 | SWASH BEARING 10 BHR200S/HR202 |
| 47 | 226656-3 | GEAR 26 X HR2230 |
| 48 | 266273-7 | SCREW 4 X 12 X 4604D |
| 49 | 345179-3 | BEARING RETAINING X HR2020 |
| 50 | 267234-0 | FLAT WASHER 8 X HR2020 |
| 51 | 211032-4 | BALL BEARING 608ZZCNM/2A BUR18 |
| 52 | 324212-4 | O-RING 8 X HR2020 |
| 53 | 961011-9 | RETAINING RING E4 |
| 54 | 233342-9 | COMPRESSION SPRING 6 X HR2450 |
| 55 | 345363-0 | CHANGE PLATE X HR2450 |
| 56 | 158215-4 | INNER HOUSING HR2470F / FT |
| 57 | 443126-9 | FELT X BHR240 |
| 58 | 213407-3 | SEAL 26 X 3901 |
| 59 | 213077-8 | OIL SEAL X HR2230 |
| 60 | 210059-1 | BALL BEARING 6000 HR2010 |
| 61 | 267213-8 | FLAT WASHER 10 HR2430 |
| 62 | 240092-9 | HR2230 FAN 64 |
| 63 | 515289-2 | ARMATURE 240V HR2460 |
| 64 | 681670-0 | INSULATION WASHER X JR180D |
| 65 | 210023-2 | BALL BEARING 9910/11 |
| 66 | 267804-5 | WAVY WASHER 15 HR2230 |
| 67 | 266334-3 | SCREW 4X60 HR2460 |
| 68 | 344871-8 | RETAINING X GD0800C |
| 69 | 419716-0 | BAFFLE PLATE HR2230 |
| 70 | 626579-9 | STATOR ASSY HR2460 240V |
| 71 | 419718-6 | MOTOR HOUSING HR2470F / FT |
| 72 | 863556-2 | LABEL HR2470FT |
| 73 | 194074-2 | CARBON BRUSH SET CB-325 X-9554NB |
| 74 | 638500-6 | BRUSH HOLDER HR2230 |
| 75 | 650588-6 | SWITCH C3VA-2L-C HR2230 |
| 76 | 814966-6 | LABEL HR2470FT |
| 77 | 682566-8 | CORD GUARD 10 X HR2450 |
| 79 | 687260-7 | CORD CLAMP X GA5010 |
| 80 | 266324-6 | SCREW M 4 X 22 X MT601 |
| 81 | 631746-3 | CIRCUIT LIGHT HR2470FT |
| 82 | 419717-8 | HANDLE COVER HR2230 |
| 83 | 266324-6 | SCREW M 4 X 22 X MT601 |
| 84 | 266324-6 | SCREW M 4 X 22 X MT601 |
| 85 | 961017-7 | O-RING-3 X 4305T |
| 86 | 417796-0 | GUIDE BASE X X HR2450 |
| 87 | 233344-5 | COMPRESSION SPRING 4 |
| 88 | 266374-1 | SCREW 4X25 FOR GA9020 |
| 89 | 163430-7 | LOCKING PLATE X HR2450 |
| 90 | 227179-4 | GEAR 10 X HR2470FT |
| 91 | 941102-2 | FLAT WASHER 5 |
| 94 | 194080-7 | SDS CHUCK SDS-PLUS |
| 95 | 286263-4 | CAP 35 X HR2020 |
| 96 | 233940-9 | SNAP RING 19 TO HR2432 |
| 97 | 418217-5 | CHUCK COVER HR2450FT |
| 98 | 345333-9 | STOPPER HR2450FT |
| 99 | 216022-2 | STEEL BALL 7 |
| 100 | 345187-4 | GUIDE WASHER X HR2020 |
| 101 | 233916-6 | SPRING 21-29 X HR2020 |
| 102 | 267279-8 | FLAT WASHER 21 X HR2450FT |
| 103 | 324355-2 | TOOL HOLDER X HR2450FT |
| 104 | 216013-3 | BALL 6 |
| 105 | 231669-1 | SPRING TORSION 31 X HR2450FT |
| 106 | 345334-7 | RING GEAR X HR2450FT |
| 107 | 418218-3 | RING GEAR COVER X HR2450FT |
| 108 | 216018-3 | BALL 5 HP2030 |
| 109 | 345335-5 | LEAF SPRING X HR2450FT |
| 110 | 267270-6 | WASHER 24 X HR2450FT |
| 111 | 233924-7 | RETAINING RING 21 X HR2450FT |
| 999 | 195263-2 | SERVICE KIT HR2230 / 2470 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
