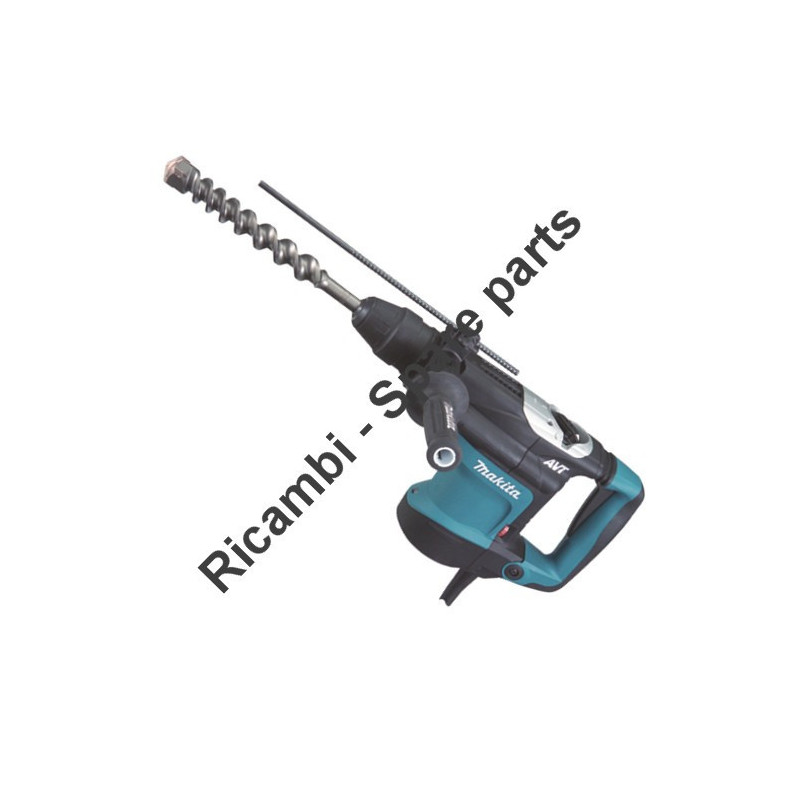

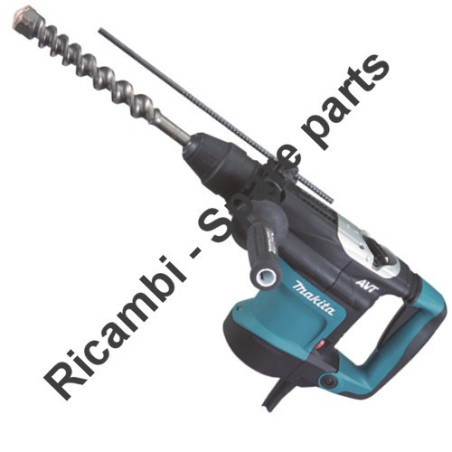

Makita Spare Parts for Rotary Hammer HR3541FC
€64.24
Tax included
Makita Spare Parts for Rotary Hammer HR3541FC
We have the original Makita Spare Parts for Rotary Hammer HR3541FC, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Rotary Hammer HR3541FC. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Rotary Hammer HR3541FC
Fix Your Rotary Hammer HR3541FC. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Rotary Hammer Makita HR3541FC | ||
| # | Part Num. | Description |
| 1 | 286269-2 | TOOL HOLDER CAP HM0860C |
| 2 | 450592-3 | CHUCK COVER X HR3540C |
| 3 | 231984-3 | RING SPRING 25 X HR50001C |
| 4 | 331823-8 | CHUCK RING HR3540C |
| 5 | 310257-8 | TOOL RETAINER X HR3540C |
| 6 | 345928-8 | GUIDE SPRING X HR3540C |
| 7 | 234063-6 | COMPRESSION SPRING 52 X Hr3540C |
| 8 | 345976-7 | SPRING HOLDER X HR3540C |
| 9 | 424110-3 | RUBBER RING 13 X HR3540C |
| 18 | 922341-3 | SCREW M6X25 |
| 19 | 158674-2 | BARREL CPL X HR3540C |
| 20 | 213656-2 | O-RING 53 X HM1200 |
| 21 | 257294-0 | O-RING 38 X HR3540C |
| 22 | 262143-8 | RING URETHANE 38 X HR3540C |
| 23 | 267381-7 | WASHER 39 X HR3540C |
| 24 | 324900-3 | TOOL HOLDER HR3540C |
| 25 | 324901-1 | IMPACT BOLT HR3540C |
| 26 | 213309-3 | O-RING 19 HR2510/HK1800 |
| 27 | 213309-3 | O-RING 19 HR2510/HK1800 |
| 28 | 213996-8 | O-RING 24 X HR3540C |
| 29 | 324899-2 | RING 13 X HR3540C |
| 30 | 324838-2 | PLATE SLIDE X HR3200C |
| 31 | 256266-2 | PIN 6 X HR3200C |
| 32 | 331822-0 | CYLINDER 25 X HR3540C |
| 33 | 450243-8 | SLIDE SLEEVE X HR3200C |
| 34 | 331805-0 | O-RING 29 X HR3200C |
| 35 | 267360-5 | WASHER 40 X HR3200C |
| 36 | 234052-1 | COMPRESSION SPRING 42 HR3200C |
| 37 | 450236-5 | LOCK SLEEVE HR3200C |
| 38 | 234050-5 | COMPRESSION SPRING 34 HR3200C |
| 39 | 331795-7 | DRIVING SLEEVE X HR3200C |
| 40 | 213434-0 | RING X 5621RDW |
| 41 | 324898-4 | STRIKER X HR3540C |
| 42 | 213283-5 | RING 18 X HR3200C |
| 43 | 213283-5 | RING 18 X HR3200C |
| 44 | 256087-2 | PIN 7 X HR3200C |
| 45 | 324918-4 | PISTON X HR3200C |
| 46 | 213262-3 | O-RING 18 4100R |
| 47 | 450235-7 | ROD X HR3200C |
| 48 | 227531-6 | SPIRAL BEVEL GEAR 37 X HR3200C |
| 49 | 345867-2 | LEVERAGE HR3200C |
| 50 | 213030-4 | RING 8 X RP1100C |
| 51 | 450248-8 | PIPE HOLDER HR3210C |
| 52 | 213030-4 | RING 8 X RP1100C |
| 53 | 450239-9 | SPRING GUIDE HR3210C |
| 54 | 234048-2 | COMPRESSION SPRING 10 HR3210C |
| 55 | 213275-4 | O-RING 18 X BFL401F |
| 56 | 331800-0 | TUBE 15 X HR3210C |
| 57 | 213275-4 | O-RING 18 X BFL401F |
| 58 | 324862-5 | COUNTER WEIGHT X HR3210C |
| 59 | 234048-2 | COMPRESSION SPRING 10 HR3210C |
| 60 | 450239-9 | SPRING GUIDE HR3210C |
| 61 | 213030-4 | RING 8 X RP1100C |
| 62 | 450248-8 | PIPE HOLDER HR3210C |
| 63 | 213030-4 | RING 8 X RP1100C |
| 64 | 266041-8 | PT SCREW 5x25 |
| 65 | 922128-3 | BOLT M4x16 4300BA |
| 66 | 450593-1 | CRANK HOUSING COVER HR3541FC |
| 67 | 266192-7 | SCREW 4 X 14 X HR4001C/HR4010C |
| 68 | 318201-9 | CRANK CAP COVER HR3200C |
| 69 | 265995-6 | SCREW M4X18 X 6408/6221DW |
| 70 | 450249-6 | LEVER CPL X HR3200C |
| 71 | 233436-0 | COMPRESSION SPRING 3 X HR4001C/HR4010C |
| 72 | 450250-1 | BUTTON LOCK X HR3200C |
| 73 | 911128-8 | SCREW M4x16 X HR4000C |
| 74 | 450241-2 | CRANK CAP |
| 75 | 213223-3 | RING 16 X HR3200C |
| 76 | 158437-6 | GEAR 33 X HR3200C |
| 77 | 424064-4 | SEAL B X HR3200C |
| 78 | 345868-0 | LINK PLATE HR3200C |
| 79 | 450247-0 | AIR PIPE HR3200C |
| 80 | 263005-3 | RUBBER PIN 6 |
| 81 | 452126-8 | GEAR SHAFT X HR3200C |
| 82 | 158712-0 | GEAR HOUSING COMP HR3210C |
| 83 | 443138-2 | FILTER X HR3200C |
| 84 | 213030-4 | O-RING 8 X RP1100C |
| 85 | 450238-1 | FILTER CAP HR3200C |
| 86 | 450244-6 | CROWN X HR3200C |
| 87 | 213176-6 | RING 14 X AN901 |
| 88 | 450237-3 | CRAWN COVER X HR3200C |
| 89 | 266192-7 | SCREW 4 X 14 X HR4001C/HR4010C |
| 90 | 324839-0 | TREE ECCENTR. HR3200C |
| 91 | 211332-2 | BEARING HR3000C |
| 92 | 961060-6 | RETAINING RING S20 |
| 93 | 231991-6 | SPRING CONE 21-31 X HR3000C |
| 94 | 254239-9 | KEY 4 X HR3000C |
| 95 | 324848-9 | CAM CLUTCH X HR3200C |
| 96 | 227188-3 | GEAR 33 X HR3200C |
| 97 | 253197-6 | WASHER 10 X LF1000 |
| 98 | 961036-3 | RETAINING RING SHOCK X HR3200C |
| 99 | 345869-8 | BELLEVILLE WASHER 18 X HR3200C |
| 100 | 424063-6 | A SEAL X HR3200C |
| 101 | 158534-8 | HOUSING GEAR X HR3200C |
| 102 | 213415-4 | RING 28 X HM1100C |
| 103 | 227533-2 | SPIRAL BEVEL GEAR 9 X HR3200C |
| 104 | 254239-9 | KEY 4 X HR3000C |
| 105 | 210105-0 | BEARING 6001LLU X PW5000CH |
| 106 | 125421-6 | TORQUE X HR3200C |
| 107 | 257291-6 | RING 10 X HR3200C |
| 108 | 210005-4 | BALL BEARING 608 DDW |
| 109 | 450251-9 | BAFFLE HR3200C |
| 110 | 213133-4 | SEAL OIL 12 X HR2800 |
| 112 | 210105-0 | BALL BEARING 6001LLU X PW5000CH |
| 113 | 253084-9 | ROND.P.12 8419B/5016NB |
| 114 | 241863-7 | FAN 70 |
| 115 | 513748-0 | ARMATURE HR3200C |
| 116 | 681650-6 | INSULATION WASHER X HR4000C |
| 117 | 210005-4 | BALL BEARING 608 DDW |
| 118 | 266056-5 | SCREW M 5 X 45 X JR3060T |
| 119 | 625813-4 | STATOR X HR3200C |
| 120 | 450260-8 | MOTOR HOUSING X HR3210FCT |
| 121 | 631785-3 | CIRCUIT LIGHT X HR3210FCT |
| 122 | 194160-9 | CARBON BRUSHE SET CB-350 X HR4001C |
| 123 | 450253-5 | REAR COVER HR3200C |
| 124 | 265995-6 | SCREW M4X18 X 6408/6221DW |
| 125 | 265995-6 | SCREW M4X18 X 6408/6221DW |
| 126 | 638519-5 | BRUSHE HOLDER HR3200C |
| 127 | 631783-7 | REGULATOR FOR HR3210FCT |
| 128 | 266192-7 | SCREW 4 X 14 X HR4001C/HR4010C |
| 129 | 638406-8 | CABLE HARNESS X HR4011C |
| 130 | 450246-2 | CORD CLAMP BASE HR3200C |
| 131 | 266192-7 | SCREW 4 X 14 X HR4001C/HR4010C |
| 132 | 687169-3 | CORD CLAMP HP1620 |
| 133 | 266192-7 | SCREW 4 X 14 X HR4001C/HR4010C |
| 134 | 450240-4 | LENS X HR3200C |
| 135 | 682560-0 | CABLE SLEEVE X HM1202C/9079S |
| 137 | 266041-8 | PT SCREW 5x25 |
| 138 | 266041-8 | PT SCREW 5x25 |
| 139 | 450352-3 | BUSH 6 X HR3210C |
| 140 | 865380-9 | LABEL HR3541FC |
| 141 | 911233-1 | SCREW M5X20 3600H |
| 142 | 266211-9 | SCREW 5 X 40 X HK0500 |
| 143 | 267066-5 | FLAT WASHER 5 X6811DW |
| 144 | 234051-3 | COMPRESSION SPRING 11 X HR3210C |
| 145 | 450255-1 | BASE HANDLE X HR3210C |
| 146 | 419014-2 | DUST COVER SUPPORT X HR4011C |
| 147 | 421912-8 | DUST COVER X HR4011C |
| 148 | 450256-9 | HANDLE X HR3210C |
| 149 | 419025-7 | SWITCH X HR4011C |
| 150 | 154626-1 | SWITCH HOLDER HR4001C |
| 151 | 650567-4 | SWITCH TG73B-1 HR4001C |
| 152 | 450257-7 | COVER HANDLE X HR3200C |
| 153 | 265995-6 | SCREW M4X18 X 6408/6221DW |
| 154 | 267383-3 | WASHER 22 HR3200C |
| 155 | 267721-9 | WASHER Ondul. 19 FOR HM1202 |
| 156 | 213083-3 | RING 9 X HR3200C |
| 999 | 188646-3 | SERVICE KIT HR3540C |
| 1000 | 695123-3 | CABLE 1.5-2-4.0 9077S |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
