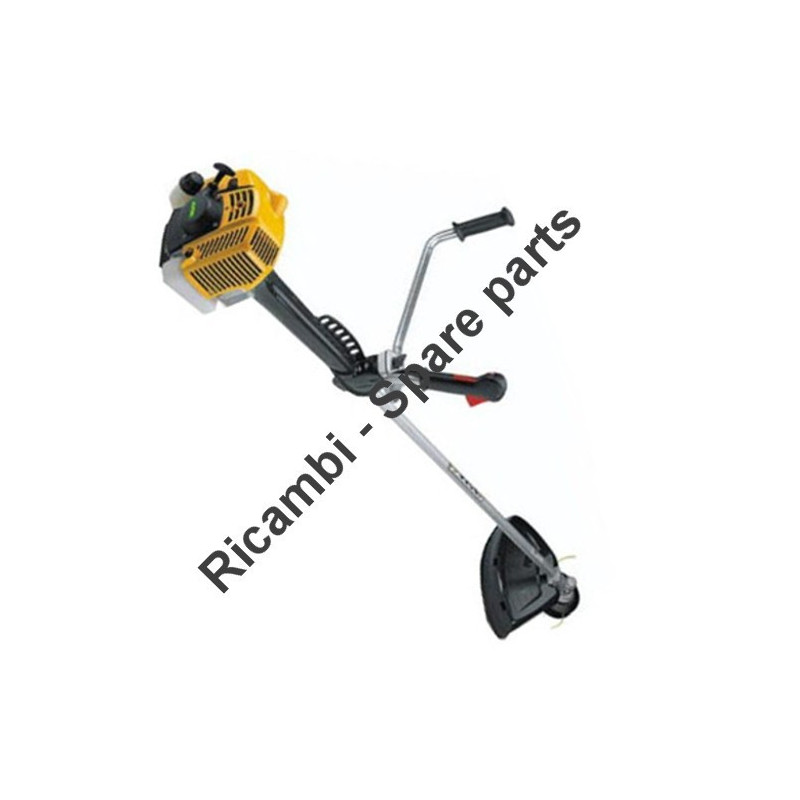

Alpina Spare Parts for Brushcutter STAR 55 DP (2012) 285621000/05
€1.41
Tax included
Alpina Spare Parts for Brushcutter STAR 55 DP (2012) 285621000/05
Alpina Genuine spare parts or replacement parts for to repair Brushcutter STAR 55 DP (2012) 285621000/05.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Brushcutter STAR 55 DP (2012) 285621000/05
Alpina Genuine spare parts or replacement parts for to repair Brushcutter STAR 55 DP (2012) 285621000/05.
In the following table, look for the model of the Brushcutter and the respective parts of the code.
| ALPINA STAR 55 DP (2012) 285621000/05- Pag.1 | ||
| # | Part Num. | Description |
| 1 | 2135040 | Screw |
| 2 | 4540940 | Transmission Support |
| 3 | 2461030 | Square Nut |
| 4 | 2132500 | Screw |
| 5 | 2312120 | Washer |
| 6 | 2350040 | Washer |
| 7 | 2653213 | Screw |
| 8 | 3654220 | Clutch Spring |
| 9 | 3L3660500/1 | Clutch Shoe (1Pc) |
| 10 | 3615020 | External Guide Plate |
| 10 | 3615030 | Internal Guide-Plate |
| 11 | 2135060 | Screw |
| 12 | 2321150 | Washer |
| 13 | 3211670/1 | Electronic Coil |
| 14 | 3211080 | Coil Cable |
| 15 | 3782470 | Cables Guard |
| 16 | 3657450 | Reel Wire Support Band |
| 17 | 3211415 | Earth Cable |
| 18 | 3L8252510/1 | Flywheel assembly |
| 19 | 2412100 | Nut |
| 20 | 2135130 | Screw |
| 23 | 3121120 | Seal ring |
| 24 | 3745130 | Cable grommet |
| 25 | 8540930 | Engine crankcase |
| 26 | 3151050 | Flywheel Key |
| 27 | 3114190 | Needle Bearing |
| 28 | 8251440 | Crankshaft |
| 29 | 3112040 | Ball bearing |
| 30 | 3724120 | Engine Crankcase Gasket |
| 31 | 2432040 | Nut |
| 37 | 2135030 | Screw |
| 38 | 4563880 | cylinder cover Yellow |
| 39 | 4122170 | Muffler |
| 40 | 3724380 | Muffler gasket |
| 41 | 3744850 | Spark Plug Cap |
| 42 | 3657530 | Spark Plug wire terminal |
| 43 | 3210024 | Spark Plug |
| 44 | 2135060 | Screw |
| 45 | 3724130 | Cylinder gasket |
| 46 | 3123110 | Piston Ring Ø 45 |
| 47 | 3158080 | Piston pin |
| 48 | 3356020 | Circlip |
| 49 | 8540960 | Piston assembly Ø 45 |
| 50 | 3L8540970/1 | Piston cylinder assembly Ø 45 (Incl.49) |
| 51 | 2135040 | Screw |
| 52 | 4253290 | Guel Filter |
| 53 | 8745542 | Pipe Grommet |
| 54 | 8741370 | Tank Cap |
| 55 | 4252620 | Tank assembly |
| 56 | 4612237 | Engine Support Flange |
| 57 | 2135040 | Screw |
| 58 | 2321150 | Washer |
| 59 | 2461030 | Nut |
| 64 | 8724380 | Gaskets Set |
| 67 | 2135180 | Screw |
| 68 | 3750537 | Cover Spacer |
| 69 | 2135030 | Screw |
| 71 | 123160051/0 | Spacer |
| 72 | 383082000/0 | Starter Cup |
| ALPINA STAR 55 DP (2012) 285621000/05- Pag.2 | ||
| 1 | 1L3724390/2 | Cylinder Manifold Gasket |
| 2 | 3L3749740/1 | Intake manifold |
| 5 | 1L3724160/1 | Carburetor Gaskets |
| 6 | 1L3785050/1 | Spacer |
| 7 | 123054014/1 | Carburetor |
| 8 | 323781004/0 | Air Filter Support Gray |
| 9 | 2312090 | Washer |
| 10 | 2135230 | Screw |
| 11 | 3781640 | Air filter |
| 12 | 323090008/0 | Air Filter Cover new code 323090011/0 |
| 19 | 2135040 | Screw |
| 24 | 3744870 | Primer |
| 25 | 4353150 | Carburetor Seals Kit |
| 27 | 2123090 | Screw |
| 28 | 2312180 | Washer |
| 29 | 323315056/0 | Air Lever |
| 30 | 1L3630600/1 | Throttle Cable Register |
| 31 | 2412090 | Nut |
| 41 | 383037000/0 | Starter assembly |
| 42 | 183300022/0 | Starter rope |
| 43 | 123430591/0 | Spring |
| 44 | 123604010/0 | Starter Pulley |
| 45 | 123430592/0 | Spring |
| 46 | 123445262/0 | Hub |
| 47 | 123878067/0 | Screw |
| ALPINA STAR 55 DP (2012) 285621000/05- Pag.3 | ||
|
1
|
8563830
|
Handle assembly |
|
2
|
2123030
|
Screw |
|
3
|
2135050 | Screw |
|
4
|
112154330/0
|
Nut |
|
5
|
3210970
|
Stop switch |
|
6
|
3L3743431/1
|
Spring |
|
7
|
3743441
|
Safety Lever |
|
8
|
1L3654270/1
|
Spring |
|
9
|
1L3654280/1
|
Spring |
|
10
|
123066008/0
|
Throttle Cable |
|
11
|
3786220
|
Cables protection |
|
12
|
3211590
|
Switch Coil Cable (Red) |
|
13
|
1L3211600/1
|
Earth Cable |
|
14
|
3L4252840/1
|
Handlebar With Left Knob |
|
15
|
3L3744860/1
|
Knob |
|
16
|
2112580
|
Screw |
|
17
|
3750480
|
Wing nut |
|
18
|
8521070
|
Handle support |
|
19
|
2126050
|
Screw |
|
20
|
3654530
|
Spring |
|
21
|
3353080
|
Seeger ring |
|
22
|
3112170
|
Ball bearing |
|
23
|
3L8521000/1
|
Transmission Hub Assembly Ø28 |
|
24
|
2135150
|
Screw |
|
25
|
2432030
|
Nut |
|
26
|
2135160
|
Screw |
|
27
|
3744330
|
Rear Anti-vibration Pad |
|
28
|
3L4563850/2
|
Casing |
|
29
|
3744320
|
Front anti-vibration rubber |
|
30
|
3615190
|
plate |
|
31
|
4563861
|
Front Casing Support Ø 28 |
|
32
|
2135060
|
Screw |
|
33
|
112154330/0
|
Nut |
|
34
|
3L4121861/1
|
Clutch drum assembly |
|
35
|
3642191
|
Bearing Hub |
|
36
|
4251400
|
Transmission Shaft Assembly |
|
37
|
4251724
|
Transmission tube assembly Ø 28 |
|
38
|
3L8563570/1 | Safety guard assembly |
|
39
|
2135030 | Screw |
|
40
|
2312150
|
Washer |
|
41
|
2432040
|
Nut |
|
42
|
3615000
|
Thread cutter sheet |
|
43
|
2312150
|
Washer |
|
44
|
2135060
|
Screw |
|
45
|
4253440
|
Harness |
|
46
|
123046000/0
|
Harness |
| ALPINA STAR 55 DP (2012) 285621000/05- Pag.4 | ||
| 1 | 3L4252790/1 | Head Assembly Ø28 Mm - SUBSTITUITED BY TECH636124+636131 |
| 7 | 2135050 | Screw |
| 8 | 2653090 | Screw |
| 9 | 2653460 | Screw |
| 15 | 3121170 | Seal ring |
| 16 | 3641700/1 | Head Collar DC D. 26 05 |
| 17 | 3641640 | Upper ring |
| 18 | 3612640 | Lower ring |
| 19 | 4560610 | Fixed Cup |
| 22 | 4611880 | Disc 4 Tips |
| 31 | 4353240/1 | 2 Wire Head |
| 41 | 4353000 | 2 Wire Head |
| 45 | 3614950 | plate |
