Makita Spare Parts for Disc Grinder N910
€1.35
Tax included
Makita Spare Parts for Disc Grinder N910
MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for N910 240v 115mm Disc Grinder.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Disc Grinder N910

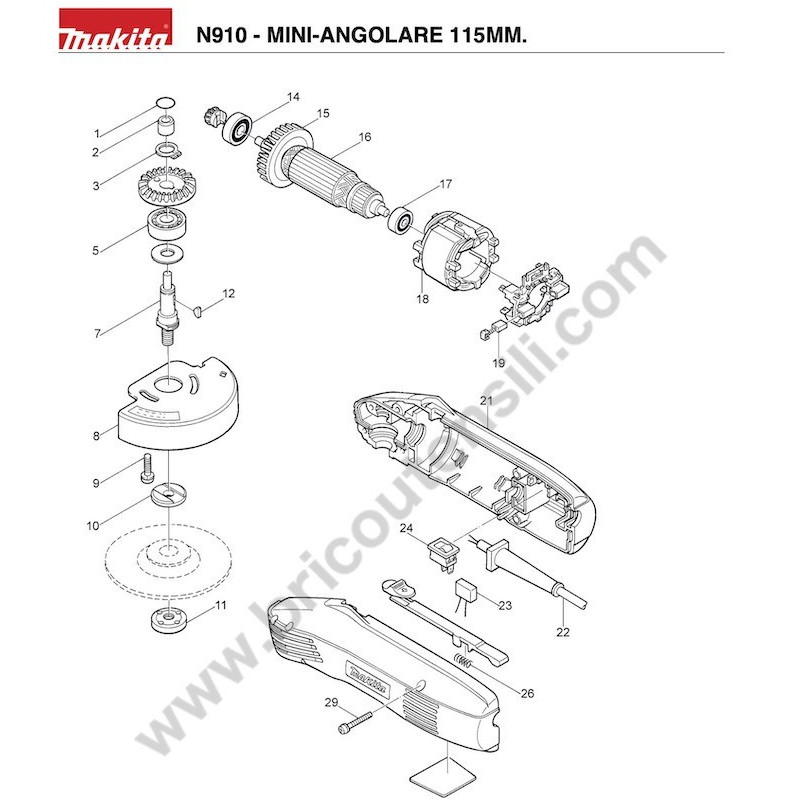

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for N910 240v 115mm Disc Grinder.In the following table, look for the model of the Cordless Angle Grinder and the respective parts of the code.
| Makita N910 240v 115mm Disc Grinder Spare Parts | ||
| # | Part Num. |
Description |
| 1 | 213114-8 | O Ring 11 4300Sb 6510Sb |
| 2 | 212005-0 | Needle Bearing 810 Hr2430 |
| 3 | 961052-5 | Ext Din 471 Circlip-12 |
| 5 | 211129-9 | Ball Bearing 6201Ddw 3601B 9501 / Bga452 / 9565H |
| 7 | 322439-0 | Spindle N910 |
| 8 | 343745-0 | Wheel Cover 910 |
| 9 | 911231-5 | P.H. SCREW M5X20, HR4002 |
| 10 | 224490-5 | Inner Flange |
| 11 | 224543-0 | Lock Nut 14-45 M14 x 2.0mm |
| 12 | 254002-0 | Woodruff Key 3 |
| 13 | 226708-0 | Spiral Bevel Gear 11 N910 |
| 14 | 211061-7 | Ball Bearing 6000DD 6221DW |
| 15 | 241849-1 | Fan 52 X N910 |
| 16 | 517013-9 | Armature Ass'y N919 |
| 17 | 210025-8 | Ball Bearing 627Llb 4324 Ls800Dwb |
| 18 | 633188-7 | Field N910 |
| 19 | 191962-4 | Carbon Brush Set Cb-419 |
| 20 | 632098-5 | Terminal Base Complete 910 |
| 21 | 182781-9 | Housing Set N910 |
| 22 | 666053-5 | Power Cord Cpl. |
| 23 | 645173-8 | Noise Suppressor 3901/5143R 6300Lr - Use 645253-0 |
| 24 | 651514-8 | Switch Ml6A2 910 |
| 25 | 414557-9 | Switch Lever 910 |
| 26 | 231496-6 | Compression Spring 6 |
| 27 | 182781-9 | Housing Set N910 |
| 29 | 911156-3 | P.H. SCREW M4X30, 2412N |
| 501 | 781037-3 | Wrench |
| 502 | 197610-3 | LOCK NUT WRENCH 35 |
| 503 | 682502-4 | Cord Guard 8-85 3707/N1923B |
| 504 | 687124-5 | Strain Relief Bo5031 / Kp0810 Ls1230 / Bo6040 / 190 / Gd0800C |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
