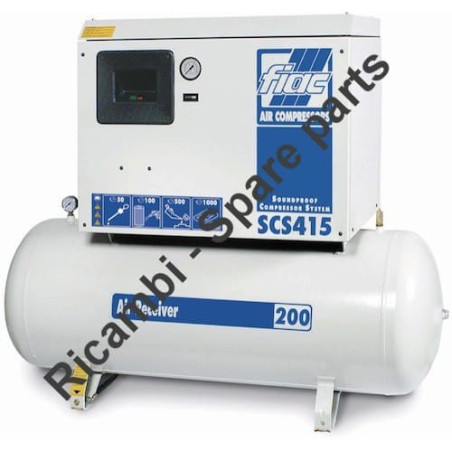

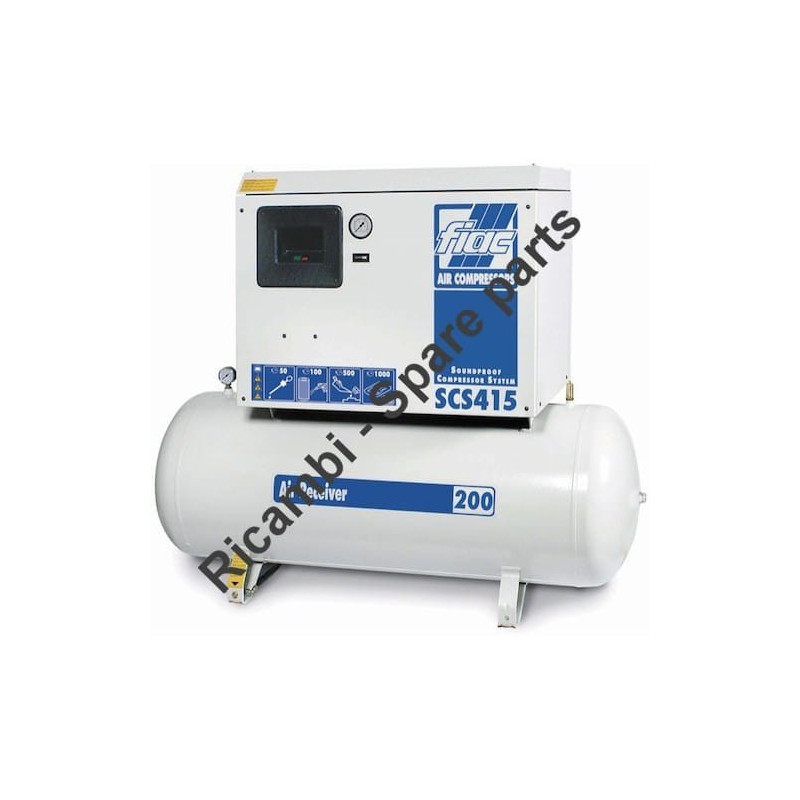

FIAC Spare Parts for Compressor SCS 415-200 - 230V
Fiac Genuine spare parts or replacement parts for to repair Air Compressor SCS 415-200 230-50-1 01-06-2017 1121680670.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Compressor SCS 415-200 - 230V
Fiac Genuine spare parts or replacement parts for to repair Air Compressor SCS 415-200 230-50-1 01-06-2017 1121680670.
In the following table, look for the type of the Compressor and the respective parts of the code.
| Air Compressor SCS 415-200 1121680670 pag.1 | ||
| # | Part Num. | Description |
| 1 | X | UPPER PANEL |
| 2 | 7014420000 | SCREW |
| 3. | X | REAR PANEL |
| 4. | X | SIDE PANEL |
| 5. | X | FRONT PANEL |
| 6 | 7153140000 | CONVEYOR |
| 7. | X | SIDE PANEL |
| 8 | 5167350008 | INNER PANEL |
| 9 | 5167360008 | BASE PLATE |
| 10 | 5167370008 | PUMP UNIT |
| 41 | 7364420000 | BASE PLATE |
| 12 | X | SCREW |
| 13 | X | SCREW |
| 14 | 7020070000 | VIBRATION-DAMPING |
| 15 | 7020070000 | NUT |
| 16 | 7371310000 | BELT |
| 17 | 7406160000 | PULLEY |
| 18 | 7381400000 | SINGLE PHASE MOTOR |
| 19 | X | SCREW |
| 20 | 7030040000 | WASHER |
| 21 | 7020080000 | NUT |
| 22 | 7111030000 | PRESSURE GAUGE |
| 23 | 7080890000 | FITTING |
| 24 | 7563510000 | HOUR COUNTER |
| 25 | 7085700000 | FITTING |
| 26 | 7326650000 | CABLE |
| 27 | x | CABLE |
| 28 | 7329050000 | POWER CABLE |
| 29 | 7251221000 | PRESSURE SWITCH (7,5-10HP) |
| 30 | 7234470000 | RILSAN TUBE |
| 31 | 7084220000 | FITTING |
| 32 | 7016070000 | PLUG |
| 33 | 7090080000 | PLUG |
| 34 | 1127810153 | BRACKET |
| 35 | 7155631000 | DASHBOARD |
| 36 | 7500440000 | CABLE GLAND |
| 37 | 7500440010 | LOCK NUT |
| 38 | 7012240000 | SCREW |
| 39 | 7014450000 | SCREW |
| 40 | 7010500000 | SCREW |
| 41 | 7011210000 | SCREW |
| 42 | 7360400000 | RUBBER FOOT |
| 43 | 7360400000 | RUBBER FOOT |
| 44 | 5156280008 | TANK - DISCONTINUED |
| 45 | 7190150000 | CHECK VALVE |
| 46 | 7192010000 | RELIEF VALVE |
| 47 | 7080780000 | FITTING |
| 48 | 7080160000 | FITTING |
| 49 | 7234530000 | INFEED HOSE |
| 50 | 1126000296 | FITTING |
| 51 | X | FITTING |
| 52 | 7081311150 | FITTING |
| 53 | 7239350000 | INFEED HOSE |
| 54 | X | RUBBER HOSE |
| 55 | 1129101583 | SUPPORT |
| Air Compressor SCS 415-200 1121680670 pag.2 | ||
| 1 | 9105450240 | CONNECTING ROD AB415 |
| 2 | X | SCREW |
| 3 | X | SCREW |
| 4 | X | SCREW |
| 5 | X | SCREW |
| 6 | X | SCREW |
| 7 | X | SCREW |
| 8 | X | SCREW |
| 9 | X | SCREW |
| 10 | X | SCREW |
| 11 | 4080070000 | PISTON RING KIT |
| 12 | X | WASHER |
| 13 | X | WASHER |
| 14 | 7041410000 | INTERNAL SNAPRING |
| 15 | 7050110000 | GUDGEON PIN |
| 16 | 7051510000 | KEY ROUND 5x7,5 |
| 17 | 7060060000 | BEARING |
| 18 | 7060150000 | BEARING |
| 19 | X | ORING |
| 20 | X | O RING |
| 21 | X | O RING |
| 22 | X | OIL SEAL |
| 23 | X | GASKET |
| 24 | X | GASKET |
| 25 | X | GASKET |
| 26 | 7090090000 | PLUG |
| 27 | 9700000408 | OIL SIGHT GLASS |
| 29 | 7201010000 | FLYWHEEL |
| 30 | 7210680000 | FILTER ELEMENT |
| 31 | 7220090000 | PISTON 65MM |
| 31A | 9700002940 | PISTON KIT 65MM |
| 32 | 9100270270 | COOLER |
| 33 | X | O RING |
| 34 | 9105450010 | CRANKCASE |
| 35 | 9105450250 | CRANKSHAFT |
| 36 | 9105450060 | CYLINDER |
| 37 | 9105450070 | FRONT COVER |
| 38 | 9105450080 | REAR COVER |
| 39 | 9105450090 | CASING COVER |
| 42 | X | GASKET |
| 44 | 9105450180 | HEAD |
| 45 | 7153140000 | CONVEYOR |
| 46 | 9700001377 | OIL FILLER NECK KOMPLETT |
| 100 | 4231260000 | |
| 101 | 4291070000 | CON ROD PISTON KIT |
| 102 | 4250130000 | INTAKE FILTER KIT |
| 103 | 4081990000 | GASKETS KIT |
| 104 | 4080480000 | SCREWS KIT |
| Air Compressor SCS 415-200 1121680670 pag.3 | ||
| 100 | 7472450000 | TANK |
| 101 | 7192010000 | RELIEF VALVE |
| 102 | 7130150000 | BALL COCK |
| 103 | X | FITTING |
| 104 | 7234470000 | RILSAN TUBE |
| 105 | 7080970000 | FITTING |
| 106 | 7130170000 | BALL COCK |
| 107 | 7082050000 | FITTING |
| 108 | 7090090000 | PLUG |
| 109 | 7090030000 | PLUG |
| 110 | 7239220000 | INFEED HOSE |
| 111 | 7080160000 | FITTING |
