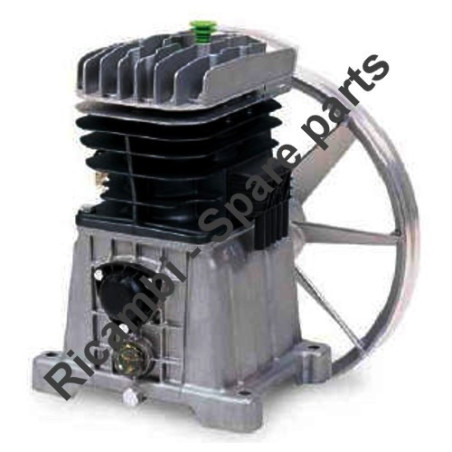

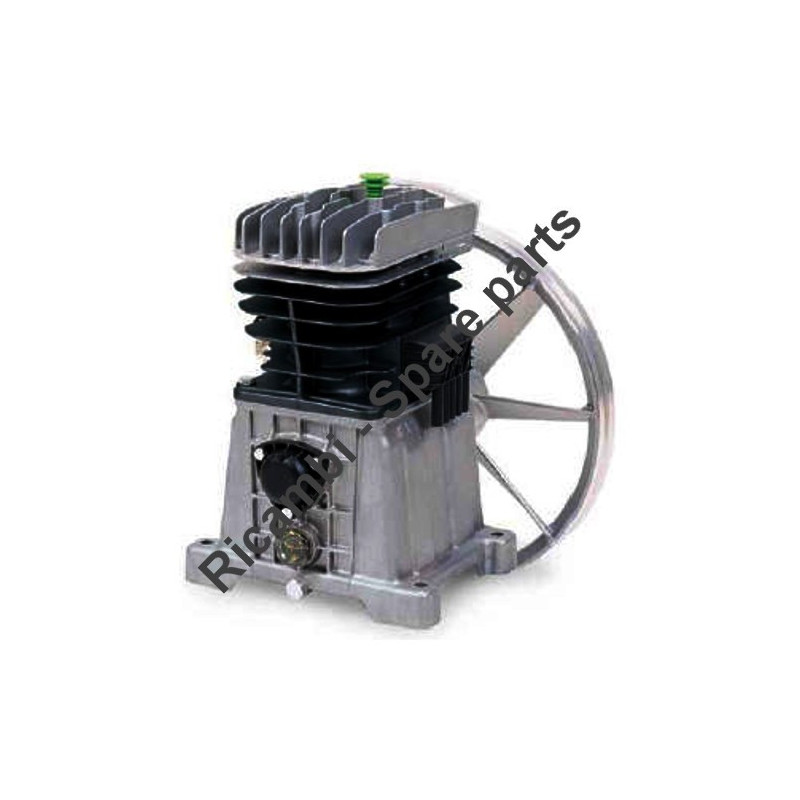

FIAC Spare Parts for Piston Air Compressor Pump Unit AB 335
€30.62
Tax included
FIAC Spare Parts for Piston Air Compressor Pump Unit AB 335
We have the original Spares for FIAC Pump Unit AB 335, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Pump Unit AB 335. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Piston Air Compressor Pump Unit AB 335
We have the original Spares for FIAC Pump Unit AB 335, the diagram, parts list and tool repair that help you need to get your tools running like new again.
In the following table, look for the model of the pumping unit and the respective parts code.
| PUMP UNIT AB 335 data validità - da 11/03/2002 | ||
| # | Part Num. | Description |
| 1 | 7010080000 | Screw M8x35 UNI-5931 |
| 2 | 7091120000 | stopper |
| 3 | 7010350000 | Screw M6X22 UNI-5931 |
| 4 | 7570580000 | Head |
| 5 | 7079540000 | gasket |
| 6 | 4231170000 | Valves plate |
| 7 | 7079550000 | gasket |
| 8 | 4080030000 | Piston rings Set |
| 9 | 7220050000 | PISTON |
| 10 | 7050030000 | Pin Ø 13 |
| 11 | 7041030000 | Seeger Ø13 |
| 12 | 5050550008 | Connecting Rod |
| 13 | 7070360000 | O-Ring Ø53x2 |
| 14 | 7012220000 | Screw M8X 25 UNI-8112 |
| 15 | 5060740008 | CYLINDER |
| 16 | 7079530000 | GASKET |
| 17 | 7670060000 | sump |
| 18 | 7060180000 | Bearing 6203 "17X40X12 |
| 19 | 7070350000 | O-Ring |
| 20 | 7151200000 | SIDE BLIND HOLDER AB 245 PLASTIC |
| ** | 7151410000 | SIDE BLIND HOLDER AB 245 + PLASTIC VENT - DISCONTINUED |
| 21 | 7011460000 | Screw M6X16 TAP-TITE |
| 22 | 7180120000 | OIL SIGHT GLASS D. 20 AB 245 |
| 23 | 7011460000 | Screw M6X16 TAP-TITE |
| 24 | 7012060000 | Screw M4X12 UNI-8112 |
| 25 | 7151240000 | Plastic cover |
| 26 | 4086990000 | Kit suction filter |
| 27 | 7151230000 | FILTER PLATE AB 410/510-NEW |
| 28 | 7210610000 | filter element |
| 29 | 5041160008 | CRANKSHAFT - DISCONTINUED |
| 30 | 7071290000 | OIL SEAL 20X40X7 |
| 31 | 7051500000 | tab 4X6,5 |
| 32 | 7060200000 | bearing 6204 |
| 33 | 7151210000 | SIDE PERFORATED HOLDER AB 245 "PLASTIC" |
| 34 | 7201000000 | flywheel |
| 35 | 7030270000 | Washer Ø8,5X30X4 UNI-6593 |
| 36 | 7031010000 | Washer Ø8 UNI-3703 |
| 37 | 7011100000 | Screw M8X25 UNI-5739 |
| 38 | 7070110000 | O-Ring 3037 |
| 39 | 7153070000 | conveyor |
| 40 | 7012090000 | Screw M5X12 UNI-8112 |
| 41 | 7040160000 | Seeger E 32 |
| 100 | 4082800000 | Kit Valve plate ----->> NEW 9100280210 |
| 101 | 4291030000 | Kit piston + Ring + Pin |
| 102 | 4082220000 | Gasket Kit |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB335 - da 11/03/2002
