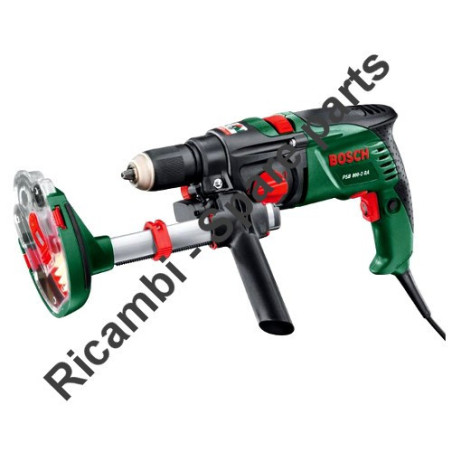

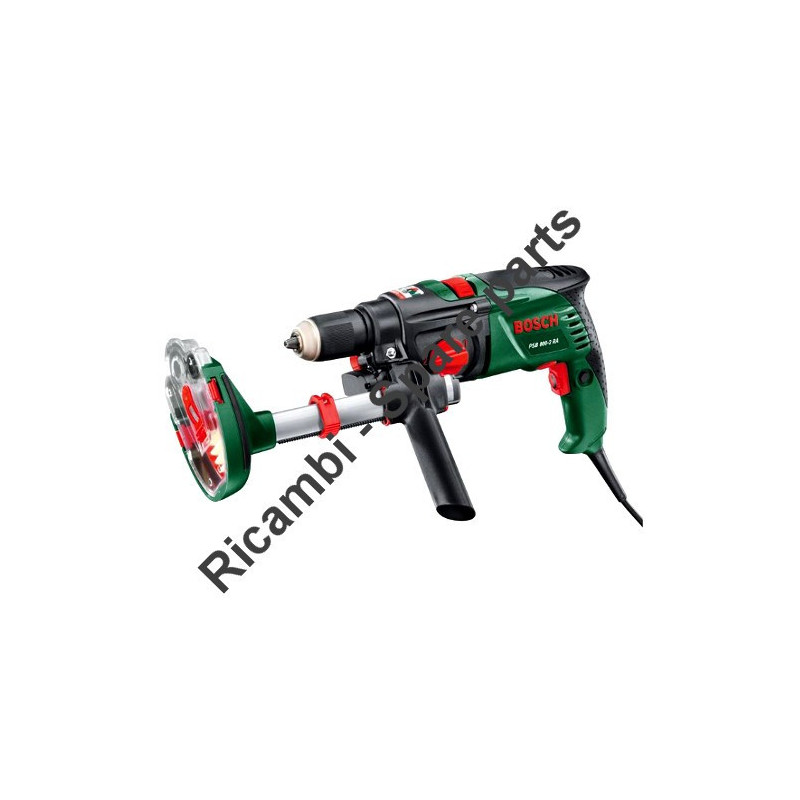

Bosch Spare Parts for Percussion Drill PSB 800-2 RA
€1.69
Tax included
Bosch Spare Parts for Percussion Drill PSB 800-2 RA
Bosch original spare parts to replace worn components or repair damaged parts of the Percussion Drill PSB 800-2 RA - 3603A72700.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Percussion Drill PSB 800-2 RA
Bosch original spare parts to replace worn components or repair damaged parts of the Percussion Drill PSB 800-2 RA - 3603A72700.
In the following table, look for the model of the Percussion Drill and the respective parts of the code.
| Percussion Drill PSB 800-2 RA/3 603 A72 700 | ||
| # | Part Num. | Description |
| 1 | 2605105081 | Housing Section |
| 2 | 2604220669 | Field 230V |
| 3 | 2604011329 | Armature 230V |
| 4 | 2607200601 | Switch |
| 5 | 1607000387 | Power supply cord EU 2,65m 2 x 0,75mm |
| 6 | 2609002019 | Grommet |
| 9 | 2601116998 | Manufacturer's nameplate PSB 800-2 RA |
| 2609002038 | Manufacturer's nameplate PSB 780-2 RE | |
| 16 | 2604337059 | Brush Plate |
| 21 | 2910611002 | Tapping Screw DIN 7981-ST2,2x9,5-C-H |
| 22 | 2603490022 | Torx Oval-Head Screw 4x16 |
| 23 | 1900210000 | O-Ring 5,0x1,5 MM |
| 24 | 2601099146 | Protection cover |
| 27 | 2609001247 | Reversing Switch |
| 30 | 2606135130 | Drilling Spindle |
| 31 | 2608572242 | Keyless Chuck |
| 32 | 1900905163 | groove ball bearing 17x35x10 |
| 33 | 2916650008 | Spring retaining ring DIN 471 17x1 MM |
| 34 | 2916660014 | Spring retaining ring DIN 472 35x1,5 MM |
| 35 | 2600100695 | Shim 0,5 MM |
| 36 | 2606317084 | Cylindrical Gear |
| 37 | 2606317098 | Cylindrical Gear |
| 38 | 2600190105 | Catch Disk |
| 39 | 2604616013 | Compression Spring |
| 42 | 2600000021 | Shim washer 1,0 MM |
| 2600000030 | Shim washer 1,35 MM | |
| 2600000031 | Shim washer 1,7 MM | |
| 43 | 1903230009 | Ball DIN 5401-5 G28 |
| 1903230010 | Ball DIN 5401-5,5MM-III-ST | |
| 2603230007 | Ball 5,25 MM | |
| 44 | 1600100632 | Shim 0,2 MM THICK |
| 46 | 2606440017 | Carrier |
| 47 | 2602210043 | Eccentric |
| 48 | 2600100607 | Shim 0,3 MM |
| 49 | 2609007376 | Roller Body |
| 50 | 2600202008 | Retaining snap ring |
| 63 | 2601328003 | Holding Plate |
| 64 | 2602033017 | Link Guide |
| 65 | 2601990045 | Fork Lever |
| 66 | 2600101671 | Retaining Washer |
| 67 | 2602300032 | Flat Key |
| 68 | 2604616014 | Compression Spring |
| 69 | 2602026137 | Rotary Knob |
| 70 | 3600210003 | O-Ring 15,6x1,8 MM |
| 71 | 2600590006 | Ratchet Cap |
| 77 | 2602123007 | Rocker |
| 78 | 2601329043 | Contact Strap |
| 80 | 2601990044 | Guiding Plate |
| 81 | 2602098021 | Changeover Lever |
| 82 | 2601290030 | Leaf Spring |
| 83 | 2604610056 | Compression Spring |
| 84 | 2603105115 | Bolt |
| 85 | 2605510222 | Sealing cap |
| 90 | 2603435087 | Headless Screw |
| 91 | 2603435088 | Thread-forming tap. Screw |
| 92 | 1614431025 | Pvc-Insulated Cable L=95 MM |
| 93 | 2601328077 | Air Path |
| 94 | 2601116906 | Reference Plate |
| 95 | 2601250010 | Pickup Clip |
| 96 | 2604448228 | Pvc-Insulated Cable L=120 MM BLUE |
| 657/1 | 2600206003 | Friction Ring |
| 808 | 2601115034 | Nameplate |
| 829 | 2605806886 | Gear Housing |
| 845 | 2606309940 | Transmission |
| 855 | 2602025904 | Handle |
| 860 | 2605807940 | Bearing Bracket |
| 883 | 2607030901 | Filter |
| 880 | 2605190921 | Box |
| 890 | 2607001305 | Fastening parts kit |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
