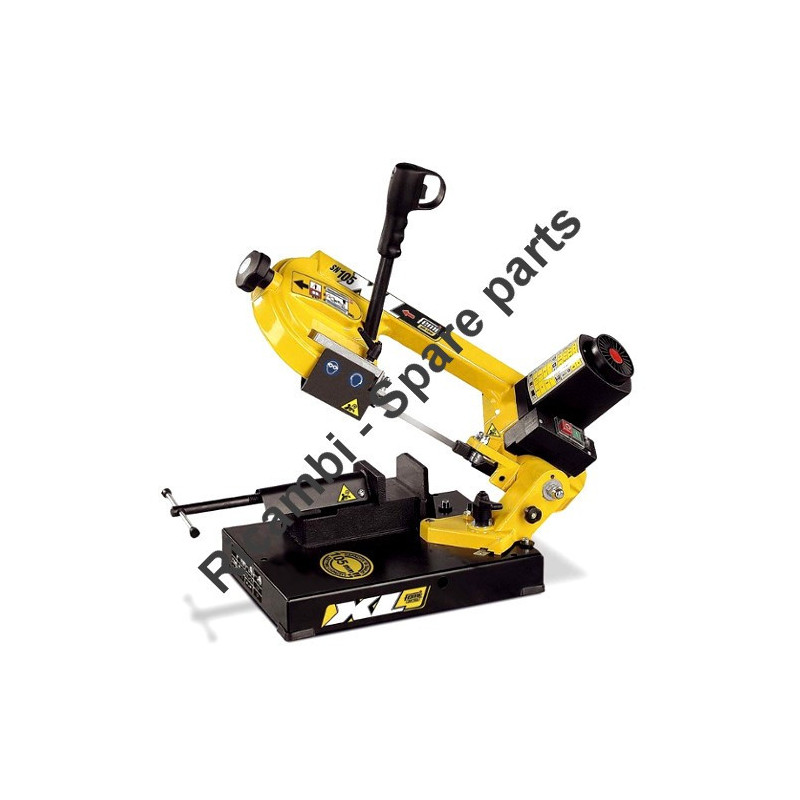

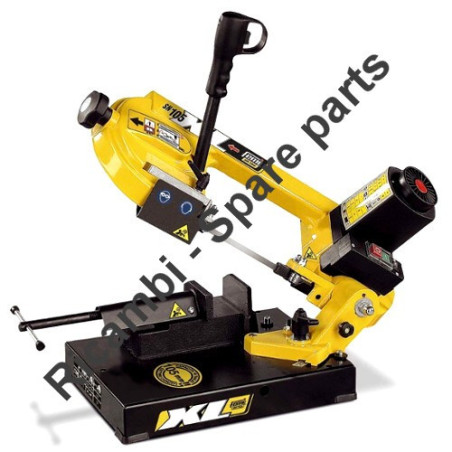

Femi Spare Parts for Transportable Band Saw SN105XL-8484024
€41.74
Tax included
Femi Spare Parts for Transportable Band Saw SN105XL-8484024
We are FEMI original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Transportable Band Saw for metal SN105XL-8484024 - 8484022.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Transportable Band Saw SN105XL-8484024
We are FEMI original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Transportable Band Saw for metal SN105XL-8484024 - 8484022.
In the following table, look for the model of the Band Saw for metal and the respective parts of the code.
| Segatrice a Nastro Trasportabile SN105XL-8484024 | ||
| # | Part Num. | Description |
| 2 | 5181623 | PROTECTION |
| 5214016 | INCLUDED IN CODE 5214019 | |
| 4 | 5214019 | DRIVING WHEEL |
| 5 | 0155142 | THICKNESS WASHER |
| 6 | 0600607 | BALL BEARING |
| 7 | 5120638 | SPACER |
| 8 | 0174022 | NEEDLE |
| 9 | 0129004 | INOX STEEL WASHER |
| 10 | 0590624 | BALL BEARING |
| 12 | 0311080 | EXAGONAL HEAD SCREW |
| 13 | 0606202 | BALL BEARING |
| 14 | 7213003 | FIRST GEAR GROUP |
| 15 | 0570627 | BALL BEARING |
| 16 | 0155013 | ELASTIC RING |
| 17 | 0730810 | CAGE BEARING |
| 18 | 0155136 | THICKNESS WASHER |
| 19 | 7801612 | MOTOR |
| 20 | 5182522 | GEAR COVER |
| 22 | 5061039 | RUBBER BUSHING |
| 23 | 5024111 | STATOR - FIELD ASSY |
| 24 | 7013130 | ARMATURE |
| 25 | 5850109 | CARBON BRUSHE SET ASSY |
| 26 | 0816005 | RADIO INTERFERENCE SUPPRESSOR |
| 27 | 5061038 | RUBBER BUSHING |
| 28 | 5850005 | CARBON BRUSHE HOLDER |
| 29 | 5112024 | MOTOR FAN |
| 30 | 0155140 | THICKNESS WASHER |
| 31 | 5182816 | MOTOR COVER |
| 33 | 0102106 | CAP NUT |
| 34 | 0120206 | WASHER |
| 38 | 0730609 | CAGE BEARING |
| 41 | 7213007 | STRAIGHT GEAR GROUP |
| 42 | 7213001 | GEAR GROUP |
| 47 | 5154103 | CABLE LOCKING DEVICE |
| 50 | 5181016 | BLADE CLEANER |
| 51 | 5130733 | BRACKET |
| 52 | 5100064 | SCREW |
| 53 | 5100065 | SCREW |
| 54 | 0400604 | SCREW |
| 55 | 0179901 | NEEDLE |
| 56 | 5001564 | (included into code 5001572) |
| 57 | 5137869 | (included into code 5137914) |
| 58 | 0155152 | THICKNESS WASHER |
| 59 | 0596002 | BALL BEARING |
| 60 | 5120663 | SPACER |
| 62 | 5124062 | WASHER |
| 64 | 5214225 | FREE WHEEL |
| 66 | 5130734 | WHEEL GUIDE |
| 67 | 0124026 | THICKNESS WASHER |
| 68 | 5081005 | SPRING |
| 70 | 0140074 | HANDWHEEL |
| 71 | 5100506 | (included into code 5100507) |
| 72 | 5081021 | (included into code 0080256x12) |
| 76 | 5142070 | LEVER |
| 77 | 5181843 | SLIDING PROTECTION |
| 78 | 0129004 | INOX STEEL WASHER |
| 79 | 5870847 | CABLE |
| 82 | 5130932 | BLADE GUIDE |
| 83 | 0120706 | PLAIN WASHER |
| 84 | 0147000 | HAND LEVER |
| 85 | 0802317 | SWITCH |
| 86 | 5050117 | HANDLE |
| 87 | 5182520 | SWITCH COVER |
| 88 | 0802314 | SWITCH |
| 89 | 7890101 | CLAMP GROUP |
| 92 | 0802606 | SWITCH |
| 94 | 0816004 | RADIO INTERFERENCE SUPPRESSOR |
| 95 | 5870843 | CABLE |
| 96 | 5154501 | CABLE LOCKING DEVICE |
| 97 | 5182840 | SWITCH BOX |
| 98 | 0063027 | BUSHING |
| 99 | 5080116 | SPRING |
| 100 | 0155143 | THICKNESS WASHER |
| 101 | 0147002 | HAND LEVER |
| 103 | 0120710 | PLAIN WASHER |
| 105 | 0102110 | CAP NUT |
| 106 | 5171043 | LOCKING PIN |
| 107 | 0140076 | HANDWHEEL |
| 108 | 0222021 | O-RING SEAL |
| 109 | 0151409 | SNAP RING |
| 110 | 0402905 | RIVET |
| 111 | 5401319 | GRADUATE PLATE |
| 113 | 5124029 | ECCENTRIC |
| 114 | 7130535 | ROD STOP GROUP |
| 115 | 0401001 | SCREW |
| 119 | 0150701 | CYLINDRIC PIN WITH SLOT |
| 122 | 0080261 | SPRING WASHER |
| 123 | 0063042 | SLEEVE |
| 124 | 7130673 | (included into code 7130680) |
| 130 | 5133637 | ANGULAR PLASTIC FOOT |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Femi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Femi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Femi SN105XL - 8484024
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM CODE OR S/N FEMI:
- FEMI ITEM CODE START WITH (8....) AND HAVE 7 DIGITS
