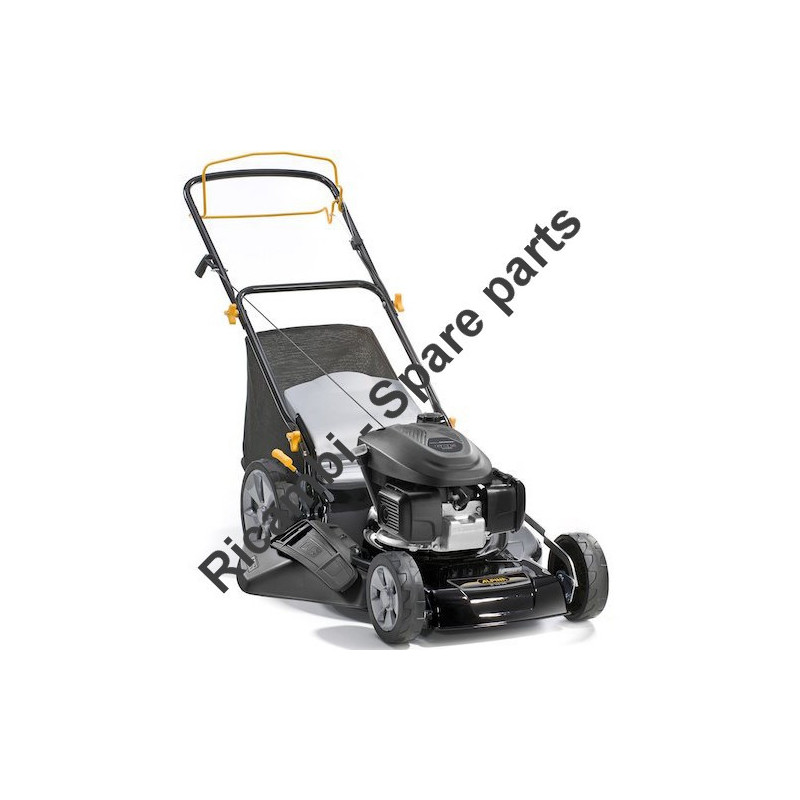

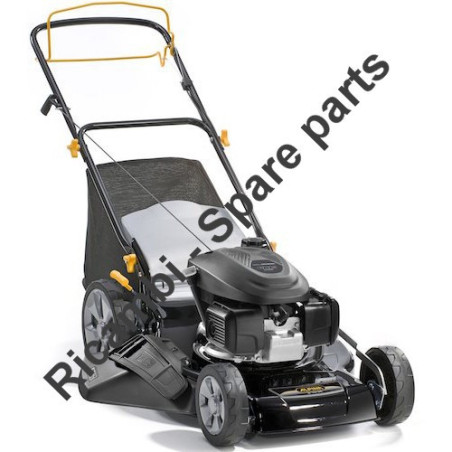

Alpina Spare Parts for Self Propelled Petrol Lawnmower BL 510 SHQ
€1.86
Tax included
Alpina Spare Parts for Self Propelled Petrol Lawnmower BL 510 SHQ
Alpina Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Self Propelled Lawnmower BL 510 SHQ - 295546934/A15-2018.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Self Propelled Petrol Lawnmower BL 510 SHQ
Alpina Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Self Propelled Lawnmower BL 510 SHQ - 295546934/A15-2018.
In the following table, look for the model of the Lawn Mower and the respective parts of the code.
| Self Propelled Lawnmower BL 510 SHQ - 295546934/A15-2018 | ||
| Chassis Pag.1 | ||
| # | Part Num. | Description |
| 1 | 381004941/0 | Red Chassis |
| 1 | 381004941/1 | Red Chassis Side Exit |
| 2 | 322108308/1 | Rear Baffle |
| 3 | 112728699/0 | Screw |
| 4 | 322108302/0 | Rear Baffle To 31-August-2017 |
| 4 | 322108392/0 | Rear Baffle From 01-September-2018 |
| 5 | 112728699/0 | Screw |
| 6 | 322545213/0 | Plate |
| 7 | 381005167/1 | Left Bracket |
| 8 | 112727801/0 | Screw |
| 9 | 381005165/1 | Right Bracket |
| 10 | 322060250/1 | Belt Protection Guard |
| 11 | 322140244/1 | Mulching Deflector |
| 12 | 112728531/0 | Screw |
| 13 | 322820077/1 | Cap |
| 14 | 112728450/0 | Screw |
| 15 | 119035000/0 | Ring Or |
| 16 | 322034002/0 | Connector |
| 17 | 322055606/0 | Insert |
| Height Adjustment Control Rod Pag.2 | ||
| 1 | 381302853/0 | Front Wheel Axle |
| 2 | 322545142/0 | Plate |
| 3 | 112728698/0 | Screw |
| 4 | 112521350/0 | Washer |
| 5 | 112155000/0 | Nut |
| 6 | 112436051/0 | Plate |
| 7 | 322869679/0 | Height Adjustment Control Rod |
| 8 | 122519823/0 | Pin |
| 9 | 122446193/0 | Spring |
| 10 | 322600145/0 | Wheel Protection |
| 11 | 112728698/0 | Screw |
| 12 | 322545152/0 | Plate |
| 13 | 381302849/0 | Rear Wheel Axle |
| 14 | 122534131/0 | Pin |
| 15 | 381003458/0 | Height Adjustment Lever |
| 16 | 122446192/0 | Spring |
| 17 | 112154510/0 | Nut |
| 18 | 322600240/0 | Inner Wheel Cover |
| 21 | 112521350/0 | Washer |
| 22 | 112155000/0 | Nut |
| Handle, Lower Part Pag.3 | ||
| 1 | 381006785/0 | Handle, Lower Part |
| 2 | 112819110/0 | Screw |
| 3 | 122671651/0 | Washer |
| 4 | 322399840/0 | Yellow knob |
| 5 | 112293200/0 | Nut |
| 7 | 112818900/0 | Screw |
| 9 | 322399840/0 | Yellow knob |
| 10 | 112293200/0 | Nut |
| 11 | 112155000/0 | Nut |
| 12 | 112521350/0 | Washer |
| 13 | 112369500/0 | Elastic Disc |
| 14 | 112760605/0 | Screw |
| 15 | 381008692/0 | Screw |
| Handle Upper Part Pag.4 | ||
| 1 | 381006740/0 | Handle, Upper Part |
| 2 | 112727783/0 | Screw |
| 3 | 322551640/0 | Plate |
| 4 | 381030085/0 | Traction Control Cable |
| 5 | 181030089/0 | Motor Brake Cable |
| 6 | 112154510/0 | Nut |
| 7 | 112154510/0 | Nut |
| 8 | 112521330/0 | Washer |
| 9 | 122430313/0 | Guide spring |
| 10 | 381003394/0 | Yellow Engine Brake Lever |
| 10 | 381003394/1 | Yellow Engine Brake Lever |
| 11 | 381003395/0 | Yellow Traction Lever |
| Traction Group Pag.5 | ||
| 1 | 112608600/0 | Seeger |
| 2 | 122570134/0 | Left Pinion |
| 3 | 122570133/0 | Right Pinion |
| 4 | 322042067/0 | Bush |
| 5 | 112521371/0 | Washer |
| 6 | 181003092/0 | Trasmission Gear Box Ass'y |
| 7 | 122601904/0 | Pulley |
| 7 | 122601909/0 | Pulley |
| 8 | 112645700/0 | Elastic Plug |
| 9 | 122033283/0 | Adjustment rod |
| 10 | 135064196/0 | Belt |
| 11 | 122041957/1 | Bush |
| 12 | 122450063/0 | Spring |
| 13 | 322680009/0 | Washer |
| 14 | 112154510/0 | Nut |
| 15 | 122110230/0 | Hubcap |
| 16 | 122753000/0 | Plug |
| Wheel Pag.6 | ||
| 1 | 381007481/0 | Wheel |
| 1 | 381007481/1 | Wheel |
| 2 | 322042064/0 | Bush |
| 3 | 322110643/0 | Gray hubcap |
| 5 | 381007486/0 | Wheel |
| 5A | 381007472/0 | Wheel |
| 5 | 381007486/1 | Rear Wheel Ass'y From 01-september-2012 |
| 6 | 322042064/0 | Bush |
| 7 | 112728706/0 | Screw |
| 8 | 322120115/0 | Crown |
| 9 | 322110644/0 | Gray hubcap |
| Side Discharge Pag.7 | ||
| 1 | 322108309/1 | Rear conveyor |
| 2 | 322600314/0 | Guard |
| 3 | 112727803/0 | Screw |
| 4 | 322806659/0 | Pin |
| 5 | 112154510/0 | Nut |
| 6 | 118203853/0 | Hood |
| 7 | 122450456/0 | Spring |
| 8 | 122517869/1 | Pin |
| 9 | 112604896/0 | Crown Fixator |
| 10 | 122517876/0 | Pin |
| 11 | 322783013/0 | Safety |
| 12 | 122450493/0 | Spring |
| Honda Engine Cover Pag.8 | ||
| 1 | 322055514/0 | Gray Hood |
| 2 | 322055515/0 | Yellow Hood Ring |
| 2 | 322055515/1 | Yellow Hood Ring |
| Blade Pag.9 | ||
| 1 | 112735108/1 | Screw |
| 2 | 122465608/2 | Hub With Pulley, Crankshaft Ø 25 |
| 3 | 181004459/0 | Blade |
| 4 | 122160400/0 | Spring Washer |
| 5 | 112523080/0 | Washer |
| 6 | 112735698/0 | Screw |
| 7 | 112139150/0 | Woodruff 4,77x15,38 H 5,98 Blade Holder Shaft Ø 25 |
| 8 | 112154210/0 | Nut |
| Grass Bag Pag.10 | ||
| 1 | 322785331/0 | Support |
| 2 | 122450464/0 | Spring |
| 3 | 322109554/0 | Cover Stone Guard Black |
| 3 | 322109556/0 | Cover Stone Guard Yellow |
| 3 | 322109557/0 | Cover Stone Guard Gray |
| 4 | 112728699/0 | Screw |
| 5 | 322600206/1 | Stone Guard Black |
| 5 | 322600214/0 | Stone Guard Yellow |
| 5 | 322600214/1 | Stone Guard Yellow |
| 5 | 322600216/0 | Stone Guard Grey |
| 5 | 322600216/1 | Stone Guard Grey |
| 6 | 181006409/0 | Frame |
| 7 | 181002319/0 | Grass Bag |
| MOTOR OIL pag.11 | ||
| 500 | 1111-9244-01 | Motor Oil 4 Stroke Stiga SAE 30 0,600 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina BL 510 SHQ - 295546934
9 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
