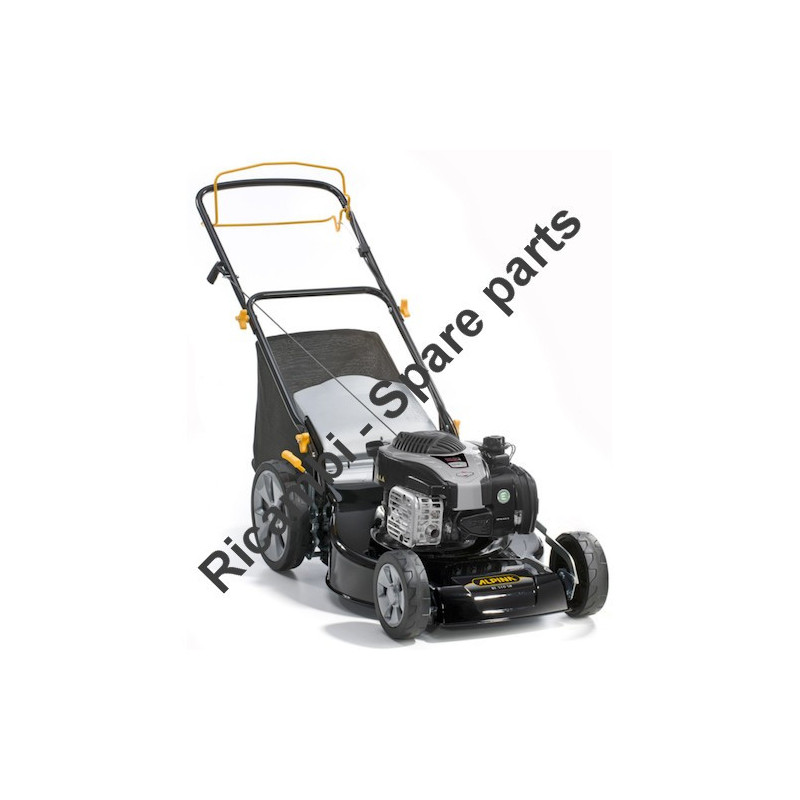

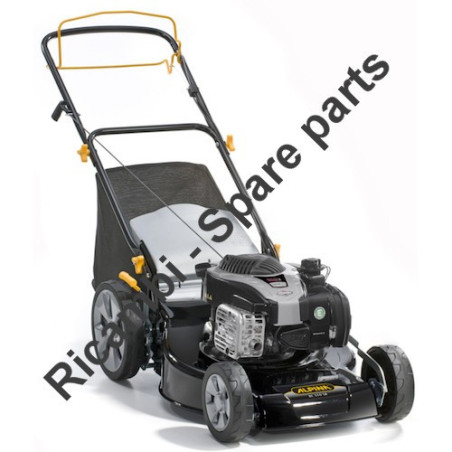

Alpina Spare Parts for Self Propelled Petrol Lawnmower BL 510 SB
€161.35
Tax included
Alpina Spare Parts for Self Propelled Petrol Lawnmower BL 510 SB
Alpina original spare parts for to replace broken parts for to fix Self Propelled Lawnmower BL 510 SB (2016) 295546024/A12 - Season 2016.Fix Your Self Propelled Lawnmower BL 510 SB. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Self Propelled Petrol Lawnmower BL 510 SB
Fix Your Self Propelled Lawnmower BL 510 SB (2016) 295546024/A12 - Season 2016.
All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Lawn Mower and the respective parts of the code.
| ALPINA BL 510 SB (2016) 295546024/A12 - 2016 - Deck Pag.1 |
||
| # | Part Num. | Description |
| 1 | 381004549/0 | Black Deck |
| 2 | 322108308/0 | Rear Conveyor Assy |
| 3 | 112728699/0 | Screw Yellow |
| 4 | 322108302/0 | Rear Conveyor Assy |
| 5 | 112728699/0 | Screw |
| 6 | 322545213/0 | Plate To 31-august-2017 |
| 7 | 381005167/0 | Left Braket to 31-august-2017 |
| 7 | 381005167/1 | Left Bracket From 01-september-2017 |
| 8 | 112727801/0 | Screw |
| 9 | 381005165/0 | Right Bracket to 31-august-2017 |
| 9 | 381005165/1 | Right Bracket From 01-september-2017 |
| 10 | 322060250/0 | Belt Protection |
| 11 | 322140244/0 | Mulching Plug |
| 12 | 112728530/0 | Screw |
| ALPINA BL 510 SB (2016) 295546024/A12 - 2016 - Height Adjusting Pag.2 | ||
| 1 | 381302853/0 | Front Wheel Axle |
| 2 | 322545142/0 | Plate |
| 3 | 112728698/0 | Screw |
| 4 | 112521350/0 | Washer |
| 5 | 112155000/0 | Nut |
| 6 | 112436051/0 | Plate |
| 7 | 322869679/0 | Rod, Height Adjustment |
| 8 | 122519823/0 | Pin |
| 9 | 122446193/0 | Spring |
| 10 | 322600145/0 | Protection, Wheel D. 200 |
| 11 | 112728698/0 | Screw |
| 12 | 322545152/0 | Plate |
| 13 | 381302849/0 | Rear Wheel Axle |
| 14 | 122534131/0 | Pin |
| 15 | 381003399/0 | Wheels Rear Adj. Lever To 31-august-2017 |
| 15 | 381003458/0 | Wheels Rear Adj. Lever From 01-september-2017 |
| 16 | 122446192/0 | Spring |
| 17 | 112154510/0 | Nut |
| 18 | 322600240/0 | Inner Wheel Cover |
| 21 | 112521350/0 | Washer |
| 22 | 112155000/0 | Nut |
| ALPINA BL 510 SB (2016) 295546024/A12 - 2016 - Handle Lower Part Pag.3 | ||
| 1 | 381006785/0 | Handle Lower Part |
| 11 | 112155000/0 | Nut |
| 12 | 112521350/0 | Washer |
| 13 | 112369500/0 | Elastic Washer |
| 14 | 112760605/0 | Screw |
| 15 | 381008692/0 | Outfit, Screws |
| ALPINA BL 510 SB (2016) 295546024/A12 - 2016 - Handle Upper Part Pag.4 | ||
| 1 | 381006740/0 | Handle, Upper Part |
| 2 | 112727783/0 | Screw |
| 3 | 322551640/0 | Plate |
| 4 | 381030085/0 | Cable Rear Drive |
| 5 | 181030089/0 | Cable, Thread Engine Brake |
| 6 | 112154510/0 | Nut |
| 7 | 112154510/0 | Nut |
| 8 | 112521330/0 | Washer |
| 9 | 122430313/0 | Guide Spring |
| 10 | 381003394/0 | Lever, Engine Brake | Lever, Engine Brake Yellow |
| 11 | 381003395/0 | Driving Lever | Lever, Driving Yellow |
| ALPINA BL 510 SB (2016) 295546024/A12 - 2016 - Transmission Pag.5 | ||
| 1 | 112608600/0 | Seeger |
| 2 | 122570134/0 | Left Pinion |
| 3 | 122570133/0 | Right Pinion |
| 4 | 322042067/0 | Bush |
| 5 | 112521371/0 | Washer |
| 6 | 181003092/0 | Gear Box |
| 7 | 122601904/0 | Pulley To 31-august-2013 |
| 7 | 122601909/0 | Pulley From 01-september-2013 |
| 8 | 112645700/0 | Elastic Pin |
| 9 | 122033283/0 | Adjustment Rod |
| 10 | 135064196/0 | Belt |
| 11 | 122041957/1 | Bushing |
| 12 | 122450063/0 | Spring |
| 13 | 322680009/0 | Washer |
| 14 | 112154510/0 | Nut |
| 15 | 122110230/0 | Hub Cover |
| 16 | 122753000/0 | Pin |
| ALPINA BL 510 SB (2016) 295546024/A12 - 2016 - Wheels and Hub Caps Pag.6 | ||
| 1 | 381007481/0 | Wheel To 31-august-2012 |
| 1 | 381007481/1 | Wheel From 01-september-2012 |
| 2 | 322042064/0 | Bushing |
| 3 | 322110643/0 | Hub Cap Grey |
| 5 | 381007486/0 | Wheel To 31-august-2012 |
| 5 | 381007486/1 | Rear Wheel Ass'y From 01-september-2012 |
| 5A | 381007472/0 | Wheel |
| 6 | 322042064/0 | Bushing |
| 7 | 112728706/0 | Screw |
| 8 | 322120115/0 | Wheels Crown |
| 9 | 322110644/0 | Hub Cap Grey |
| ALPINA BL 510 SB (2016) 295546024/A12 - 2016 - Blade Pag.7 | ||
| 1 | 112735108/1 | Screw |
| 2 | 122465607/3 | Hub With Pulley, Crankshaft Ø 22.2 |
| 3 | 181004459/0 | Blade |
| 4 | 122160400/0 | Spring Washer |
| 5 | 112523080/0 | Washer |
| 6 | 112735698/0 | Screw |
| 7 | 112139100/0 | Woodruff Key |
| 8 | 112154210/0 | Nut |
| ALPINA BL 510 SB (2016) 295546024/A12 - 2016 - Grass-Catcher Pag.8 | ||
| 1 | 322785331/0 | Black Stone Guard Support |
| 2 | 122450464/0 | Spring |
| 3 | 322109557/0 | Stone Guard Supp. Cover Grey |
| 4 | 112728699/0 | Screw |
| 5 | 322600216/0 | Stone Guard Grey To 31-august-2011 |
| 5 | 322600216/1 | Stone Guard, Grey From 01-september-2011 |
| 6 | 181006409/0 | Textile Grasscatcher Frame |
| 7 | 181002319/0 | Textile Grasscatcher Black |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina BL 510 SB 2016 295546024
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
