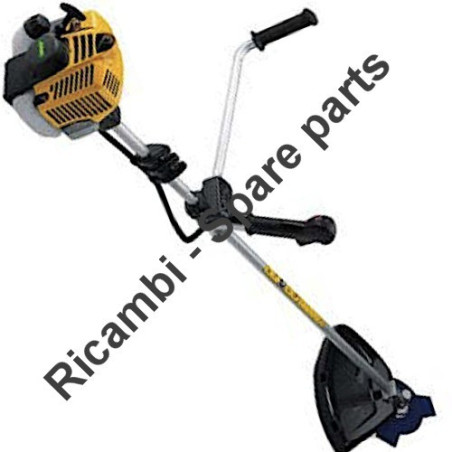

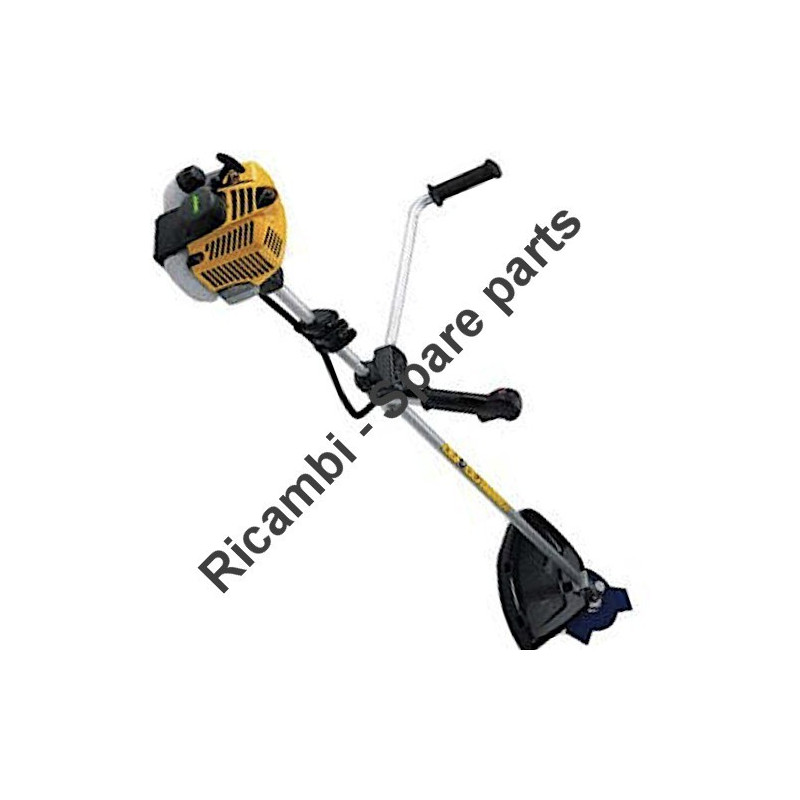

Alpina Spare Parts for Brushcutter STAR 41 D (2008) 184121000
€1.41
Tax included
Alpina Spare Parts for Brushcutter STAR 41 D (2008) 184121000
ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter STAR 41 D (2008) 184121000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Brushcutter STAR 41 D (2008) 184121000
ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter STAR 41 D (2008) 184121000.
In the following table, look for the model of the Brushcutter and the respective parts of the code.
| ALPINA STAR 41 D (2008) 184121000- Pag.1 | ||
| # | Part Num. | Description |
| 1 | 2135040 | Screw |
| 2 | 4540800 | Transmission Support |
| 4 | 2132500 | Screw |
| 5 | 2312120 | Washer |
| 6 | 3745530 | Ggrommet |
| 7 | 2653210 | Screw |
| 8 | 3654040 | Clutch Spring |
| 9 | 3L3660430/1 | Clutch Arm |
| 10 | 2321230 | Washer |
| 11 | 2135060 | Screw |
| 12 | 2321150 | Washer |
| 13 | 3211015 | Electronic Coil |
| 14 | 3211080 | Coil Cable |
| 15 | 3782040 | Cables protection |
| 16 | 3211415 | Earth Cable |
| 17 | 3L4251480/1 | Flywheel |
| 18 | 2670120 | Nut |
| 19 | 2135050 | Screw |
| 20 | 3121070 | Seal ring |
| 21 | 3745130 | Cable grommet |
| 22 | 8521010 | Motor Case Assy |
| 23 | 3151010 | Flywheel Kay |
| 25 | 3116100 | Needle Bearing |
| 27 | 8250840 | Crankshaft |
| 28 | 3112240 | Needle Bearing |
| 29 | 3750280 | Cable Guide |
| 30 | 3724050 | Engine Crankcase Gasket |
| 31 | 2432040 | Nut |
| 32 | 2123100 | Screw |
| 33 | 3654050 | Spring |
| 34 | 3749570 | Starter Cup |
| 35 | 8540810 | Starter Cup Assy |
| 36 | 2135180 | Screw |
| 37 | 4563660 | cylinder cover Yellow |
| 38 | 4122120 | Muffler |
| 41 | 3724340 | Muffler gasket |
| 42 | 3744850 | Spark Plug Cap |
| 43 | 3657530 | Spark Plug Cable terminal |
| 44 | 3210024 | Spark Plug |
| 45 | 2135150 | Screw |
| 46 | 3724260 | Cylinder gasket |
| 47 | 3123150 | Piston Ring |
| 48 | 3158260 | Piston pin |
| 49 | 3356050 | Circlip |
| 50 | 8541120 | Piston assembly Ø 38 |
| 51 | 8541110 | Cylinder - Piston assembly |
| 52 | 4253290 | Fuel Filter |
| 53 | 8745541 | Hose Grommet |
| 54 | 8741370 | Tank Cap Assy |
| 55 | 4252470 | Fuel Tank assembly |
| 61 | 2112310 | Screw |
| 62 | 8724340 | Gaskets Set |
| 63 | 4612587 | Engine Support Flange |
| ALPINA STAR 41 D (2008) 184121000- Pag.2 | ||
| 1 | 3724360 | Cylinder Manifold Gasket |
| 2 | 3750410 | Intake manifold - DISCONTINUED |
| 3 | 2670280 | Nut |
| 4 | 2135050 | Screw |
| 5 | 3724400 | Carburetor Manifold Gasket |
| 6 | 3785070 | Thermal Spacer |
| 7 | 1L4353270/1 | Carburetor |
| 8 | 8750390 | Air Filter Support |
| 9 | 2312090 | Washer |
| 10 | 2135250 | Screw |
| 11 | 3781600 | Air filter |
| 12 | 4563670 | Air Filter Cover Yellow |
| 13 | 2123100 | Screw |
| 14 | 3613420 | Washer |
| 15 | 4562220 | Starter Pulley |
| 16 | 3723640 | Starter Spring Disc |
| 17 | 4611480 | Starter Spring |
| 18 | 8563650 | Starter Carter |
| 19 | 2135040 | Screw |
| 20 | 3784030 | Starter rope |
| 21 | 3750067 | Starter handle |
| 22 | 3745530 | grommet |
| 23 | 4252680 | Starter assembly |
| 24 | 3744870 | Primer |
| 25 | 4353150 | Carburettor Diaphragm-Seal Kit |
| 30 | 2461030 | Square nut |
| ALPINA STAR 41 D (2008) 184121000- Pag.3 | ||
| 1 | 8563830 | Handle assembly |
| 2 | 2123030 | Screw |
| 3 | 2135050 | Screw |
| 4 | 112154330/0 | Nut |
| 5 | 3210970 | Stop switch |
| 6 | 3L3743431/1 | Spring |
| 7 | 3743441 | Safety Lever |
| 8 | 1L3654270/1 | Spring |
| 9 | 1L3654280/1 | Spring |
| 10 | 4252570 | Throttle Cable |
| 11 | 3786220 | Cable Plate |
| 12 | 3211590 | Coil-Switch Cable (Red) |
| 13 | 1L3211600/1 | Earth Cable |
| 14 | 3L4252840/1 | Handlebar with Left Handle |
| 15 | 3L3744860/1 | Knob |
| 16 | 2112580 | Screw |
| 17 | 3750480 | Wind nut |
| 18 | 8521070 | Handle support |
| 19 | 2126050 | Screw |
| 20 | 3654530 | Spring |
| 21 | 3353080 | Seeger ring |
| 22 | 3112170 | Ball bearing |
| 23 | 3L8520990/3 | Trasmission Hub Assembly Ø26 |
| 24 | 2135150 | Screw |
| 25 | 2432030 | Nut |
| 26 | 2135160 | Screw |
| 27 | 3744330 | Rear Anti-vibration Grommet |
| 28 | 3L4563850/2 | Casing |
| 29 | 3744320 | Front anti-vibration Grommet |
| 30 | 3615190 | plate |
| 31 | 4563860 | Front Casing Support Ø 26 |
| 32 | 2135060 | Screw |
| 33 | 112154330/0 | Nut |
| 34 | 3L4121861/1 | Clutch Drum assembly |
| 35 | 3642191 | Bearing Hub |
| 36 | 4251400 | Drive Shaft Assembly |
| 37 | 4251204 | Transmission Tube Assembly (Ø26) |
| 38 | 3L8563570/1 | Safety guard assembly |
| 39 | 2135030 | Screw |
| 40 | 2312150 | Washer |
| 41 | 2432040 | Nut |
| 42 | 3615000 | Thread cutter sheet |
| 43 | 2312150 | Washer |
| 44 | 2135060 | Screw |
| 45 | 4253440 | Harness |
| 46 | 123046000/0 | Harness |
| ALPINA STAR 41 D (2008) 184121000- Pag.4 | ||
| 1 | 3L4252780/1 | Gears Case Assembly Ø26 - Available in Adaptable Version, with Universal Head Adapter and Stone Guard Kit |
| 7 | 2135050 | Screw |
| 8 | 2653090 | Screw |
| 9 | 2653460 | Screw |
| 15 | 3121170 | Seal ring |
| 16 | 3641700/1 | Head Collar DC D = 26 05 |
| 17 | 3641640 | Upper ring |
| 18 | 3612640 | Lower ring |
| 19 | 4560610 | Fixed Cup |
| 22 | 4611880 | Disc 4 Tips |
| 31 | 4353240/1 | 2 Wire Head |
| ALPINA STAR 41 D (2008) 184121000- Pag.5 | ||
| 1 | 6910500 | Transmission Carter Assembly Ø24 |
| 2 | 6910502 | Carter Chain |
| 3 | 6910503 | Oil tank |
| 4 | 6910504 | Lid Ø24 |
| 5 | 6910506 | Flange |
| 6 | 6910507 | Screw |
| 7 | 6910508 | Oil Pump Assembly |
| 8 | 4112610 | Guide bar 10inch |
| 9 | 4113551 | 10 inch chain |
| ALPINA STAR 41 D (2008) 184121000- Pag.6 | ||
| 1 | 6910520 | Blades assembly |
| 2 | 6910521 | Transmission Carter Assembly |
| 3 | 6910524 | Gear Head Assembly |
| 4 | 6910523 | Lever + Adjustment Bracket |
| 5 | 4252640 | Sleeve |
| 6 | 2382430 | Spacer |
