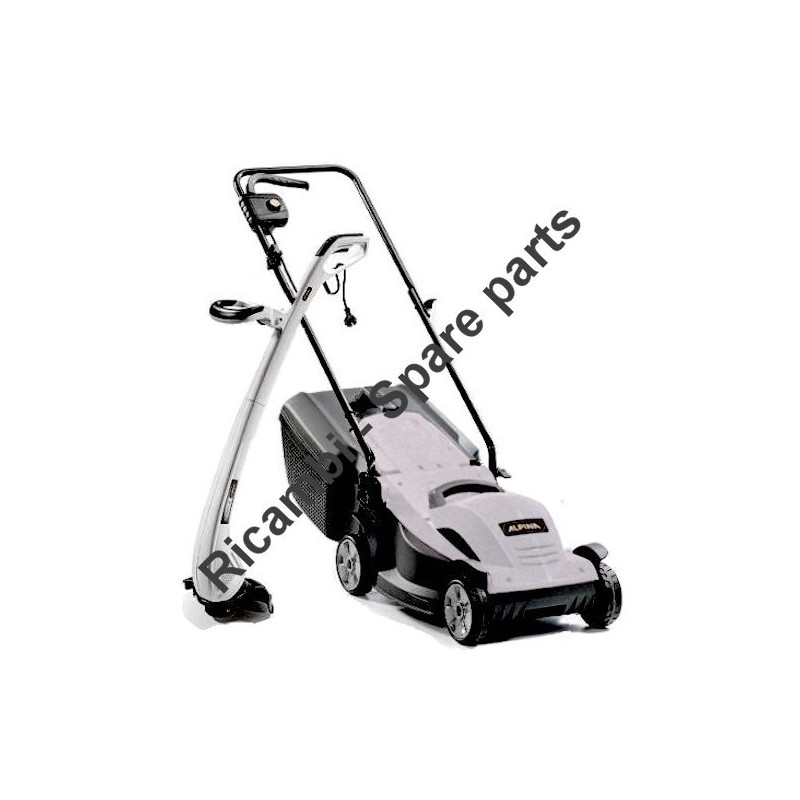

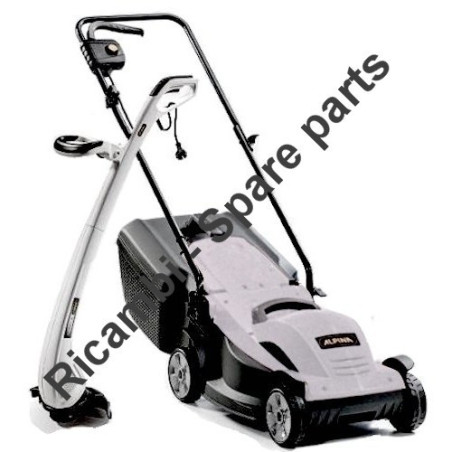

Alpina genuine replacement parts for to replace broken parts for to fix Electric Lawn Mower E 380 + T 350 + ACC.T350 (2014) - 293381060/A14.
In the following table, look for the model of the Electric Lawn Mower and the respective parts of the code.
| ALPINA E 380 + T 350 + ACC.T350 (2014) - 293381060/A14 | ||
| # | Part Num. | Description |
| 1 | 118810166/0 | Safe Guard |
| 2 | 118810096/0 | Spring |
| 3 | 112728099/1 | Screw |
| 4 | 118810169/0 | Gray cover |
| 5 | 118810165/0 | Motor Cover |
| 7 | 118810167/0 | Right Window, Gray |
| 8 | 118810097/1 | Electric motor |
| 9 | 112543001/0 | Washer |
| 10 | 118810093/0 | Washer |
| 11 | 118801615/0 | Connector Wire |
| 12 | 118810063/0 | Temperature sensor |
| 13 | 118810084/0 | Engine Plate |
| 14 | 118810099/0 | Screw |
| 15 | 118810106/0 | Brake |
| 16 | 118810108/0 | Brake Spring |
| 17 | 118810059/0 | Pulley |
| 18 | 118810104/0 | Pulley insert |
| 19 | 118810112/0 | Brake Pad |
| 20 | 118810092/0 | Belt |
| 21 | 118810003/0 | Blade |
| 22 | 122671651/0 | Washer |
| 23 | 112793312/0 | Screw |
| 24 | 112604898/0 | Crown lock |
| 25 | 118810168/0 | Hubcap |
| 26 | 118810081/0 | Wheel |
| 27 | 118810109/0 | Spring |
| 29 | 118810100/0 | Front Wheel Axle |
| 30 | 112291000/0 | Nut |
| 31 | 118810121/0 | knob |
| 32 | 112000930/0 | Benzing ring |
| 33 | 118810160/0 | Screw |
| 34 | 118810101/0 | Rear Wheel Axle |
| 35 | 118810155/0 | Baffle |
| 36 | 118810103/0 | Plate |
| 37 | 118810152/0 | Bag Lower Side |
| 38 | 118810110/0 | Cable clip |
| 39 | 118810105/0 | Handle, Lower Side |
| 40 | 118810154/0 | Bag Upper Side |
| 41 | 118810102/0 | Insert |
| 42 | 118810107/0 | Brake |
| 43 | 118810070/0 | Bearing |
| 44 | 118810069/0 | Bearing |
| 45 | 112000955/0 | Benzing ring |
| 46 | 112727784/0 | Screw |
| 47 | 118810146/0 | Handle Lower Side |
| 48 | 118810151/0 | Left Window, Gray |
| 49 | 118810144/0 | Handle |
| 51 | 112735654/0 | Screw |
| 52 | 118810083/0 | Hook |
| 53 | 112291000/0 | Nut |
| 54 | 118810159/0 | Wire |
| 55 | 118810075/0 | Handle, Upper Side |
| 56 | 118810098/0 | Motor protection |
| 57 | 112728099/1 | Self-Tapping Screw 4.2 X 16 |
| 58 | 118810171/0 | Fixing equipment |
