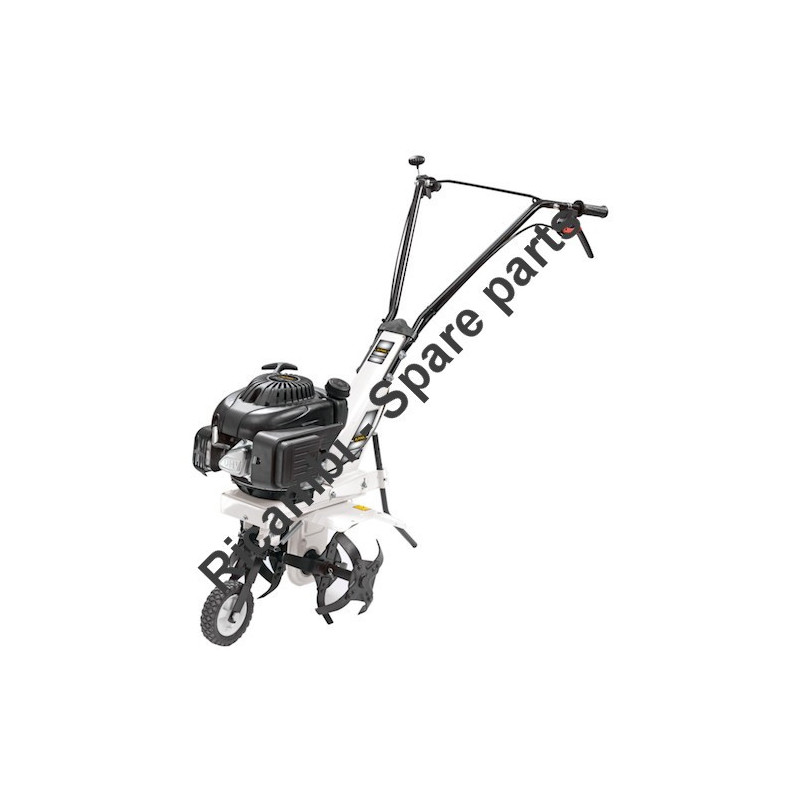

Alpina Spare Parts for Petrol Tiller TI 36 G
€1.39
Tax included
Alpina Spare Parts for Petrol Motorhoe TI 36 G
Alpina original spare parts, sourced from the manufacturer, at the best price on the web, for to Make Maintenance or Replacement of Broken parts of the Petrol Motorhoe TI 36 G/211360040-13-2017.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Petrol Motorhoe TI 36 G
Alpina original spare parts, sourced from the manufacturer, at the best price on the web, for to Make Maintenance or Replacement of Broken parts of the Petrol Motorhoe TI 36 G/211360040-13-2017.
In the following table, look for the model of the Petrol Tiller and the respective parts of the code.
| Petrol Motorhoe TI 36 G/211360040-13-2017 Pag.1 | ||
| # | Part Num. | Description |
| 1 | 118550761/0 | Engine |
| 2 | 118802010/0 | Flywheel Key |
| 3 | 118802042/0 | Screw |
| 4 | 112521360/0 | Washer |
| 5 | 112530140/0 | Washer |
| 6 | 118802018/0 | Engine Support |
| 7 | 112154210/0 | Nut |
| 8 | 112691115/0 | Screw |
| 9 | 118802020/0 | Protection, Belt |
| 10 | 112154210/0 | Nut |
| 11 | 112523070/0 | Washer |
| 12 | 112793102/0 | Screw |
| 13 | 118802015/0 | Pulley |
| 14 | 118802025/0 | Tension Lever |
| 15 | 112792611/0 | Screw |
| 16 | 118802014/0 | Spring |
| 17 | 118802037/0 | Blade |
| 18 | 118802021/0 | Cover |
| 19 | 112791200/1 | Screw |
| 20 | 118802036/0 | Spring |
| 21 | 112523070/0 | Washer |
| 22 | 112792611/0 | Screw |
| 23 | 112692395/1 | Screw |
| 24 | 112521360/0 | Washer |
| 25 | 112156602/0 | Nut |
| 26 | 118802023/0 | Wheel |
| 27 | 118802022/0 | Support, Wheel |
| 28 | 118802039/0 | Dust Cover |
| 29 | 118802040/0 | Cap |
| 30 | 118802038/0 | Blade |
| 32 | 124487998/0 | Cotter Pin |
| 31 | 118802011/0 | Pin |
| 33 | 118802024/0 | Drag bar |
| 34 | 118802012/0 | Pin |
| 35 | 112692420/0 | Screw |
| 36 | 112155020/0 | Nut |
| 37 | 118802019/0 | Handle bar support, White |
| 38 | 112523070/0 | Washer |
| 39 | 118802013/0 | Screw |
| 40 | 112154210/0 | Nut |
| 41 | 118802032/0 | Flange |
| 42 | 112793301/0 | Screw |
| 43 | 118802034/0 | Throttle Cable |
| 44 | 118802035/0 | Fender |
| 45 | 118802026/1 | Gear Box |
| 47 | 118802016/1 | Pulley |
| 48 | 118802017/0 | V-Belt |
| 49 | 118802028/0 | Clutch Cable |
| 50 | 112154210/0 | Nut |
| 51 | 118802033/0 | Handle bar support |
| 52 | 118802029/0 | Right Handle Bar |
| 53 | 118802027/0 | Throttle 4witch |
| 54 | 2112100 | Screw |
| 55 | 112154510/0 | Nut |
| 56 | 118802041/0 | Clutch Handle |
| 57 | 118802030/0 | Left handle bar |
| 58 | 118802031/0 | Handle bar |
| 59 | 112295301/0 | Dado |
| 60 | 122671659/0 | Washer |
| 61 | 118850007/0 | Ball Bearing - Buy 118805076/0 |
| 62 | 118850008/0 | Bearing |
| 63 | 118803478/0 | Worm Pinion |
| 64 | 118850009/0 | Key |
| 65 | 118850010/0 | Screw - Buy 118805076/0 |
| 66 | 118850011/0 | Nut - Buy 118805076/0 |
| 118805076/0 | Worm Pinion Assy Includes Pos: 61-62-63-64-65-66 |
|
| 67 | 118850012/0 | Oil Seal |
| 68 | 118850013/0 | Washer |
| 69 | 118850014/0 | Washer |
| 70 | 118850015/0 | Oil Drain Assy |
| Engine Pag.2 | ||
| 1 | 118550750/0 | Starter Assy |
| 2 | 118550768/0 | Starter Handle |
| 3 | 118550766/0 | Starting Rope |
| 4 | 118550695/0 | Starter Pulley + Spring |
| 5 | 118550696/0 | Starter Pawl Set |
| 6 | 118550713/0 | Screw |
| 7 | 118550714/0 | Screw |
| 8 | 112689515/0 | Screw |
| 9 | 118550712/0 | Fuel Tank |
| 10 | 118550747/0 | Fuel Cap |
| 11 | 118550715/0 | Fuel Filter |
| 12 | 118550716/0 | Fuel Pipe |
| 13 | 118550753/0 | Carburetor |
| 14 | 118550706/0 | Screw |
| 15 | 112292102/0 | Nut |
| 16 | 118550771/0 | Air Cleaner Assy |
| 17 | 118550748/0 | Air Filter |
| 18 | 118550772/0 | Air Cleaner Cover |
| 20 | 118550705/0 | Breather Fule Pipe |
| 21 | 112292102/0 | Nut |
| 22 | 118550710/0 | Screw |
| 23 | 112735699/0 | Screw |
| 24 | 118550709/0 | Muffler Guard |
| 25 | 118550749/0 | Muffler |
| 26 | 118550707/0 | Muffler Gasket |
| 31 | 118550719/0 | Electronic Ignition Coil |
| 32 | 112792099/0 | Screw |
| 33 | 118550658/0 | Spark Plug K7RTC |
| 35 | 118550720/0 | Spring |
| 36 | 118550721/0 | Governor Link |
| 37 | 118550751/0 | Spring |
| 38 | 118550761/0 | Engine |
| 41 | 118550717/0 | Nut |
| 42 | 118550757/0 | Starter Cup |
| 43 | 118550756/0 | Flywheel Fan |
| 44 | 118550754/0 | Flywheel Ass.Y |
| 45 | 112735699/0 | Screw |
| 46 | 118550659/0 | Cover |
| 47 | 118550733/0 | Gasket, Breath Groove |
| 48 | 118550660/0 | Oil Filter |
| 49 | 118550680/0 | Gasket |
| 50 | 118550681/0 | Cover Comp., Head |
| 51 | 112735699/0 | Screw |
| 52 | 112791500/0 | Screw |
| 53 | 118550672/0 | Crankase Cover Assy |
| 54 | 118550668/0 | Oil Seal |
| 55 | 118550745/0 | Oil Dipstick |
| 56 | 118550670/0 | O-Ring |
| 57 | 118550664/0 | Pin |
| 58 | 118550661/0 | Oil Seal |
| 59 | 118550729/0 | Cylinder Head Assy |
| 60 | 118550760/0 | Plate |
| 61 | 118550674/0 | Crankshaft |
| 62 | 118550673/0 | Washer |
| 63 | 118550675/0 | Connecting Rod Assy |
| 64 | 118550678/0 | Circlip + Piston Pin |
| 65 | 118550677/0 | Piston Assy |
| 66 | 118550679/0 | Piston, Ring Set |
| 67 | 118550682/0 | Camshaft assy |
| 68 | 112735699/0 | Screw |
| 69 | 118550662/0 | Speed Governor Assy |
| 70 | 118550665/0 | Shaft, Governor Arm |
| 71 | 118550666/0 | Washer |
| 72 | 118550671/0 | Gasket |
| 73 | 118550723/0 | Support Governor |
| 74 | 118550726/0 | Screw |
| 75 | 118550722/0 | Nut |
| 76 | 118550667/0 | Cotter Pin |
| 77 | 118550683/0 | Valve Lifter |
| 78 | 118550684/0 | Push Rods |
| 79 | 118550685/0 | Plate |
| 80 | 118550686/0 | Screw |
| 81 | 118550687/0 | Valve Arm |
| 82 | 118550688/0 | Nut |
| 83 | 118550689/0 | Nut |
| 84 | 118550758/0 | Switch |
| 85 | 118550755/0 | Throttle Cable |
| 86 | 112735699/0 | Screw |
| 87 | 118550759/0 | Spring |
| 89 | 112791500/0 | Screw |
| 90 | 112735699/0 | Screw |
| 91 | 118550692/0 | Exhaust Valve Assy |
| 92 | 118550691/0 | Intake Valve Assy |
| 93 | 118550690/0 | Spring |
| 94 | 118550699/0 | Carburettor Gasket Set |
| 95 | 118550731/0 | Cylinder Head Gasket Set |
| 96 | 118550730/0 | Engine Gasket Set |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina TI 36 G 211360040 13-2017
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N ALPINA:
- STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
