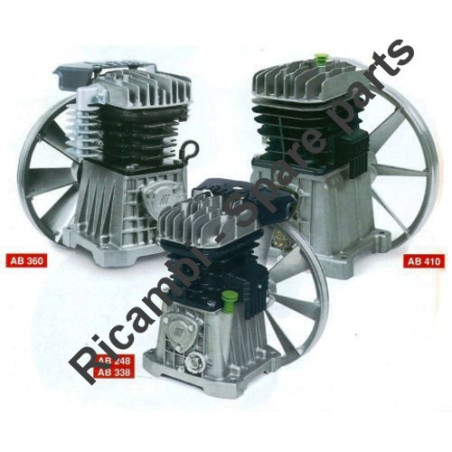

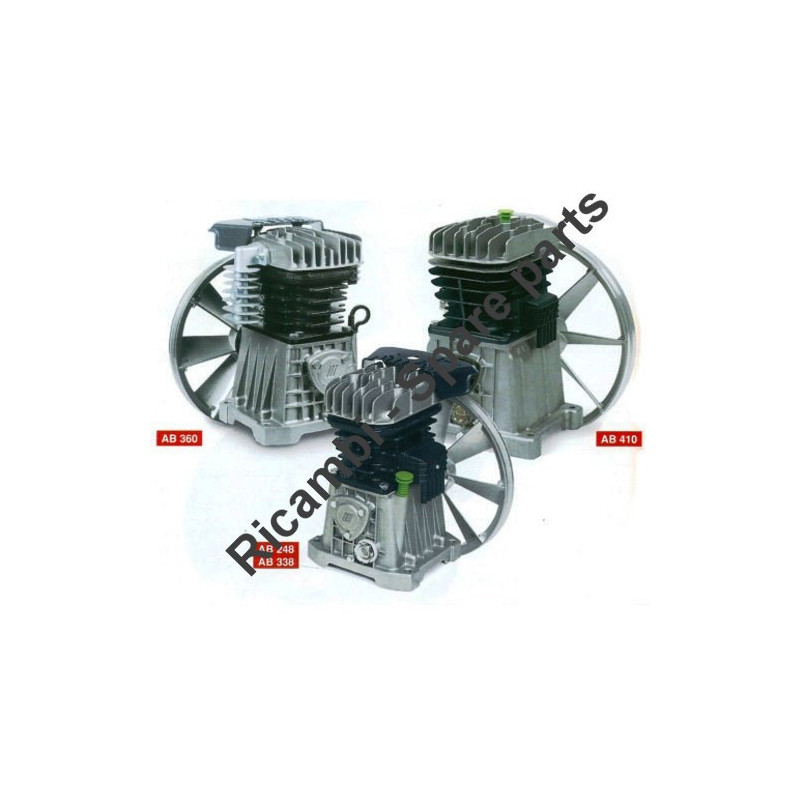

FIAC Spare Parts for Air Compressors Pump Unit AB 248-338

€30.62
Tax included

FIAC Spare Parts for Air Compressors Pump Unit AB248 - AB338

We have the original FIAC Air Compressors parts and tool repair help you need to get your tools running like new again.

Fix Your Air Compressors Pump Units, AB248 - AB338. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
ITEM CODE: 4080030000
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

FIAC Spare Parts for Air Compressors Pump Unit AB248 - AB338

Fix Your Air Compressors Pump Units, AB248 - AB338. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Fiac AB 248-338

Pump Units AB248 - AB338
# Part Num. Description
1 9700001075 Case
2 9700001076 Crankcase cover
3 9700000531 Screw M5X18 UNI7687
4 9700001077 Gasket
5 9100270140 Crankshaft
6 7060180000 Bearing 6203 17X40X12
7 7060200000 Bearing 6204
8 9100270150 Oil seal 20x47x7
9 9100270160 Front cover
10 9100270170 Back cover
11 9100280010 O-ring 144
12 7011460000 Screw M6X16 TAP-TITE
13 9100280020 Key 4x6,5x16
14 9100280030 Con rod
15 9100020080 Pin
16 9100020120 Piston
17 4080030000 Piston Ring Kit
18 9100010580 Seeger
19 7575230000 Cylinder
20 7012220000 Screw M8X 25 UNI-8112
21 9100280040 Filter plate
22 9100280050 Filter element
23 9100280060 Inlet filter
24 7012730000 Screw M.4X45
25 9100280070 Oil level warning
26 9100270180 Gasket
27 9100270190 Gasket
28 9100280080 Valves Plate New Code 1129102598
29 9100270200 Gasket
30 9100280090 Valve
31 9100270210 Gasket
32 9100280100 Head
33 7010080000 Screw M8x35 UNI-5931
34 9100270220 Baffle
35 7012090000 Screw M5X12 UNI-8112
36 7011460000 Screw M6X16 TAP-TITE
37 9100280110 Stopper
38 7030270000 Washer 8 5X30X4 UNI-6593
39 9100270230 Flywheel
40 7011100000 Screw M8X25 UNI-5739
41 7031010000 Washer 8 UNI-3703
100 9100280210 Kit valve plate
101 9700000078 gasket kit
102 4291030000 Kit Piston
033A 7030030000 Washer 8 UNI-6592
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB248 - AB338
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS APPROX.
MORE INFO:
info@bricoutensili.com
New

Download

Diagram AB 248-338 06-03-30

Diagram AB 248-338 06-03-30

Download (0)
