Lavor Original Parts for Pressure Cleaner MCHPX 1515LP
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner MCHPX 1515LP 400-415/50 TS - 8.626.0036.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner MCHPX 1515LP
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner IDRO MCHPX 1515LP 400-415/50 TS - 8.626.0036.
In the following tables, look for the spare part and its respective code.

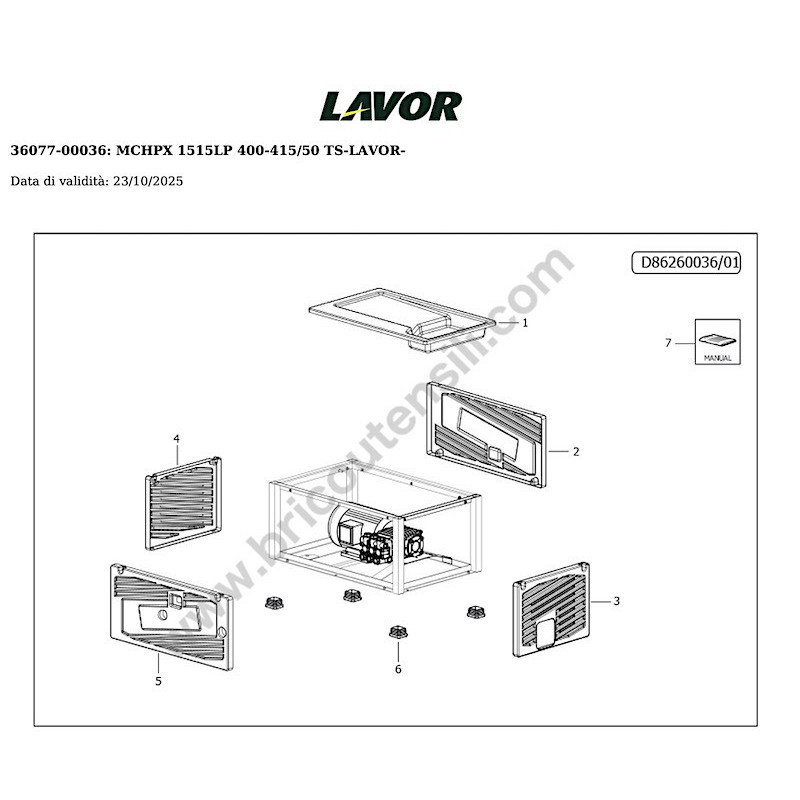

| IDRO MCHPX 1515LP 400-415/50 TS - 8.626.0036 | ||
| Pag.1 | ||
| # | Part Num | Description |
| 1 | 4.613.0308 | UPPER COVER -BLACK- |
| 2 | 4.613.0305 | LARGE PANEL -BLACK- |
| 3 | 4.613.0304 | INLET PANEL -BLACK- |
| 4 | 4.613.0306 | MOTOR PANEL -BLACK- |
| 5 | 4.613.0307 | MAIN SWITCH PANEL |
| 6 | 3.099.1410 | PIEDE APPOGGIO QUADRATO 30X30 (TQN30) |
| 7 | 7.700.0324 | MANUALE MCHPV-MCHPX LWS A5 100F |
| IDRO MCHPX 1515LP 400/50 TS S/VASC. MOT.ARIA BASE DA FINIRE Pag.2 | ||
| 1 | 3.302.0072 | MOT.E.TR 230-240/400-415/50 S1 HP5,5 4P AC FL61 GR112 MORS.SX |
| 2 | 5.699.0009 | PUMP LW 200/15 1450 SX |
| 3 | 3.004.0175 | WASHER METAL/RUBBER 3/8G (NBR 85sh) |
| 4 | 5.609.0181 | L3 COMP.VALVE WITH CHEMICAL IN. 2,3 W/TS |
| 5 | 4.606.0212 | CONNECTION WITH HOLE 3/8 |
| 6 | 4.607.0046 | INOX FILTER D.20 SUCTION CONN. 3/4 |
| 7 | 4.606.0031 | CONNECTION WITH HOLE 1/2 OT ASP. V.L. PAS. IP ESP..01 |
| 8 | 3.004.0174 | WASHER METAL/RUBBER 1/2G (NBR 85sh) |
| 9 | 3.099.0203 | CIRCULAR SUPPORT FOOT M10 SH55 (50x20PM10x28) |
| 10 | 3.107.0006 | D.40 0/300 BAR 1/8 GLYCERIN MANOMETER |
| 11 | 5.012.0003 | ASS.DETERGENT SUCTION FILTER HOSE MT.1 |
| 12 | 5.613.0382 | CHASSIS |
| 13 | 3.105.0003 | DETERGENT REGULATING COCK WITH RUBBER HOLDER D.7 |
| 14 | 4.608.0019 | BLACK THERMOSTATE KNOB 3079/1 |
| 15 | 4.608.0265 | ELECTRICAL BOX LWS18 VERTICAL PUMP |
| 16 | 4.608.0263 | ELECTRICAL BOX FRONT SIDE |
| 17 S | 5.009.0538 | SWITCH ASSY + PROTECTION COVER 14 (14) |
| 18 | 4.612.0032 | CABLE H05PVC 4X2.5 L.6000 |
| 19 | 4.607.0230 | METALLIC PIN FOR ELECTRICAL BOX L=50 |
| 20 S | 3.402.0002 | REMOTE CONTROL SWITCH |
| 21 | 3.402.0045 | THERMIC RELE' DPER21 12-18A |
| 22 | 3.403.0156 | DELAY T.S. CIRCUIT BOARD FOR COLD WATER (VERTIC.) |
| 23 | 4.607.0555 | STEEL BRACKET FOR ELECTRICAL BOX |
| 24 | 4.612.0029 | CABLE |
| POMPA LW 200/15 1450 SX Pag.3 | ||
| 1 | 4.605.0059 | BEARING FLANGE |
| 2 | 6.605.0050 | O-RINGS KIT |
| 4 | 3.099.0510 | FEATHER KEY 8X7X35 UNI 6604A |
| 5 | 6.605.0029 | LWB BEARINGS KIT |
| 6 | 6.605.0051 | PLUNGER RODS LWB KIT |
| 7 | 4.607.0313 | SHAFT LAVORWASH CODE 4.607.0313 |
| 8 | 4.605.0057 | LWB CRANKCASE |
| 9 | 6.605.0025 | LWB PISTONS D.20 KIT |
| 10 | 5.609.0147 | LWB COMPLETE CONNECTING ROD |
| 11 | 4.605.0058 | LWB REAR CRANKCASE COVER ESP.0 0 |
| 12 | 3.099.0003 | OIL LEVEL INDICATOR SLNS-3/8 H OBBY |
| 13 | 3.002.0004 | SCREW STEI 3/8 G.DIN 906 (OIL LOAD CAP) |
| 14 | 4.605.0060 | BEARING FLANGE |
| 15 | 6.605.0041 | WATER SEALS+BUSHES KIT |
| 16 | 6.605.0048 | LWB BUSHES KIT |
| 17 | 6.605.0047 | LWB WATER SEALS KIT |
| 18 | 4.606.0161 | G3/8 CAP |
| 22 | 4.606.0149 | SUCTION/DELIVERY VALVE CAP LWB |
| 23 | 3.200.0185 | O-RING GASKET 20.29X2.62 NBR 90 SH |
| 25 | 6.605.0042 | SUCTION/DELIVERY VALVES KIT LWB |
| 26 | 3.099.0978 | OIL CAP (L66 STICK) |
| 27 | 6.605.0031 | LWB PISTON BUSHES KIT |
| 31 | 4.606.0162 | HEAD PUMP LAVOR LINE WITHOUT/ VALVE |
| 33 | 3.699.0010 | OLIO IDRAULICO PER MOTOPOMPE LABRIC MIC100 |
| 37 | 6.605.0034 | PISTON SCREWS KIT LWB |
| 38 | 6.605.0052 | BEARING SPACER KIT LWB |
| VALV. COMP. L3 FLANG. X LAV. LINEA C/IN.2,3 C/TS Pag.4 | ||
| 1 | 6.005.0289 | BY-PASS KIT |
| 2 | 6.005.0200 | KIT 186 MAX PRESSURE VALVE |
| 3 | 4.606.0192 | BODY VALVE LAVOR L3 |
| 4 | 6.005.0120 | KIT 111 PRESSURE REGULATOR FOR BRASS HEAD |
| 5 | 5.609.0246 | ASSEMBLED GREY BOX WITH MICRO FOR LOW TENSION + 2X1,5 CABLE (BR |
| 6 | 5.609.Y154 | KIT HOSE HOLDER DETERG. SUCTION D.1 (spring L=7 wire D.0.4 - ball D.5.5) |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
MCHPX 1515LP - 8.626.0036
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
