Lavor Original Parts for Pressure Cleaner LW 3000
Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner IDRO LW 3000 230/50 -G - 8.009.0012.Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner LW 3000
Fix Your Pressure Cleaner IDRO LW 3000 230/50 -G - 8.009.0012. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.In the following tables, look for the spare part and its respective code.
| IDRO LW 3000 23/5 -G - 8.009.0012 | ||

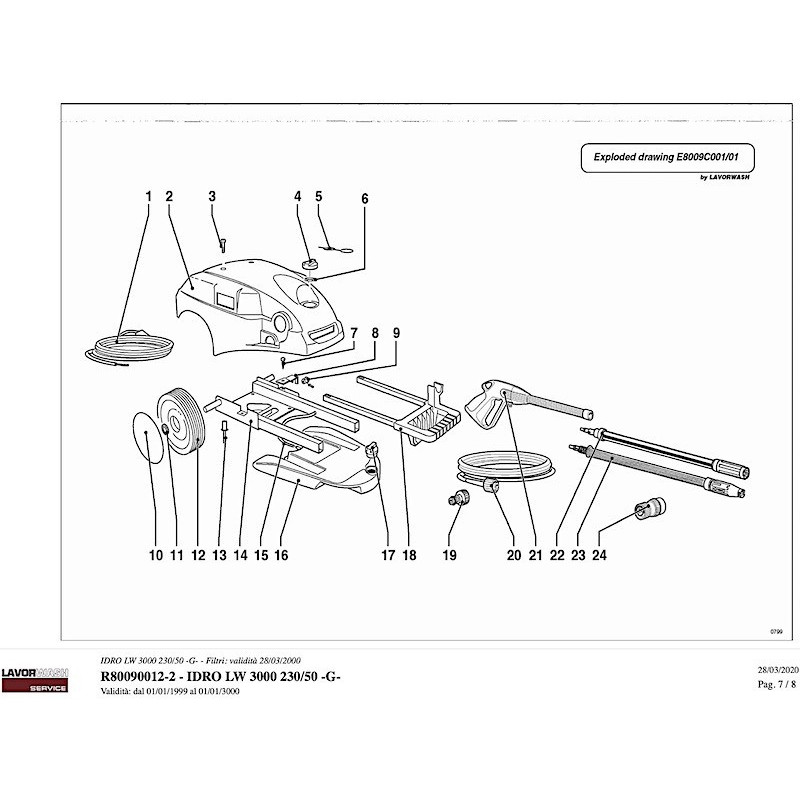

| Chassis Pag.1 | ||
| # | Part Num | Description |
| 1 | 4.012.0149 | H05RN-F 3X1 CABLE, 5.2 METRES, SCHUKO F/F |
| 2 | 4.013.0090 | HT 2000/3000 HOUSING WITH PRESSURE GAUGE - G- PANT. 108C |
| 3 | 3.002.0103 | TC SCREW M6X60 TRILOBAL, ZNT |
| 4 | 4.008.0819 | BLACK PRESSURE ADJUSTMENT KNOB |
| 5 | 4.007.0114 | NOZZLE CLEANING NEEDLE, D.0.8 ES P.04 |
| 6 | 4.006.0176 | OVERSIZED HOUSING LOCKING RING FOR LW-LS21 |
| 7 | 3.002.0102 | SELF-TAPPING SCREW TE 3.9x13 UNI 6950 ZNT |
| 8 | 4.007.0098 | CABLE TIE-DOWN BRACKET |
| 9 | 3.406.0018 | HEYCO SR6 P-4 CABLE CLAMP |
| 10 | 3.099.0066 | WHEEL CAP FOR SP150, RED RAL 3020 |
| 11 | 3.099.0051 | BLOK 12 WHEEL LOCK (HUB D.12) |
| 12 | 3.006.0023 | WHEEL D.150, HOLE 12, BLACK (SP 150) |
| 13 | 3.099.0071 | ALUMINUM EXPANSION RIVET 4.9x18 |
| 14 | 5.013.0015 | TROLLEY WITH REMOVABLE HANDLE, VER. N. |
| 15 | 4.008.0172 | TRANSPARENT TUBE 6x9 L=510mm |
| 16 | 4.008.0523 | LP-LW DETERGENT TANK |
| 17 | 4.608.0027 | DIA. 30 CAP FOR FIRE 100 TANK -N- |
| 18 | 4.008.0168 | REMOVABLE HANDLE FOR TROLLEY |
| 19 | 3.100.0082 | 3/4 BLACK QUICK COUPLING WITH SEAL |
| 20 | 4.018.0061 | EXT HOSE 1/4 140BAR L=8000 1/4F-GIR.M22x1,5 D.15 |
| 21 | 6.001.0028 | EXT GUN S'01 UL |
| 23 | 6.002.0191C | EXT LANCIA S'99 1.10 A/B (GREEN) |
| Motor Pump Pag.2 | ||
| 0 | 5.001.0225 | MOTOP. OMNIA'97 230/50 H. 90 LI TOP OUTPUT + SIDE MANUAL SWITCH, NF WIRING |
| 1 | 5.009.0165 | HOB SWITCH COVER ASSEMBLY |
| 2 | 5.009.0213 | EXTERNAL SWITCH 0/1 BIP16(8)-12(10)A |
| 3 | 3.404.0022 | EXTERNAL CAPACITOR 30mF 450V F/M |
| 4 | 3.200.0037 | OR SEAL 40.65X5.35 REF. 6162 |
| 5 | 3.099.0055 | RING NUT 1/2 F HOLE D. 12.5 (REF. 200.020) ITEM OUT OF STOCK |
| 6 | 3.200.0034 | OR SEAL 9.12X3.53 |
| 7 | 4.008.0125 | STARJET ELECTRIC BOX LID |
| 8 | 3.002.0112 | TC-TORX SCREW T15 3.9X25 HI-LO ZNT |
| 9 | 4.008.0137 | FOAM RUBBER SEAL 124X59X3.2 TH. 3 |
| 10 | 4.007.0100 | STUD FOR SCREW GROUND ZNT |
| 11 | 4.008.0135 | ELECTRIC BOX FOR LIQUID ELECTRIC MOTOR WITH INT. HOLE |
| 12 | 4.008.0030 | FAN COVER FOR INTEGRATED CASING, M. PLASTIC |
| 13 | 3.099.0049 | STOP RING D.23 FOR FAN |
| 14 | 3.099.0001 | 80mm FAN WITH PREDISPOSITION LOCKING RING |
| 15 | 5.002.0027 | LI 230/50 HOUSING, 90 mm HIGH CABLES, EXP. 1 |
| 16 | 3.001.0001 | 6204-2Z RADIAL BALL BEARING (X ELECTRIC MOTOR, 150°C) |
| 17 | 5.005.0001 | ROTOR SHAFT, 65 mm, 90 mm, NORMAL |
| 18 | 5.009.0002 | BEST MOTOR FLANGE (FINISHED) |
| 19 | 3.200.0002 | OR SEAL, 90 x 2.5 mm |
| 20 | 3.201.0001 | SEAL RING, 20/35/6/6.5 mm, BABS L |
| 21 | 3.002.0015 | M6 x 25 T-Slot Screw, ZNT |
| 22 | 3.001.0031 | 6304 RADIAL BALL BEARING |
| 23 | 4.005.0005 | 6.45 DIE-CAST PLATE |
| 24 | 3.002.0011 | M8 x 22 T-Slot Screw, 8.8 mm, ZNT, WHITE, UNI 5931 |
| 25 | 3.001.0003 | EXTERNAL THROTTLE BEARING ROLLER WHEEL AS4565 |
| 26 | 3.001.0025 | AXK4565 TYPE NEEDLE ROLLER CAGE PLASTIC |
| 27 | 4.007.0001 | EXTERNAL THRUST BEARING D.65x30x6 (C10Pb) FINISHED |
| 28 | 5.009.0086 | PISTON/STOP ASSEMBLY D.15 OMNIA RECT. |
| 29 | 4.007.0011 | PISTON RETURN SPRING D.15 d.3 L.45 |
| 30 | 3.002.0003 | TCEI SCREW M8X25 UNI 5931 ZNT |
| 31 | 4.005.0184 | PISTON GUIDE BODY BEST FOR BAYONET CAP |
| 32 | 3.201.0002 | BADSLSF SEALING RING 15X25, 4X5/7 |
| 37 | 5.009.0271 | PRESSURE REGULATOR FOR OMNIA '97 |
| 38 | 3.200.0036 | OR SEAL 4X2.5 SH.70 VITON |
| 39 | 5.609.0041 | EXTERNAL CHECK VALVE HEX. BRASS |
| 40 | 4.007.0324 | EXTERNAL VALVE SPRING CHECK VALVE D.4.8-6 L=20 THREAD 0.6 STAINLESS STEEL |
| 41 | 4.006.0169 | INJECTOR DIAM. 1.8 FOR PARTNER/OMNIA |
| 42 | 3.200.0022 | OR SEAL 9.25X1.78 REF. 2037 |
| 43 | 3.200.0026 | OR SEAL 14X1.78 NBR SH 70 |
| 44 | 4.006.0168 | OUTLET FITTING M22X1.5 FOR OMNIA'97 |
| 45 | 3.200.0019 | OR SEAL 12.4X1.78 SH90 |
| 46 | 5.009.0101 | INLET/OUTLET VALVE CAP WITH O-RING MOUNTED |
| 47 | 5.009.0005 | INLET/OUTLET VALVE LOBBER 1 |
| 48 | 6.005.0030 | HOSE HOSE FOR DETERGENT SUCTION COMPLETE WITH O-RING |
| 49 | 3.005.0001 | 420 STAINLESS STEEL BALL DIAM. 5 (precision grade G 500) |
| 50 | 4.007.0014 | EXTERNAL DETERGENT CHECK VALVE SPRING 4.5/6 L=7 THREAD D.0.3 STAINLESS STEEL |
| 51 | 4.006.0109 | 1/8 BAS TAPERED CAP |
| 52 | 4.607.0095 | D.8X16 SPRING 0.8 THREAD |
| 53 | 3.005.0009 | 11/32 STAINLESS STEEL 420 B BALL |
| 54 | 4.607.0098 | STAINLESS STEEL VALVE SEAL SEAT L2 |
| 55 | 3.200.0013 | OR SEAL 11.1 X 1.78 REF. 114 |
| 56 | 4.006.0170 | SEAL SEAT SPACER FOR OMNIA'97 HEAD |
| 58 | 4.008.0031 | WATER INTAKE FILTER D.16 TAPERED |
| 59 | 4.005.0124 | OMNIA '97 HEAD, IMPREGNATED ALUMINUM |
| 60 | 3.002.0139 | TCEI SCREW M8X35 ZNT |
| 61 | 4.006.0011 | SPACER FOR INTAKE VALVE |
| 62 | 3.107.0009 | PRESSURE GAUGE D.40 0/160 BAR 1/8 G GLYCERINE-FREE |
| 63 | 5.009.0127 | ASSEMBLY OF REGULATOR ROD FOR COMPENSATOR VALVE WITH CONNECTOR |
| 73 | 5.009.0053 | BAYONET OIL CAP WITH MOUNTED ORING |
| 74 | 5.009.0207 | ASSEMBLY CAP FOR BEST OIL CHAMPION VERTICAL + OR SH90 |
| 75 | 5.009.0008 | COMPLETE BUSHING FOR SECOND WATER SEAL |
| 76 | 3.200.0003 | OR SEAL 25.12 X 1.78 RI F.2100 |
| 77 | 3.201.0003 | SEAL RING N.15X22X4 WATER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
