Lavor Original Parts for Pressure Cleaner WP 230/50
Fix Your Cold Water High Pressure Cleaner WP 230/50 G TS CON CARRELLO EU - 8.033.0606. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

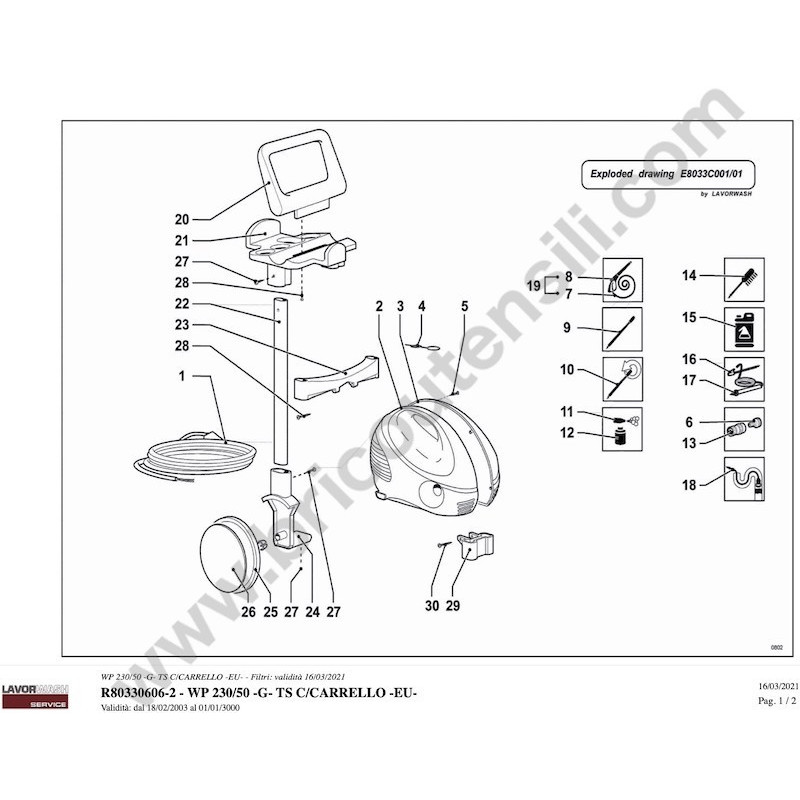

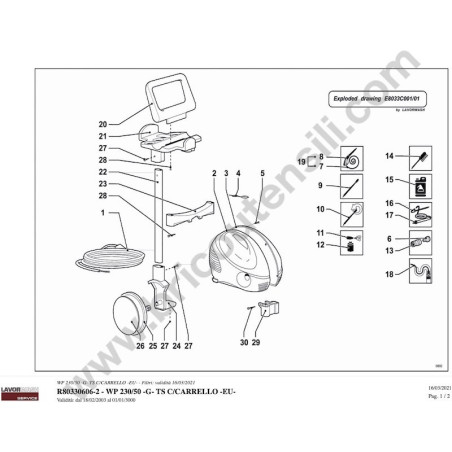

In the following tables, look for the spare part and its respective code.
| WP 230/50 G TS with TROLLEY EU - 8.033.0606 Pag.1 | ||
| # | Part Num. | Description |
| 001 | 4.012.0151 | CABLE H05VV 2X1 MT.5,2 SCHUKO PLUG |
| 002 | 4.013.0285 | WP INLET COVER -G- |
| 003 | 4.013.0286 | WP OUTLET COVER |
| 004 | 4.007.0114 | NOZZLE CLEANING PIN |
| 005 | 3.002.0112 | CROSS HEAD -TORX SCREW 3,9x25 HI-LO ZNT |
| 006 | 3.100.X005 | Substituted by 3.100.0082 QUICK COUPLING 3/4 BLACK WITH GASKET |
| 007 | 4.018.0010 | Substituted by 4.018.0076 HOSE 1/4 140 BAR L.6000 1/4F+D .15 PLAST |
| 008 | 6.001.0046 | Substituted by 6.001.0083 HP SPRAY GUN S'01 |
| 009 | 6.002.0209 | Substituted by 6.002.0209C LANCE S'99 1,05 FIXED |
| 011 | 5.011.0070 | Substituted by 6.002.0358 FOAM SPRAYER (D.4) |
| 012 | 4.008.0529 | Substituted by 4.008.0803 YELLOW FOAM SPRAYER BOTTLE |
| 020 | 4.008.0591 | ACCESSORIES-HOLDER HALNDLE FOR UNIVERSAL TROLLEY |
| 021 | 4.008.0693 | PLATE FOR ACCESSORIES HOLDER FOR TROLLEY, PLASTIC UPRIGHTS |
| 022 | 4.008.0690 | UPRIGHT FOR UNIVESAL TROLLEY COLOUR BLACK |
| 023 | 4.008.0652 | TRAVERSE FRO UNIVERSAL TROLLEY |
| 024 | 4.008.0593 | Substituted by 4.008.0919 WHEEL SUPPORT FOR UNIVERSAL TROLLEY |
| 025 | 4.408.0007 | BLACK WHEEL DIAM. 170 |
| 026 | 3.099.0115 | WHEEL COVER |
| 027 | 3.002.0024 | SELF-TAPPING SCREW TC.-TC 3,9X13 UNI6954 |
| 028 | 3.002.0007 | SELF TAPPING CROSS HEAD SCREW 3.9x25 |
| 029 | 4.008.0542 | FOOT FOR UNIVERSAL TROLLEY |
| 030 | 3.002.0089 | SELF-TAPPING SCREW CROSS HEAD 3,9x38 UNI 6954 ZNT |
| 50010433-2 - MOTORPUMP BRUSH 230/50 7'20 TSD.12 Pag.2 | ||
|
000
|
5.001.0433
|
MOTORPUMP 230/50 7'20 TS D.12 |
|
001
|
3.002.0112
|
CROSS HEAD -TORX SCREW 3,9x25 HI-LO ZNT |
|
002
|
3.406.0004
|
CABLE TERMINAL PG.11 |
|
003
|
3.406.0011
|
BUSHING FOR PG.11 CABLE TERMINAL |
|
004
|
5.009.0213
|
SWITCH WITH PROTECTION 12(10) |
|
005
|
4.008.0219
|
UNIVERSAL MOTOR FAN HOLE GASKE T |
|
006
|
4.008.0327
|
AIR CONVEYOR COVER FOR UNIVERS AL MOTOR |
|
007
|
3.200.0045
|
O-RING 75,88x2,62 REF.3300 |
|
008
|
4.012.0068
|
CABLE SEZ.0.75 L.390 IEC227-3/ 1979 FF6.3 |
|
009
|
4.008.0196
|
AIR CONVEYOR FOR UNIVERSAL MOT OR ESP.6 |
|
010
|
4.008.0510
|
FOAM SEAL FOR MOTOR OUTLET 20 PPI |
|
012
|
5.009.0110
|
ASSEMBLY UNIVERSAL MOTOR 230/5 0+PINION |
|
013
|
3.001.0016
|
BALL BEARING 629-ZZ 9x26x8 |
|
014
|
4.007.0107
|
GEAR Z 50 |
|
015
|
4.007.0109
|
PUMP SHAFT |
|
016
|
4.008.0189
|
FLANGE O-RING SEAL |
|
017
|
5.009.0361
|
FLANGE FOR UNIVERSAL MOTOR PUMP WITH SEALS |
|
018
|
3.002.0065
|
SCREW TE M6X25 WITH WASHER ZNT |
|
019
|
3.201.0001 | OIL SEAL 20/35/6/6,5 BABSL |
|
020
|
3.001.0031
|
ANTERIOR RADIAL FOR CASING 20X 52X15 - 6304 |
|
021
|
4.005.0079
|
INCLINED PLATE 7.15 CYLINDR.HO LE |
|
022
|
3.001.0003 | DISK AS 4565 |
|
023
|
3.001.0025 | NEEDLE-ROLLER CAGE Axk4565 -STTEL- |
|
024
|
4.007.0001 | THRUST SHOE D.65X30X6 (C10PB) FINISHED |
|
025
|
5.009.0452 | ASSEMBLY RETAINING RING D.29/PISTON D.12 |
|
026
|
3.200.0014 | O-RING GASKET 85X2,5 NITRILIC |
|
027
|
PISTON RECALL SPRING D.14 | |
|
028
|
3.201.0014
|
OIL SEAL RING D.12X20X5/7 |
|
029
|
O-RING 11,1X1,78 | |
|
030
|
4.006.0109
|
TAPERED 1/8 CAP |
|
031
|
OR-RING GASKET 9.92X2.62 SHORE 90 | |
|
032
|
3.200.0019 | O-RING 12.4X1.78 SH.90 |
|
033
|
5.009.0101
|
CAP VALVE SUCTION DELIVERY-OR MOUNTED |
|
034
|
5.009.0005 | DELIVERY SUCTION VALVE LAVOR 1 |
|
035
|
4.005.0187
|
PARTNER HEAD '01 FOR PISTONS DIAM. 12 |
|
036
|
3.002.0093
|
Substituted by 4.007.0229 SCREW TCEI M6X70 ZNT SWAGEFOR M |
|
037
|
5.009.0015 | COMPLETE SUCTION VALVE |
|
038
|
3.201.0020
|
WATER SEAL 12X18X5 |
|
039
|
4.008.0695
|
ANTI-EXTRUSION RING 12x18x1 FOR PARTNER D.12 |
|
040
|
4.006.0251
|
PIECE FOR SUPPORT PARTNER D.12 |
|
041
|
4.008.0657
|
OIL SPACER D.12 |
|
043
|
3.002.0094
|
SCREW TCEI M6X30 ZNT |
|
044
|
4.005.0188
|
PISTON BODY GUIDE D.12 S/IN. LAV.FINITO |
|
045
|
4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
|
050
|
5.009.0362
|
VALVE ASS. D.2,1 FOR TS OR 5,28X1,78 (AK) |
|
053
|
4.007.0147
|
VALVE |
|
054
|
4.007.0146
|
VALVE |
|
055
|
4.008.0341
|
HOLDER A.S.S. |
|
056
|
3.200.0073
|
Substituted by 3.200.0021 OR GASKET |
|
057
|
5.009.0254
|
CAP+OR TOTAL STOP VALVE ASSY |
|
058
|
Substituted by 5.009.0516 ASSEMBLY MICRO+CABLE TOTAL STOP PARTNER USA/EU | |
|
059
|
5.008.0160
|
PARTNER HEAD D.12 |
|
060
|
5.007.0152
|
PISTON BODY GUIDE D.12 S/R S/IN D.1,9 TS SPRING 1,5 |
|
061
|
4.008.0036
|
SUPPORT PAD |
