Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160
Fix Your Pressure Cleaner 8.611.0160 - IDRO LKX 31 TS AC 230/50 CM-G. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
In the following tables, look for the spare part and its respective code.
| 8.611.0160 - IDRO LKX 31 TS AC 230/50 CM-G | ||

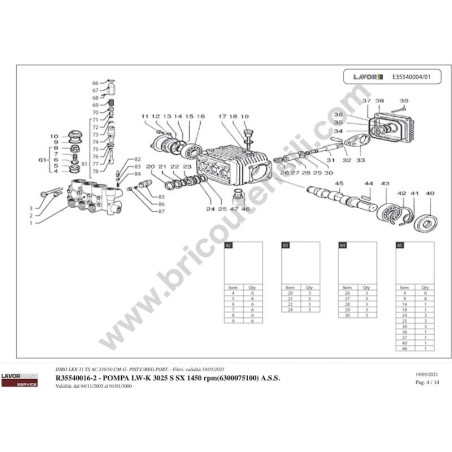

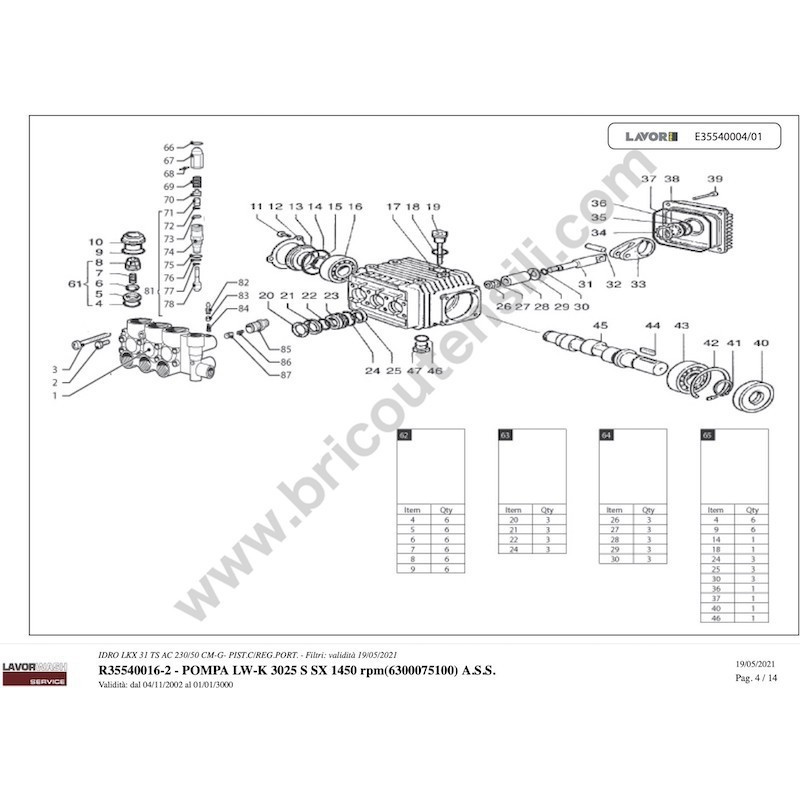

| 35540016-2 - POMPA LW-K 3025 S SX 1450 rpm(6300075100) A.S.S Pag.1 | ||
| # | Part Num. | Description |
| 001 | 3.555.0202 | HEAD PIST.ONS D.18 X LW-K 3025 3218032600 |
| 002 | 3.555.0076 | HEAD CAP G1 / 8 3202.0018.00 |
| 003 | 3.002.0455 | SCREW M6x55 3609.0152.00 |
| 004 | 3.555.0005 | GASKET OR 2.62X17.13 1210004600 |
| 005 | 3.555.0028 | SEAT FOR VALVE PLATE 3009008700 |
| 006 | 3.555.0007 | STEEL PLATE FOR VALVE 3604001700 |
| 007 | 3.555.0028 | SPRING FOR VALVE 1802017700 |
| 008 | 3.555.0028 | VALVE CAGE 1205002500 |
| 009 | 3.200.0027 | O-RING 2.62X20.24 FOR CAP 1210004800 |
| 010 | 3.555.0012 | VALVE CAP 3202026700 |
| 011 | 3.002.0227 | SCREW M5x10 3609.0088.00 |
| 012 | 3.555.0057 | FLANGE FOR COVER 1004.0012.00 |
| 013 | 3.555.0056 | COVER 0402017200 |
| 014 | 3.200.0219 | GASKET OR 44,04X3,53 NBR SH.70 |
| 015 | 3.555.0079 | SEEGER RING 3019.0011.00 |
| 016 | 3.001.0085 | RADIAL BALL BEARING 6304 (20X52X15) HIGH QUALITY |
| 017 | 6.605.0115 | PUMP HOUSING 0403.0128.00 |
| 018 | 3.099.1480 | OIL FILLING CAP C / HOSE AND BREATHER (ROD L = 58) |
| 020 | 3.555.0046 | HEAD RING D.18 0009019300 |
| 021 | 3.555.0047 | GASKET D.18 1241002200 |
| 022 | 3.555.0048 | GASKET 18X25X5.5 (1241002800) |
| 023 | 3.555.0049 | SEAL RING D.18 0009019700 |
| 024 | 3.555.0085 | OR 1.78X26.7 (SEAL) 1210022300 |
| 025 | 6.605.0111 | OIL SEALS KIT D.15 FOR PUMP LP 1507-1808 |
| 026 | 3.555.0059 | NUT 0600004800 |
| 027 | 3.555.0060 | WASHER 8.2X14X1.5 2811008000 |
| 028 | 3.555.0027 | PISTON D.18 0202.0018.00 |
| 029 | 3.555.0062 | PISTON BASE WASHER 2812003800 |
| 030 | 3.200.0043 | O-RING 1.78X6.07 1210.0055.00 |
| 031 | 3.555.0064 | PISTON GUIDES 2409.0044.00 |
| 032 | 4.607.0534 | PIN FOR GUIDE PIN PISTON PUMP 1808 |
| 033 | 3.555.0066 | CONNECTING ROD 0205.0050.00 |
| 034 | 3.555.0067 | STOPPER FOR CAP 3019.0033.00 |
| 035 | 3.555.0143 | OIL LEVEL INDICATOR 3201.0010.00 |
| 036 | 3.555.0069 | O-RING 1.78X23.52 1210.0333.00 |
| 037 | 3.555.0070 | O-RING 2.62X101.27 1210.0206.00 |
| 038 | 6.605.0115 | HOUSING COVER 0402014200 |
| 039 | 3.555.0088 | SCREW M6x25 3609.0041.00 |
| 040 | 6.005.0306 | SHAFT OIL SEAL D.25X62X 10 DIN AS |
| 041 | 6.605.0113 | KIT 5 SEEGER D.25 |
| 042 | 6.605.0114 | KIT 3 SEEGER D.62 |
| 043 | 3.001.0084 | RADIAL BALL BEARING 6305 (25X62X17) |
| 044 | 3.555.0072 | KEY 8X7X25 1602.0045.00 |
| 045 | 3.555.0071 | SHAFT D.24 0001.0290.00 |
| 049 | 3.555.0015 | SLICED WASHER 16,7X22X1,5 2811008400 |
| 050 | 3.555.0014 | PLUG G1 / 2 BRASS 3202001500 |
| 061 | 3.555.0028 | INTAKE / DELIVERY VALVE ASSEMBLY 1220.0030.00 |
| 062 | 3.555.0028 | KIT 6 COMPLETE VALVES FW-LW 5025.0011.00 |
| 063 | 3.555.0024 | WATER SEALS KIT FOR LW 3525 5019003700 |
| 064 | 3.555.0027 | PISTON KIT FOR LW 3525 2409.0072.00 |
| 065 | 3.555.0025 | OIL SEALS KIT FOR LW 5019004000 |
| 086 | 4.607.0259 | CHECK VALVE SPRING D.4,8x5, 8 L = 20 WIRE 0,5 INOX |
| 087 | 5.609.0041 | ASSEMBLY CHECK VALVE + OR |
| 096 | 3.555.0016 | CAP 3/8 GAS 3200.0007.00 |
| 099 | 3.555.0013 | SLICED WASHER 21.2X27X1.5 2811008600 |
| 56010155-2 - MOTOPOMPA LWM 230/50 4P HP3 TSLW-K 3025 S SX X CALDO Pag.2 | ||
| 000 | 5.601.0070 | MOTOR PUMP LWM 230/50 4P KW.3 LW3025 |
| 002 | 3.404.0036 | CAPACITOR 80mF 450V D.50X121 C / CABLES L = 300 C / COVER REF. |
| 004 | 3.004.0010 | TOOTHED WASHER EX.D6X11 Sp0,7 DI N6798A ZNT |
| 005 | 4.607.0008 | TIE ROD LW MOTOR M6X171 |
| 006 | 3.003.0019 | NUT M6 HEX.CIECO ZNT UNI 5721 |
| 013 | 3.002.0131 | SCREW TSPEI M8X16 CL.10.9 UNI59 33 ZNT |
| 014 | 4.607.0010 | FLANGE COUPL. PUMP-MOTOR D. EXT. 145 FL.90 - FINISHED - |
| 015 | 3.100.0022 | REDUCTION M.GAS / M.GAS 3 / 8SV-1 / 4SV |
| 016 | 3.704.0006 | PRESSURE SWITCH PS2 1 / 8M 25BAR RED P / N 4090000008 |
| 017 | 3.554.0023 | PUMP LWS-K 3025 S SX 1750 rpm -6301135100- |
| 018 | 4.606.0088 | HOSE HOLDER 1/4 G M D.7 |
| 019 | 3.106.0034 | SAFETY VALVE G1 / 4 M D6 200BAR MTM (190031) |
| 021 | 4.007.0181 | CONNECTION X SAFETY VALVE |
| 022 | 4.618.0035 | HOSE R1 250BAR L = 600 WITH / CONNECTION 1 / 2-3 / 8F 90Â ° (CONNECTION OFFSET 180 °) -PUMP / SERP. |
| 023 | 4.618.0030 | HOSE LOW P. R1 L = 450 FITTING 3/8M-3 / 8M |
| 024 | 3.100.0046 | REDUCTION 3 / 8F CIL. 1 / 2M CIL.SV. ZNT |
| 025 | 3.003.0007 | NUT E. M6 MEDIUM UNI 5588 CL10 ZNT |
| 026 | 3.004.0035 | SPRING WASHER GROWER D.6 DI N 127 TYPE B ZNT WHITE |
| 027 | 4.605.0003 | MOTOR FRONT COVER LW D.150 |
| 028 | 3.002.0050 | SCREW TE M6X25 UNI 5739 ZNT |
| 029 | 3.001.0009 | BALL BEARING 6007-2RS 35x62x14 (X MOT.EL.) |
| 030 | 5.605.0048 | ROTOR SHAFT 90X135 ALL. LW FOR SINGLE-PHASE MOTOR 30 CAVE INCL. 1,5 |
| 031 | 5.602.0031 | HOUSING LWM 230/50 4P 150X90 H135 |
| 032 | 3.001.0010 | BALL BEARING 6205-2Z (52X25X15) |
| 033 | 3.099.0017 | COMPENSATION RING D.51,8X41X0, 5 -52B- |
| 034 | 6.005.0194 | REAR MOTOR COVER LW.V D.150 X BEARING D.52 TURNED |
| 035 | 3.099.0018 | FAN FA 100 VP D.24x168 C / F ASCETTA |
| 036 | 4.607.0082 | FAN COVER MEC100 EXHAUST IN F. -FINISHED- |
| 037 | 5.606.0069 | MOTOR LWM 230/50 D.150 H135 4P C / CLAMP |
| 038 | 5.601.0228 | MOTOR PUMP LWM 230/50 4P HP3 TS LW-K 3025 S SX X HOT |
| 86110160-1 - IDRO LKX 31 TS AC 230/50 CM-G-PIST.C/REG.PORT. Pag.3 | ||
| 001 | 3.002.0122 | WIDE ROUNDED HEAD SCREW CROSS CUT M6X12ZNT |
| 002 | 4.613.0111 | UPPER CASING JOLLY 5 / L KX YELLOW |
| 003 | 4.608.0203 | DIESEL / DETERGENT TANK J OLLY 5 / LKX |
| 004 | 4.612.0046 | POWER CABLE H05VV-F 3X1.5 L = 6000 WITHOUT / FASTON |
| 005 | 4.608.0073 | SHORT SPACER FOR JOLLY TANK 4/93 |
| 006 | 5.009.0159 | OIL CAP COMPLETE WITH GASKET 3 / 8G |
| 007 | 4.608.0074 | LONG SPACER FOR TANK JOLLY 4/93 63mm |
| 008 | 5.613.0096 | BOILER AXLE JOLLY 4/93 |
| 009 | 4.608.0082 | FUEL TANK CAP-CHEM -N- |
| 010 | 3.200.0038 | GASKET OR 53.65x2.62 REF. 3212 |
| 011 | 5.613.0115 | REAR AXLE JOLLY 5 / LKX PAINTED |
| 012 | 6.605.0168 | WHEEL D.260X85 FULL BLACK |
| 013 | 4.608.0434 | STUD D.135 BLACK WHEEL COVER FOR D.260 WHEEL |
| 014 | 5.009.0340 | QUICK COUPLING ASSEMBLY D.17 BRASS WITH / OR + RING |
| 015 | 3.100.0043 | SWIVEL QUICK COUPLING 3/8 M MV G8 (461) 26075050 |
| 016 | 4.618.0012 | HOSE 5/16 R1 310BAR L = 10000 C / HOSES AND ATT. 3/8-3 / 8 |
| 017 | 3.700.0029 | TRIGGER GUN RL200 3 / 8M + S4 + QUICK COUPLING + FLOW REGULATOR 30015560 |
| 018 | 3.708.0001 | LANCE M22x1,5-1 / 8 F L = 700 MT6 S / ROSETTA |
| 019 | 3.103.0050 | HIGH PRESSURE NOZZLE 1 / 8M 15045 |
| 020 | 3.099.0019 | RETAINER FOR WHEEL D.250X55 D.20 |
| 86110160-1 - IDRO LKX 31 TS AC 230/50 CM-G-PIST.C/REG.PORT. Pag.4 | ||
| 002 | 4.608.0079 | DASHBOARD '93 WITH COMPLETE SERIGRAPHY |
| 004 | 4.608.0019 | THERMOSTAT-TAP KNOB BLACK 3079/1 |
| 005 | 3.403.0091 | THERMOSTAT 30/150 BULB D.5 (2 FASTON) |
| 006 | 3.105.0003 | REGULATION VALVE DET.CON / HOSE HOLDER D.7 (DIS.N.6990A 3/4 TURN) |
| 007 | 4.608.0065 | DASHBOARD BOX '93 |
| 008 | 4.608.0071 | DASHBOARD CABLE COVER '93 |
| 009 | 5.009.0165 | FRAME FOR SEALING SWITCH AND HOBBY |
| 010 | 5.009.0165 | HOBBY WATERPROOF SWITCH COVER |
| 011 | 3.401.0025 | MICRO BREAKER 3120-N551-P7T1-W02D-16A WITHOUT / PROTECTION |
| 012 | 5.009.0213 | SWITCH 0/1 BIP16 (8) -12 (10) A |
| 013 | 5.613.0156 | SWITCH BRACKET |
| 015 | 3.107.0004 | PRESSURE GAUGE D.50 0/315 BAR 1/4 REAR + BRACKET |
| 016 | 4.618.0014 | PRESSURE GAUGE PIPE 2X380 max630bar 1/4 F / GIR-1/4 F / GIR |
| 017 | 4.008.0556 | TRANSPARENT TUBE D.6x12 L = 400 MESH |
| 018 | 3.099.0282 | TWO-WIRE CLAMP X TUBE 6x12 (15126) |
| 019 | 3.405.0003 | TERMINAL BLOCK 5 POLES 10mmq. / LA MELLA |
| 020 | 4.608.0078 | DASHBOARD GASKET '93 (3x 900) |
| 021 | 4.615.0003 | ANTI-CALC ELECTRIC BOARD 2 4V |
| 022 | 6.605.0172 | TRANSFORMER 220-380V 24V 2A |
| 023 | 3.403.0004 | TOTAL STOP TS1 BOARD |
| 024 | 3.402.0002 | KN12 CONTACTOR 24V 50HZ 380 / 5,5KW AC3 |
| 025 | 5.611.0002 | COMPLETE BURNER FLANGE 1.25-45 RIGHT |
| 026 | 4.607.0001 | PLATE HOLDER SPARK PLUG 15x 32 TH.3.5 |
| 027 | 4.614.0004 | ELECTRODE 0772589000 |
| 028 | 3.100.0017 | ELBOW FITTING 4 1/8 COPPER PIPE |
| 029 | 3.099.0015 | SEEGER I RING D.21 SP1 DIN 472 |
| 030 | 4.608.0002 | SLIDE DIAM. 20 TH.1,8 |
| 031 | 4.605.0001 | MACHINED BURNER FLANGE |
| 032 | 3.104.0028 | DIESEL NOZZLE 1.25 45-B |
| 033 | 4.606.0064 | LKX CARENATUR FIXING COLUMN |
| 034 | 4.616.0006 | COPPER TUBE DIAM. 4 COMPACT |
| 035 | 6.605.0102 | IGNITION TRANSFORMER 230/50 818C / S |
| 036 | 4.607.0011 | BRACKET FOR FIXING THE ENGINE LOWER ZNT |
| 037 | 5.609.0023 | ASSEMBLY FAN PROTECTION GRID |
| 038 | 4.608.0036 | TERMINAL FOR POWER CABLE |
| 039 | 4.608.0068 | COMPACT 4P GUIDE HANDLE |
| 040 | 5.613.0119 | LKX HANDLE SUPPORT -PAINTED O- |
| 041 | 4.608.0103 | GASOLINE PUMP PROTECTION CASE OR LKX |
| 042 | 3.099.0028 | FAN 146x72 SX. HOLE DM 12.7 |
| 043 | 3.300.0003 | MOTOR X BURNING 100W / 230-240 / 50H z IP55 |
| 044 | 6.605.0173 | RED PLASTIC JOINT DIESEL PUMP EME / UNIELECTRIC MOTOR |
| 045 | 3.100.0015 | 1/8 M. STRAIGHT FITTING FOR COPPER PIPE D.4 |
| 046 | 3.551.0063 | DOUBLE PIPE DIESEL PUMP + 24V ELECTRODE. D DX |
| 047 | 3.004.0015 | FLAT WASHER D.22X39 Th.3 ZNT UNI6592 |
| 048 | 4.606.0013 | SERPENT FIXING NUT. 1/2 O T SPEC. |
| 049 | 5.611.0067 | DIESEL FILTER UNIT (PAPER) LKX |
| 050 | 4.618.0035 | TUBE R1 250BAR L = 600 C / CONNECTION 1 / 2-3 / 8F 90Â ° (CONNECTION SFALS.180Â °) -PUMP / SERP. |
| 051 | 4.618.0043 | HOSE R1 3/8 L = 375 C.1 / 2F.GIR 90 '/ C.3 / 8F GIR 90' |
| 052 | 5.611.0012 | COVER EXT. BOILER |
| 053 | 5.611.0099 | CABLE L = 480 WITH PROTECTION |
| 054 | 3.003.0010 | NUT M6 HEXAGONAL BLIND BRASS UNI 5721 |
| 055 | 3.004.0006 | FLAT WASHER D.6,4X12 Sp.1,6 ZNT UNI6592 |
| 056 | 5.613.0147 | BOILER EXTERNAL COVER |
| 057 | 5.610.0105 | DEFLECTOR WITH CONE D.82 WITH HOLES |
| 058 | 5.613.0122 | COVER INNER COMB. CHIMNEY L = 90 |
| 059 | 4.604.0001 | TOP COIL H.335 L = 20mt (F E. 35.2) |
| 060 | 5.613.0118 | PAINTED JOLLY 5 / LKX BOILER BODY |
| 061 | 6.605.0247 | CEMENTED REFRACTORY D.290X20 FOR BOILER |
| 063 | 4.607.0006 | SERP FIXING BAND. IN LAMI ERA 15/10 INOX AISI 430 |
| 064 | 4.608.0162 | INSULATING ROPE X BOILER BASE L = 990 |
| 065 | 5.613.0116 | JOLLY 5 / LKX BOILER BASE -PAINTED- |
| 066 | 5.609.0051 | ASSEMBLY CONNECTOR + CABLE X ELECTRIC ANTIC. L = 1000 |
| 067 | 3.412.0001 | SOLENOID VALVE 1 / 8F - 1 / 8F D. 24V 50HZ COMPLETE |
| 068 | 3.749.0024 | TANK LT. 1 FOR ANTI-SCALE (14650100 box of 10pcs) |
| 069 | 3.099.0281 | TUBE CRISTAL SCREEN 6X12 (ROLL OF 100MT) |
| 070 | 4.606.0004 | HOSE HOLDER D.7 1/8 M (BRASS) |
| 071 | 3.004.0024 | ALUMINUM WASHER 10X14XSP.1, 5 |
| 072 | 5.613.0120 | LK X ANTI-SCALE TANK SUPPORT -PAINTED- |
| 073 | 3.100.0047 | NIPPLE 1/8 WITH. 1/8 CIL. SV. |
| 074 | 4.618.0041 | PIPE B.P. D.19X10 L = 470 C3 / 8 F GIR.-3 / 8M |
| 075 | 3.749.0006 | PLASTIC TRAY (MTM) |
| 076 | 3.749.0005 | FLOATING TAP OT 3/8 29016000 |
| 077 | 3.749.0007 | TANK COVER (MTM) |
| 078 | 6804 | CRISTAL TUBE 10X14 |
| 079 | 4.618.0084 | LOW PRESSURE HOSE 1/2 G L = 305 PUMP / V SHAFT LKX |
| 080 | 5.609.0058 | ASSEMBLY HOSE HOLDER - FILTER X TRAY |
| 081 | 5.009.0007 | NUT FOR HOSE HOSE D.17 BRASS |
| 082 | 3.100.0060 | HOSE HOLDER D.17 3/4 NUT (BRASS) |
| 083 | 3.004.0032 | RUBBER WASHER 24,2X17X2 AS S.ASPIRAZ. |
| 084 | 4.606.0028 | NIPPLE 1/2 M. 3/4 M. |
| 085 | 3.004.0004 | ALUMINUM WASHER 21x30xSP.1, 5 |
| 086 | 3.749.0039 | FILTER FOR TRAY G.1 / 2F. (28202723) |
| 087 | 5.609.0059 | ASSEMBLY PROFESSIONAL BULB BODY LKX, NPX + SUPPORT |
| 088 | 4.608.0003 | RING D.17xM22 RAPID ATT. JOB |
| 089 | 3.100.0018 | QUICK COUPLING 3 / 8M-1 / 2M 08 ZNT |
| 090 | 4.606.0038 | SAFETY VALVE ADJUSTMENT SCREW |
| 091 | 4.606.0087 | PROFESSIONAL THERMOSTAT BULB BODY |
| 092 | 3.100.0020 | NIPPLE 1 / 2G-3 / 8G |
| 093 | 5.613.0282 | RTHERMOSTAT BULB SUPPORT JOLLY 4/93 |
| 094 | 4.606.0019 | SUCTION FITTING L = 60 M22 - 3 / 8G |
| 095 | 4.008.0031 | INTAKE FILTER D.16 CONICAL H2O |
| 097 | 4.618.0030 | LOW PRESSURE HOSE R1 L = 450 FITTING 3 / 8M-3 / 8M |
| 098 | 4.606.0080 | DETERGENT SUCTION FITTING 1 / 2G |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor LKX 31 - 8.611.0160
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
New
You might also like
Comments (0)
No customer reviews for the moment.
Viewed products
16 other products in the same category:
Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner 8.611.0160 - IDRO LKX 31 TS AC 230/50 CM-GFix Your Pressure Cleaner IDRO LKX 31 TS. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
