Lavor Original Parts for Cleaner RANGER 150 - 80640706
€7.43
Tax included
Lavor Original Parts for Cleaner RANGER 150 - 80640706
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner RANGER 150 230-240/50 -R/N- TS EU 2L C/AVV.ECO-SP.PAV. L28 LWS - 80640706.Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Cleaner RANGER 150 - 80640706
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner RANGER 150 230-240/50 -R/N- TS EU 2L C/AVV.ECO-SP.PAV. L28 LWS - 80640706.

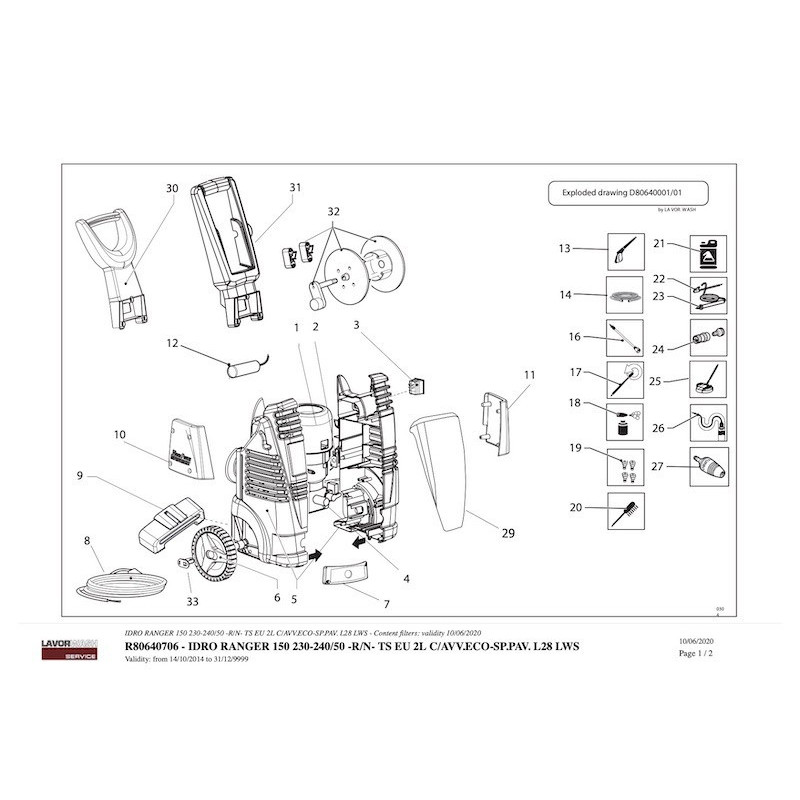

In the following tables, look for the spare part and its respective code.
| 80640706 - IDRO RANGER 150 230-240/50 -R/N- TS EU 2L C/AVV.ECO-SP.PAV. Pag.1 | ||
| # | Part Num. | Description |
| 0 | R50010804 | MOTOP.PT'03 110h100ALL 230-240/50 D.12 8°30 TS |
| 001 | 4.008.0922 | COVER FOR MOTOR FAN (MOTOR'96) |
| 002 | 4.008.0776 | COVER MOTOR WIRES BLACK |
| 003 | 3.401.0178 | SWITCH 0/1 BLACK BOTTON IP55 12/10 |
| 004 | 5.001.0804 | MOTORPUMP PT'03 110h100AL 230-240/50 D.12 8°30 TS |
| 005 | 4.013.0568 | BLACK COVER (LEFT+RIGHT) |
| 006 | 4.008.1495 | RED/BLACK WHEEL TEMPORALE |
| 007 | 4.008.1154 | COVER P80.0432BLACK |
| 008 | 4.012.0149 | CABLE H05VV-F 3X1 MT.5,4 SCHUKO PLUG F/F |
| 009 | 4.008.1065 | FRONT SUPPORT FOR COBRA |
| 010 | 4.008.1153 | LATERAL SHELL DX P80.0432 BLACK |
| 011 | 4.008.1160 | LATERAL SHELL SX BLACK |
| 012 | 3.404.0094 | CAPACITOR 32mF 450V |
| 013 | 6.001.0084 | GUN S'09 WITH INTEGRAL QUICK JOINT (BLACK TRIGGER) |
| 014 | 4.018.0095 | HOSE 1/4 180BAR L=6000 M22x1,5 D.15-RAPID FIX |
| 016 | 6.002.0325 | LANCE L=500 W/NOZZLES HOLDER-TURNING QUICK JOINT-COGETIL FOR MULTINOZZ. |
| 018 | 6.002.0162 | REINFORCED FOAM LANCE WITH TRANSPARENT TANK |
| 019 | 5.012.0502 | KIT 4 NOZZLES D.1,00 GR.0-15-25-40 FOR QUICK JOINT |
| 025 | 3.601.0120 | RED(PANT.485C)/BLACK FLOOR BRUSH L28 D.1,2 W/EXTENSION |
| 027 | 3.749.0472 | ROTARY NOZZLE 1/4F ALUM.THREAD SIZE 035 + QUICK JOINT |
| 029 | 4.008.1684 | COPERTURA ESTETICA COBRA -R- RAL.3020(PANT.485C) C/TAMP.LAVOR (P80.0432) |
| 031 | 4.008.1056 | COBRA HANDLE FOR H.P.HOSE COILER |
| 032 | 6.005.0317 | HOSE REEL KIT |
| 033 | 4.008.0879 | BLACK WHEEL PIVOT |
| 50010804 - MOTOP.PT'03 110h100ALL 230-240/50 D.12 8°30 TS Pag.2 | ||
| 0 | R50090673C | GRUPPO CORPO GUIDA C/TS-V.COMP.-M.13KG S/ASP.+TESTATA (PT'03) |
| 0 | R50091015 | ASS.MOTORE D.110H100ALL 230-240/50 2P +PIATT.8°30 |
| 001 | 6.005.0253 | KIT 236 LW FAN + RING |
| 003 | 3.001.0033 | BALL BEARING 6003 2RS (17x35x10) |
| 009 | 4.007.0328 | THRUST BEARING 35X55X12 PT'03 |
| 010 | 5.009.0673C | BODY GUIDE+HEAD ASSEMBLED WITH TS-SPRING 13KG WITHOUT SUCTION -PT'03- |
| 50091015 - ASS.MOTORE D.110H100ALL 230-240/50 2P +PIATT.8°30 Pag.3 | ||
| 001 | 5.002.0148 | HOUSING '02 D110 H100AL 230-240/50 2P |
| 002 | 5.005.0071 | ROTOR FOR 110H100AL |
| 003 | 4.005.0219 | FRONT FLANGE D.110 PT'03 |
| 004 | 3.201.0008 | OIL SEALING RING D. 17X35X7 |
| 005 | 3.001.0030 | RADIAL |
| 006 | 4.005.0278 | WOBBLE PLATE 8'30 PT'03 |
| 50090673C - GRUPPO CORPO GUIDA C/TS-V.COMP.-M.13KG S/ASP.+TESTATA Pag.4 | ||
| 0 | R50070192C | CORPO GUIDA PT'03 PIST.D.12 C/ TS-VALV.COMP.S/ASP.-M.13KG |
| 0 | R50080182C | TESTATA PT'03 D.12 -C- |
| 001 | 5.007.0192C | BODY GUIDE PT'03 WITH TS/COMP.VALVE/SPRING 13KG WITHOUT SUCTION |
| 002 | 6.005.0282 | KIT 257 O-RING SEAL |
| 003 | 5.008.0182C | PUMP HEAD PARTNER '03 D.12 |
| 50070192C - CORPO GUIDA PT'03 PIST.D.12 C_ TS-VALV.COMP.S_ASP. Pag.5 | ||
| 001 | 5.009.0716 | COMPLETED VALVE TS PT'03 CABLE L=530 SPRING 13KG (WHITE FASTON COVER) |
| 002 | 6.005.0281 | KIT 256 VALVE GUIDE RID. W/O SUCTION PT'03C |
| 003 | 6.005.0226 | KIT 209 O-RING |
| 004 | 6.005.0079 | KIT 79 LW OIL SEALS |
| 005 | 4.005.0234 | PISTON BODY GUIDE PT'03 WITHOUT HOLE FOR SUCTION |
| 006 | 6.005.0181 | KIT 167 LW PISTON |
| 007 | 4.007.0314 | PIN 3,5x30 ZNT |
| 50080182C - TESTATA PT'03 D.12 -C- Pag.6 | ||
| 001 | 6.005.0184 | KIT 170 LW HEAD VALVE KIT |
| 002 | 4.005.0210C | '03 PARTNER HEAD |
| 003 | 6.005.0133 | KIT 124 O-RING WATER SEAL PARTNER D.12 |
