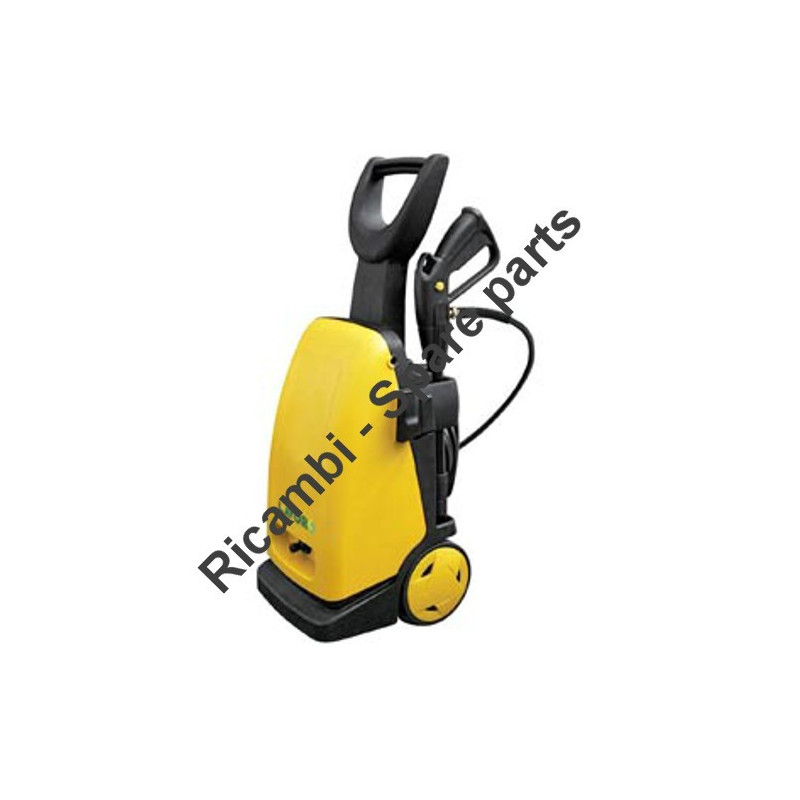

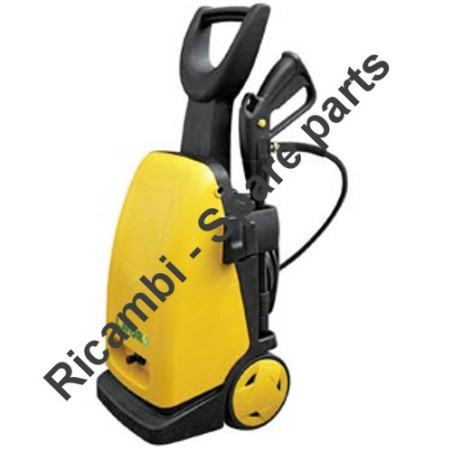

Lavor Pro Parts for Pressure Cleaner MACH 20
€6.58
Tax included
Lavor Pro Parts for Pressure Cleaner MACH 20
Lavor original spare parts for to replace broken parts for to fix Cold Water Pressure Cleaner 8.062.0801 - IDRO MACH 20 '03 230/50 -G- EU LWS TS.Fix Your Pressure Cleaner MACH 20. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Pro Parts for Pressure Cleaner MACH 20
Lavor original spare parts for to replace broken parts for to fix Cold Water Pressure Cleaner 8.062.0801 - IDRO MACH 20 '03 230/50 -G- EU LWS TS.
In the following tables, look for the spare part and its respective code.
| 8.062.0801 - IDRO MACH 20 '03 230/50 -G- EU LWS TS Pag.1 | ||
| # | Part Num. | Description |
| 1 | 5.009.0213 | SWITCH WITH PROTECTION 12(10) |
| 2 | 4.008.0785 | ACCESSORIES HOLDER |
| 3 | 4.008.0789 | HOSE REEL TIGER |
| 4 | 4.608.0027 | BLACK PLUG D.30 FOR TANK |
| 5 | 4.008.0793 | DETERGENT TANK |
| 6 | 4.008.0821 | HANDLE FOR MACH |
| 7 | 4.008.0792 | REAR HOUSING |
| 8 | 5.001.0503 | ELECTROPUMP PT'03 110h100 230/ 50 9'35 TS IN (MACH) |
| 9 | 4.008.0784 | SIDE LANCE HOLDER |
| 10 | 4.008.0786 | CABLE HOLDER |
| 11 | 4.012.0149 | EXT CABLE H05VV-F 3X1 MT.5,4 SCHUKO PLUG F/F |
| 12 | 4.008.0317 | YELLOW WHEEL COVER |
| 13 | 4.008.0500 | VIPER WHEEL |
| 14 | 4.007.0290 | FIXING AXLE FOR WHEEL |
| 15 | 4.008.0506 | BLACK LANCE HOLDER GLASS FOR EAGLE |
| 16 | 4.007.0291 | FIXING CLAMP FOR MOTOR PUMP D.110 |
| 17 | 4.013.0390 | YELLOW FRONT CABINET MACH (PANT.108C) |
| 18 | 4.018.0028 | EXT HOSE 1/4 140BAR L.8000 1/4F-GI R.M22X1,5 D.15 |
| 19 | 6.001.0046 | EXT HP SPRAY GUN S'01 |
| 21 | 6.002.0215 | EXT HI/LO LANCE S'99 1,0 MM (BLACK) new 6.002.0191c |
| 29 | 3.100.0082 | QUICK COUPLING INLET CONNECTOR (THREAD=11.5) |
| 50010503-1 - MOTOPOMPA PT'03 110h100 230/509'35 TS IN.1,8 V.COMP. Pag.2 | ||
| 001 | 5.009.0213 | SWITCH WITH PROTECTION 12(10) |
| 002 | 3.406.0004 | CABLE TERMINAL PG.11 |
| 004 | 3.002.0111 | SCREW TC-TORX M4X10 ZNT |
| 005 | 3.404.0017 | CAPACITOR 25mF 450V D.39x94 F/M |
| 006 | 4.008.0613 | ELECTRIC-BOX SEAL |
| 007 | 4.008.0583 | MOTOR FAN COVER '96 WITHOUT GRILL |
| 009 | 4.008.0714 | PARTNER FAN H20 |
| 010 | 5.002.0125 | ELECT.MOTOR COVER D110 H100 230/50 2P |
| 011 | 3.001.0020 | RADIAL BEARING FOR MOTOR SHAFT 17X40X12 6203 2RS |
| 012 | 5.005.0049 | ROTOR D.55 H.100 CIL. |
| 013 | 3.002.0115 | SCREW TC M5X35 SWAGEFORM ZNT |
| 014 | 5.009.0533 | FRONT FLANGE '96 D.110 W/RING |
| 015 | 3.201.0008 | OIL SEALING RING D. 17X35X7 |
| 016 | 3.001.0030 | RADIAL BALL BEARING 6303 |
| 017 | 4.005.0218 | WOBBLE PLATE 9'35 PT'03 |
| 018 | 3.001.0023 | THRUST RING AS3552 |
| 019 | 3.001.0024 | ROLLER-CAGE AXK 3552 |
| 020 | 4.007.0138 | BEARING WASHER D.54x28x4 |
| 021 | 5.009.0536 | ASSEMBLY RETAINING RING D.22.5/PISTON D.12 (PT'03) |
| 022 | 3.200.0130 | GASKET OR 67x2,50 NBR SH.70 |
| 023 | 4.007.0312 | PISTON SPRING INSIDE DIAM.17.2 L=37 FILO 2,4 65Mn |
| 024 | 3.406.0011 | BUSHING FOR PG.11 CABLE TERMINAL |
| 026 | 4.008.0376 | COVER FOR ELECTRICAL BOX |
| 027 | 4.008.0356 | ELECTRICAL BOX |
| 028 | 5.009.0537 | COMPLETED VALVE TS PT'03 CABLE L=510 SPRING 13KG |
| 029 | 4.007.0301 | RETAINER CLAMP FOR INJECTOR PT'03 |
| 030 | 5.008.0182 | '03 PARTNER HEAD D.12 |
| 031 | 5.007.0187 | SUBSTITUITED BY 5.007.0187C BODY GUIDE PT'03 PISTONS D.12 W/ASS,DETERG.SUCTION |
| 032 | 5.009.0495 | UNLOADER VALVE ASSEMBLY PLAST. + OR |
| 033 | 4.607.0105 | STOP VALVE SPRING D.6X20 |
| 034 | 5.009.0523 | D.1,8 INJECTORS ASSEMBLY WITH OR |
| 035 | 3.201.0014 | OIL SEAL RING D.12X20X5/7 |
| 036 | 3.200.0131 | GASKET OR 17,13x2,62 NBR SH.90 |
| 037 | 5.009.0535 | DELIVERY VALVES FOR HEAD '03 |
| 038 | 4.005.0210 | '03 PARTNER HEAD |
| 039 | 4.007.0320 | ZNT SELF-LOCKING SCREW M6x75 UNI 59313M SCOTCH-GRIP |
| 040 | 5.009.0534 | SUCTION VALVE ASSEMBLY FOR '03 HEAD |
| 041 | 3.201.0020 | WATER SEAL 12X18X5 |
| 042 | 4.006.0247 | RING FOR SUPPORT SEAL PARTNER D.12 |
| 043 | 4.008.0657 | OIL SPACER D.12 |
| 044 | 4.005.0211 | PISTON BODY GUIDE PT'03 WITH HOLE FOR SUCTION |
| 045 | 4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
| 046 | 5.006.0173 | MOTOR'03 D.110 H100 230/50 2P |
| 047 | 3.403.0054 | THERMAL PROTECTOR CD2A170D F/F F/M 6,3 |
| 048 | 4.007.0314 | PIN 3,5x30 ZNT |
| 049 | 5.009.0496 | RUBBER HOLDER FOR SHAMPOO + ORI NG |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor MACH 20 '03 - 8.062.0801
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
