FASA Original Parts for Pressure Cleaner TANGO 24
Fix Your Hot Water High Pressure Cleaner TANGO KW24 230/50 BLU TS -EU - FASA - 80210603-1. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following tables, look for the spare part and its respective code.

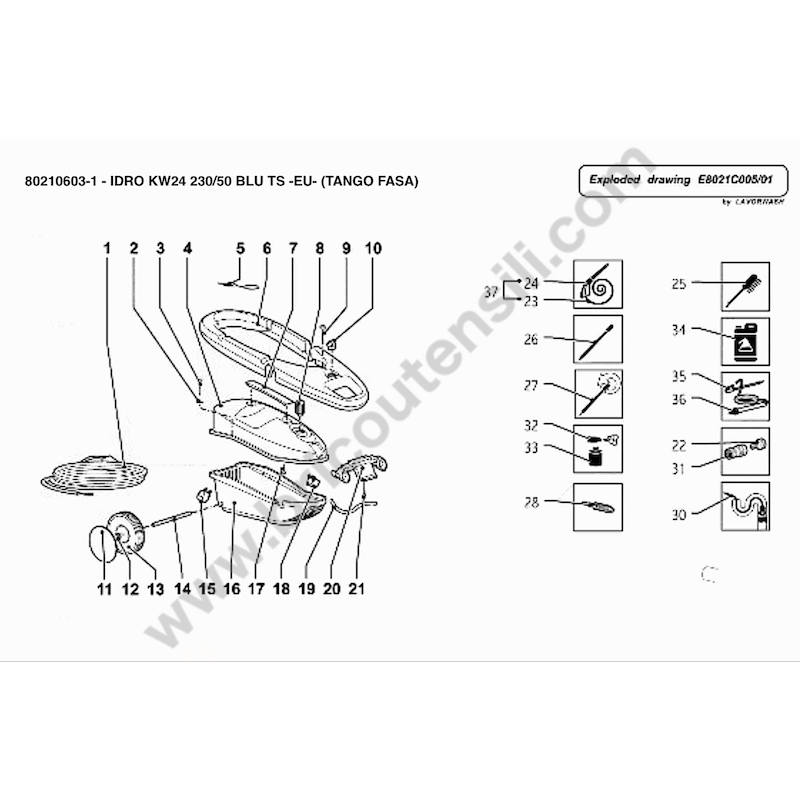

| 80210603-1 - IDRO KW24 230/50 BLU TS -EU- (TANGO FASA) Pag.1 | ||
| # | Part Num. | Description |
| 001 | 4.012.0150 | CABLE H05VV-F 3X1,5 MT.5,4 F/F SCHUKO PLUG |
| 003 | 3.002.0145 | SCREW 3,9X30 |
| 004 | 5.011.0037 | SPACE BLU COVER RAL5015 |
| 005 | 4.007.0114 | NOZZLE CLEANING PIN |
| 006 | 4.008.0276 | Substituted by 5.011.0073 TANK HANDLE KW |
| 007 | 4.008.0284 | HANDLE |
| 008 | 4.008.0281 | ADJUSTING KNOB |
| 009 | 3.002.0129 | Substituted by 3.002.0145 SCREW 3,9X35 HI-LO |
| 010 | 4.608.0027 | BLACK PLUG D.30 FOR TANK |
| 011 | 3.099.0109 | WHELL COVER |
| 012 | 3.099.0020 | DIAM.150 WHEEL D.15 CLIP |
| 013 | 4.008.0296 | WHEEL D.200 MOZ.D.15 |
| 014 | 4.007.0134 | AXLE FOR KW (SPACE) |
| 015 | 4.008.0282 | LEFT HOLDER FOR LANCE |
| 016 | 5.011.0036 | CARENATURA INF.BLU RAL5015 SPACE PREMONTATA |
| 017 | 3.002.0104 | SCREW TC TORX T15 3,9X16 ZNT |
| 018 | 4.008.0283 | RIGHT HOLDER FOR LANCE |
| 019 | 4.008.0444 | DETERGENT TRANSPARENT PIPE 6X9 L.340mm |
| 020 | 4.008.0280 | LANCE HOLDER FOR SPACE |
| 021 | 3.002.0128 | SCREW TCB-TC M5X10 ZNT |
| 022 | 3.100.0082 | QUICK COUPLING INLET CONNECTOR (THREAD=11.5) |
| 023 | 4.018.0061 | H.P.HOSE 1/4 180BAR L=8000 1/4F/M22x1,5K15 |
| 024 | 6.001.0038 | Substituted by 6.001.0085 S'99 GUN METAL EXTENSION |
| 026 | 6.002.0186 | LANCE SY'99 1,20 |
| 50010226-2 - MOTORP.OMNIA'97 230/50 H110 PLATE.7,20 + T.S. FRONT GAUGE Pag.2 | ||
| 001 | 5.009.0213 | SWITCH WITH PROTECTION 12(10) |
| 002 | 3.406.0004 | CABLE TERMINAL PG.11 |
| 003 | 3.406.0011 | BUSHING FOR PG.11 CABLE TERMINAL |
| 004 | 4.008.0356 | ELECTRICAL BOX |
| 005 | 3.002.0111 | SCREW TC-TORX M4X10 ZNT |
| 006 | 3.404.0016 | CAPACITOR 45mF 450V D.45X90 WITHOUT CABLE FASTON M |
| 007 | 4.008.0613 | ELECTRIC-BOX SEAL |
| 008 | 3.002.0003 | HEXAGON SOCKET HEAD CAP SCREW M8X25 UNI 5931 ZNT |
| 011 | 5.009.0207 | CAP ASSY |
| 012 | 3.201.0002 | O-RINGBADSLSF 15X25,4X5 /7 |
| 013 | 3.200.0004 | O-RING GASKET 12,4X1,78 REF.20 50 |
| 015 | 3.200.0003 | O-RING GASKET 25,12X1,78 REF.2 100 |
| 016 | 3.201.0003 | WATER SEALING RING N.15X22X4 |
| 017 | 4.008.0391 | OIL SEAL SPACER |
| 018 | 4.006.0108 | BRASS COVER FOR WATER SEALING |
| 019 | 4.006.0107 | BRASS BUSH WATER SEALING |
| 026 | 5.009.0159 | OIL CAP WITH O-RING 3/8G |
| 028 | 4.005.0184 | BEST BODY GUIDE WITH WINGS '01 |
| 029 | 3.099.0003 | OIL LEVEL INDICATOR SLNS-3/8 H OBBY |
| 030 | 3.002.0004 | SCREW STEI 3/8 G.DIN 906 (OIL LOAD CAP) |
| 031 | 4.007.0011 | PISTON RECALL SPRING D.15 30L .42 |
| 032 | 5.009.0086 | PISTON ASSY |
| 033 | 4.007.0001 | BEARING WASHER D.65X30X6 (C10Pb) FINISHED |
| 034 | 3.001.0025 | NEEDLE-ROLLER CAGE Axk4565 -STTEL- |
| 035 | 3.001.0003 | DISK AS 4565 |
| 036 | 3.002.0011 | SCREW TCEI M8X22 UNI 5931 ZNT |
| 037 | 4.005.0005 | DIE CASTED PLATE G.7.15' |
| 038 | 3.001.0002 | OBLIQUE SPHERE BEARING 20x52x15 7304 B |
| 039 | 3.200.0002 | O-RING GASKET 90X2,5 |
| 040 | 3.201.0001 | OIL SEAL 20/35/6/6,5 BABSL |
| 041 | 4.005.0100 | Substituted by 5.009.0168 FRONT FLANGE 125 '96 H110 |
| 042 | 3.002.0115 | SCREW TC M5X35 SWAGEFORM ZNT |
| 043 | 5.005.0029 | ROTOR SHAFT 125'96 TAPERED H.110 |
| 044 | 3.001.0020 | RADIAL BEARING FOR MOTOR SHAFT 17X40X12 6203 2RS |
| 045 | 5.002.0121 | Substituted by 5.006.0197 FRAME '96 D125 H110 230/50 2P 2800W |
| 046 | 4.008.0092 | FAN FB80 WITH HOLE D.16,5 (PARTNER) |
| 047 | 3.099.0049 | LOCKING RING D.23 FAN FB80 |
| 048 | 4.008.0583 | MOTOR FAN COVER '96 WITHOUT GRILL |
| 049 | 5.009.0277 | Substituted by 6.005.0078 COMPENSATED VALVE ADJUSTING PIN+O-RING ASSEMBLY |
| 050 | 5.009.0274 | Substituted by 5.009.0283 ELECT.BOX+MICRO SWITCH+CABLE FOR TS TOP BEST COMPL.VALVE |
| 054 | 5.009.0101 | CAP VALVE SUCTION DELIVERY-OR MOUNTED |
| 055 | 5.009.0005 | DELIVERY SUCTION VALVE LAVOR 1 |
| 056 | 3.200.0019 | O-RING 12.4X1.78 SH.90 |
| 059 | 3.200.0012 | OR 10,78X2,62 RIF.3043 |
| 060 | 4.007.0014 | DETERG.STOP VALVE SPRING 4X8 ESP.3 |
| 061 | 3.005.0001 | BALL INOX 420 DIAM.5 DEGREE OF ACCURACY G 500 |
| 062 | 5.009.0164 | Substituted by 6.005.0030 DETERG.INJECT.HOSE FITTING |
| 064 | 4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
| 070 | 3.002.0001 | SCREW STEI M6X8 P.P. UNI 5923 |
| 071 | 3.107.0009 | GAUGE 1/8'' |
| 072 | 4.006.0109 | TAPERED 1/8 CAP |
| 073 | 5.009.0271 | PRESSURE REGULATOR |
| 074 | 3.200.0036 | O-RING 4X2,5 SH.70 VITON |
| 075 | 4.606.0056 | Substituted by 5.609.0041 CHECK VALVE |
| 076 | 4.607.0105 | Substituted by 4.007.0324 STOP VALVE SPRING D.6X20 |
| 077 | 4.006.0172 | INJECTOR DIAMITER 2X OMNIA 97 |
| 078 | 3.200.0022 | O-RING 9,25X1,78 |
| 079 | 3.200.0070 | O-RING 14X2 |
| 080 | 4.006.0168 | OUTLET CONNECTION M22X15 |
| 081 | 4.607.0095 | SPRING D.8X17 |
| 082 | 3.005.0002 | Substituted by 3.005.0009 BALL 11/32 INOX 420 B |
| 083 | 4.607.0098 | VALVE L2 SEAL SEAT |
| 084 | 3.200.0071 | OR GASKET 11,1X1,78 SH 90 |
| 085 | 4.006.0170 | SPACER FOR SEAL SEAT |
| 087 | 4.005.0124 | ALLUMINIUM HEAD |
| 088 | 3.002.0139 | SCREW TCEI M8X35 ZNT |
| 089 | 4.006.0011 | SUCTION VALVE SPACER |
| 095 | 5.008.0107 | PUMP HEAD C/W COMP.VALVE,FRONT PRESS.GAUGE X T.S. |
| 097 | 5.006.0094 | MOTOR D.125 H.110 230/50 2P |
| 099 | 5.007.0008 | PIST. BOBY GUIDE BEST'01 |
