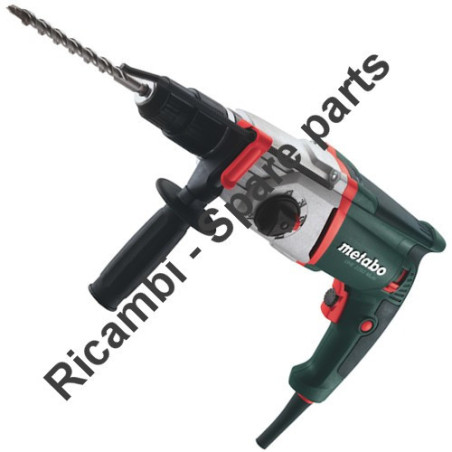

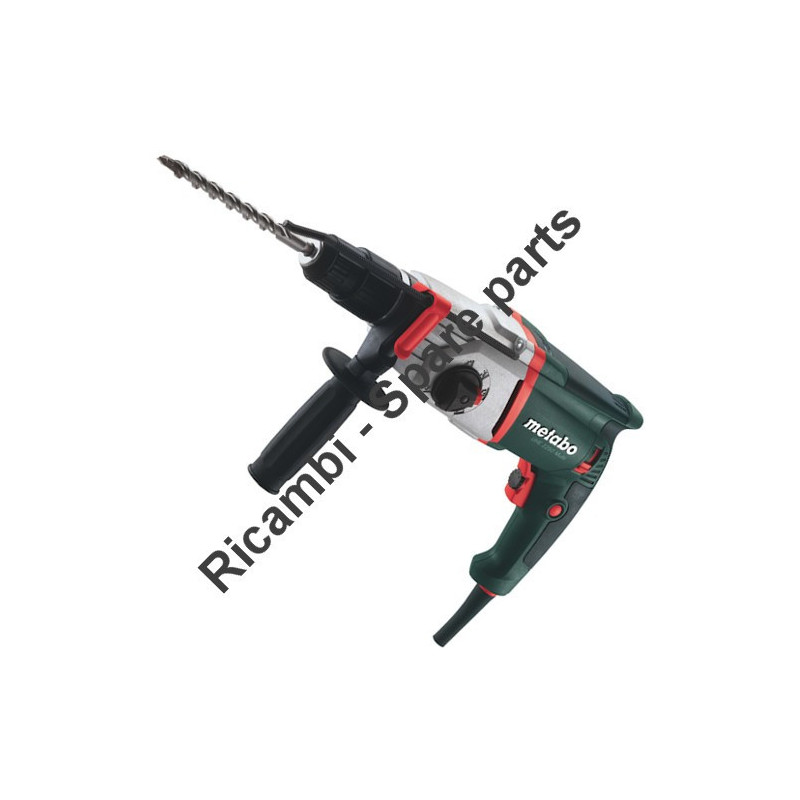

Metabo Spare Parts for Multi Hammer UHE 2250 Multi
€1.92
Tax included
Metabo Spare Parts for Multi Hammer UHE 2250 Multi
We have the original Spares METABO for Multi Hammer UHE 2250 Multi - 00854000, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Multi Hammer UHE 2250 Multi
We have the original Spares METABO for Multi Hammer UHE 2250 Multi - 00854000, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.
In the following table, look for the model of the Drill and the respective parts of the code.
| Multi Hammer UHE 2250 Multi/00854000 | ||
| # | Part NUm. | Description |
| 1 | 31605100 | Adaptor SDS -PLUS |
| 2 | 14319516 | Shaft sealing ring |
| 3 | 14311509 | Needle sleeve,30x37x16 |
| 4 | 33900715 | Washer |
| 5 | 34200349 | Pressure spring,34,7x38,3x1,8x27,7 |
| 6 | 34339782 | Retaining ring |
| 7 | 31604783 | Gear housing cpl. |
| 8 | 34000403 | Sliding block |
| 9 | 14115638 | Circlip |
| 10 | 34101306 | Support ring |
| 11 | 34207062 | Cup spring |
| 12 | 31606406 | Ratched wheel set |
| 14 | 34343100 | Support ring |
| 15 | 14115636 | Circlip |
| 16 | 31604785 | Drill driving sleeve cpl. |
| 17 | 14319520 | Shaft sealing ring |
| 18 | 34100581 | Bushing |
| 19 | 34105903 | Piston |
| 20 | 34101298 | Support ring |
| 21 | 14319515 | O-ring |
| 22 | 33900719 | Washer |
| 23 | 14319521 | O-ring |
| 24 | 34105895 | Catching sleeve |
| 25 | 14118184 | Circlip |
| 26 | 34409314 | Sealing ring |
| 27 | 31604335 | Striker compl. |
| 28 | 34105868 | exciter sleeve compl. |
| 29 | 32005048 | Ball holder |
| 30 | 34409864 | Seal |
| 31 | 31604786 | Gear flange cpl. |
| 32 | 34407067 | Felt seal |
| 33 | 34409592 | Rubber buffer |
| 34 | 14112340 | Filister head screw |
| 35 | 14112361 | Self-tap. fill. h. screw |
| 36 | 31604447 | Control knob compl. |
| 37 | 34337675 | Seal |
| 38 | 33912961 | Washer |
| 39 | 14311428 | Axial needle bearing |
| 40 | 14115255 | Cup spring |
| 41 | 31604787 | Pinion shaft compl. |
| 42 | 33913435 | guide sheet |
| 43 | 31604446 | Shift element compl. |
| 45 | 34170336 | Cap screw |
| 46 | 31605087 | Keyless chuck w.adaptor |
| 47 | 31605088 | Quick-change adaptor |
| 48 | 31605227 | Side support handle compl. |
| 49 | 34337604 | Sealing ring |
| 50 | 33000183 | Fan |
| 51 | 31000922 | Armature compl.,230 V |
| 52 | 14319243 | O-ring |
| 53 | 33805491 | Rating plate |
| 54 | 34339407 | Cover w.o. electronic |
| 55 | 14111699 | Self-tap. fill. h. screw |
| 56 | 14111602 | Self-tap fill h screw |
| 57 | 34339853 | Pistol grip 2-part, gummed |
| 58 | 14311488 | Ball bearing, 8x22x7 |
| 59 | 14311517 | Ball bearing,6x19x6 |
| 60 | 34339978 | Intermediate flange |
| 61 | 34152023 | Cylindrical pin |
| 62 | 14111826 | Self-tap. fill. h. screw |
| 63 | 31100980 | Field coil 230V |
| 64 | 31501325 | Motor housing |
| 66 | 31605199 | Brush holder module,230V - V-El. 850W |
| 67 | 31604695 | Carbon brush set,230 V |
| 68 | 34340922 | Electronic switch with dial |
| 69 | 14111706 | Self-tap. fill. h. screw |
| 70 | 34336249 | Cable clip |
| 71 | 34339430 | Cable sleeve |
| 72 | 34448673 | Cord with plug |
| 73 | 31604789 | Maintenance kit |
| 880 | 34413080 | Grease FG 126 |
| 890 | 34413121 | Tube Grease,50g Klueber Microlube GL 261 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo UHE 2250 Multi 00854000
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
New
