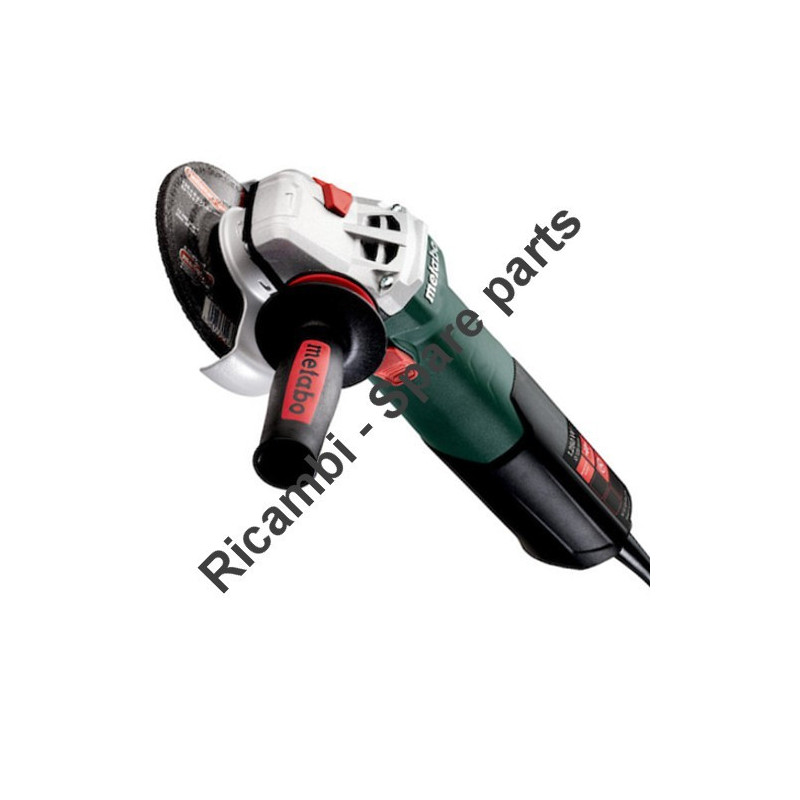

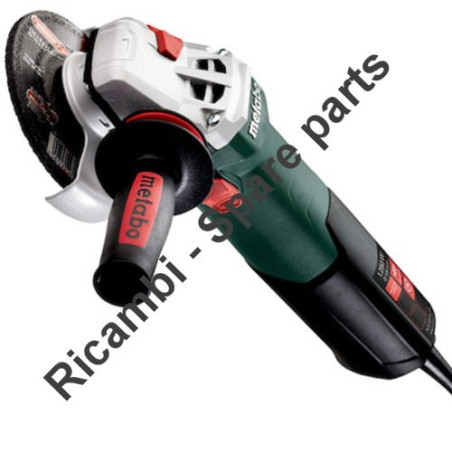

Metabo Spare Parts for Angle Grinder W 12-125 Quick 00398000
€77.26
Tax included
Metabo Spare Parts for Angle Grinder W 12-125 Quick 00398000
We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 12-125 Quick - 00398000.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Metabo Spare Parts for Angle Grinder W 12-125 Quick 00398000
We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 12-125 Quick - 00398000.
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder Metabo W 12-125 Quick 00398000 | ||
| # | Part Num. | Description |
| 1 | 31001098 | Complete armature, 230V |
| 2 | 31101198 | Field (Stator) 230 V |
| 3 | 34341111 | Switch, FPCe 230 V |
| 4 | 34410097 | Cord Armor |
| 5 | 34449956 | Power Cord with CEE plug |
| 6 | 34336249 | Power Cord holder |
| 7 | 31501352 | 2-part motor casing |
| 8 | 33915118 | Air conveyor |
| 9 | 33915120 | Air conveyor |
| 10 | 34343314 | Cover |
| 11 | 14311517 | Bearing, 6x19x6 |
| 12 | 34409787 | Rubber bushing |
| 13 | 33913306 | Washer, 8,05x17x0,4 |
| 14 | 14311518 | Bearing, 8x22x7 |
| 15 | 33900639 | Washer, 7,05x19,5x0,2 |
| 16 | 34110094 | Hexagon nut with Collar |
| 17 | 34343307 | Gear shift rod |
| 18 | 34343303 | Cover |
| 19 | 34343311 | Terminal |
| 20 | 34343710 | Switch slider |
| 21 | 34103116 | Clamping flange |
| 23 | 33920450 | Protective cover, D125 |
| 24 | 31400097 | Anti-vibration handle, M 8 |
| 26 | 34202249 | Torsion spring |
| 30 | 33901197 | flat gasket |
| 31 | 14112164 | Screw (DIN 7985) |
| 32 | 14111698 | Screw |
| 33 | 14111706 | Screw |
| 34 | 33805993 | Data plate |
| 36 | 39999999 | NOT NECESSARY |
| 40 | 34160442 | Grinding wheel shaft M14 |
| 41 | 31605535 | Complete tightening nut, M14 |
| 42 | 14115112 | Washer 10.2 X 14.8X 0.2 |
| 43 | 14115230 | Washer 10.2 X 14.8X 0.1 |
| 44 | 14115392 | Washer 10.2 X 14.8X 0.5 |
| 50 | 34343328 | Flange compl. |
| 51 | 34110246 | Nut |
| 52 | 31605496 | Bevel Gear + pinion gear |
| 53 | 31605508 | Friction Washer Set compl. |
| 54 | 31605510 | Gear case compl. |
| 55 | 31605422 | Safety clutch with pinion |
| 56 | 31605524 | Carbon Brush support compl. |
| 57 | 31605485 | Fan with dust cover |
| 58 | 31605521 | Carbon brushe set |
| 59 | 31606604 | Clamping lever compl. |
| 61 | 14115665 | Safety ring |
| 62 | 14319600 | Ring-O |
| 63 | 34200339 | Spring |
| 64 | 34343313 | Yellow button |
| 65 | 34151564 | Pin |
| 71 | 34343309 | Switch Components |
| 72 | 33900780 | Washer |
| 75 | 14319249 | Ring-O |
| 90 | 39999999 | Partic. UNNECESSARY |
| 92 | 14319564 | Ring-Or |
| 880 | 34413092 | 100G GREASE TUBE |
| 885 | 34413056 | FAT TUBE SF 011 50Gr 1,8oz |
| 1001 | 33850581 | Data plate |
