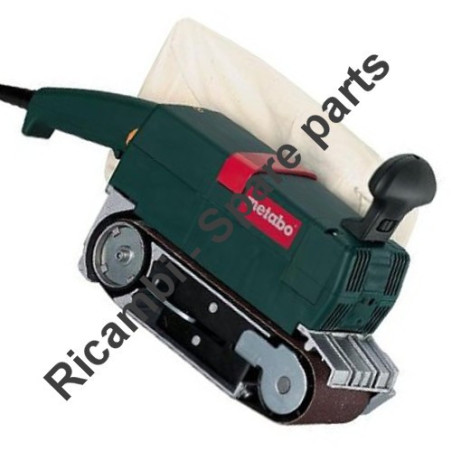

Metabo Spare Parts for Belt Sander BA E 1075
METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Belt Sander BA E 1075 - 01075000.In the following table, look for the model of the Belt Sander and the respective parts of the code.
| Belt Sander BA E 1075/01075000 | ||
| # | Part Num. | Description |
| 1 | 31602756 | Foot cpl |
| 2 | 31541465 | Foot cpl |
| 3 | 34111241 | Thumbscrew |
| 4 | 34410107 | Plug |
| 5 | 34409522 | Cutting |
| 6 | 34337297 | Cover right |
| 7 | 33812237 | M-Label,56x25 |
| 9 | 34337285 | Motor housing |
| 10 | 34337273 | Cover |
| 11 | 14112180 | Fill. head screw plast. 45 |
| 12 | 34337298 | Cover left |
| 13 | 31602520 | Knob cpl. |
| 14 | 34337301 | Pressure plate |
| 15 | 33912879 | Wire strap |
| 16 | 14115011 | Washer |
| 17 | 34410106 | Dust bag |
| 18 | 31602753 | Dust bag cpl. |
| 19 | 31000763 | Armature cpl. 230 V |
| 20 | 14311452 | Ball bearing, 7x19x6 |
| 21 | 31100961 | Field coil 230 V |
| 22 | 31603388 | Carbon brush cpl. |
| 23 | 31602748 | BEARING BRIDGE COMPL. |
| 24 | 34449337 | Cable with plug |
| 25 | 34410097 | Cable sleeve |
| 26 | 34340662 | Push button switch |
| 27 | 34337293 | Selector |
| 28 | 34307688 | Electronic unit |
| 29 | 14311393 | Needle sleeve |
| 30 | 31602749 | Gear-box cpl. |
| 31 | 14115518 | Shim |
| 32 | 14115519 | Shim |
| 33 | 63060021 | SHIM RING 10X16X1 VERZ. |
| 34 | 14115521 | Shim |
| 35 | 14115522 | Shim |
| 36 | 14311453 | Ball bearing, 10x26x8 |
| 37 | 34151462 | Carrier |
| 38 | 34337292 | Cable clip |
| 39 | 34325398 | Condenser |
| 40 | 34337294 | Handle cover |
| 41 | 14112181 | Fill. head screw plast. 45 |
| 42 | 33912874 | Angle |
| 43 | 34200257 | Pressure spring |
| 44 | 33912875 | SPRING RING |
| 45 | 14112185 | Cap screw |
| 48 | 31602751 | Driving roller cpl. |
| 49 | 33900621 | Supporting disc |
| 50 | 14115523 | Shim |
| 51 | 33803564 | Rating plate |
| 52 | 34337295 | DUST GUIDE |
| 53 | 34116074 | Drive shaft |
| 54 | 34116073 | Guide spindle |
| 55 | 33912873 | Lever |
| 56 | 14216057 | Tubular rivet |
| 57 | 14115524 | Lock washer |
| 58 | 31602750 | Gauge roller cpl - DISCONTINUED |
| 59 | 33912872 | Strap |
| 60 | 14118093 | Circlip |
| 61 | 34200256 | Pressure spring |
| 62 | 33912871 | Washer |
| 63 | 34410105 | Sealing ring |
| 64 | 14112187 | Self-tap. fill. h. screw |
| 65 | 34337299 | Adaptor |
| 66 | 33912878 | Flat spring |
| 67 | 31602752 | Adaptor cpl |
| 68 | 34337289 | Gear box housing |
| 69 | 34426026 | Flat toothed belt |
| 70 | 14112183 | Hexagon head screw |
| 71 | 14115517 | Washer |
| 72 | 34337287 | Toothed belt pulley |
| 73 | 34337291 | Baffle |
| 74 | 34325399 | CHOKE COMPL. |
| 75 | 14113137 | Square nut |
| 76 | 14112182 | Fill. head screw plast. 45 |
| 77 | 14112184 | Hexagon head screw |
| 78 | 34337288 | Toothed belt pulley |
| 79 | 33900622 | Supporting disc |
| 80 | 61720018 | Fillister head screw w.fill. head screw |
| 81 | 14111624 | Hexagon head screw |
| 82 | 34111238 | Star grip |
| 83 | 34409521 | Washer |
| 84 | 31541470 | Belt housing cpl. |
| 85 | 34114609 | Butting washer |
| 86 | 14115501 | Circlip |
| 87 | 63103400 | Spare sanding belt bases (Set of 2) |
| 88 | 33912877 | Pressure strip |
| 89 | 14111357 | Cheese-head screw |
| 90 | 31602850 | Set washers for clutch |
| 92 | 34409643 | Rubber ring |
