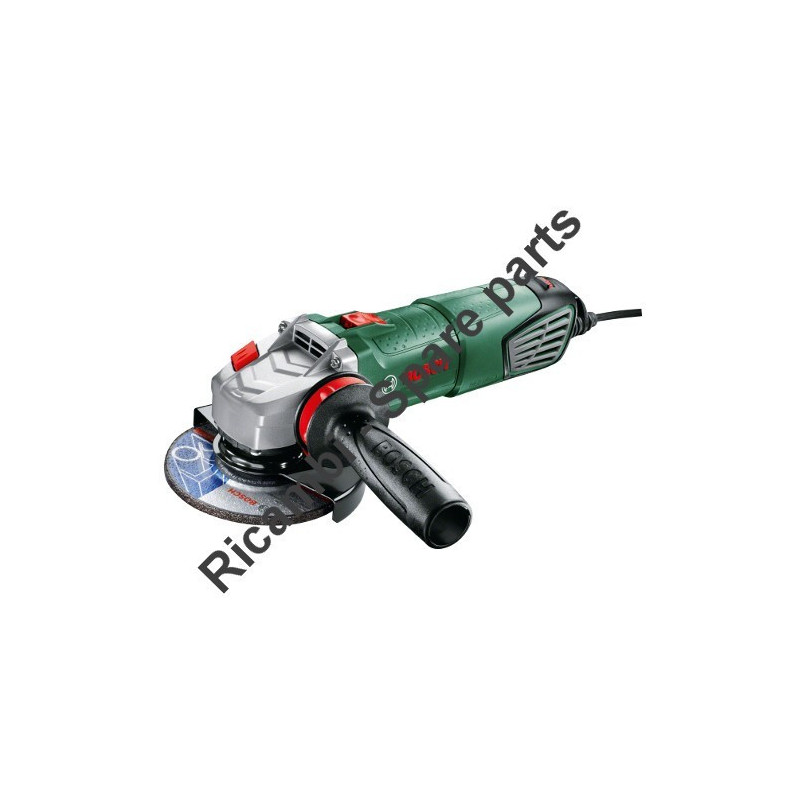

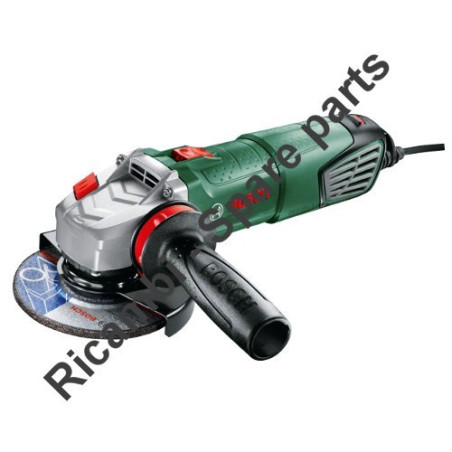

Bosch Spare Parts for Angle Grinder PWS 8-125 CE
€1.57
Tax included
Bosch Spare Parts for Angle Grinder PWS 8-125 CE
We have the original Spares for Angle Grinder PWS 8-125 CE, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Angle Grinder PWS 8-125 CE - 0603375703. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Angle Grinder PWS 8-125 CE
Fix Your Angle Grinder PWS 8-125 CE - 0603375703. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee..
In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder PWS 8-125 CE/0 603 375 703 | ||
| # | Part Num. | Description |
| 1 | 1605108 189 | Motor Housing GREEN |
| 2 | 2609000764 | Field 220-230V |
| 2/10 | 1604477011 | Blade terminal |
| 3/50 | 1606610121 | Fan |
| 4 | 1607200086 | Switch |
| 3/60 | 2910110048 | Pan head screw DIN 85-AM3x6-CUZN |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9x95 MM |
| 6a | 2600703011 | Grommet Ø8,3-Ø9,4x95 MM |
| 6b | 2600703013 | Grommet Ø7,6-Ø8,2x95 MM |
| 7 | 1601302017 | Fastening Clamp |
| 9 | 1601118712 | Reference Plate |
| 12 | 1607328029 | Suppression Filter |
| 13 | 2600905032 | Deep-Groove Ball Bearing 7x19x6 |
| 14 | 1600905011 | Deep-Groove Ball Bearing 8x22x7 |
| 18 | 1604611026 | Compression Spring |
| 22 | 1602319002 | Adjusting Slide |
| 23 | 1602026057 | Switch Handle BLACK |
| 25 | 1600508009 | Housing Cover GREEN |
| 26 | 1600502020 | Rubber Bushing |
| 27 | 1600206025 | Rubber Ring |
| 28 | 1605805061 | Bearing Flange |
| 29 | 1601328005 | Air-Deflector Ring |
| 32 | 1603523110 | Grinding Spindle M14, SW17 |
| 35 | 1600136012 | Shim 0,1 MM THICK |
| 35a | 1600136010 | Shim 0,2 MM THICK |
| 35b | 1600136011 | Shim 0,3 MM THICK |
| 36 | 1600150011 | Spring Washer |
| 38 | 1606333606 | Crown Gear Z=36 |
| 39 | 1604652013 | Spiral Spring |
| 40 | 2916660009 | Spring retaining ring DIN 472-25x1,2MM |
| 43 | 1606333605 | Bevel Gear Z=11 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2910211018 | Tapping Screw DIN 7971-ST3,9x13-F |
| 48 | 2910211005 | Tapping Screw DIN 7971-ST2,9x9,5-F |
| 49 | 2912401420 | Tapping Screw DIN7981-ST3,9x19-F-Z |
| 50 | 2912401420 | Tapping Screw DIN7981-ST3,9x19-F-Z |
| 51 | 1607233020 | Speed governor 230V |
| 53 | 1604448015 | Connecting Cable |
| 54 | 1604448016 | Connecting Cable |
| 55 | 2912401420 | Tapping Screw DIN7981-ST3,9x19-F-Z |
| 104 | 1600210044 | O-Ring 4,5x1,0 MM BLUE |
| 650/50/20 | 1600210039 | O-Ring 20,35x1,78 MM |
| 652/20 | 2910022197 | Socket head cap screw DIN 84-M 6x16-8.8 |
| 652/20a | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6x16-8.8 |
| 750/10 | 2602025067 | Auxiliary Handle M10, Ø32,5x105 MM |
| 750/20 | 1603340040 | Clamping Nut M14 |
| 750/30 | 1607950043 | Pin-Type Face-Wrench |
| 750/50 | 1605703099 | Clamping-Flange Ø22,2x42 MM |
| 752 | 1605510117 | Protective Cover Ø 125 MM (5") |
| 753 | 1603340027 | Fast Locking Flange M14, SDS-CLIC |
| 803 | 1604010248 | Armature With Fan 220-230V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F |
| 808 | 1601106032 | Nameplate 26x52 MM |
| 810 | 1607014116 | Carbon-Brush Set |
| 816 | 1601323021 | Brush Holder |
| 821 | 1605806483 | Gear Housing - OUT OF STOCK |
| 821/010 | 1607000253 | Push-Button BLACK |
| 838 | 1607000943 | Crown Gear |
| 841 | 1600910018 | Needle bearing Ø8xØ12x8 MM |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of
Bosch PWS 8-125 CE - 0603375703
11 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
