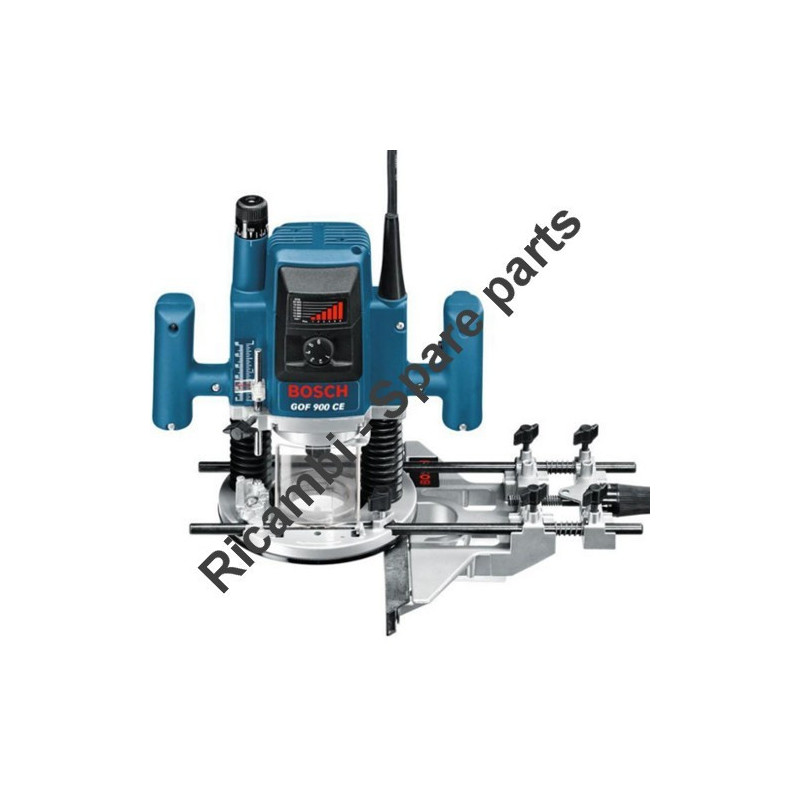

Bosch Spare Parts for Industrial Router GOF 900 ACE
€1.67
Tax included
Bosch Spare Parts for Industrial Router GOF900ACE
BOSCH Genuine Parts and Accessories, Tech Service, repair and after-sales service with great professional skills necessary to follow you and advise you on the purchase of spare parts that are most suitable for solving your repair and maintenance problems for Router GOF 900 CE - 0601614603.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Industrial Router GOF900ACE
BOSCH Genuine Parts and Accessories, Tech Service, repair and after-sales service with great professional skills necessary to follow you and advise you on the purchase of spare parts that are most suitable for solving your repair and maintenance problems for Router GOF 900 CE - 0601614603.
In the following table, look for the model of the Router and the respective parts of the code.
|
Industrial Router GOF 900 ACE/230V/EU - 0601614703
|
||
| # | Part Num. | Description |
| 1 | 3605108581 | Motor Housing BLUE |
| 3 | 3604010501 | Armature 230-240V |
| 5 | 3605500595 | Housing Cover |
| 6 | 3600590507 | Air-Deflector Ring |
| 8 | 3600190520 | Intermediate Plate |
| 9 | 3605133526 | Handle Cover LT |
| 10 | 3605133528 | Handle Cover RT |
| 11 | 3601010519 | Cover |
| 12 | 3601010517 | Insert |
| 13 | 2610912599 | Chip Deflector |
| 14 | 1607000231 | On-Off Switch |
| 15 | 2601035001 | Cable Clip |
| 16 | 3604460557 | Power supply cord EU 4,25m 2 x 1,0mm H07 RN-F |
| 17 | 3600703509 | Grommet Ø7,4 MM |
| 19 | 3604445718 | Connecting Cable |
| 20 | 2610992432 | Spring Washer |
| 21 | 2610913173 | groove ball bearing |
| 22 | 3600905510 | Ball Bearing |
| 23 | 2916650006 | Retaining clip DIN 471-15x1-FSt |
| 24 | 3600034505 | Retaining Plate |
| 25 | 3603300501 | Hex Nut M15 |
| 27 | 2915011005 | Hex Nut DIN 934 -M4-m-8 |
| 30 | 2610910566 | Tapping Screw |
| 32 | 3603301524 | Union Nut |
| 33 | 3601021509 | Swing-Plate |
| 34 | 3604651502 | Torsion Spring |
| 35 | 3603415556 | Pan head screw M4 |
| 36 | 3603231539 | Knob |
| 37 | 3600209500 | Indicator Ring |
| 38 | 3600100528 | Spring Washer |
| 39 | 3600100527 | Washer |
| 40 | 3600360507 | Adjusting Sleeve |
| 41 | 3600400507 | Locking Piece |
| 42 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 43 | 3602000510 | Locking Lever |
| 44 | 3603450503 | Lock Bolt |
| 45 | 3604651503 | Compression Spring |
| 46 | 2610997191 | Depth-Gauge |
| 47 | 2600590006 | Ratchet Cap |
| 48 | 3916060500 | Spring Washer |
| 49 | 2910641122 | Oval-Head Screw DIN 7985-M4X12-4.8-H |
| 50 | 1613480008 | Wing Screw M6x20 MM |
| 51 | 3603211501 | Knob |
| 52 | 3600240500 | Locking Ring |
| 53 | 3604648504 | Extension Spring |
| 54 | 2610915161 | Screw |
| 55 | 2916650003 | Spring retaining ring DIN 471-12x1-FSt |
| 57 | 3604613508 | Compression Spring |
| 58 | 3603120502 | Guide Piece |
| 59 | 2610990698 | Bellows |
| 61 | 1604477005 | Blade terminal |
| 62 | 3604680502 | Retaining snap ring |
| 63 | 2910871122 | Countersunk-Head Screw DIN 965-M4x12-8.8 |
| 64 | 1617328025 | Suppression Filter |
| 68 | 3607233501 | Speed governor 230-240V |
| 80 | 3601119815 | Reference Plate |
| 81 | 2916540007 | Retaining ring |
| 82 | 3603410504 | Socket head cap screw |
| 83 | 1903230007 | Ball DIN 5401-4 MM-III-ST |
| 85 | 3600210507 | O-Ring |
| 89 | 2610996090 | Set ring |
| 90 | 1601030022 | Tab Washer |
| 650/3 | 1907950511 | Single-Head Eng. Wrench SW19 |
| 731 | 2608570102 | Collet 8 MM |
| Collet 6 MM | ||
| 802 | 2610907797 | Field 230-240V |
| 804 | 2610907867 | Fan Housing |
| 807 | 3605702581 | Base Plate |
| 810 | 3601119779 | Nameplate |
| 818 | 3604336511 | Brush Holder |
| 818/3 | 3604321513 | Carbon-Brush Set |
| 818/4 | 3604652501 | Spiral Spring |
| 828 | 2610907864 | Rod |
| 829 | 2610907865 | Pointer |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
GOF 900 ACE - 0601614703
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N BOSCH:
- BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
