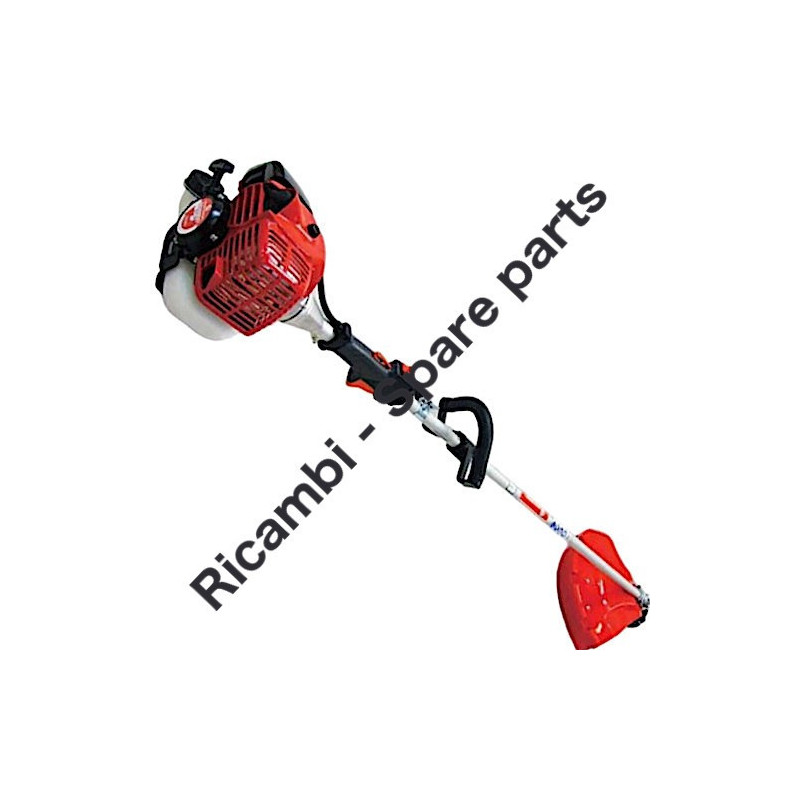

Maruyama Brushcutter BC260RS Parts
€2.57
Tax included
Maruyama Parts for Brushcutter BC260RS
Maruyama Genuine spare parts or replacement parts for to repair Brushcutter BC260RS.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Maruyama Parts for Brushcutter BC260RS
Maruyama Genuine spare parts or replacement parts for to repair Brushcutter BC260RS.
In the following tables, look for the spare part and its respective code.
| Maruyama Brushcutter BC260RS Parts | ||
| Main Body Pag.1 | ||
| # | Part Num. | Description |
| 1-1 | 363479 | BC260RS |
| 1-2 | 817002 | Bolt |
| 1-3 | 215512 | Clutch Case Ass'y Incl.4-10 |
| 1-4 | 214592 | Bearing Case |
| 1-5 | 214161 | Bearing |
| 1-6 | 054676 | Snap Ring |
| 1-7 | 214162 | Buffer |
| 1-8 | 214163 | Washer |
| 1-9 | 092033 | Screw |
| 1-10 | 214593 | Driveshaft Tube Adapter |
| 1-11 | 092561 | Bolt |
| 1-12 | 222671 | Clutch Drum |
| 1-13 | 219268 | Driveshaft Ass'y |
| 1-14 | 218711 | Driveshaft Tube |
| 1-15 | 229001 | Throttle Trigger |
| 1-16 | 054691 | Hanging Bracket Ass'y Incl.17 |
| 1-17 | 089738 | Bolt |
| 1-18 | 229716 | Label |
| 1-19 | 223188 | Label |
| 1-20 | 228043 | Label |
| 1-21 | 220533 | Hanging Strap Ass'y |
| 1-22 | 222454 | Loop Handle Ass'y Incl.23-26 |
| 1-23 | 222520 | Loop Handle |
| 1-24 | 213171 | Packing |
| 1-25 | 222142 | Screw |
| 1-26 | 081027 | Nut |
| 1-27 | 228302 | Safety Cover Ass'y Incl.28-30 |
| 1-28 | 227822 | Bracket |
| 1-29 | 227819 | Bracket |
| 1-30 | 092555 | Bolt |
| 1-31 | 228301 | Code Cutter Ass'y Incl.32-34 |
| 1-32 | 227823 | Code Cutter |
| 1-33 | 817002 | Bolt |
| 1-34 | 228325 | Nut |
| 1-35 | 227812 | Extension |
| Gear Case Pag.2 | ||
| 2-1 | 228403 | Gearcase Ass'yIncl.2-17 |
| 2-2 | 225960 | Gearcase |
| 2-3 | 089101 | Bolt |
| 2-4 | 227990 | Bearing |
| 2-5 | 228416 | Gear Set |
| 2-6 | 225896 | Bolt |
| 2-7 | 227991 | Bearing |
| 2-8 | 055185 | Snap Ring |
| 2-9 | 227992 | Bearing |
| 2-10 | 227993 | Bearing |
| 2-11 | 228477 | Snap Ring |
| 2-12 | 140270 | Snap Ring |
| 2-13 | 092561 | Bolt |
| 2-14 | 212986 | Boss Adapter |
| 2-15 | 140275 | Clamping Washer |
| 2-16 | 215547 | Stabilizer |
| 2-17 | 215610 | Bolt |
| 2-18 | 229486 | Instruction Manual |
| 2-19 | 210418 | Box Spanner |
| 2-20 | 022865 | Double-ended Wrench |
| 2-21 | 210181 | Lever Handle |
| 2-22 | 220534 | Blade Cover |
| 2-23 | 227910 | 3-Teeth Blade |
| 2-24 | 226182 | Nylon Head (L) 4 |
| 2-25 | 522583 | Parts List |
| Engine Pag.3 | ||
| 3-1 | 858436 | Engine |
| 3-2 | 269140 | Cylinder - New gasket required |
| 3-3 | 282330 | Gasket |
| 3-4 | 261250 | Cap Screw |
| 3-5 | 267924 | Insulator - New gasket required |
| 3-6 | 267049 | Gasket |
| 3-7 | 265924 | Cap Screw |
| 3-8 | 265925 | Cap Screw |
| 3-9 | 280734 | Muffler |
| 3-10 | 280428 | Gasket |
| 3-11 | 266264 | Cap Screw |
| 3-12 | 269150 | Top Cover |
| 3-13 | 265742 | Knob |
| 3-14 | 269153 | Crankcase |
| 3-15 | 261491 | Bearing |
| 3-16 | 261386 | Oil Seal |
| 3-17 | 261492 | Oil Seal |
| 3-18 | 055185 | Snap Ring |
| 3-19 | 264582 | Screen |
| 3-20 | 261246 | Cap Screw |
| 3-21 | 269160 | Piston |
| 3-22 | 261496 | Piston Ring |
| 3-23 | 261497 | Piston Pin |
| 3-24 | 261037 | Bearing,Needle |
| 3-25 | 261576 | Clip,Piston |
| 3-26 | 269436 | Crankshaft/Conn.Rod Ass'y |
| 3-27 | 269168 | Clutch Ass'y |
| 3-28 | 269169 | Clutch Shoe |
| 3-29 | 269173 | Spring, Clutch |
| 3-30 | 269647 | Clutch Bolt |
| 3-31 | 269175 | Washer |
| 3-32 | 261777 | Wave Washer |
| 3-33 | 269880 | Fan Cover |
| 3-34 | 261250 | Cap Screw |
| 3-35 | 280728 | Magnet Ass'y Incl.36-45 |
| 3-36 | 261356 | Rotor/Fan |
| 3-37 | 280729 | Ignition Coil Ass'y Incl.38-45 |
| 3-38 | 267401 | Coil |
| 3-39 | 267584 | Spark Plug Wire Ass'y Incl.40-42 |
| 3-40 | 261074 | Plug Boot |
| 3-41 | 261075 | Connector |
| 3-42 | 267585 | Spark Plug Wire |
| 3-43 | 261072 | Cap |
| 3-44 | 280992 | Insulator |
| 3-45 | 269751 | Insulator |
| 3-46 | 261076 | Woodruff Key |
| 3-47 | 261417 | Nut,Rotor |
| 3-48 | 280381 | Spacer |
| 3-49 | 261256 | Cap Screw |
| 3-50 | 262483 | Spark Plug |
| 3-51 | 267492 | Lead |
| 3-52 | 269189 | Grommet |
| 3-53 | 264588 | Clamp |
| 3-54 | 283477 | Recoil Ass'y Incl.55-63 |
| 3-55 | 283504 | Reel |
| 3-56 | 283505 | Cam Plate |
| 3-57 | 283506 | Spring |
| 3-58 | 280931 | Spiral Spring |
| 3-59 | 267213 | Screw |
| 3-60 | 283578 | Stater Rope Ass'y Incl.61-63 |
| 3-61 | 283579 | Stater Rope |
| 3-62 | 261725 | Starter Grip |
| 3-63 | 283511 | Rope Stopper |
| 3-64 | 283575 | Starter Pawl Ass'y |
| 3-65 | 280696 | Adapter Ass'y |
| 3-66 | 269351 | Nut |
| 3-67 | 269206 | Plate |
| 3-68 | 265726 | Cap Screw |
| 3-69 | 269273 | Cap Screw |
| 3-70 | 264634 | Stay |
| 3-71 | 284810 | Label |
| 3-72 | 269860 | Label |
| 3-73 | 265694 | Label |
| 3-74 | 267561 | Label |
| Carburator - Fuel Tank Pag.4 | ||
| 4-1 | 280101 | Carburetor Ass'y Incl.2-15 |
| 4-2 | 263739 | Pump Body |
| 4-3 | 262991 | Purge Body |
| 4-4 | 262992 | Cover Plate |
| 4-5 | 261874 | Primer Bulb |
| 4-6 | 283905 | Diaphragm, Meterring |
| 4-7 | 262993 | Gasket |
| 4-8 | 262994 | Diaphragm,Fuel Pump |
| 4-9 | 282576 | Gasket |
| 4-10 | 267358 | Main Jet |
| 4-11 | 261871 | O-Ring |
| 4-12 | 261876 | E-Ring |
| 4-13 | 261658 | Swivel |
| 4-14 | 264682 | Screw |
| 4-15 | 262996 | Screw |
| 4-16 | 261864 | Gasket |
| 4-17 | 269052 | Case Ass'y Incl.18-23 |
| 4-18 | 269050 | Case Body |
| 4-19 | 269028 | Valve |
| 4-20 | 269029 | Lever |
| 4-21 | 269032 | Screw |
| 4-22 | 081028 | Nut |
| 4-23 | 269051 | Sleeve |
| 4-24 | 262720 | Cap Screw |
| 4-25 | 269030 | Element |
| 4-26 | 269580 | Cleaner Cover |
| 4-27 | 269031 | Screw |
| 4-28 | 281601 | Fuel Tank Ass'y Incl.29-39 |
| 4-29 | 269200 | Fuel Tank |
| 4-30 | 281564 | Fuel Tank Cap Ass'y Incl.31 |
| 4-31 | 269377 | Gasket |
| 4-32 | 261696 | Breather Ass'y |
| 4-33 | 265952 | Fuel Pipe Pick-up Ass'y Incl.34-39 |
| 4-34 | 265867 | Fuel Pipe Ass'y Incl.35-37 |
| 4-35 | 265869 | Grommet |
| 4-36 | 261690 | Fuel Pipe |
| 4-37 | 263038 | Return Pipe |
| 4-38 | 264653 | Filter Ass'y |
| 4-39 | 261117 | Clip |
| 4-40 | 261117 | Clip |
| 4-41 | 269690 | Cap Screw |
