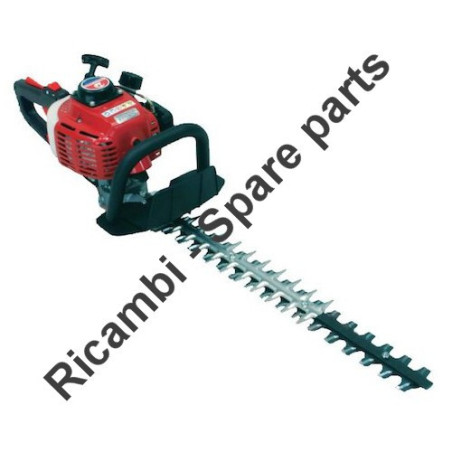

Maruyama Parts for Hedge Trimmer HT230D-R-01
€41.50
Tax included
Maruyama Parts for Hedge Trimmer HT230D-R-01
Fix Your Hedge Trimmer Maruyama HT230D-R-01. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Maruyama Parts for Hedge Trimmer HT230D-R-01
Fix Your Hedge Trimmer Maruyama HT230D-R-01. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following tables, look for the spare part and its respective code.
| Maruyama Hedge Trimmer HT230D-R-01 Spare Parts Pag.1 |
||
| # | Part Num. | Description |
| 1-3 | 271602 | Handle Ass'y |
| 1-4 | 270468 | Rear Handle (R) |
| 1-5 | 270469 | Rear Handle (L) |
| 1-6 | 270397 | Handle Stay (R) |
| 1-7 | 270398 | Handle Stay (L) |
| 1-8 | 270470 | Lock Lever |
| 1-9 | 270400 | Spring |
| 1-10 | 270401 | Spring |
| 1-11 | 270402 | Spring |
| 1-13 | 271390 | Cable Comp. |
| 1-14 | 270472 | Lever |
| 1-15 | 270406 | Stop Lever |
| 1-16 | 270407 | Stopper |
| 1-18 | 271392 | Screw |
| 1-22 | 270424 | Spacer |
| 1-29 | 581912 | Guide Plate |
| 1-31 | 580767 | Bearing |
| 1-32 | 270423 | Bearing |
| 1-33 | 584666 | Pinion |
| 1-34 | 591443 | Crank Comp |
| 1-35 | 271466 | ConRod |
| 1-36 | 580777 | Snap Ring |
| 1-37 | 991931 | Screw |
| 1-39 | 991924 | Screw |
| 1-40 | 991919 | Plate,Rod Slide |
| 1-41 | 270758 | Felt |
| 1-43 | 270756 | Lower Case |
| 1-46 | 991913 | Washer |
| 1-47 | 991914 | Screw |
| 1-50 | 270120 | Bolt |
| 1-53 | 217677 | Cover of Blade |
| 1-54 | 270021 | Clutch Drum |
| 1-55 | 270760 | Upper Case |
| 1-56 | 581910 | Bolt |
| 1-57 | 270241 | Front Handle |
| 1-58 | 991912 | Screw |
| 1-59 | 270759 | Reinforcing Plate |
| 1-61 | 270757 | Plate |
| Pag.3 | ||
| 3-2 | 264981 | Cylinder |
| 3-3 | 263770 | Gasket |
| 3-4 | 267290 | Cap Screw |
| 3-5 | 265802 | Insulator |
| 3-6 | 265794 | Air Duct |
| 3-7 | 261171 | Gasket |
| 3-12 | 261607 | Cap Screw |
| 3-14 | 280747 | Top Cover |
| 3-19 | 054676 | Snap Ring |
| 3-20 | 261246 | Cap Screw |
| 3-21 | 283265 | Piston |
| 3-22 | 263789 | Piston Ring |
| 3-23 | 281185 | Piston Pin |
| 3-24 | 261037 | Bearing,Needle |
| 3-25 | 261576 | Clip,Piston |
| 3-26 | 264643 | Shaft Comp |
| 3-28 | 261607 | Cap Screw |
| 3-29 | 280404 | Clutch Ass'y |
| 3-32 | 280570 | Spring |
| 3-34 | 261250 | Cap Screw |
| 3-35 | 267384 | Magneto Ass'y |
| 3-37 | 267400 | Ignition Coil Ass'y |
| 3-42 | 261075 | Connector |
| 3-43 | 261072 | Cap |
| 3-45 | 261076 | Woodruff Key |
| 3-50 | 267492 | Lead |
| 3-51 | 261202 | Grommet |
| 3-52 | 265175 | Fuel Tank Ass'y |
| 3-53 | 264545 | Fuel Tank |
| 3-54 | 265176 | Tank Cap Ass'y |
| 3-56 | 269417 | Gasket |
| 3-58 | 265929 | Fuel Pipe Ass'y |
| 3-59 | 265869 | Grommet |
| 3-62 | 264653 | Filter Ass'y |
| 3-63 | 261117 | Clip |
| 3-64 | 261117 | Clip |
| 3-65 | 263824 | Pad |
| 3-66 | 264318 | Pad |
| 3-69 | 261181 | Bearing |
| Pag.4 | ||
| 4-1 | 281489 | Carburetor Ass'y |
| 4-4 | 282576 | Gasket |
| 4-5 | 262994 | Diaphragm,Fuel Pump |
| 4-7 | 262993 | Gasket |
| 4-8 | 283905 | Diaphragm, Meterring |
| 4-9 | 262991 | Purge Body |
| 4-10 | 261874 | Primer Bulb |
| 4-11 | 262992 | Cover Plate |
| 4-14 | 261876 | E-Ring |
| 4-15 | 261658 | Swivel |
| 4-18 | 261864 | Gasket |
| 4-19 | 265973 | Baffle Plate |
| 4-21 | 265575 | Cleaner Ass'y |
| 4-22 | 265576 | Housing |
| 4-23 | 264695 | Filter |
| 4-24 | 264709 | Cover |
| 4-26 | 264534 | Recoil Starter Ass'y |
| 4-27 | 264083 | Starter Ass'y |
| 4-29 | 261725 | Starter Grip |
| 4-31 | 261622 | Spiral Spring |
| 4-32 | 261621 | Pulley |
| 4-34 | 264085 | Starter Pawl Ass'y |
| 4-35 | 261630 | Pawl |
| 4-36 | 261631 | Return Spring |
| 4-38 | 020299 | E-Ring |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Maruyama websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Maruyama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
