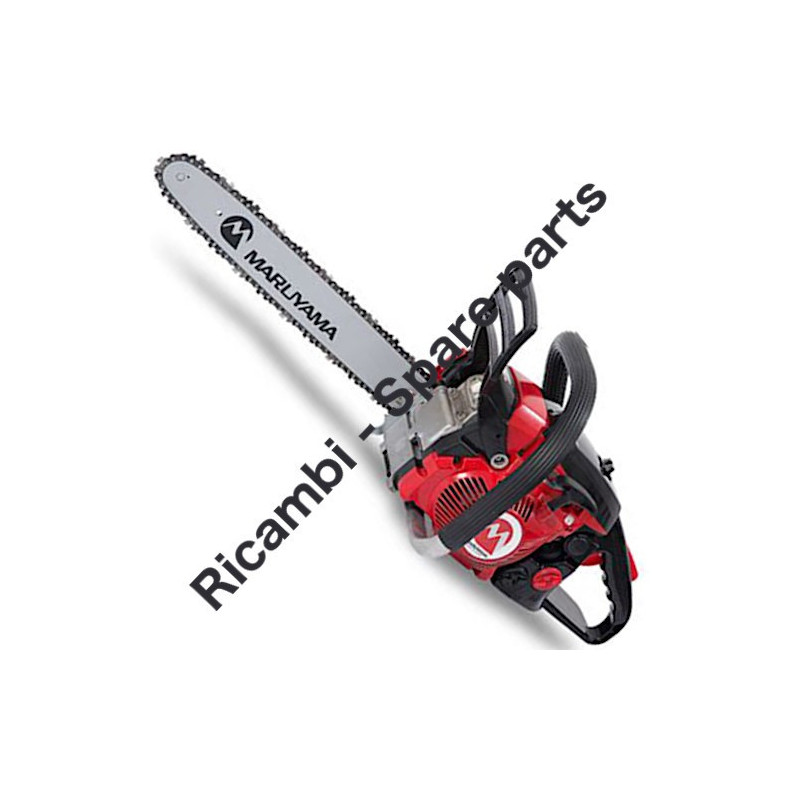

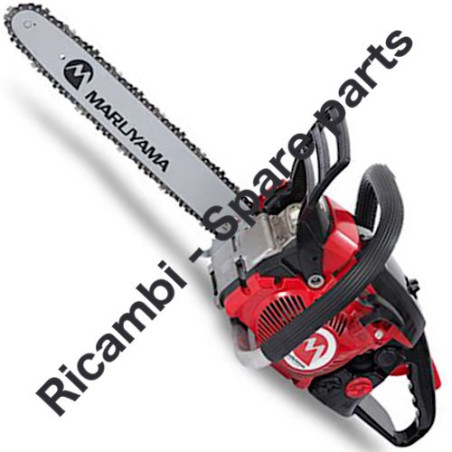

Maruyama Chainsaw MCV3101S(14) Parts
€238.28
Tax included
Maruyama Parts for Chainsaw MCV3101S(14)-01
Fix Your Chainsaw Maruyama MCV3101S(14)-01. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Maruyama Parts for Chainsaw MCV3101S(14)-01
Fix Your Chainsaw Maruyama MCV3101S(14)-01. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.In the following tables, look for the spare part and its respective code.
| Maruyama MCV3101S(14)-01 Chainsaw Parts | ||
| Engine Pag.1 | ||
| # | Part. Num. | Description |
| 1-1 | 362844 | MCV3101S(14)-01 |
| 1-2 | 279300 | Cylinder |
| 1-3 | 278403 | Gasket |
| 1-4 | 261250 | Cap Screw |
| 1-5 | 278868 | Crankcase Comp |
| 1-6 | 285521 | Bearing |
| 1-7 | 285626 | Oil Seal |
| 1-8 | 261492 | Oil Seal |
| 1-9 | 055185 | Snap Ring |
| 1-10 | 285648 | Lead |
| 1-11 | 285649 | Lead |
| 1-12 | 261232 | Cap Screw |
| 1-13 | 285599 | Crankshaft Comp |
| 1-14 | 273265 | Piston |
| 1-15 | 285590 | Piston Ring |
| 1-16 | 285591 | Piston Pin |
| 1-17 | 261037 | Bearing,Needle |
| 1-18 | 261576 | Clip,Piston |
| 1-19 | 289489 | Magneto Ass'y |
| 1-20 | 285555 | Magneto Rotor |
| 1-21 | 289548 | Ignition Coil Ass'y |
| 1-22 | 289650 | Coil |
| 1-23 | 286096 | Cord Ass'y |
| 1-24 | 286097 | Cord |
| 1-25 | 261074 | Plug Boot |
| 1-26 | 261075 | Connector |
| 1-27 | 261072 | Cap |
| 1-28 | 288365 | Rotor Ass'y |
| 1-29 | 285553 | Starter Pawl |
| 1-30 | 285552 | Spring |
| 1-31 | 020299 | E-Ring |
| 1-32 | 261076 | Woodruff Key |
| 1-33 | 285472 | Gasket |
| 1-34 | 288264 | Spark Plug |
| 1-35 | 264223 | Cap Screw |
| 1-36 | 285535 | Clutch Ass'y |
| 1-37 | 285655 | Clutch Shoe |
| 1-38 | 285656 | Spring |
| 1-39 | 285537 | Washer |
| 1-40 | 286238 | Clutch Drum |
| 1-41 | 285624 | Needle Bearing |
| 1-42 | 276332 | Muffler Ass'y |
| 1-43 | 281211 | Cap Screw |
| 1-44 | 261417 | Nut,Rotor |
| 1-45 | 289481 | Spacer |
| Oil Pump Pag.2 | ||
| 2-1 | 286811 | Oil Pump Ass'y |
| 2-2 | 285527 | Pump Body |
| 2-3 | 285550 | Wheel Gear |
| 2-4 | 286801 | Washer |
| 2-5 | 014759 | O-Ring |
| 2-6 | 285551 | Spring |
| 2-7 | 285534 | Pump Cap |
| 2-8 | 285630 | Screw |
| 2-9 | 288185 | Sleeve |
| 2-10 | 286664 | Screw |
| 2-11 | 285631 | Screw |
| 2-12 | 285528 | Grommet |
| 2-13 | 286303 | Worm Gear |
| 2-14 | 276106 | Bush |
| 2-15 | 286305 | Bush |
| 2-16 | 286241 | Washer |
| 2-17 | 285522 | Oil Pipe A |
| 2-18 | 286802 | Oil Pipe B Ass'y |
| 2-19 | 285523 | Oil Pipe B Ass'y |
| 2-20 | 265725 | Pipe |
| 2-21 | 261339 | Grommet |
| 2-22 | 286818 | Oil Filtter Ass'y |
| 2-23 | 285524 | Oil Filtter |
| 2-24 | 285525 | Oil Filtter Body |
| 2-25 | 261117 | Clip |
| 2-26 | 285598 | Oil Pump Cover |
| 2-27 | 276107 | Washer |
| Carburator Pag.3 | ||
| 3-1 | 285488 | Fuel Pipe Ass'y |
| 3-2 | 285489 | Pipe Ass'y |
| 3-3 | 285490 | Fuel Grommet |
| 3-4 | 285491 | Fuel Pipe A |
| 3-5 | 261117 | Clip |
| 3-6 | 286749 | Filter Ass'y |
| 3-7 | 282299 | PRIMER BC5020 / BKC5020RS |
| 3-8 | 285492 | Fuel Pipe B |
| 3-9 | 289500 | Carburetor Ass'y |
| 3-10 | 261872 | Screen |
| 3-11 | 287168 | Pump Cover |
| 3-12 | 287169 | Screw |
| 3-13 | 287170 | Diaphragm |
| 3-14 | 287171 | Gasket |
| 3-15 | 262986 | Needle Valve |
| 3-16 | 263727 | Gasket |
| 3-17 | 287172 | Spring |
| 3-18 | 283905 | Diaphragm, Meterring |
| 3-19 | 263726 | Cover Plate |
| 3-20 | 287173 | Screw |
| 3-21 | 262989 | Lever Pin |
| 3-22 | 262990 | Lever |
| 3-23 | 287174 | Plug |
| 3-24 | 287191 | Lever |
| 3-25 | 287192 | Screw |
| 3-26 | 287178 | Spring |
| 3-27 | 287179 | Idle Adjust Screw |
| 3-28 | 287180 | Screw |
| 3-29 | 287181 | Lever |
| 3-30 | 287182 | Ring |
| 3-31 | 287183 | Throttle Valve |
| 3-32 | 287184 | Screw |
| 3-33 | 287185 | Spring |
| 3-34 | 287186 | Shaft |
| 3-35 | 287187 | Choke Valve |
| 3-36 | 287188 | Spring |
| 3-37 | 287189 | Washer |
| 3-38 | 287190 | Shaft |
| 3-39 | 288551 | Ring |
| 3-40 | 285497 | Plate |
| 3-41 | 285618 | Bolt |
| 3-42 | 285631 | Screw |
| 3-43 | 285505 | Boots Comp. |
| 3-44 | 285633 | Screw |
| 3-45 | 285631 | Screw |
| 3-46 | 285507 | Element |
| 3-47 | 285508 | Duct |
| 3-48 | 285512 | Cleaner Cover |
| 3-49 | 285540 | Knob |
| 3-50 | 285495 | Insulator |
| Engine Case Pag.4 | ||
| 4-1 | 285703 | Engine Case Ass'y |
| 4-2 | 285501 | Oil Cap Ass'y |
| 4-3 | 285503 | Packing |
| 4-4 | 285504 | Holder |
| 4-5 | 287667 | Protector |
| 4-6 | 285574 | Breather |
| 4-7 | 285526 | Element |
| 4-8 | 285632 | Bolt |
| 4-9 | 286803 | Chain Catcher Ass'y |
| 4-10 | 285583 | Chain Catcher |
| 4-11 | 285585 | Tube |
| 4-12 | 285634 | Screw |
| 4-13 | 285531 | Guide Plate L |
| 4-14 | 285627 | Screw |
| 4-15 | 286804 | Screw |
| 4-16 | 286051 | Fuel Cap Ass'y |
| 4-17 | 286063 | Packing |
| 4-18 | 285504 | Holder |
| 4-19 | 285635 | Screw |
| 4-20 | 285832 | Breather Ass'y |
| 4-21 | 285573 | Breather Grommet |
| 4-22 | 285628 | Cap |
| 4-23 | 285629 | Spring |
| Recoil Starter Pag.5 | ||
| 5-1 | 285577 | Recoil Starter Ass'y |
| 5-2 | 285695 | Starter Case Comp. |
| 5-3 | 283274 | Starter Pulley |
| 5-4 | 283275 | Spring Ass'y |
| 5-5 | 283276 | Damper Spring |
| 5-6 | 285597 | Cam Plate |
| 5-7 | 267213 | Screw |
| 5-8 | 285697 | Rope Ass'y |
| 5-9 | 283279 | Starter Rope |
| 5-10 | 285581 | Starter Knob |
| 5-11 | 283281 | Rope Stopper |
| 5-12 | 285548 | Fan Cover |
| 5-13 | 285631 | Screw |
| Handle Pag.6 | ||
| 6-1 | 285513 | Rear Handle |
| 6-2 | 285514 | Rear Handle Cover |
| 6-3 | 285631 | Screw |
| 6-4 | 285582 | Buffer |
| 6-5 | 285473 | Cap |
| 6-6 | 285515 | Pipe |
| 6-7 | 285592 | Spring |
| 6-8 | 285645 | Stay |
| 6-9 | 285644 | Screw |
| 6-10 | 285593 | Spring |
| 6-11 | 285604 | Boss |
| 6-12 | 263743 | Washer |
| 6-13 | 285636 | Screw |
| 6-14 | 285474 | Stopper Bolt |
| 6-15 | 285516 | Throttle Lever |
| 6-16 | 285517 | Safety Lever |
| 6-17 | 285518 | Spring |
| 6-18 | 285509 | Choke Rod |
| 6-19 | 285510 | Grommet |
| 6-20 | 285511 | Push Rod |
| 6-21 | 285519 | Front Handle |
| 6-22 | 285665 | Screw |
| 6-23 | 286873 | Stop Switch |
| 6-24 | 269582 | Nut |
| 6-25 | 286874 | Connector |
| 6-26 | 287300 | Grommet |
| 6-27 | 285549 | Grommet |
| 6-28 | 289097 | Gasket |
| Chain Case Pag.7 | ||
| 7-1 | 287389 | Chain Case Ass'y |
| 7-2 | 285576 | Chain Case |
| 7-3 | 285622 | Side Cover |
| 7-4 | 285637 | Screw |
| 7-5 | 285639 | Screw |
| 7-6 | 285644 | Screw |
| 7-7 | 286823 | Brake Ass'y |
| 7-8 | 285605 | Spring |
| 7-9 | 285572 | Band |
| 7-10 | 285560 | Pin |
| 7-11 | 285606 | Collar |
| 7-12 | 285570 | Lever Comp. |
| 7-13 | 285595 | Return Spring |
| 7-14 | 286054 | Front Guard Comp. |
| 7-15 | 286000 | Front Guard |
| 7-16 | 285563 | Pin |
| 7-17 | 286048 | Pin |
| 7-18 | 285638 | Screw |
| 7-19 | 285607 | Collar |
| 7-20 | 286045 | Washer |
| 7-21 | 285640 | Nut |
| 7-22 | 285532 | Guide Plate R |
| 7-23 | 285627 | Screw |
| 7-24 | 286034 | Tensioner Ass'y |
| 7-25 | 285596 | Spring |
| 7-26 | 285608 | Collar |
| 7-27 | 289726 | Spring |
| 7-28 | 285609 | Link Comp. |
| 7-29 | 285614 | Boss |
| 7-30 | 283041 | Nut |
| Accessories Pag.8 | ||
| 8-1 | 287256 | Label |
| 8-2 | 287255 | Label |
| 8-3 | 273031 | Label |
| 8-4 | 287160 | Label |
| 8-5 | 287394 | Label |
| 8-6 | 287616 | Label |
| 8-7 | 287161 | Label |
| 8-8 | 286828 | Guide Bar |
| 8-9 | 289538 | Chain |
| 8-10 | 286840 | Chain Cover |
| 8-11 | 285729 | File |
| 8-12 | 285730 | File Grip |
| 8-13 | 274909 | Instruction Manual |
| 8-14 | 274910 | Instruction Manual |
| 8-15 | 523849 | Parts List |
| 8-16 | 288652 | Combi Box Spanner |
| 8-17 | 285732 | Screwdriver |
| 8-18 | 286865 | Screwdriver |
| 8-19 | 272020 | Label |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Maruyama websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Maruyama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
