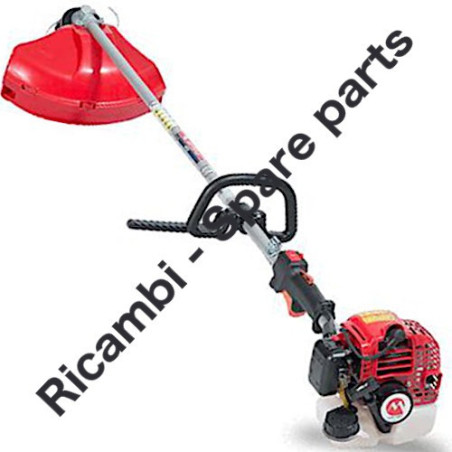

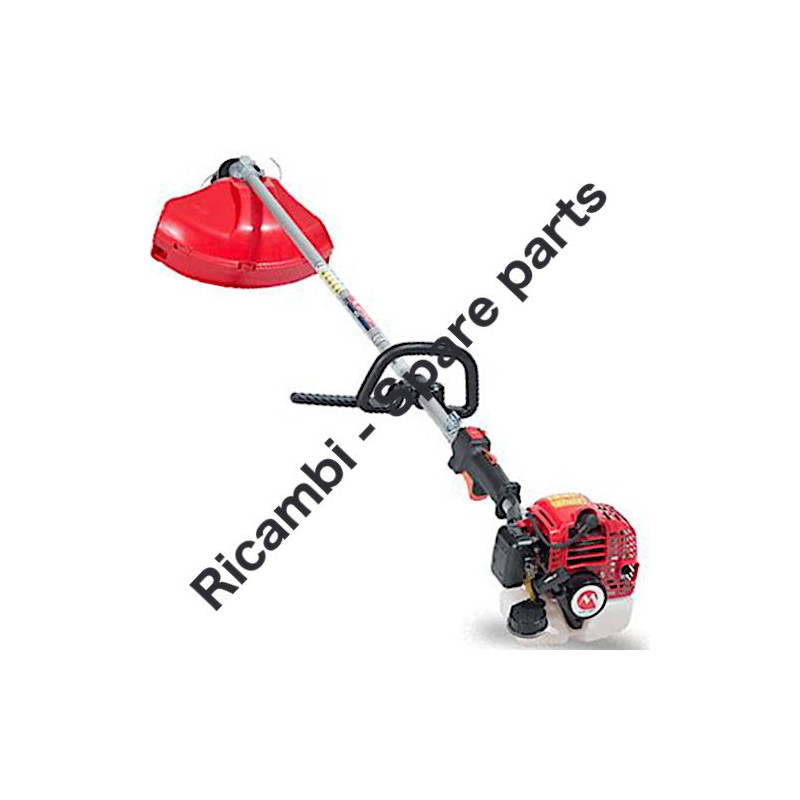

Maruyama Brushcutter MX22E Parts
Fix Your Brushcutter Maruyama MX22E. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following tables, look for the spare part and its respective code.
| Maruyama Brushcutter MX22E Parts | ||
| Main Body Pag.1 | ||
| # | Part Num. | Description |
| 1-1 | 366131 | MX22E |
| 1-2 | 560375 | Driveshaft Ass'y |
| 1-3 | 560425 | Driveshaft Tube |
| 1-4 | 560427 | Throttle Trigger |
| 1-5 | 215533 | Hanging Bracket Ass'y Incl.6 |
| 1-6 | 261762 | Cap Screw |
| 1-7 | 560409 | Bracket Ass'y Incl.8-10 |
| 1-8 | 560410 | Bracket |
| 1-9 | 271437 | Screw |
| 1-10 | 231704 | Washer |
| 1-11 | 560240 | Label |
| 1-12 | 560413 | Label |
| 1-13 | 560246 | Label |
| 1-14 | 215501 | Label |
| 1-15 | 230747 | String Cutter |
| 1-16 | 232689 | Screw |
| 1-17 | 560229 | Hanging Strap Ass'y |
| 1-18 | 560282 | Hook |
| 1-19 | 560316 | Loop Handle Ass'y Incl.20-23 |
| 1-20 | 222520 | Loop Handle |
| 1-21 | 213171 | Packing |
| 1-22 | 215608 | Cap Screw |
| 1-23 | 081027 | Nut |
| 1-24 | 560420 | Safety Cover |
| 1-25 | 234999 | Cover Extension |
| Gearcase Pag.2 | ||
| 2-1 | 241689 | Gearcase Ass'y Incl.2-15 |
| 2-2 | 226284 | Gearcase |
| 2-3 | 225897 | Bolt |
| 2-4 | 226285 | Bearing |
| 2-5 | 227108 | Gear Set |
| 2-6 | 112184 | Bearing |
| 2-7 | 054676 | Snap Ring |
| 2-8 | 225898 | Collar |
| 2-9 | 226286 | Bearing |
| 2-10 | 228477 | Snap Ring |
| 2-11 | 140270 | Snap Ring |
| 2-12 | 261246 | Cap Screw |
| 2-13 | 225891 | Boss Adapter |
| 2-14 | 225892 | Blade Boss B |
| 2-15 | 225893 | Nut |
| 2-16 | 261233 | Cap Screw |
| Engine Pag.3 | ||
| 3-1 | 875275 | Engine |
| 3-2 | 289639 | Cylinder |
| 3-3 | 289643 | Gasket |
| 3-4 | 267290 | Cap Screw |
| 3-5 | 272744 | Insulator New gasket required |
| 3-6 | 267049 | Gasket |
| 3-7 | 269826 | Screw |
| 3-8 | 278096 | Muffler Comp |
| 3-9 | 266402 | Cap Screw |
| 3-10 | 273262 | Gasket |
| 3-11 | 276868 | Under Cover |
| 3-12 | 269827 | Screw |
| 3-13 | 563533 | Top Cover Comp |
| 3-14 | 563608 | Label |
| 3-15 | 280144 | Tapping Screw |
| 3-16 | 273674 | Crankcase |
| 3-17 | 280488 | Bearing |
| 3-18 | 261492 | Oil Seal |
| 3-19 | 261386 | Oil Seal |
| 3-20 | 055185 | Snap Ring |
| 3-21 | 261612 | Cap Screw |
| 3-22 | 272204 | Piston |
| 3-23 | 264891 | Piston Ring |
| 3-24 | 261036 | Piston Pin |
| 3-25 | 288520 | Bearing, Needle |
| 3-26 | 261576 | Clip,Piston |
| 3-27 | 274146 | Crankshaft/Conn.Rod Ass'y |
| 3-28 | 280375 | Clutch Ass'y Incl.29,30 |
| 3-29 | 280407 | Clutch Shoe |
| 3-30 | 264889 | Spring,Clutch |
| 3-31 | 264505 | Bolt |
| 3-32 | 261777 | Wave Washer |
| 3-33 | 261189 | Washer |
| 3-34 | 563534 | Fan Cover Ass'y Incl.35-37 |
| 3-35 | 280506 | Fan Cover |
| 3-36 | 289727 | Clutch Drum |
| 3-37 | 563065 | Snap Ring |
| 3-38 | 269831 | Screw |
| 3-39 | 269991 | Cushion |
| 3-40 | 280477 | Screw |
| 3-41 | 269423 | Nut |
| 3-42 | 282403 | Screw |
| 3-43 | 563535 | Magneto Ass'y Incl.44-50 |
| 3-44 | 277797 | Rotor/Fan |
| 3-45 | 277798 | Ignition Coil Ass'y Incl.46-50 |
| 3-46 | 279577 | Spark Plug Wire Ass'y Incl.47,48 |
| 3-47 | 278755 | Plug Cap |
| 3-48 | 278756 | Connector |
| 3-49 | 278754 | Insulator |
| 3-50 | 278752 | Cap |
| 3-51 | 261076 | Woodruff Key |
| 3-52 | 261417 | Nut,Rotor |
| 3-53 | 280381 | Spacer |
| 3-54 | 261256 | Cap Screw |
| 3-55 | 288264 | Spark Plug |
| 3-56 | 263804 | Lead |
| 3-57 | 282880 | Wire, Lead |
| 3-58 | 280670 | Grommet |
| 3-59 | 563192 | Label |
| Recoil Starter Pag.4 | ||
| 4-1 | 563307 | Recoil Starter Ass'y Incl.2-14 |
| 4-2 | 273093 | Recoil Ass'y Incl.3-13 |
| 4-3 | 280492 | Reel |
| 4-4 | 287421 | Spiral Spring |
| 4-5 | 280494 | Screw |
| 4-6 | 280495 | Starter Rope Ass'y Incl.7-9 |
| 4-7 | 283616 | Starter Rope |
| 4-8 | 280497 | Starter Grip |
| 4-9 | 280550 | Stopper |
| 4-10 | 280547 | Washer |
| 4-11 | 280548 | Collar |
| 4-12 | 269423 | Nut |
| 4-13 | 288500 | Plate |
| 4-14 | 287399 | Stater Pulley Ass'y |
| 4-15 | 269833 | Screw |
| 4-16 | 280489 | Screw |
| 4-17 | 563532 | Label |
| Carburetor - Fuel Tank Pag.5 | ||
| 5-1 | 276663 | Carburetor Ass'y Incl.2-15 New gasket required |
| 5-2 | 274472 | Pump Body |
| 5-3 | 262991 | Purge Body |
| 5-4 | 262992 | Cover Plate |
| 5-5 | 261874 | Primer Bulb |
| 5-6 | 283905 | Diaphragm, Meterring |
| 5-7 | 262993 | Gasket |
| 5-8 | 262994 | Diaphragm,Fuel Pump |
| 5-9 | 282576 | Gasket |
| 5-10 | 289396 | Main Jet |
| 5-11 | 261871 | O-Ring |
| 5-12 | 261876 | E-Ring |
| 5-13 | 261658 | Swivel |
| 5-14 | 264682 | Screw |
| 5-15 | 262996 | Screw |
| 5-16 | 261864 | Gasket |
| 5-17 | 264691 | O-Ring |
| 5-18 | 563411 | Cleaner Ass'y Incl.19-22 |
| 5-19 | 277927 | Case Body Ass'y Incl.20,21 |
| 5-20 | 266433 | Housing |
| 5-21 | 264695 | Filter |
| 5-22 | 277553 | Cleaner Cover |
| 5-23 | 269834 | Screw |
| 5-24 | 280020 | Swivel Ring |
| 5-25 | 563261 | Fuel Tank Ass'y Incl.26-36 |
| 5-26 | 563466 | Fuel Tank |
| 5-27 | 275306 | Fuel Tank Cap Ass'y Incl.28 |
| 5-28 | 274875 | Gasket |
| 5-29 | 563262 | Breather Ass'y |
| 5-30 | 563232 | Fuel Pipe Pick-up Ass'y Incl.31-36 |
| 5-31 | 563233 | Fuel Pipe Ass'y Incl.32-34 |
| 5-32 | 288192 | Grommet |
| 5-33 | 261690 | Fuel Pipe |
| 5-34 | 288194 | Return Pipe |
| 5-35 | 264653 | Filter Ass'y |
| 5-36 | 563014 | Clip |
| 5-37 | 269828 | Screw |
| 5-38 | 281208 | Screw |
| 5-39 | 563014 | Clip |
| Accessories Pag.6 | ||
| 6-1 | 210418 | Box Spanner |
| 6-2 | 022865 | Double-ended Wrench |
| 6-3 | 219431 | Wrench |
| 6-4 | 219432 | Wrench |
| 6-5 | 219433 | Wrench |
| 6-6 | 231202 | Semi-Auto Head (L) |
| 6-7 | 560349 | Instruction Manual |
| 6-8 | 560403 | Instruction Manual |
| 6-9 | 560404 | Instruction Manual |
| 6-10 | 560405 | Instruction Manual |
| 6-11 | 524718 | Parts List |
| 6-12 | 560251 | Colgate Tube |
| 6-13 | 685048 | Band |
| Head Pag.7 | ||
| 231202 | TRIMMER LINE HEAD | |
| 1 | 242848 | HOUSING |
| 2 | 242849 | SPRING |
| 3 | 242850 | BOBBIN |
| 4 | 242851 | EYELET |
| 5 | 242852 | COVER |
| 6 | 242853 | TRIMMER LINE |
| 7 | 242854 | INSTRUCTION MANUAL |
| 8 | 242855 | LABEL |
