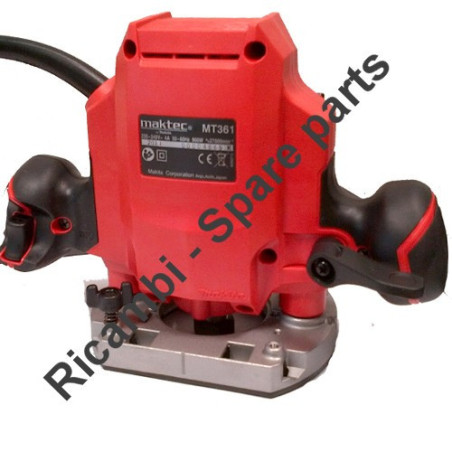

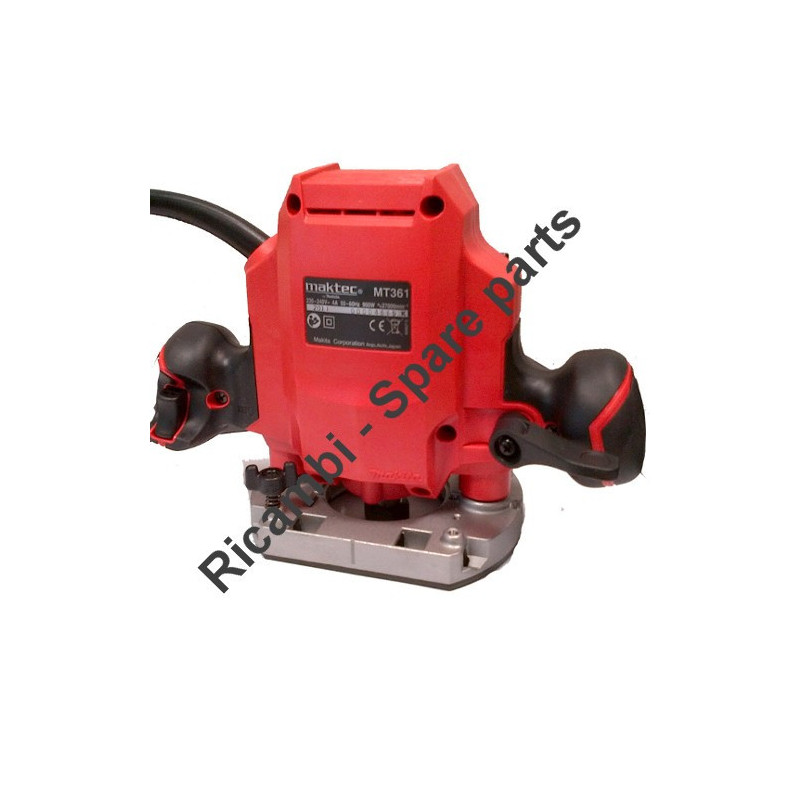

MAKTEC-MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Router MT361.
In the following table, look for the model of Router and the respective parts of the code.
| Router Maktec MT361 | ||
| # | Part Num. | Description |
| 1 | 251878-6 | SCREW ADJUSTMENT X 3620 |
| 3 | 346007-5 | CLAMP LOCKING RP0900 |
| 4 | 424156-9 | RUBBER PLUG RP0900 |
| 5 | 252094-3 | HEX NUT M8 x3620 |
| 6 | 893386-7 | GRADUATED SCALE MT361 |
| 7 | 321948-6 | AUCTION X 3620 |
| 8 | 451035-8 | RING SETTING RP0900 |
| 9 | 187202-6 | HOUSING MOTOR MT361 |
| 10 | 450820-6 | PROTECTION RP0900 |
| 11 | 181410-1 | CARBON BRUSHES CB-106 (104.111) |
| 12 | 643601-7 | BRUSH |
| 14 | 443073-4 | FELT X RP0900 |
| 16 | 682516-3 | CABLE SLEEVE 9.3-85 |
| 17 | 443074-2 | FELT X RP0900 |
| 18 | 687124-5 | Cable tie CLAMP MT953 |
| 19 | 266326-2 | SCREW 4x18 X MT601 |
| 20 | 650218-9 | SWITCH FA1-6 / 1W-MT361 1 |
| 21 | 654588-8 | X CLAMP MT952 |
| 22 | 645200-1 | CAPACITOR |
| 23 | 594594-0 | STATOR RP100 |
| 24 | 210029-0 | BEARING 608Z X MT601 |
| 25 | 510205-9 | ARMATURE MT361 |
| 26 | 240123-4 | FAN 72 MT361 |
| 27 | 267114-0 | FLAT WASHER 17 X 8412DWH |
| 28 | 211285-5 | BEARING FOR 6203DDW GA920 |
| 29 | 763636-3 | CLAMP 6MM x3620 |
| 30 | 763615-1 | DADO X 3608B |
| 31 | 266326-2 | SCREW 4x18 X MT601 |
| 33 | 233110-0 | SPRING COMPRESSION 8 HR2410 |
| 34 | 941202-8 | FLAT WASHER 8 |
| 35 | 266460-8 | SCREW M8 RP0900 |
| 36 | 450821-4 | LEVER 47 RP0900 |
| 37 | 911213-7 | SCREW M5X12 X 5143R EBH252L |
| 39 | 962065-9 | RETAINING RING R-15X3620 |
| 40 | 267047-9 | FLAT WASHER 10 X 6703D |
| 41 | 451524-3 | PIN 10 RP0900 |
| 42 | 231416-0 | SPRING PRESSURE 10 x3620 |
| 43 | 251447-3 | SCREW M6 x3620 |
| 44 | 265587-1 | SCREW M5 X 20 RP1800F |
| 45 | 265586-3 | SCREW M5 X 14 RP1800F |
| 46 | 265587-1 | SCREW M5 X 20 RP1800F |
| 47 | 135264-8 | BLOCK REGOL.PROFONDITA'RP900 |
| 48 | 216022-2 | BALL 7 |
| 49 | 231419-4 | SPRING 5 x3620 |
| 50 | 256651-9 | PIN REGULATOR 10X3620 |
| 51 | 231417-8 | SPRING PRESSURE 10 x3620 |
| 52 | 265761-1 | BUTTERFLY SCREW M5X16 RP0900 |
| 53 | 231240-1 | MOLLA7 36BR / 12BR / 2412N / 14 |
| 54 | 158808-7 | BASE RP0900 |
| 55 | 259019-8 | WASHER KNURLED x3620 |
| 56 | 452913-5 | BASE PLATE MT361 |
| 57 | 912112-6 | SCREW M4X10 |
