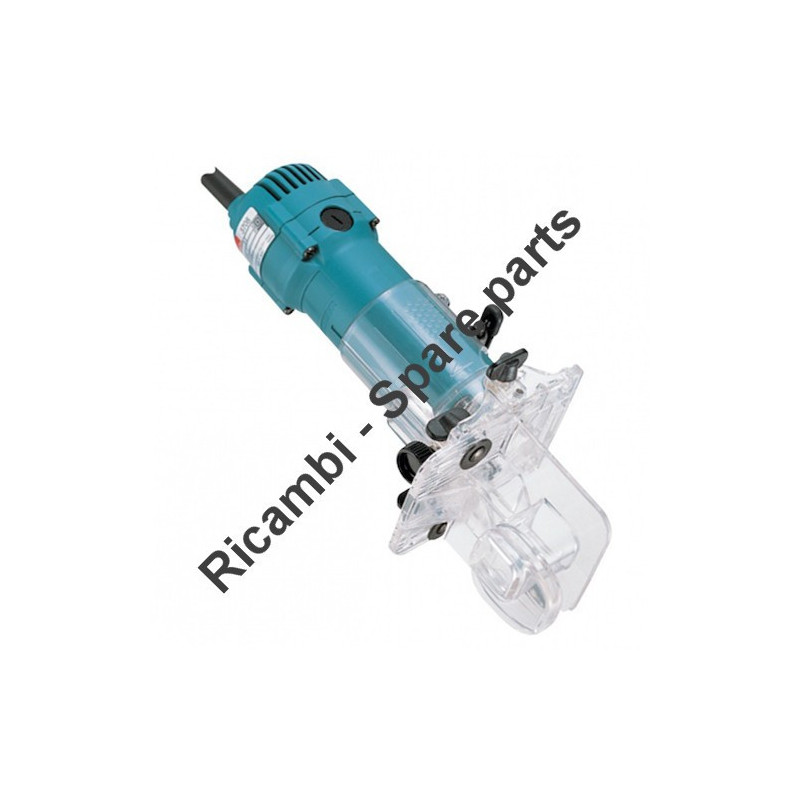

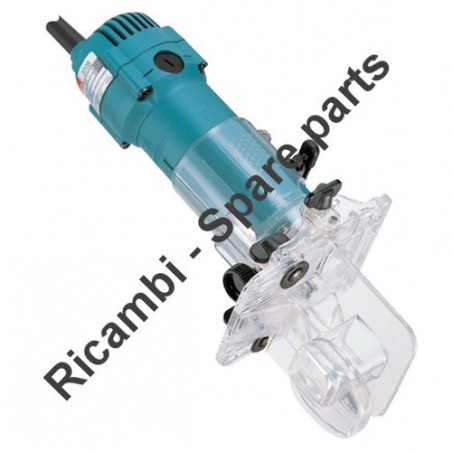

Makita Spare Parts for Trimmer 3708FC

€17.21
Tax included

Makita Spare Parts for Trimmer 3708FC

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Trimmer 3708FC.

ITEM CODE: 153347-2
Quantity
on 7/10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Trimmer 3708FC

MAKITA Original spare parts

at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Trimmer 3708FC.

In the following table, look for the model of Trimmer and the respective parts of the code.
Makita 3708FC

Trimmer 3708FC
# Part Num. Description
2 682502-4 CABLE SLEEVE 8/85 6408
4 417747-3 TOP COVER X 3707
5 631487-1 REGULATOR X 3708FC
6 265995-6 SCREW M4X18 X 6408 / 6221DW
7 687063-9 RELIEF X 4304T
8 643928-5 PLUG BRUSH X9524NB
9 191940-4 CARBON BRUSHES CB-411 X N500
10 183417-3 HOUSING UPPER MOT. X 3707
11 595064-2 STATOR X 3708FC
12 266004-4 SCREW 4x70
13 259039-2 LOCKING 6 X 9566CV
14 688117-5 COMPASS X GD0800C
15 253332-6 FLAT WASHER 6
16 267756-0 WAVY WASHER X BO6040
17 421494-0 RUBBER 19 X 9521NB
18 210017-7 BEARING 607DDW
19 681636-0 INSULATION WASHER
20 517619-3 ARMATURE X 3708FC
21 240049-0 FAN 48 X 3707
22 961055-9 RETAINING RING S15
23 211236-8 BEARING 6002DDW X 5705R
24 651423-1 SWITCH X 3706
26 654544-8 CLAMP CABLES X X 3707
29 251991-0 SCREW M 4 X 12 X 3707
30 631480-5 CIRCUIT LIGHT X 3708FC
31 266048-4 SCREW M 4 X 40 X 4334D
32 153347-2 HOUSING COMPLEX X 3707
33 763607-0 CALIPER 6 X 3700B / D / 3705
34 763606-2 NUT CLAMP X 3700B
35 251814-2 WHEEL SCREW 6X18
36 942151-2 WASHER 6 4101R
37 941151-9 WASHER 6 X HM1303
38 153351-1 BASE COMPLETE 3708FC
39 414304-8 BASIC GUIDE LOWER X 3704
40 256221-4 PIN 3 X JR3020
41 421566-1 ROLLER X 3707
42 252103-8 NUT X JR3020
43 941101-4 FLAT WASHER 5
44 267214-6 FLAT WASHER X 3707
45 324243-3 SCREW HOLDER X 3707
46 951060-4 JACK BAND 3/14
47 421818-0 HOOD RUBBER X 3707
48 345229-4 LEVER BLOCK X 3707
49 252646-0 NUT M 5 X 3708FC
50 942101-7 SPRING WASHER 5
51 941101-4 FLAT WASHER 5
52 911114-9 SCREW M4 X 10
53 941101-4 FLAT WASHER 5
54 942101-7 SPRING WASHER 5
55 265740-9 SCREW M 5 X 15 X RP1100C
56 267248-9 WASHER 8 X 3708FC
57 923241-0 SCREW Q.S.T. M5X25
58 253905-5 WASHER 23 X 8035NB

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
