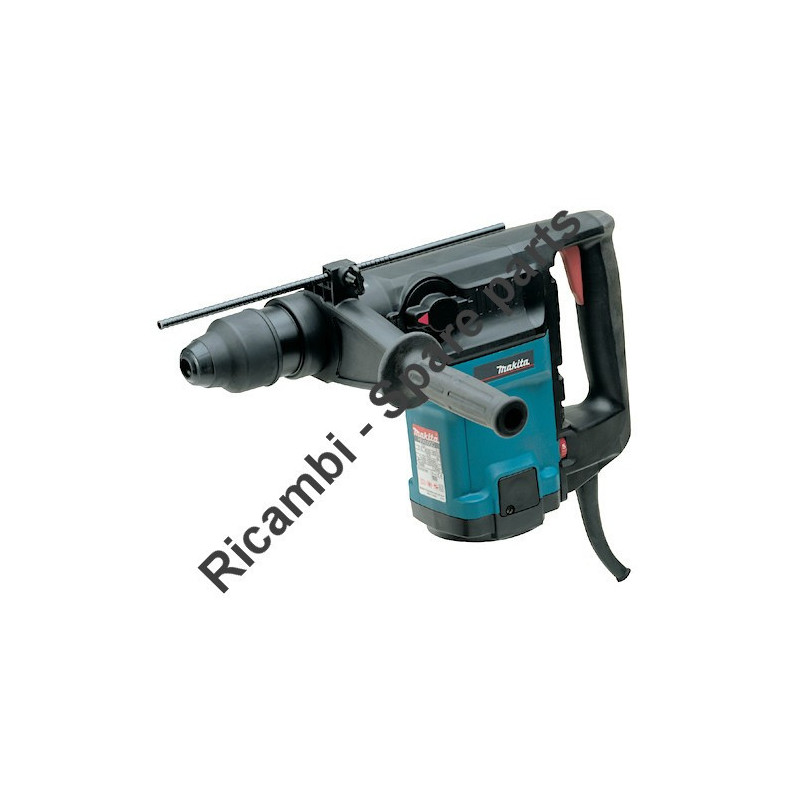

Makita Spare Parts for Rotary Hammer HR4500C
€49.79
Tax included
Makita Spare Parts for Rotary Hammer HR4500C
Makita original spare parts for to replace broken parts for to fix Rotary Hammer HR4500C.Fix Your Rotary Hammer HR4500C. All Spares can be supplied at low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Rotary Hammer HR4500C
Fix Your Rotary Hammer HR4500C. All Spares can be supplied at low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Rotary Hammer HR4500C | ||
| # | Part Num. | Description |
| 1 | 286259-5 | CAP HR4500C |
| 2 | 417459-8 | COVER CHUCK HR4500C |
| 3 | 233178-6 | SPRING X HR4000C |
| 4 | 961186-4 | RETAINING RING WR-40 HR4500C |
| 5 | 344489-5 | WASHER 40 X HR4000C |
| 6 | 233179-4 | SPRING 50 X HR4000C |
| 7 | 232171-7 | RING 37 X HR4000C |
| 8 | 322948-9 | CHUCK RING X HR4000C |
| 9 | 344488-7 | WASHER 32 X HR4000C |
| 10 | 417435-2 | SEAL CASE X HR4500C |
| 11 | 213669-3 | SPRING RING X HR4500C |
| 12 | 213480-3 | OIL SEAL 35 X HR4000C |
| 13 | 961153-9 | RETAINING RING S-35 X HR4000C |
| 14 | 962301-3 | RETENTION RING X HM1800 |
| 15 | 211471-8 | BEARING 6007LLU X HR4500C |
| 16 | 417434-4 | SLIDE SLEEVE BUSH X HR4500C |
| 17 | 331589-0 | SLEEVE X HR4500C |
| 18 | 421767-1 | RUBBER RING X HR4500C |
| 19 | 331597-1 | WASHER 19 X HR4500C |
| 20 | 324088-9 | IMPACT BOLT X HR4500C |
| 21 | 213317-4 | RING 20 X HR4000C |
| 22 | 213392-0 | RUBBER RING 25 X HR4000C |
| 23 | 213317-4 | RING 20 X HR4000C |
| 24 | 213392-0 | RUBBER RING 25 X HR4000C |
| 25 | 324064-3 | TOOL HOLDER X HR4500C |
| 26 | 322908-1 | ROLLER 8 X HM1100C |
| 27 | 310052-6 | PIN 8 X HR4000C |
| 28 | 231984-3 | RING X HR50001C |
| 29 | 417437-8 | LOCK SLEEVE X HR4500C |
| 30 | 233300-5 | COMPRESSION SPRING HR4500C |
| 31 | 417436-0 | LOCK SLEEVE X HR4500C |
| 32 | 262093-7 | URETHAN RING 35 X HR4500C |
| 33 | 267221-9 | FLAT WASHER 35 X HR4500C |
| 34 | 267222-7 | FLAT WASHER 49 X HR4500C |
| 35 | 324089-7 | STRIKER X HR4500C |
| 36 | 213440-5 | RING 27 X HR4500C |
| 37 | 331599-7 | RING 38 X HR4500C |
| 38 | 233299-4 | COMPRESSION SPRING 39 X HR4500C |
| 39 | 227401-9 | SPIRAL GEAR HR4500C |
| 40 | 331592-1 | CYLINDER 34 X HR4500C |
| 41 | 213486-1 | RING 35 X 6827 |
| 42 | 213486-1 | RING 35 X 6827 |
| 43 | 213440-5 | RING 27 X HR4500C |
| 44 | 331598-9 | TUBE X HR4500C |
| 45 | 417433-6 | PISTON X HR4500C |
| 46 | 213440-5 | RING 27 X HR4500C |
| 47 | 417432-8 | ROD X HR4500C |
| 48 | 152766-9 | CRANK HOUSING COVER HR4500C |
| 49 | 152764-3 | CRANK ROD X HR4500C |
| 50 | 416124-6 | CAP CRANK X HR4000C |
| 51 | 213406-5 | GASKET 30 58NB / SB / HM1200 |
| 52 | 324065-1 | CRANKSHAFT X HR4500C |
| 53 | 254218-7 | KEY 5 X HR4500C |
| 54 | 267219-6 | FLAT WASHER 45 X HR4500C |
| 55 | 211418-2 | BEARING 6006LLU X HR4500C |
| 56 | 962252-0 | RETAINING RING R-55 |
| 57 | 961110-7 | RING CHECK S30 |
| 58 | 227017-0 | GEAR 22 X HR4500C |
| 59 | 226533-9 | GEAR 37 X HR4500C |
| 60 | 961056-7 | RETAINING RING S16 |
| 61 | 421768-9 | SEAL X HR4500C |
| 62 | 152765-1 | GEAR BOX X HR4500C |
| 63 | 253314-8 | WASHER 15 X6906 / HR3850B |
| 64 | 210024-0 | BEARING X HR5001C |
| 65 | 417438-6 | CHANGE LINK X HR4500C |
| 66 | 253810-6 | WASHER 12 X HR4000C |
| 67 | 322951-0 | CHANGE KEY X HR4000C |
| 68 | 961052-5 | RETAINING RING S12 |
| 69 | 267113-2 | FLAT WASHER 12 X 8412DWH |
| 70 | 152954-8 | TORQUE LIMITER X HR4500C |
| 71 | 267113-2 | FLAT WASHER 12 X 8412DWH |
| 72 | 211138-8 | BEARING X HR3000C |
| 73 | 227405-1 | GEAR 10 X HR4500C |
| 74 | 266012-5 | SCREW M5 X 35 HR160DW |
| 75 | 213304-3 | GASKET 20 X 6904VH |
| 76 | 416289-4 | SLIDING PLATE |
| 77 | 233180-9 | COMPRESSION SPRING 3 X HR4000C |
| 78 | 322963-3 | GUIDE PIN 2 X HR4000C |
| 79 | 256122-6 | PIN 4 X HR4000C |
| 80 | 417340-3 | UNLOCKING BUTTON X HR400 |
| 81 | 233188-3 | 2.4 X HR4000C SPRING |
| 83 | 416287-8 | CHANGE LEVER X HR4000C |
| 84 | 322962-5 | PIN 4 X HR4000C |
| 85 | 421698-4 | WASHER 55 X HR4500C |
| 86 | 911128-8 | SCREW M4X16 X HR4000C |
| 94 | 516843-5 | ARMATURE X HR4500C |
| 95 | 266046-8 | SCREW M5X50 HR2010 |
| 96 | 526113-4 | STATOR 220 X HR4500C |
| 97 | 681642-5 | WASHER X LS1013 |
| 98 | 211088-7 | BEARING 6000 9527PB-9528PB |
| 99 | 417439-4 | BAFFLE X HR4500C |
| 100 | 267025-9 | FLAT WASHER 15 6912D |
| 101 | 211238-4 | BEARING BALLS 6202LLU |
| 102 | 213231-4 | SEALING OIL X HR4500C |
| 103 | 331596-3 | CLEEVE 12 X HR4500C |
| 104 | 416284-4 | SWITCH LEVER X HR4000C |
| 105 | 650677-7 | C3PA-1112 SWITCH |
| 106 | 416126-2 | LEAD GUIDE X HR4000C |
| 107 | 417443-3 | HANDLE COVER X HR4500C |
| 108 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 109 | 421583-1 | SPONGE X HR4000C |
| 110 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 111 | 687053-2 | CABLE CLAMP |
| 112 | 682560-0 | CORD GUARD X HM1202C / 9079S |
| 114 | 266021-4 | SCREW 5X20 |
| 115 | 417444-1 | HANDLE X HR4500C |
| 116 | 416285-2 | ACRYLIC PIN 5 X HR4000C |
| 117 | 911233-1 | HEAD SCREW M5X20 3600H |
| 118 | 631433-4 | CONTROLLER X HR4500C |
| 119 | 417431-0 | FIXING X HR4500C |
| 120 | 240016-5 | FAN X HR5001C |
| 121 | 253165-9 | FLAT WASHER 8 |
| 122 | 931403-6 | HEXAGONAL NUT M8 |
| 123 | 417441-7 | REAR COVER X HR4500C |
| 124 | 266021-4 | SCREW 5X20 |
| 125 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 126 | 416292-5 | PLATE X HR4000C |
| 127 | 263002-9 | RUBBER PIN 4 |
| 128 | 643650-4 | BRUSH HOLDER CAP |
| 129 | 181048-2 | CARBON BRUSHE SET CB-155 (CB-161) |
| 132 | 183332-1 | MOTOR HOUSING X HR4500C |
| 133 | 152768-5 | SIDE HANDLE BASE HR4500C |
| 134 | 417002-3 | HM1202C HANDLE RING |
| 135 | 417002-3 | HM1202C HANDLE RING |
| 136 | 252640-2 | WING NUT M8 X |
| 137 | 417003-1 | SIDE HANDLE X HM1202C |
| 138 | 265439-6 | SCREW M8X150 X HM1100C |
| 139 | 134915-0 | HANDLE TYPE D FOR HR4500 |
| 140 | 134916-8 | GRIP X HR4500 |
| 999 | 193407-8 | HR4500C SERIVE KIT |
