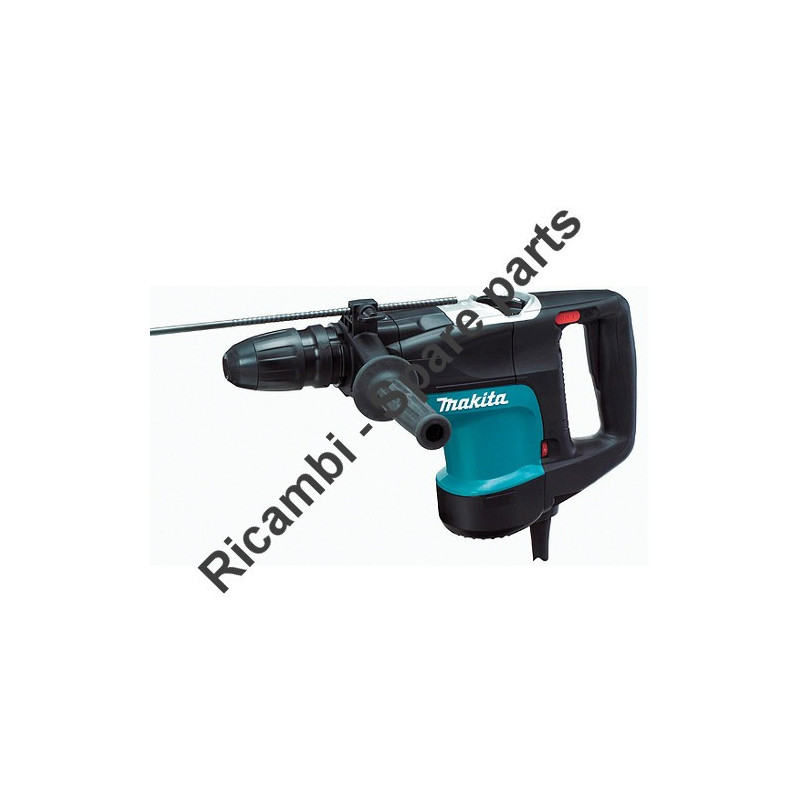

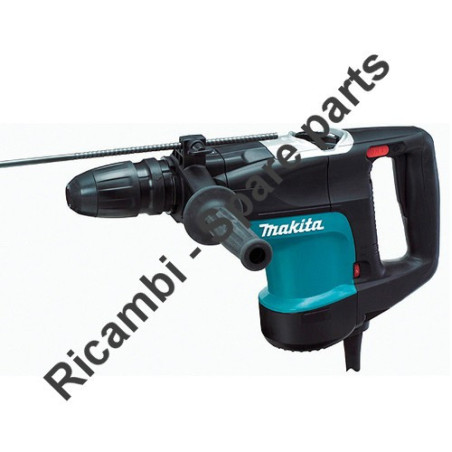

Makita Spare Parts for Rotary Hammer HR4001C
€282.02
Tax included
Makita Spare Parts for Rotary Hammer HR4001C
Fix Your otary Hammer HR4001C.All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts Rotary Hammer HR4001C
Fix Your otary Hammer HR4001C.All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
In the following table, look the model of the Hammer and the respective parts of the code.
| ROTARY HAMMER SDS-MAX - HR4001C Pag.1 |
||
|
#
|
Part Num.
|
Description |
|
1
|
286285-4
|
FRONT HOOD HR4001C/4010C |
|
2
|
RING HR50001C | |
|
3
|
267272-2
|
WASHER 28 HM0860C |
|
4
|
419015-0
|
SLEEVE CHUCK HR4001 |
|
5
|
419002-9
|
DISTANCE HR4001C/HR4010C |
|
6
|
324548-1
|
RING CHUCK HR4001C |
|
7
|
231984-3 | RING HR50001C |
|
8
|
419016-8
|
COVER DISCONNECT HR4001C/4010C |
|
9
|
419760-7 | GUIDE BUSH BLOCK |
|
10
|
267336-2
|
WASHER 45 HR4001C/HR4010C |
|
11
|
262116-1
|
RING URETHANE 45 HR4001C |
|
12
|
SEAL SHEET HR4001C/HR4010C | |
|
13
|
154621-1
|
CANNON HR4001C/HR4010C |
|
14
|
922353-6
|
SCREW M6x30 HM1202C |
|
15
|
154624-5
|
COVER CANNON HR4001C/4010C |
|
16
|
345579-7
|
GUIDE SPRING HR4001C/HR4010C |
|
17
|
233431-0
|
SPRING COMP.48 HR4001C/HR4010C |
|
18
|
345579-7
|
GUIDE SPRING HR4001C/HR4010C |
|
19
|
310161-1
|
STOP BIT HR4001C/HR4010C |
|
20
|
310161-1
|
STOP BIT HR4001C/HR4010C |
|
21
|
165633-9 | BUSH LOCK HR4001C |
|
22
|
324542-3
|
TIPS HR4001C/HR4010C |
|
23
|
266437-3
|
SCREW M4x16 FRENA THREAD HR4001C |
|
24
|
RING 20 HR4000C | |
|
25
|
RUBBER RING 25 HR4000C | |
|
26
|
RING 18 HR4001C/HR4010C | |
|
27
|
IMPACT BOLT HR4001C/HR4010C | |
|
28
|
421901-3
|
RING RUBBER 17 HR4001C/4010C |
|
29
|
RING 17 HR4001C/HR4010C | |
|
30
|
SLIDE SLEEVE HR4001C | |
|
31
|
324571-6 | STRIKER HR4001C/HR4010C |
|
32
|
213962-5 | RING 22 HR4001C/HR4010C |
|
33
|
331709-6
|
RING 33 HR4001C/HR4010C |
|
34
|
233448-3
|
SPRING COMPRESSION 37 HR4001C/HR4010C |
|
35
|
227509-9
|
GEAR 25 HR4001C/HR4010C |
|
36
|
CON ROD HR4001C/HR4010C | |
|
37
|
213379-2 | O-RING 21 AN621 |
|
38
|
213962-5 | RING 22 HR4001C/HR4010C |
|
39
|
419004-5 | PISTON HR4001C/HR4010C |
|
40
|
256197-5 | PISTON PIN 4 HR4000C |
|
41
|
233937-8 | CIRCLIP 31 HR4001C |
|
42
|
257268-1
|
RING 33 HR4001C/HR4010C |
|
43
|
213406-5 | O-RING 30 58NB/SB/HM1200 |
|
44
|
213406-5 | O-RING 30 58NB/SB/HM1200 |
|
45
|
233935-2 | RING SPRING 32 HR4001C |
|
46
|
CYLINDER 28.5 HR4001C/HR4010C | |
|
62
|
266041-8
|
PT SCREW 5x25 |
|
63
|
233432-8
|
COMPRESSION SPRING 7 HR4001C/4010C |
|
65
|
911133-5
|
SCREW M4X18 |
|
66
|
266192-7 | SCREW 4 X14 HR4001C/HR4010C |
|
67
|
419009-5
|
BUTTON FRAME HR4001C |
|
68
|
233436-0
|
COMPRESSION SPRING 3 HR4001C/HR4010C |
|
69
|
266192-7 | 4x14 SCREW HR4001C/HR4010C |
|
70
|
419020-7
|
LEVER HR4001C/HR4010C |
|
71
|
419007-9
|
ROD LEVER HR4001C |
|
72
|
317925-4
|
COVER HOUSING ROD HR4001C |
|
73
|
419030-4
|
COVER HOUSING LOWER ROD. |
|
74
|
SEAL RING HR4001C | |
|
75
|
419019-2
|
GUIDE PLATE CONNECTION |
|
76
|
345582-8
|
CONNECTION PLATE HR4001C |
|
80
|
154625-3
|
HOUSING ROD HR4001C |
|
81
|
423345-3
|
CUSHION PLATE SHOCK HR4001 |
|
83
|
213262-3
|
O-RING 18 4100R |
|
84
|
419006-1
|
CONNECTING LEVER HR4001C |
|
85
|
911511-9
|
SCREW M4X10 HR4001C/HR4010C |
|
86
|
324550-4 | CRANKSHAFT HR4001C/4010C |
|
87
|
211332-2
|
BALL BEARING 6004 2RS HR 3000C |
|
88
|
961060-6
|
RETAINING RING S20 |
|
89
|
226605-0
|
GEAR 38 HR4001C/HR4010C |
|
90
|
253180-3
|
FLAT WASHER 10 6221DW |
|
91
|
RING HR4001C | |
|
92
|
154623-7
|
GFEAR HOUSING COMPLETE HR4001C/4010C |
|
93
|
COMPRESSION SPRING 5 HR4001C/HR4010C | |
|
95
|
419018-4 | CHANGE PLATE HR4001C/HR4010C |
|
96
|
210005-4 | BALL BEARING 608 DDW |
|
97
|
345581-0
|
WASHER 8 HR4001C |
|
98
|
233936-0
|
SPRING 19-27 HR4001C/HR4010C |
|
99
|
324549-9
|
DRIVING FLANGE HR4001C/HR4010C |
|
103
|
211323-3
|
BALL BEARING 6904 |
|
104
|
135508-6
|
TORQUE LIMITER ASS'Y HR4001C |
|
105
|
265995-6 | SCREW M4X18 6408/6221DW |
|
106
|
419036-2
|
HANDLE COVER HR4001C/HR4010C |
|
108
|
SWITCH TG73B-1 HR4001C | |
|
109
|
154626-1
|
SWITCH HOLDER HR4001C |
|
112
|
419028-1
|
SWITCH LEVER HR4001C/HR4010C |
|
113
|
266041-8
|
SCREW PT 5PER25 |
|
117
|
419039-6
|
REAR HANDLE HR4001C |
|
122
|
638407-6
|
LEAD UNIT HR4001C/HR4010C |
|
123
|
419010-0
|
LENS HR4001C/HR4010C |
|
124
|
266192-7 | SCREW 4x14 HR4001C/HR4010C |
|
125
|
631657-2 | SPEED CONTROLLER HR4001C |
|
126
|
419024-9
|
CORD CABLES BASE HR4001C |
|
127
|
687169-3
|
CORD CLAMP HP1620 |
|
128
|
266192-7 | SCREW 4x14 HR4001C/HR4010C |
|
129
|
266192-7 | SCREW 4x14 HR4001C/HR4010C |
|
130
|
265995-6 | SCREW MX18 6408/6221DW |
|
131
|
682560-0 | SLEEVE CABLE HM1202C/9079S |
|
133
|
265995-6 | SCREW M4X18 6408/6221DW |
|
134
|
419032-0
|
COVER LOWER HR4001C/4010C |
|
135
|
931303-0
|
HEX NUT M6 |
|
136
|
253047-5
|
FLAT WASHER 6 |
|
137
|
FAN 76 | |
|
138
|
419022-3
|
FAN GUIDE HR4001C/HR4010C |
|
139
|
194160-9 | CARBON BRUSHE CB-350 HR4001C |
|
140
|
638715-5
|
CARBON BRUSHE HOLDER HR4001C |
|
141
|
154619-8
|
HOUSING MOT. HR4001C/HR4010C |
|
142
|
324390-0
|
SLEEVE 6 HR4001C/HR4010C |
|
143
|
210005-4 | BALL BEARING 608 DDW |
|
144
|
681650-6 | INSULATION WASHER HR4000C |
|
145
|
625758-6 | FIELD ASSY 220-240V HR4001C/4010C |
|
146
|
266095-5
|
SCREW 5x55 HR5001C |
|
147
|
513633-7 | ARMATURE 220-240V HR4001C/4010C |
|
148
|
419021-5
|
BAFFLE HR4001C/HR4010C |
|
149
|
FLAT WASHER 12 8419B/5016NB | |
|
150
|
211137-0
|
BEARING 6201LLU HM0860C |
|
151
|
OIL SEAL HR4500C | |
|
152
|
331596-3
|
SLEEVE 12 4500C |
|
153
|
419034-6
|
CRANK HOUSING COVER HR4001C |
|
154
|
266192-7 | SCREW 4x14 HR4001C/HR4010C |
|
155
|
419026-5
|
SWITCH BOX HR4001C/HR4010C |
|
156
|
263027-3
|
RUBBER PIN 4 HM0860C |
|
157
|
651418-4 | SWITCH ST115A-40 9541 |
|
158
|
232209-8
|
FLAT SPRING HM0860C |
|
160
|
419027-3 | CONTROL PANEL HR4001C |
|
161
|
421939-8
|
SPONGE HR4001C/HR4010C |
|
162
|
345650-7
|
PLATE HR4001C |
|
163
|
267456-2
|
WASHER 38 HR4001C/4011C |
|
999
|
195195-3 | REPAIR KITS HR4001C/HR4010C |
|
1000
|
GREASE 30GR. | |
All product specifications in this catalog are based on in mation taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Un tunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published in mation as a basic in mation subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
