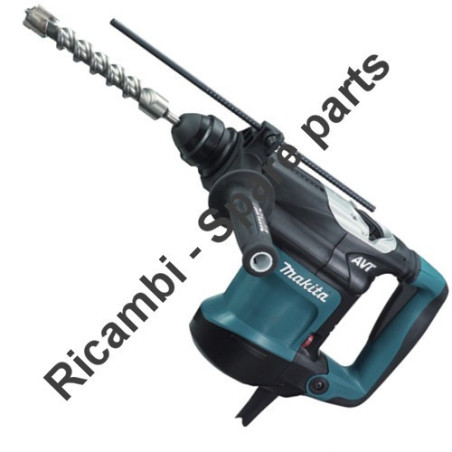

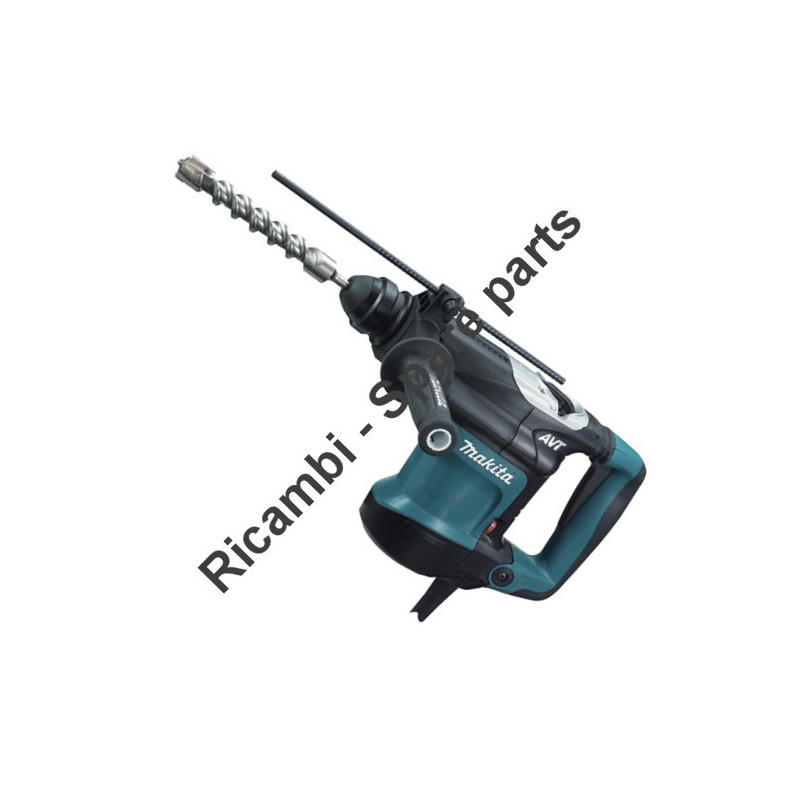

Makita Spare Parts for Rotary Hammer HR3210C
€64.24
Tax included
Makita Spare Parts for Rotary Hammer HR3210C
Makita Original spare parts at the most competitive prices on the web, we are an service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer HR3210C.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Rotary Hammer HR3210C
Makita Original spare parts at the most competitive prices on the web, we are an service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer HR3210C.
In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Rotary Hammer Makita HR3210C | ||
| # | Part Num. | Description |
| 2 | 286282-0 | TOOL HOLDER CAP X HR3200C |
| 3 | 233940-9 | SNAP RING 19 FOR HR2432 |
| 4 | 450245-4 | CHUCK COVER HR3200C |
| 5 | 257288-5 | O-O-RING 21 X HR3200C |
| 6 | 216022-2 | STEEL BALL 7 |
| 7 | 345873-7 | GUIDE WASHER X HR3200C |
| 8 | 234049-0 | CONICAL COMP SPO-RING 22-32 X HR3200C |
| 18 | 922341-3 | SCREW M6X25 |
| 19 | 158533-0 | BARREL COMP. X HR3200C |
| 20 | 213656-2 | O-RING 53 X HM1200 |
| 21 | 267810-0 | WASHER 34 X HR3200C |
| 22 | 262138-1 | URETHANE O-RING 34 X HR3200C |
| 23 | 267810-0 | WASHER 34 X HR3200C |
| 24 | 324840-5 | TOOLS HOLDER X HR3200C |
| 25 | 324849-7 | IMPACT BOLT X HR3200C |
| 26 | 213228-3 | O-RING 15 X HR3000C |
| 27 | 213228-3 | O-RING 15 X HR3000C |
| 28 | 213321-3 | O-RING RESIN 20 X HR3000C |
| 29 | 424062-8 | RUBBER RING 13 X HR3200C |
| 30 | 324838-2 | SLIDE PLATE X HR3200C |
| 31 | 256266-2 | PIN 6 X HR3200C |
| 32 | 331794-9 | CYLINDER 25 X HR3200C |
| 33 | 450243-8 | SLIDE SLEEVE X HR3200C |
| 34 | 331805-0 | O-RING 29 X HR3200C |
| 35 | 267360-5 | WASHER 40 X HR3200C |
| 36 | 234052-1 | COMPRESSION SPRING 42 HR3200C |
| 37 | 450236-5 | LOCK SLEEVE HR3200C |
| 38 | 234050-5 | COMPRESSION SPRING 34 HR3200C |
| 39 | 331795-7 | DRIVING SLEEVE X HR3200C |
| 40 | 213434-0 | O-RING X 5621RDW |
| 41 | 324858-6 | STRIKER X HR3200C |
| 42 | 213283-5 | O-RING 18 X HR3200C |
| 43 | 213283-5 | O-RING 18 X HR3200C |
| 44 | 256087-2 | PIN 7 X HR3200C |
| 45 | 324918-4 | PISTON X HR3200C |
| 46 | 213262-3 | O-RING 18 4100R |
| 47 | 450235-7 | ROD X HR3200C |
| 48 | 227531-6 | SPIRAL BEVEL GEAR 37 X HR3200C |
| 49 | 345867-2 | LEVERAGE HR3200C |
| 50 | 213030-4 | O-RING 8 X RP1100C |
| 51 | 450248-8 | PIPE HOLDER HR3210C |
| 52 | 213030-4 | O-RING 8 X RP1100C |
| 53 | 450239-9 | SPRING GUIDE HR3210C |
| 54 | 234048-2 | COMPRESSION SPRING 10 HR3210C |
| 55 | 213275-4 | O-RING 18 X BFL401F |
| 56 | 331800-0 | TUBE 15 X HR3210C |
| 57 | 213275-4 | O-RING 18 X BFL401F |
| 58 | 324862-5 | Balancer X HR3210C |
| 59 | 234048-2 | COMPRESSION SPRING 10 HR3210C |
| 60 | 450239-9 | SPRING GUIDE HR3210C |
| 61 | 213030-4 | O-RING 8 X RP1100C |
| 62 | 450248-8 | PIPE HOLDER HR3210C |
| 63 | 213030-4 | O-RING 8 X RP1100C |
| 64 | 266041-8 | PT SCREW 5x25 |
| 65 | 922123-3 | SCREW M4 X 14 X DCS230T |
| 66 | 450254-3 | CRSNK HOUSING COVER HR3210C |
| 67 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 68 | 318201-9 | CRANK CAP COVER HR3200C |
| 69 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 70 | 450249-6 | LEVER CPL X HR3200C |
| 71 | 233436-0 | COMPRESSION SPRING 3 X HR4001C / HR4010C |
| 72 | 450250-1 | LOCK BUTTON X HR3200C |
| 73 | 911128-8 | SCREW M4x16 X HR4000C |
| 74 | 450241-2 | CRANK CAP |
| 75 | 213223-3 | O-RING 16 X HR3200C |
| 76 | 158437-6 | GEAR 33 X HR3200C |
| 77 | 424064-4 | SEAL RING B X HR3200C |
| 78 | 345868-0 | LINK PLATE HR3200C |
| 79 | 450247-0 | AIR PIPE HR3200C |
| 80 | 263005-3 | RUBBER PIN 6 |
| 81 | 452126-8 | GEAR SHAFT X HR3200C |
| 82 | 158712-0 | GEAR HOUSING COMPL. HR3210C |
| 83 | 443138-2 | FILTER X HR3200C |
| 84 | 213030-4 | O-RING 8 X RP1100C |
| 85 | 450238-1 | FILTER CAP HR3200C |
| 86 | 450244-6 | CRANK GEAR X HR3200C |
| 87 | 213176-6 | O-RING 14 X AN901 |
| 88 | 450237-3 | CAP HOLDER X HR3200C |
| 89 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 90 | 324839-0 | CRANK SHAFT HR3200C |
| 91 | 211332-2 | BALL BEARING HR3000C |
| 92 | 961060-6 | EXT DIN471 CIRCLIP-20 |
| 93 | 231991-6 | CONICAL COMP SPRING 21-31 HR3000C |
| 94 | 254239-9 | KEY 4 X HR3000C |
| 95 | 324848-9 | CAM CLUTCH X HR3200C |
| 96 | 227188-3 | GEAR 33 X HR3200C |
| 97 | 253197-6 | WASHER 10 X LF1000 |
| 98 | 961036-3 | RETAINING RING X HR3200C |
| 99 | 345869-8 | WASHER 18 X HR3200C |
| 100 | 424063-6 | SEAL RING A X HR3200C |
| 101 | 158534-8 | GEAR HOUSING COMP. X HR3200C |
| 102 | 213415-4 | O-RING 28 X HM1100C |
| 103 | 227533-2 | SPIRAL BEVEL GEAR 9 X HR3200C |
| 104 | 254239-9 | KEY 4 X HR3000C |
| 105 | 210105-0 | BALL BEARING 6001LLU X PW5000CH |
| 106 | 125421-6 | TORQUE LIMITER ASS'Y X HR3200C |
| 107 | 257291-6 | O-RING 10 X HR3200C |
| 108 | 210005-4 | BALL BEARING 608 DDW |
| 109 | 450251-9 | BAFFLE HR3200C |
| 110 | 213133-4 | SEAL OIL 12 X HR2800 |
| 112 | 210105-0 | BALL BEARING 6001LLU X PW5000CH |
| 113 | 253084-9 | WASHER P.12 8419B / 5016NB |
| 114 | 241863-7 | FAN 70 |
| 115 | 513748-0 | ARMATURE HR3200C |
| 116 | 681650-6 | INSULATION WASHER X HR4000C |
| 117 | 210005-4 | BALL BEARING 608 DDW |
| 118 | 266056-5 | SCREW M 5 X 45 X JR3060T |
| 119 | 625813-4 | STATOR X HR3200C |
| 120 | 450252-7 | MOTOR HOUSING X HR3200C |
| 122 | 194160-9 | CARBON BRUSHE SET CB-350 X HR4001C |
| 123 | 450253-5 | COVER LOWER. HR3200C |
| 124 | 265995-6 | SCREW M4X18 X 6408/6221DW |
| 125 | 265995-6 | SCREW M4X18 X 6408/6221DW |
| 126 | 638519-5 | BRUSH HOLDER HR3200C |
| 127 | 631784-5 | CONTROLLER PER HR3200C |
| 128 | 266192-7 | SCREW 4 X 14 X HR4001C/HR4010C |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s MAKITA websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to MAKITA brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HR3210C
12 Items
