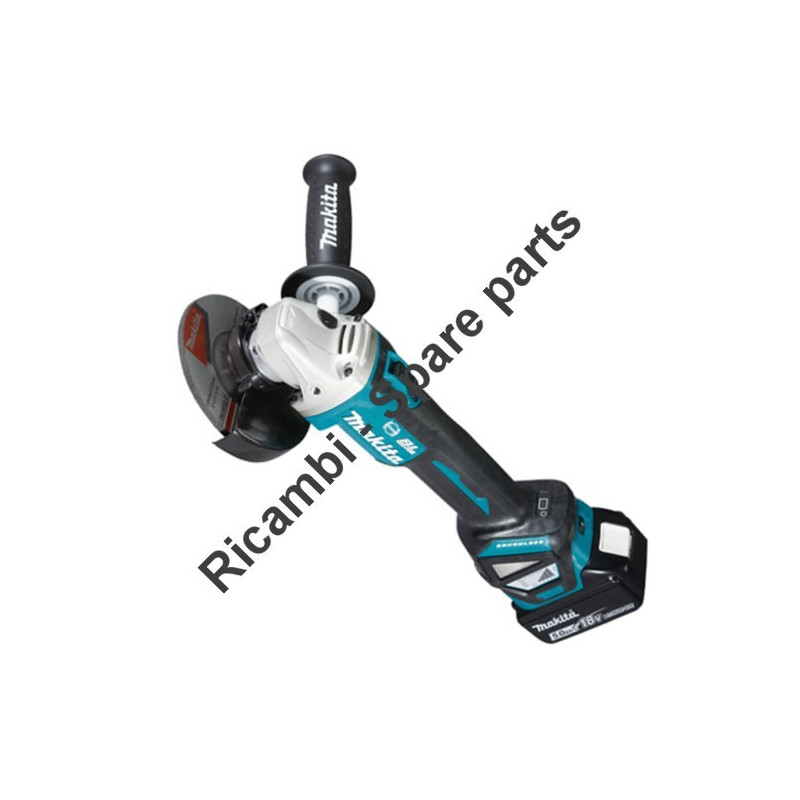

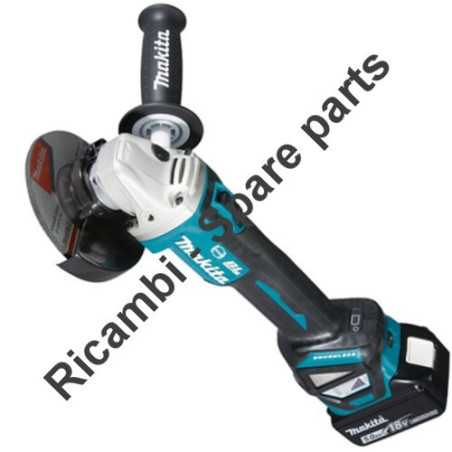

Makita Spare Parts for Cordless Angle Grinder DGA513
search
  • Makita Spare Parts for Cordless Angle Grinder DGA513
  • Makita Spare Parts for Cordless Angle Grinder DGA513

Makita Spare Parts for Cordless Angle Grinder DGA513

€51.61
Tax included

Makita Spare Parts for Cordless Angle Grinder DGA513

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brushless Cordless Angle Grinder DGA513.
ITEM CODE: 629298-6
Quantity
Usually Shipped on: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Cordless Angle Grinder DGA513

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Brushless Cordless Angle Grinder DGA513.

In the following table, look for the model of the Cordless Angle Grinder and the respective parts of the code.
Makita DGA513

Makita DGA513 Cordless Brushless 125mm Angle Grinder 18v Spare Parts
# Part Num. Description
1 629298-6 STATOR COMPLETE
2 210169-4 BALL BEARING 607LLB
3 510329-1 ROTOR ASS'Y
4 135930-7 GEAR HOUSING COVER ASSEMBLY
5 213445-5 O-RING 26 BPJ141/181/BGA450
6 210042-8 BALL BEARING 629LLB BPJ141/181
7 227541-3 SPIRAL BEVEL GEAR 10
8 252186-8 HEX NUT M6 BUC250/GA4034/9553N
9 417771-6 PIN CAP BPJ141/181/PC5000/01C
10 233072-2 COMPRESSION SPRING 8 9524NB BGA450 BGA452 RP1801
11 266361-0 R.H SQUARE NECK BOLT M8
12 213960-9 O RING 5
13 256546-6 SHOULDER PIN 4
14 135929-2 GEAR HOUSING ASSEMBLY
15 263002-9 RUBBER PIN 4 GA7050/9050/PC500
16 210033-9 BALL BEARING 696ZZ PC5000/01C
17 233950-6 RING SPRING 11 BPJ140 / BPJ180 / GA4530
18 227641-9 SPIRAL BEVEL GEAR 37
19 962151-6 RETAINING RING R-32 BPJ141/81
20 211129-9 BALL BEARING 6201DDW BPJ141/81
21 262153-5 FELT RING 16
22 213622-9 O RING 45 BGS450/BPJ141/181
23 135949-6 BEARING BOX ASSEMBLY
24 911121-2 PAN HD SCREW M4X14
25 962105-3 INTERNAL RETAINING RING-
26 326672-6 SPINDLE
27 123145-8 TOOLLESS WHEEL COVER 125K ASSY
27 213009-5 O RING 4 2030/2012NB/KP0810
27 265180-1 PAN HD SCREW M5X16 GA5021/9556
28 224447-6 INNER FLANGE 42B
29 224554-5 LOCK NUT 14-45
30 853X81-5 DGA513 NAME PLATE
31 266326-2 TAPPING SCREW M4X18 BHR2*
32 455450-8 DUST COVER R
33 183H83-4 HOUSING SET
33 263005-3 RUBBER PIN 6
34 455447-7 SWITCH KNOB
35 455446-9 SWITCH LEVER
36 455448-5 LEVER
37 231679-8 TORSION SPRING 2
38 268330-7 PIN 2
39 142901-7 INDICATOR PANEL COMPLETE
40 650579-7 Switch 9564PCV 9565PCV BGA450 BGA452 BPJ180 Grinder Jointer
41 183H83-4 HOUSING SET
41 263005-3 RUBBER PIN 6
42 455449-3 DUST COVER L
43 643874-2 TERMINAL
46 853X86-5 DGA513 SERIAL NO. LABEL
47 310514-4 LEAD FLANGE
48 816D93-9 INDICATION LABEL
A01 158237-4 GRIP 36 COMPLETE
A02 A-80656 GRINDING WHEEL 125 WA36N
A03 782423-1 Angle Grinder Lock Nut Wrench
A04 450128-8 BATTERY COVER
A05 195584-2 DC18RC FAST CHARGER
A06 197280-8 BATTERY BL1850B 18V 5A LI-ION
A07 821551-8 CONNECTOR PLASTIC CASE (TYPE3)
A07 453974-8 Latch
A08 816K14-3 DGA513RTJ INDICATION LABEL
A09 816K15-1 DGA513RTJ PLASTIC CASE LABEL
A10 839252-4 INNER TRAY
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
