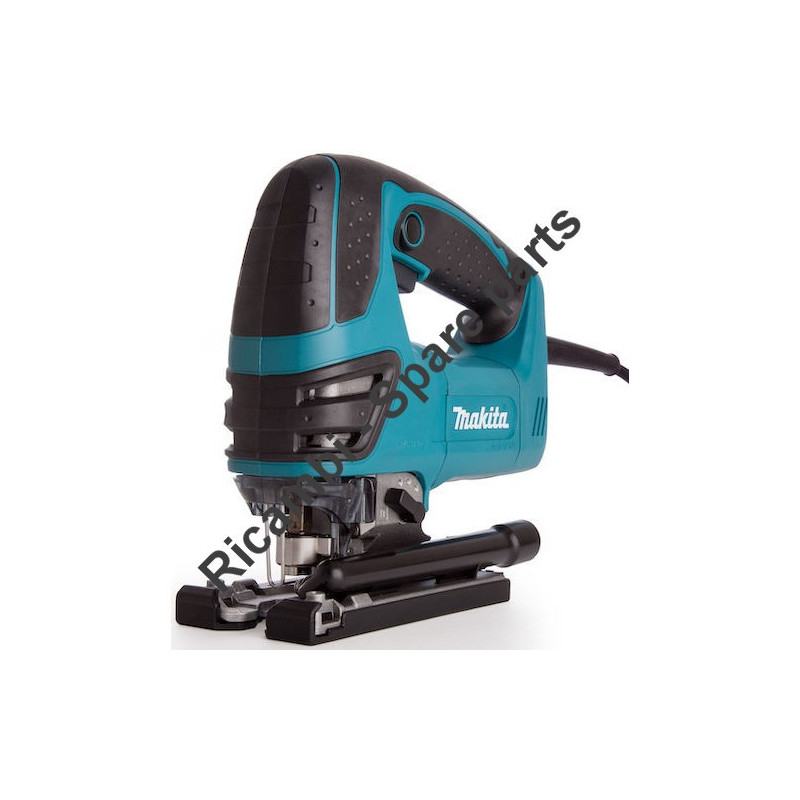

Makita Spare Parts for Jigsaw 4350FCT

€63.72
Tax included

Makita Spare Parts for Jigsaw 4350FCT

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Jigsaw 4350FCT.
ITEM CODE: 135060-4
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Jigsaw 4350FCT

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Jigsaw 4350FCT.

In the following table, look for the model of Jigsaw and the respective parts of the code.
Makita 4350FCT

Jigsaw 4350FCT
# Part Num. Description
1 188287-5 HANDLE 4350FCT
2 266048-4 SCREW M 4 X 40 X 4334D
3 266091-3 SPECIAL SCREW 4 X 50
4 265995-6 SCREW M4X18 X 6408 / 6221DW
5 442138-9 PACKING 4341FCT
6 214031-5 PLANE BEARING 40 6913DWH
7 232207-2 FLAT SPRING X 4341FCT
8 256117-9 PIN X 4324
9 911111-5 CYLINDER HEAD SCREW. M4X10
10 911111-5 CYLINDER HEAD SCREW. M4X10
11 345240-6 RIGHT GUIDE X 4341FCT
12 345240-6 RIGHT GUIDE X 4341FCT
13 153338-3 GEAR HOUSING COVER 4341FCT
14 417839-8 SEAL PLATE X 4341FCT
15 231659-4 TORSION SPRING 6 X 4341FCT
16 265026-1 M4 BOLT
17 419820-5 BLADE RELEASE BJV140R
18 421817-2 DUST X 4341FCT
19 962068-3 RETAINING RING R-18 X 4341F
20 135060-4 COMPLETE ROD 4350CT
21 231660-9 TORSION SPRING 15 X 4341FCT
22 310136-0 BLADE HOLDER X 4341FCT
23 310135-2 PIN X 4341FCT
25 682559-5 CORG GUARD X 6822
26 687260-7 CABLE CLAMP X GA5010
27 265995-6 SCREW M4X18 X 6408 / 6221DW
28 645149-5 CAPACITOR X 4350CT
29 266034-5 SCREW CT 4X16
30 324233-6 SAFETY PROTECTION X 4341FCT
31 631470-8 CIRCUIT FOR LIGHT X 4341FCT
32 631766-7 REGULATOR FOR 4350FCT
33 650231-7 SWITCH TGL115CDT X 4350FCT
34 654532-5 CLAMP 1P
36 310134-4 SLIDER X 4341FCT
37 961017-7 RING E-3 X 4305T
38 961004-6 RETAINING RING S8
39 212092-9 NEEDLE BEARING 407
40 268090-1 PIN X 4 4341FCT
41 265353-6 SCREW M 4 X 12 X 4341FCT
42 153336-7 ECENTRIC X 4341FCT
43 313108-4 PLATE X 4341FCT
44 153335-9 CPL GEAR X 4341FCT
45 345235-9 PLATE X 4341FCT
46 253877-4 FLAT WASHER 8 X4301BV
47 266050-7 SCREW PT 4X30
48 961018-5 RETAINING RING E5
49 286032-3 CAP 5 X 4341FCT
50 233139-6 COMPRESSION SPRING 4341FCT
51 272244-4 LEVER 17 X 4341FCT
52 268063-4 PIN X 4 4341FCT
53 153334-1 CPL BLADE GUIDE X 4341FCT
54 252171-1 SQUARE NUT M 5 - 8 X 4341FCT
55 421816-4 DUST COVER X LAMA X 4341FCT
56 153337-5 GEAR BOX X 4341FCT
57 210005-4 BALL BEARING 608 DDW
58 241881-5 FAN 52 X 6408
59 266052-3 SCREW PT 4X60
60 417838-0 DEFLECTOR X 4341FCT
61 593508-6 STATOR X 4340CT
62 517398-3 ARMATURE X 4341FCT
63 191962-4 CARBON BRUSH CB-419 (406.407) 418
64 643936-6 BRUSH HOLDER 8450
66 863673-8 LABEL MOD. 4350FCT
68 419886-5 MOTOR HOUSING X 4350CT
69 259039-2 LOCKING 6 X 9566CV
70 688117-5 MAGNET SLEEVE X GD0800C
71 267756-0 WAVY WASHER X BO6040
72 421494-0 RUBBER RING 19 X 9521NB
73 211021-9 607LLB BALL BEARING
74 681636-0 INSULATING WASHER
75 232208-0 FLAT SPRING X 4341FCT
76 922226-3 SCREW M 5 X 18 X 4341FCT
77 345237-5 CRANK PLATE X 4341FCT
78 317565-8 BASE X 4341FCT
79 912107-9 SCREW M4X8
80 345238-3 BASIC PLATE X 4341FCT
