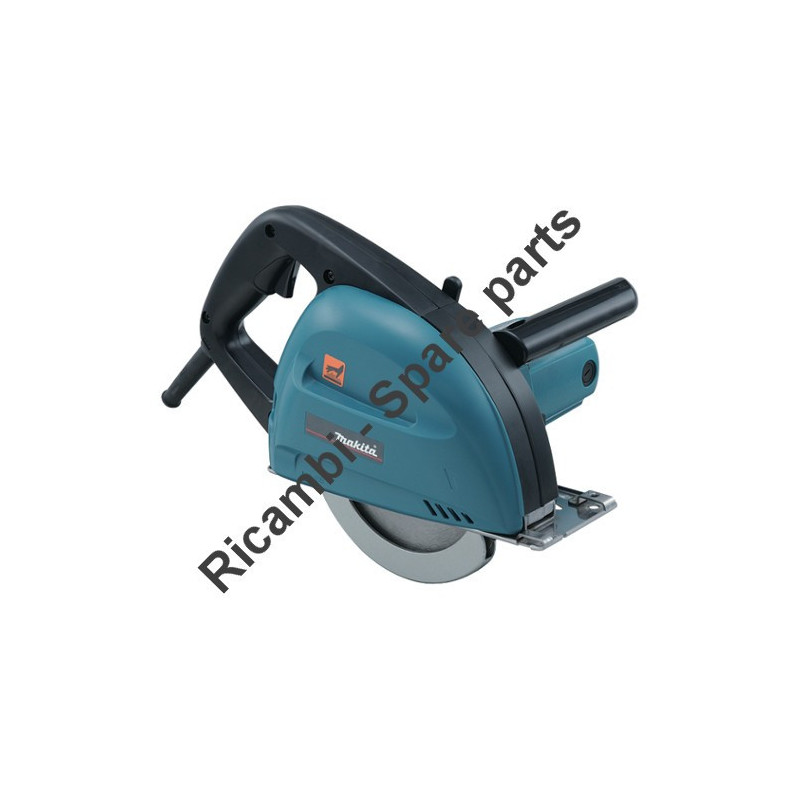

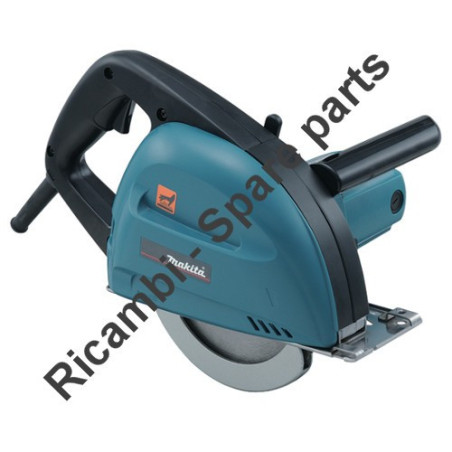

Makita Spare Parts for Circular Saw for Metal 4131
€71.79
Tax included
Makita Spare Parts for Circular Saw for Metal 4131
MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Circular Saw for Metal 4131.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Circular Saw for Metal 4131
MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Circular Saw for Metal 4131.
In the following table, look for the model of the Angle Cutting and the respective parts of the code.
| Circular Saw for Metal 4131 | ||
| # | Part Num. | Description |
| 2 | 183837-1 | COVER BOX X 4131 |
| 3 | 431005-3 | SLIDE X 4131 |
| 4 | 317776-5 | BOX POWDER X 4131 |
| 5 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 6 | 343760-4 | COVER METALLIC X 4131 |
| 7 | 317777-3 | DUST X 4131 |
| 8 | 266458-5 | SCREW M 6 X 18 X 4131 |
| 9 | 224366-6 | EXTERNAL FLANGE 40 X 4131 |
| 10 | 224370-5 | FLANGE INTERNAL 40 X 5704R |
| 11 | 961201-4 | RETAINING RING S42 |
| 12 | 267784-5 | WASHER 42 X 4131 |
| 13 | 343759-9 | RING THICKNESS X 4131 |
| 14 | 211031-6 | BEARING 608 X 4304T-4305T |
| 15 | 263002-9 | PIN RUBBER 4 |
| 16 | 961055-9 | RETAINING RING S15 |
| 17 | 226591-5 | GEAR 48 X 4131 |
| 18 | 257053-2 | RING 15 X 6510PBL / LVR |
| 19 | 213621-1 | RING 46 X 4157KB |
| 20 | 316579-4 | BEARING BOX X 4131 |
| 21 | 251372-8 | SCREW M 5 X 12 X BJR240 |
| 22 | 211228-7 | BALL BEARING 6202DD |
| 23 | 324475-2 | SHAFT X 4131 |
| 24 | 285807-7 | BEARING 22-36 |
| 25 | 346880-3 | DISTANCE |
| 26 | 231891-0 | SPRING TENSION 4 |
| 27 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 28 | 317775-7 | CAP BLADE X 4131 |
| 29 | 911213-7 | SCREW M5x12 X 5143R |
| 30 | 344944-7 | PLATE 5017RKB |
| 31 | 266026-4 | SCREW M4 X 12 |
| 32 | 183826-6 | HANDLE REAR X 4131 |
| 33 | 645200-1 | CAPACITOR |
| 34 | 682503-2 | SLEEVE PROTECTING_COVER X HM1500 |
| 36 | 687052-4 | CLAMP Cable tie X 6408 |
| 37 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 38 | 421492-4 | SPONGE X 4131 |
| 39 | 651057-0 | SWITCH TG71CL-2 X KP312 |
| 41 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 42 | 911213-7 | SCREW M5x12 X 5143R |
| 43 | 911223-4 | HEAD SCREW CILIND. M5X16 |
| 44 | 317778-1 | PROTECTION BLADE X 4131 |
| 45 | 251267-5 | SCREW M6 |
| 46 | 941201-0 | FLAT WASHER 8 |
| 47 | 345421-2 | LEVER FOR OPENING 4131 |
| 48 | 253783-3 | FLAT WASHER 6 |
| 49 | 421676-4 | HOOD RUBBER X 5017RKB |
| 50 | 231823-7 | SPRING TENSION 4 X 5017RKB |
| 51 | 324476-0 | HOOK X 4131 |
| 52 | 266031-1 | SCREW M6 X 20 X 4131 |
| 53 | 343758-1 | PROTECTION X 4131 |
| 54 | 262511-5 | REDUCTION RUBBER X HM1300 |
| 55 | 153924-0 | CARCASS ING. CPL X 4131 |
| 56 | 418612-9 | COVER HOUSING INGR.X 413 |
| 57 | 418613-7 | COVER CABLES X 4131 |
| 58 | 266026-4 | SCREW M4 X 12 |
| 59 | 231402-1 | SPRING COMP. 7 X 9079S |
| 60 | 271421-5 | TUBE 23 X 4131 |
| 61 | 961017-7 | RING-3 X 4305T |
| 62 | 911243-8 | SCREW M5x25 HR2010 |
| 63 | 415469-9 | FRONT HANDLE X 4131 |
| 64 | 263002-9 | PIN RUBBER 4 |
| 65 | 233092-6 | SPRING COMPRESSION 5 |
| 66 | 343832-5 | BLADE LOCKING DEVICE X 4131 |
| 67 | 211131-2 | BALL BEARING 6001DD |
| 68 | 253744-3 | ROND.PIANA 12 24B / 12N / 14 |
| 69 | 241876-8 | FAN 76 |
| 70 | 513578-9 | ARMATURE X 4131 |
| 71 | 681634-4 | INSULATING WASHER X 4131 |
| 72 | 211031-6 | BEARING 608 X 4304T-4305T |
| 73 | 415467-3 | VANE X 4131 |
| 74 | 634513-5 | STATOR X 4131 |
| 75 | 638358-3 | FULL SUPPORT X 4131 |
| 76 | 266026-4 | SCREW M4 X 12 |
| 77 | 159685-0 | HOUSING MOTOR X 4131 |
| 80 | 911263-2 | HEAD SCREW CILIND. M5x40 |
| 81 | 191963-2 | CARBON BRUSHES CB-303 |
| 82 | 643750-0 | PLUG BRUSH HOLDER |
| 83 | 911108-4 | SCREW M4X8 X 5103R |
| 84 | 252135-5 | NUT x 4131 |
| 85 | 341718-7 | PLATE BLOC.XSR16 / 1800 |
| 86 | 253804-1 | WASHER 6 X LS1013 |
| 87 | 342907-7 | LEVER X 4131 |
| 88 | 253804-1 | WASHER 6 X LS1013 |
| 89 | 165387-8 | BASE X 4131 |
| 90 | 266029-8 | SCREW M5X65 |
| 91 | 252103-8 | NUT X JR3020 |
| 92 | 265075-8 | SCREW M5 X 5704R |
