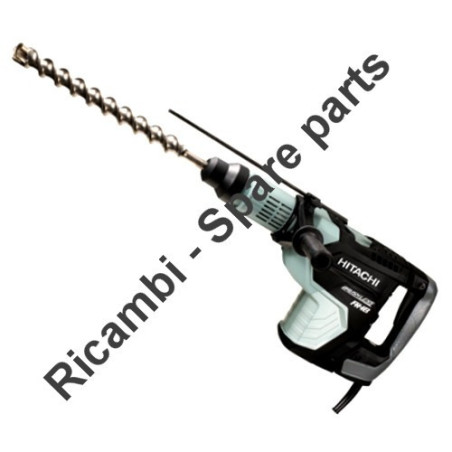

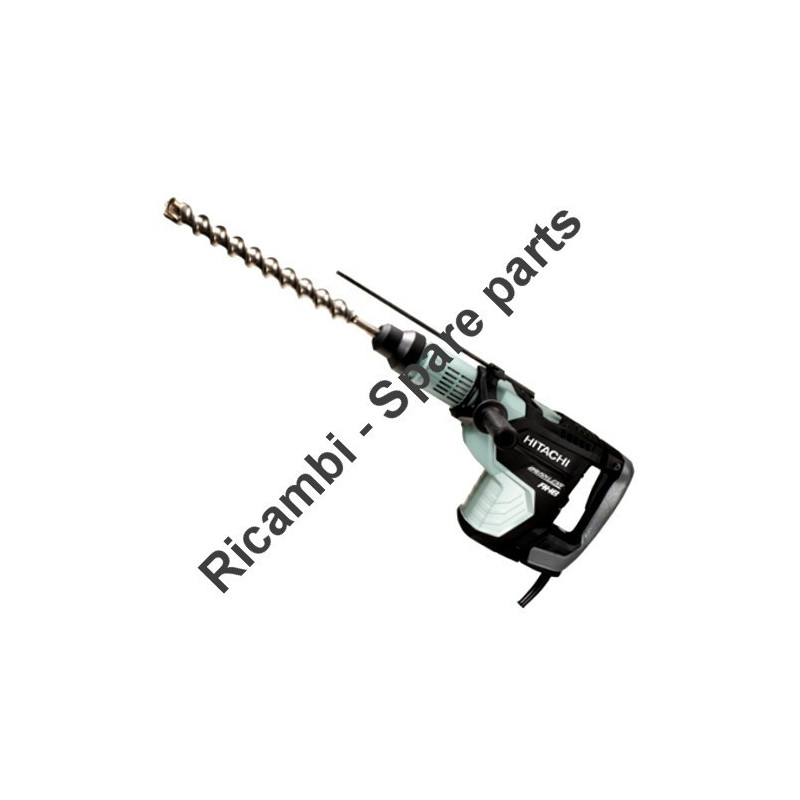

Hitachi Spare Parts for Rotary Hammer DH45ME
€19.79
Tax included
Hitachi Spare Parts for Rotary Hammer DH45ME
Hitachi-HIKOKI Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Rotary Hammer DG45ME.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Rotary Hammer DH45ME
Hitachi-HIKOKI Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Rotary Hammer DG45ME.
In the following table, look for the model of the Rotary Hammer and their spare part.
| Rotary Hammer DH45ME | ||
| # | Part Num. | Description |
| 1 | 337562 | FRONT CAP |
| 2 | 318590 | STOPPER RING |
| 3 | 338155 | RETAINER WASHER |
| 4 | 338154 | GRIP |
| 6 | 338153 | BIT LOCK HOLDER |
| 9 | 337557 | SPRING HOLDER (A) |
| 10 | 872470 | O-RING (S-26) |
| 12 | 338120 | CYLINDER CASE COVER |
| 13 | 318757 | RETAINING RING D35 |
| 15 | 6007DD | BALL BEARING 6007DDUAV2S |
| 16 | 321297 | BEARING WASHER |
| 17 | 321301 | OIL SEAL |
| 18 | 338121 | CYLINDER CASE |
| 20 | 338142 | O-RING (F) |
| 21 | 338124 | RETAINER DAMPER HOLDER |
| 22 | 338123 | RETAINER DAMPER (B) |
| 24 | 338122 | RETAINER DAMPER WASHER |
| 26 | 338125 | RETAINER SLEEVE |
| 27 | 313057 | NEEDLE PIN D6X6 |
| 28 | 324921 | O-RING (C) |
| 29 | 338126 | SECOND HAMMER |
| 30 | 338127 | DAMPER WASHER |
| 31 | 324923 | DAMPER |
| 32 | 338128 | DAMPER HOLDER |
| 33 | 338129 | CYLINDER |
| 34 | 338133 | STRIKER |
| 35 | 338134 | O-RING (E) |
| 36 | 338136 | LOCK SPRING WASHER |
| 37 | 338130 | SPRING HOLDER (B) |
| 38 | 338137 | LOCK SPRING |
| 39 | 338135 | LOCK SLEEVE |
| 40 | 338131 | CLUTCH SPRING |
| 41 | 338132 | CLUTCH |
| 42 | 338138 | SLEEVE |
| 43 | 338157 | SLIDER |
| 44 | 338139 | METAL (A) |
| 45 | 338140 | METAL WASHER |
| 46 | 338141 | BEVEL GEAR |
| 47 | 338134 | O-RING (E) |
| 48 | 338147 | PISTON |
| 49 | 338149 | PISTON PIN |
| 50 | 339049 | CONNECTING ROD ASS'Y |
| 51 | 335303 | NEEDLE BEARING |
| 53 | 944954 | BEARING WASHER |
| 54 | 6201VV | BALL BEARING 6201VV |
| 55 | 340899 | STATOR SENSOR PCB SET 220V-240V |
| 56 | 338168 | HOUSING |
| 57 | 333225 | DUST SEAL |
| 58 | 338170 | TAIL COVER |
| 60 | 6202DD | BALL BEARING 6202DD |
| 61 | 980700 | DUST WASHER (B) |
| 62 | 360992 | ROTOR |
| 63 | 338183 | CONTROLLER ASS'Y 220V-240V |
| 67 | 338184 | PANEL ASS'Y |
| 69 | 991711 | DISTANCE PIECE (B) |
| 70 | 338173 | HANDLE (A) |
| 71 | 338181 | FILTER PCB ASS'Y 220V-240V |
| 73 | 310123 | TRANSATORY UNIT |
| 74 | 310124 | HANDLE DAMPER |
| 75 | 338162 | HANDLE DAMPER HOLDER |
| 76 | 338176 | BELLOWS |
| 77 | 337588 | TRIGGER |
| 78 | 337587 | SWITCH |
| 79 | 338174 | HANDLE (B) |
| 82 | 958049 | CORD ARMOR D8.2 |
| 82 | 940778 | CORD ARMOR D10.7 |
| 83 | 960266 | CORD CLIP |
| 86 | 338175 | HANDLE SHAFT |
| 87 | 338164 | BACK COVER |
| 90 | 338171 | ON LOCK BUTTON |
| 91 | 338172 | ON LOCK SPRING |
| 92 | 338185 | ON LOCK PCB (A) ASS'Y |
| 93 | 339059 | PACKING (A) |
| 94 | 330209 | SIDE HANDLE |
| 95 | 949859 | ROLL PIN D2X8 |
| 96 | 337577 | WING BOLT |
| 97 | 338166 | MOUNT |
| 98 | 949556 | NUT M6 |
| 99 | 333227 | HANDLE BOLT |
| 100 | 338165 | BAND |
| 101 | 949859 | ROLL PIN D2X8 |
| 102 | 939540 | RETAINING RING FOR D10 SHAFT |
| 103 | 338144 | CRANK SHAFT |
| 104 | 971750 | FEATHER KEY 3X3X20 |
| 105 | 948391 | RETAINING RING FOR D40 HOLE |
| 106 | 6203DD | BALL BEARING 6203DDCMPS2L |
| 107 | 996363 | O-RING (S-40) |
| 109 | 338179 | ON LOCK PCB (B) |
| 110 | 339050 | FELT PACKING (D) |
| 111 | 338161 | CRANK COVER |
| 113 | 338159 | CHANGE LEVER |
| 114 | 337567 | LEVER SPRING |
| 115 | 959149 | STEEL BALL D4.76 |
| 116 | 878885 | O-RING (S-18) |
| 117 | 338158 | LEVER SHAFT HOLDER |
| 118 | 939547 | RETAINING RING FOR D20 SHAFT |
| 119 | 326257 | O-RING (I.D 74.5) |
| 120 | 338156 | CHANGE PLATE |
| 121 | 324544 | FELT PACKING (B) |
| 122 | 339048 | VALVE |
| 123 | 339054 | FELT PACKING (A) |
| 124 | 338143 | CRANK CASE |
| 125 | 313050 | OIL SEAL (A) |
| 126 | 338178 | SLIP CLUTCH ASS'Y |
| 127 | 338150 | BEVEL PINION |
| 128 | 944109 | FEATHER KEY 3X3X8 |
| 129 | 338151 | COLLAR |
| 130 | 6002DD | BALL BEARING 6002DDCMPS2L |
| 131 | 313058 | WASHER |
| 132 | 313053 | WASHER (A) |
| 133 | 321281 | GEAR HOLDER |
| 134 | 320343 | NEEDLE |
| 135 | 321282 | SPRING (C) |
| 136 | 338152 | SECOND GEAR |
| 137 | 321283 | SPACER |
| 138 | 629VVM | BALL BEARING 629VV |
| 139 | 944525 | BEARING WASHER (C) |
| 140 | 971745 | OIL SEAL (A) |
| 141 | 338145 | FIRST GEAR |
| 142 | 338146 | SECOND PINION |
| 143 | 939299 | NEEDLE BEARING (M661) |
| 144 | 338167 | SEAL PACKING |
| 146 | 338169 | GEAR COVER |
| 501 | 981840 | GREASE (A) FOR HAMMER.HAMMER DRILL (30G) |
| 601 | 308471 | GREASE FOR HAMMER.HAMMER DRILL (70G) |
| 602 | 980927 | GREASE FOR HAMMER.HAMMER DRILL (500G) |
