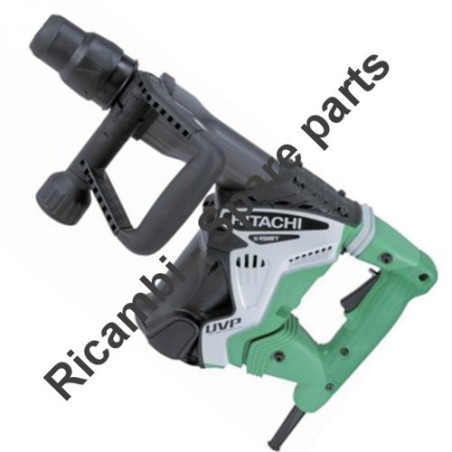

Hitachi Spare Parts for Demolition Hammer H45MRY
€1.35
Tax included
Hitachi Spare Parts for Demolition Hammer H45MRY
Hitachi-HIKOKI Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Heavy Duty Demolition Hammer H45MRY.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Demolition Hammer H45MRY
Hitachi-HIKOKI Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Heavy Duty Demolition Hammer H45MRY.
In the following table, look for the model of the hammer and the respective parts of the code.
| DEMOLITION HAMMER H45MRY Pag.1 |
||
| # | Part Num. | Description |
| 1 | 315529 | FRONT CAP |
| 2 | 320802 | GRIP (A) |
| 3 | 320803 | RING |
| 4 | 320804 | NEEDLE HOLDER |
| 5 | 320806 | SPRING (A) |
| 6 | 317088 | RETAINING RING D42 |
| 7 | 320810 | BALL HOLDER |
| 8 | 320807 | GRIP (B) |
| 9 | 320808 | GRIP (C) |
| 10 | 959150 | STEEL BALL D6.35 |
| 11 | 981942 | BOLT M6X25 |
| 12 | 326494 | FRONT COVER |
| 13 | 990067 | O-RING (1AS-50) |
| 14 | 980879 | O-RING (S-34) |
| 15 | 313421 | NEEDLE ROLLER D8X20 |
| 16 | 320805 | RETAINER SLEEVE |
| 17 | 322528 | DAMPER (A) |
| 18 | 326379 | HAMMER HOLDER (A) |
| 19 | 319572 | O-RING (S-25) |
| 20 | 326380 | O-RING (B) |
| 21 | 326381 | SECOND HAMMER |
| 22 | 326662 | DAMPER (C) |
| 23 | 326495 | SLEEVE (A) |
| 24 | 320814 | HAMMER HOLDER (B) |
| 25 | 320815 | DAMPER (B) |
| 27 | 326382 | HAMMER HOLDER (C) |
| 28 | 326383 | STRIKER |
| 29 | 325297 | O-RING (I.D 27.2) |
| 30 | 326496 | CYLINDER |
| 31 | 326497 | SLIDE SLEEVE |
| 32 | 326498 | SPRING (B) |
| 33 | 325297 | O-RING (I.D 27.2) |
| 34 | 324917 | PISTON PIN |
| 35 | 326384 | PISTON |
| 36 | 326385 | CONNECTING ROD |
| 37 | 939540 | RETAINING RING D10 SHAFT |
| 38 | 930511 | FEATHER KEY 4X4X10 |
| 39 | 990079 | BOLT M5X16 |
| 40 | 326500 | CRANK COVER |
| 41 | 326501 | O-RING |
| 42 | 326499 | CRANK SHAFT |
| 43 | 948391 | RETAINING RING FOR D40 HOLE |
| 44 | 996363 | O-RING (S-40) |
| 45 | 6203DD | BALL BEARING 6203DDCMPS2L |
| 46 | 310119 | OIL SEAL |
| 47 | 326502 | CYLINDER CRANK CASE |
| 48 | 986940 | SEAL LOCK HEX. SOCKET HD. BOLT M6X45 |
| 49 | 998471 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 |
| 50 | 326503 | HOOD |
| 51 | 326386 | LEAF SPRING |
| 52 | 326375 | SPRING BUMPER (A) |
| 53 | 326477 | WASHER |
| 54 | 878356 | SEAL LOCK HEX. SOCKET HD. BOLT M4X10 |
| 55 | 878418 | NEEDLE ROLLER |
| 56 | 317245 | SEAL LOCK HEX. SOCKET HD. BOLT M5X22 |
| 57 | 326515 | RUBBER SHEET (C) |
| 58 | 326508 | WEIGHT (B) |
| 59 | 326507 | WEIGHT (A) |
| 60 | 320830 | FIRST GEAR |
| 61 | 939299 | NEEDLE BEARING (M661) |
| 62 | 326510 | GEAR COVER ASS'Y |
| 63 | 872767 | O-RING (S-32) |
| 64 | 6201DD | BALL BEARING 6201DDCMPS2L |
| 65 | 302429 | DUST WASHER (B) |
| 66 | 321640 | FAN |
| 67 | 360571E | ARMATURE ASS'Y 220V-230V |
| 68 | 317107 | BOLT M8 |
| 69 | 317106 | HANDLE HOLDER (B) |
| 70 | 317105 | HANDLE HOLDER (A) |
| 71 | 320635 | BAND |
| 72 | 317108 | GRIP |
| 73 | 317103 | SIDE HANDLE ASS'Y |
| 74 | 326487 | RUBBER SHEET (A) |
| 75 | 326376 | SPRING BUMPER (B) |
| 76 | 326505 | BACK COVER |
| 77 | 326378 | BELLOWS |
| 78 | 306061 | SEAL LOCK HEX. SOCKET HD. BOLT M5X30 |
| 80 | 302089 | TAPPING SCREW (W/FLANGE) D5X20 (BLACK) |
| 81 | 326485 | HANDLE (A).(B) SET |
| 82 | 991711 | DISTANCE PIECE (B) |
| 83 | 991690 | SEAL LOCK HEX. SOCKET HD. BOLT M5X12 |
| 85 | 307028 | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) |
| 86 | 310124 | HANDLE DAMPER |
| 87 | 326377 | HANDLE SHAFT |
| 88 | 326479 | HOLDER |
| 89 | 310124 | HANDLE DAMPER |
| 90 | 310123 | TRANSATORY UNIT |
| 91 | 306143 | SWITCH (B) (1P SCREW TYPE) W/LOCK |
| 92 | 949423 | WASHER M4 |
| 93 | 980063 | TERMINAL |
| 94 | 326541 | VINYL TUBE (I.D.9.5XT0.56X85) |
| 95 | 326509 | INTERNAL WIRE L75 |
| 96 | 325566 | NOISE SUPPRESSOR |
| 97 | 317492 | SUPPORT (B) |
| 98 | 994190 | INTERNAL WIRE |
| 99 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 100 | 960266 | CORD CLIP |
| 100 | 981987Z | CORD CLIP |
| 101 | 959140 | CONNECTOR 50091 |
| 102 | 938307 | PILLAR TERMINAL |
| 103 | 959141 | CONNECTOR 50092 |
| 104 | 953327 | CORD ARMOR D8.8 |
| 106 | 321320 | FAN GUIDE |
| 107 | 953174 | HEX. HD. TAPPING SCREW D5X55 |
| 108 | 340681E | STATOR ASS'Y 220V-230V |
| 109 | 930703 | BRUSH TERMINAL |
| 110 | 930804 | TERMINAL M4.0 |
| 111 | 982631 | WASHER (A) |
| 112A | 608DDM | BALL BEARING 608DDC2PS2L |
| 113 | 326484 | BEARING HOLDER |
| 114 | 326481 | HOUSING ASS'Y |
| 115 | 326506 | SPRING BASE |
| 116 | 935829 | BRUSH CAP |
| 117 | 999073 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) |
| 118 | 971001 | BRUSH HOLDER |
| 119 | 938477 | HEX. SOCKET SET SCREW M5X8 |
| 120 | 326504 | TAIL COVER |
| 121 | 302089 | TAPPING SCREW (W/FLANGE) D5X20 (BLACK) |
| 122 | 326488 | COVER (A) |
| 123 | 333142 | DUST SEAL |
| OPTIONAL ACCESSORIES Pag.2 |
||
| 601 | 981840 | GREASE (A) FOR HAMMER.HAMMER DRILL (30G) |
| 602 | 308471 | GREASE FOR HAMMER.HAMMER DRILL (70G) |
| 603 | 980927 | GREASE FOR HAMMER.HAMMER DRILL (500G) |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
