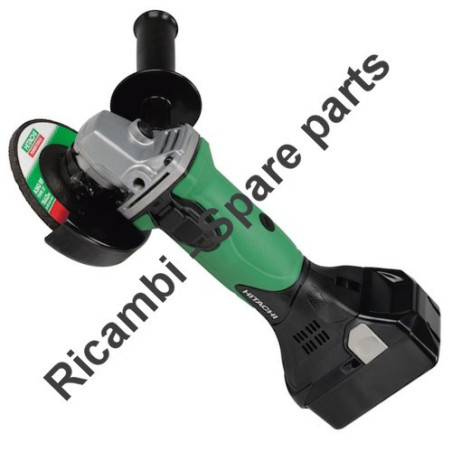

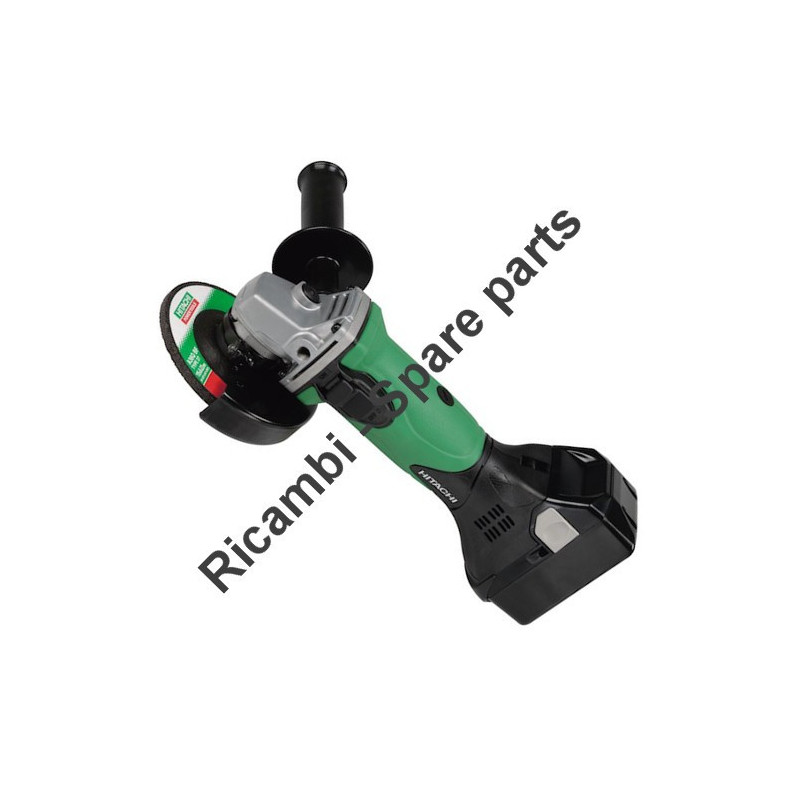

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Angle Grinder G14DSL.
- G14DSL
In the following table, look for the model of the Cutter-Bending and their spare part.![]()
| Cordless Angle Grinder G14DSL | ||
| # | Part Num. | Description |
| 1 | 328643 | TAPPING SCREW (W/FLANGE) D4X23 (BLACK) |
| 2 | 301944 | PUSHING BUTTON |
| 3 | 303078 | GEAR COVER ASS'Y |
| 4 | 360803 | ARMATURE AND PINION SET |
| 5 | 328195 | MAGNET |
| 6 | 328201 | RUBBER BUSHING |
| 7 | 301943 | LOCK PIN |
| 8 | 316487 | RETAINING RING FOR D11 SHAFT |
| 9 | 316486 | WAVE WASHER |
| 10 | 328196 | GEAR |
| 11 | 6001VV | BALL BEARING 6001VVCMPS2L |
| 12 | 301946 | FELT PACKING |
| 13 | 301936 | SLOTTED HD. SCREW (SEAL LOCK) M4X10 |
| 14 | 328198 | PACKING GLAND |
| 15 | 307127 | SEAL LOCK SCREW (W/SP. WASHER) M4X12 |
| *16 | 328359 | SPINDLE M14 |
| 17 | 301945 | FRINGER |
| 18 | 308386 | MACHINE SCREW (W/SP. WASHER) M5X16(BLACK |
| 19 | 301949 | SET PLATE |
| 20 | 315492 | WHEEL GUARD ASS'Y |
| *21 | 937817Z | WHEEL WASHER |
| 22 | 316821 | D. C. WHEELS 115MM A36Q (25 PCS.) |
| *23 | 994324 | WHEEL NUT M14 |
| 23A | 337329 | WHEEL NUT M14 |
| 24 | 302047 | WOODRUFF KEY |
| 25 | 328200 | BRUSH CAP |
| 26 | 999054 | CARBON BRUSH 5X6X11.5 (1 PAIR) |
| 27 | 328202 | BRUSH BLOCK STD |
| 27A | 334696 | BRUSH BLOCK WITH FILTER |
| 28 | 329902 | HOUSING (A).(B) SET (GREEN) |
| 29 | 301653 | TAPPING SCREW (W/FLANGE) D4X20 (BLACK) |
| 31 | 323229 | FERRITE CORE |
| 32 | 326493 | SUPPORT (D) |
| 33 | 328199 | SLIDE BAR |
| 34 | 314428 | SLIDE KNOB |
| 36 | 329057 | PUSHING BUTTON SWITCH |
| *37C | 334588 | CONTROLLER TERMINAL SET |
| *37C | 334589 | CONTROLLER TERMINAL SET |
| 38 | 329083 | BATTERY BSL 1430 (EUROPE.AUS.NZL) |
| 503 | 93199690 | CHARGER UC18YRSL |
