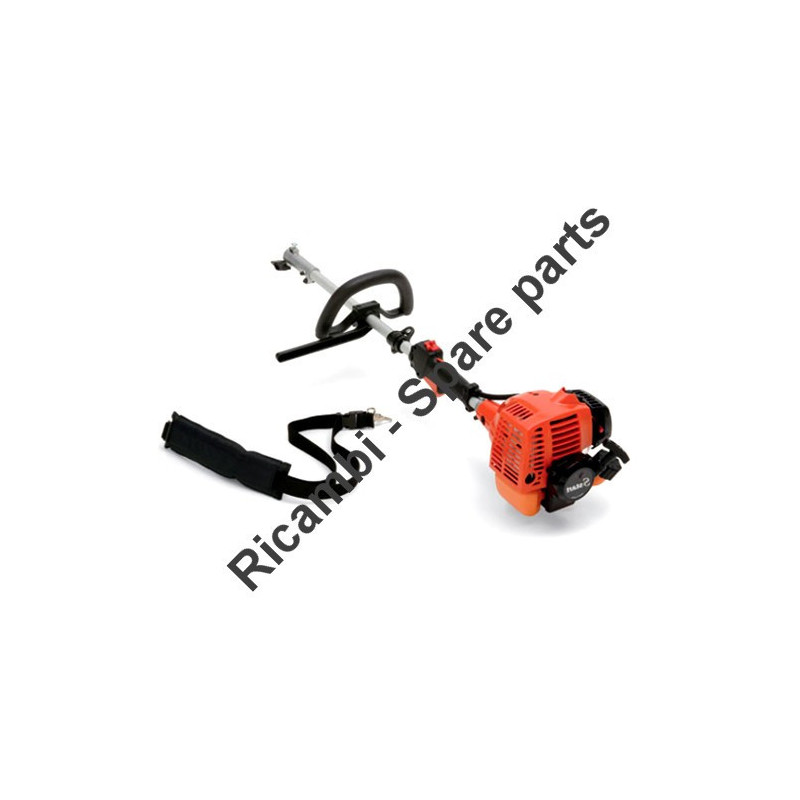

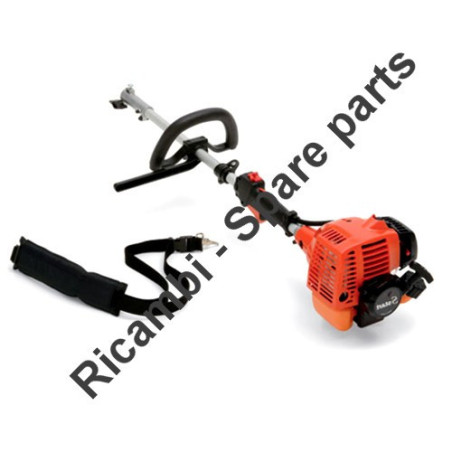

Hitachi Spare Parts for Engine Brush Cutter CG27EJ-SLNP
€1.11
Tax included
Hitachi Spare Parts for Engine Brush Cutter CG27EJ-SLNP
HItachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Bush Cutter CG27EJ-SLNP.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Engine Brush Cutter CG27EJSLNP
HItachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Bush Cutter CG27EJ-SLNP.
In the following table, look for the model of the chainsaw and ripettivo spare part.
| ENGINE BRUSH CUTTER CG27EJ(SLNP) Pag.1 | ||
| B7601 CG27EJ(SLNP)CYLINDER/PISTON/CRANK SHAFT | ||
| # | Part Num. | Description |
| 1 | 6684894 | PLUG CAP ASS'Y |
| 2 | 6685769 | SPARK PLUG RCJ8 |
| 6 | 6685495 | CYLINDER SET |
| 7 | 6684586 | HEX.HOLE BOLT M5X18/S |
| 9 | 6684896 | CYLINDER GASKET |
| 11 | 6686121 | PISTON RING |
| 12 | 6685902 | PISTON SET |
| 13 | 6684590 | PISTON PIN CIRCLIP |
| 14 | 6684591 | PISTON PIN |
| 16 | 6686219 | CRANK SHAFT COMP. |
| 43 | 6687687 | IGNITTION COIL COMP. |
| 45 | 6687965 | LEAD WIRE ASS'Y |
| 46 | 6684599 | HEX.HOLE BOLT M4X18/WS |
| 50 | 6687688 | IGUNITTION COIL ASS'Y MB65 |
| 60 | 6684600 | WASHER |
| B7602 CG27EJ(SLNP)CRANK CASE Pag.2 | ||
| 19 | 6684604 | GEAR SHAFT SHIM 0.20 |
| 19 | 6684605 | GEAR SHAFT SHIM 0.30 |
| 24 | 6687385 | MAGUNET ROTOR COMP. FW |
| 25 | 6684612 | HEX.NUT M8 |
| 27 | 6684611 | WASHER M8 |
| 31 | 6684905 | CRANK CASE ASS'Y |
| 32 | 6684607 | OIL SEAL TB 12227 |
| 33 | 6695535 | BALL BEARING 6001 C3 |
| 34 | 6684904 | CRANK CASE GASKET |
| 36 | 6684903 | HEX.HOLE BOLT M5X16/S |
| B7603 CG27EJ(SLNP)ENGINE 1 Pag.3 | ||
| 80 | 6689895 | INLET MANIFOLD GASKET |
| 81 | 6689972 | INSULATOR SET |
| 82 | 6684617 | HEX. HOLE BOLT 5X25/WS |
| 85 | 6684616 | CARBURETOR GASKET |
| 86 | 6691276 | CHOKE PLATE 2.0 |
| 88 | 6690120 | CLEANER BODY COMP. |
| 89 | 6690365 | CLEANER SPONGE |
| 90 | 6690402 | CLEANER COVER ASS'Y |
| 91 | 6690384 | COVER FIXING BOLT |
| 94 | 6694914 | SCREW 5X55 |
| 95 | 6684662 | S.WASHER 5 |
| 96 | 6684864 | SMALL WASHER 5x10 |
| 98 | 6690522 | CABURETOR SET WYJ463 |
| 99 | 6691239 | CHOKE CONTROL LEVER |
| 100 | 6691604 | TANK ORG REPLACED 6691602 |
| 109 | 6684623 | COLLAR C |
| 110 | 6684627 | RETURN GROMMET |
| 111 | 6684626 | FUEL PIPE 3X5X65 |
| 112 | 6684620 | PUMP FILTER BODY COMP. |
| 113 | 6684619 | CLIP,6.3 DIA. |
| 114 | 6684618 | FUEL PIPE ASS'Y |
| 116 | 6684634 | HEX.HOLE BOLT 5X20/PS |
| 117 | 6685049 | TANK CAP ASS'Y |
| 118 | 6695280 | TAP SCREW 4X14 P |
| 119 | 6685070 | BOLT WASHER M4 |
| 120 | 6694787 | STAND |
| 200 | 6684625 | TANK CAP CHAIN |
| B7604 CG27EJ(SLNP) ENGINE 2 Pag.4 | ||
| 1 | 6685693 | CYLINDER COVER (BLK) |
| 4 | 6695504 | HEX.HOLE BOLT 5X16/PS |
| 5 | 6695067 | HEX.HOLE BOLT 6X65 |
| 6 | 6684639 | WASHER 6 |
| 7 | 6692576 | MUFFLER COMP. |
| 8 | 6692888 | TAIL PIPE GASKET |
| 10 | 6692715 | TAIL PIPE SET |
| 11 | 6684651 | SCREW M4X8/WS |
| 13 | 6692701 | SPARK ARRESTER |
| 21 | 6692818 | MUFFLER PROTECTOR BLK |
| 24 | 6695508 | HEX. HOLE BOLT 4X18WS |
| 30 | 6688344 | PLUG COVER |
| 31 | 6684642 | CLUTCH WASHER B |
| 32 | 6684643 | CLUTCH SHOE COMP. |
| 33 | 6684644 | CLUTCH SPRING |
| 34 | 6684645 | CLUTCH PLATE A 0.5 |
| 35 | 6684646 | STEP BOLT |
| 36 | 6684634 | HEX.HOLE BOLT 5X20/PS |
| 38 | 6684648 | BENT WASHER 8 |
| 45 | 6684636 | TAPPING SCREW D4.5X16 |
| 73 | 6687265 | HEAT SHIELD |
| B7605 CG27EJ(SLNP)RECOIL STARTER Pag.5 | ||
| 0 | 6684672 | RECOIL STARTER BODY ASS'Y |
| 1 | 6684673 | RECOIL STARTER BODY COMP. |
| 2 | 6684674 | STARTER ROPE 3.5X860 |
| 3 | 6684675 | RECOIL SPRING |
| 4 | 6684676 | STARTER ROPE REEL |
| 5 | 6684677 | DAMPER SPRING |
| 6 | 6684678 | CAM PLATE |
| 7 | 6684679 | SET SCREW |
| 8 | 6684680 | STARTER HANDLE |
| 24 | 6695508 | HEX. HOLE BOLT 4X18WS |
| 55 | 6684681 | STARTER PULLEY ASS'Y |
| 56 | 6684685 | STARTER PAWL |
| 57 | 6684684 | STARTER PAWL SPRING |
| 58 | 6684683 | STOP RING E5 |
| B7606 CG27EJ(SLNP)CARBURETOR Pag.6 | ||
| 2 | 6684879 | PUMP BODY COMP. |
| 3 | 6684687 | PRIMING PUMP COMP. |
| 4 | 6684688 | DIAPHRAGM COVER |
| 5 | 6684689 | PRIMING BODY |
| 6 | 6684690 | METERING DIAPHRAGM COMP. |
| 7 | 6684691 | DIAPHRAGM GASKET |
| 8 | 6684693 | PUMP DIAPHRAGM |
| 9 | 6684692 | PUMP GASKET |
| 10 | 6691874 | LONG MAIN JET #38 |
| 11 | 6684695 | ORING |
| 12 | 6684696 | STOP RING |
| 13 | 6684697 | SWIVEL |
| 15 | 6684870 | THROTTLE SET SCREW |
| 16 | 6684873 | CABLE ADJUSTER STAY |
| 19 | 6684875 | CLEANER PACKING |
| 20 | 6684699 | SET SCREW |
| 21 | 6684874 | THRUST WASHER |
| 201 | 6684700 | INLET SCREEN |
| B7607 CG27EJ(SLNP) FAN CASE Pag.7 | ||
| 1 | 6688580 | CLUTCH DRUM COMP. |
| 3 | 6684664 | STOP RING C12 OUTER |
| 5 | 6691823 | CUSHION RUBBER |
| 6 | 6695046 | HEX. HOLE BOLT 5X16 |
| 8 | 6684709 | HEX.HOLE BOLT M5X25/S |
| 11 | 6686959 | FAN CASE COMP. |
| 15 | 6689651 | PIPE HOLDER, TPE |
| 26 | 6684918 | WASHER M5 |
| 27 | 6689159 | GEAR CASE WASHER |
| 28 | 6689664 | METAL FITTING |
| B7608 CG27EJ(SLNP)OPERATION PIPE Pag.8 | ||
| 1 | 6684814 | DRIVE SHAFT A |
| 2 | 6684830 | MAIN PIPE COMP. |
| 3 | 6684831 | BUSH ASS'Y |
| 20 | 6684817 | JOINT CASE |
| 21 | 6684818 | SPACER 1.6 |
| 22 | 6684819 | SPACER |
| 23 | 6684820 | PULLEY WASHER |
| 24 | 6684821 | STOP RING C10,OUTER |
| 25 | 6684822 | SPECIAL WASHER B |
| 26 | 6684823 | HANDLE KNOB |
| 27 | 6684824 | HEX.BOLT 6X50 |
| 28 | 6684825 | HEX. SOCKET HD. BOLT (W/BUTTON) M6 |
| 29 | 6684826 | S.WASHER 6 |
| 30 | 6684827 | SMALL WASHER 6 BLACK |
| 31 | 6684828 | CAP NUT 6 |
| 32 | 6684829 | HEX. SOCKET HD. BOLT M5X12 |
| 40 | 6684834 | SPRING WASHER 5 |
| B7609 CG27EJ(SLNP)THROTTLE LEVER Pag.9 | ||
| 4 | 6684835 | HEX.NUT 6 |
| 5 | 6691046 | LOOP HANDLE, 24 DIA.,BLACK |
| 6 | 6684837 | BARRIER(BLACK) |
| 7 | 6691098 | HANDLE GRIP |
| 8 | 6684838 | BOLT 6X43/P (BLACK) |
| 10 | 6695255 | TAPPING SCREW 5X20 |
| 11 | 6689681 | BRAKE SHAFT WASHER |
| 16 | 6689260 | HANGER COLLAR |
| 17 | 6689281 | HANGER |
| 18 | 6689294 | HANGER FIXING BRACKET |
| 19 | 3177751 | MACHINE SCREW (W/WASHERS) M5X25 |
| 25 | 6693773 | THROTTLE LEVER ASS'Y 24 |
| 50 | 6684839 | SHOULDER BELT SINGLE |
| 83 | 6693984 | THROTTLE WIRE COMP |
| 84 | 6694026 | THROTTLE WIRE 4T |
| 85 | 6687463 | STOP SWITCH COMP |
| 86 | 6687526 | PROTECTION TUBE 7X175 |
| 98 | 6684721 | SAFETY LEVER |
| 100 | 6684722 | RETURN SPRING |
| 110 | 6684803 | SCREW M5X20 |
| 111 | 6684727 | CONTAL NUT 5 |
| 112 | 6684725 | SCREW M4X20 (BLACK) |
| 125 | 6684804 | THROTTLE LEVER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
