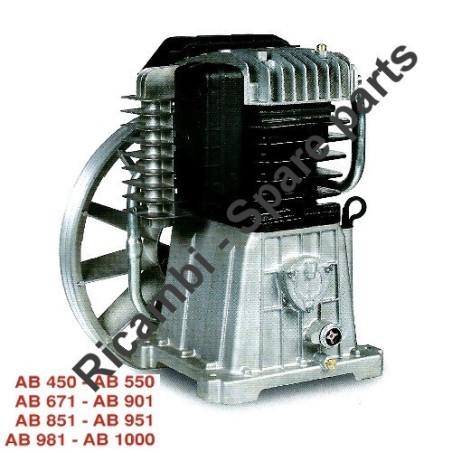

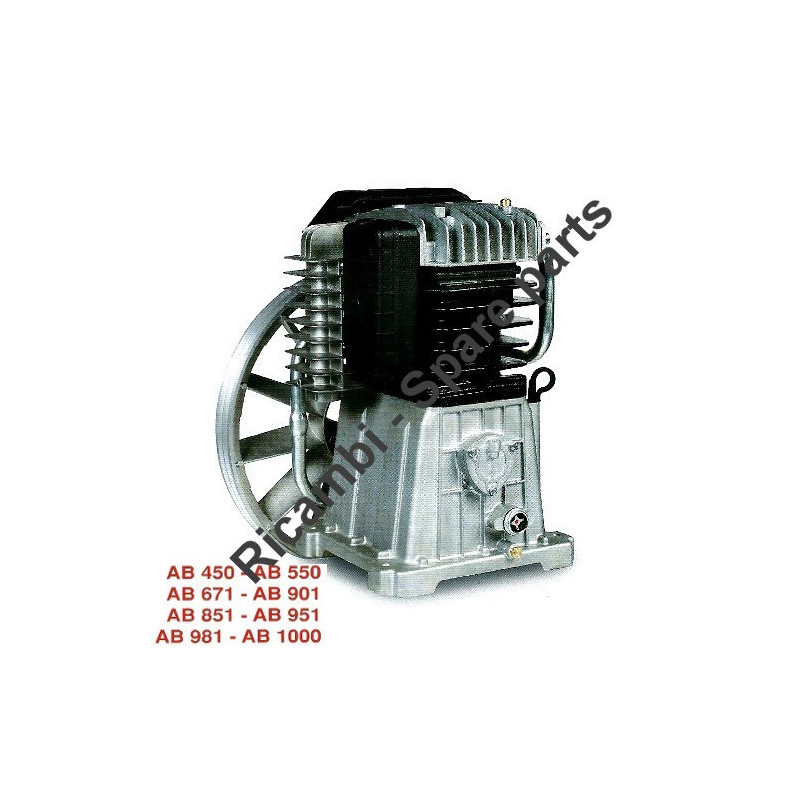

FIAC Spare Parts for Air Compressor Pumps Unit AB 450-550-800
€39.72
Tax included
FIAC Spare Parts for Air Compressor Pumps Unit AB 450-550-800
We are FIAC AIR COMPRESSORS original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pump units AB 450 - 550 - 660 - 800.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Air Compressor Pumps Unit AB 450-550-800
We are FIAC AIR COMPRESSORS original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pump units AB 450 - 550 - 660 - 800.
In the following table, look for the model of the pumping unit and the respective parts code.
| Pump Unit AB 450 - 550 - 800 | ||
| # | Part Num. | Description |
| 32 | 4080080000 | Piston Ring Kit - LP |
| 27 | 4080100000 | Piston Ring Set LP |
| 6 | 4082540000 | Gasket Kit for AB450 |
| 6A | 4082550000 | Gasket Kit for AB550 |
| 1 | 4190190008 | Conrod AP |
| 2 | 4190200008 | Conrod BP |
| 42 | 4231230000 | Kit valve plate |
| 53 | 4250020000 | Air filter Holder Assebly |
| 63 | 4251060000 | Kit cooler |
| 59 | 4251080000 | Kit cooler |
| 28 | 4291080000 | Piston kit 95 |
| 33 | 4291090000 | Piston kit 52 |
| 44 | 5030530008 | head |
| 7 | 5041030008 | Crankshaft |
| 11 | 5071020008 | CrankCase |
| 47 | 5130020008 | collector |
| 57 | 5131000008 | junction |
| 36 | 7011100000 | Screw M8X25 UNI-5739 |
| 38 | 7012280000 | Screw M5x10 TAP-TITE |
| 48 | 7015150000 | Rod |
| 52 | 7024150000 | Wing Nut M6 |
| 35 | 7030270000 | Washer 8 5X30X4 UNI-6593 |
| 41 | 7030360000 | Washer 10 UNI-3703 |
| 58 | 7031010000 | Washer 8 UNI-3703 |
| 51 | 7031030000 | Washer 6 UNI-3703 |
| 37 | 7043050000 | band |
| 25 | 7050120000 | Piston pin 16x84 |
| 30 | 7050130000 | Piston pin 18x42 |
| 18 | 7051520000 | Tab 9x6 UNI-6606 |
| 9 | 7060060000 | bearing 6205 |
| 8 | 7060150000 | bearing 6206 |
| 62 | 7070120000 | O-Ring 18 77X1 78 |
| 65 | 7070260000 | O-Ring 12x2 3068 17 62 |
| 10 | 7071060000 | Oil seal SMIM 3062/10 |
| 56 | 7079090000 | Gasket |
| 22 | 7079150000 | Gasket |
| 13 | 7079160000 | Gasket |
| 34 | 7079170000 | Gasket |
| 43 | 7079180000 | Gasket Head-Plate Gasket AB 550 |
| 19 | 7079190000 | Gasket |
| 42D | 7079780000 | Gasket |
| 61 | 7081220000 | Fitting 1 X3 / 4 |
| 57A | 7085580000 | Fitting 1 X1 / 2 |
| 12 | 7090090000 | Cap M1 / 4 Brass |
| 16 | 7181100000 | Dipstick |
| 46 | 7192350000 | Valve Sic. 1/4 6 BAR |
| 70 | 7201050000 | flywheel AB450 - AB550 |
| 70A | 7201240000 | flywheel AB800 |
| 49 | 7210240000 | filter element |
| 50 | 7210250000 | Flter Case - DISCONTINUED Buy 4250020000 |
| 24 | 7220110000 | piston |
| 29 | 7220120000 | piston |
| 67A | 7230700000 | cooler AB550-800 |
| 67 | 7230710000 | cooler |
| 68 | 7458420000 | plate |
| 64 | 7458430000 | adapter |
| 39 | 7458460000 | plate |
| 23 | 7575260000 | cylinder |
| 14 | 7650070000 | support |
| 17 | 7650080000 | support |
| 20 | 7650090000 | Lower cover |
| 55 | 5130010008 | Cooler |
| 66 | 7010070000 | Screw H/H M8X40 UNI-5931 |
| 5 | 7011220000 | Screw H/H M6X40 UNI-5737 |
| 3 | 7011310000 | Screw H/H M8x45 UNI-5739 |
| 4 | 7022040000 | Nut H/H M8 DIN-980 |
| 26 | 7040130000 | Seeger 16 UNI-7437 |
| 31 | 7040140000 | Seeger 18 UNI-7437 |
| 60 | 7079100000 | Gasket |
| 42A | 9106600000 | Plate Valves |
| 42B | 9106600020 | Flap Valve |
| 42C | 7199130000 | Valve |
| 54 | 7010050000 | Screw M8X20 UNI-5931 |
| 40 | 7010090000 | Screw M8X25 UNI-5931 |
| 45 | 7010430000 | Screw M10x50 UNI-5931 |
| 15 | 7011460000 | Screw M6X16 TAP-TITE |
| 21 | 7011440000 | Screw M5X16 UNI-8112 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB450-550-660-800
