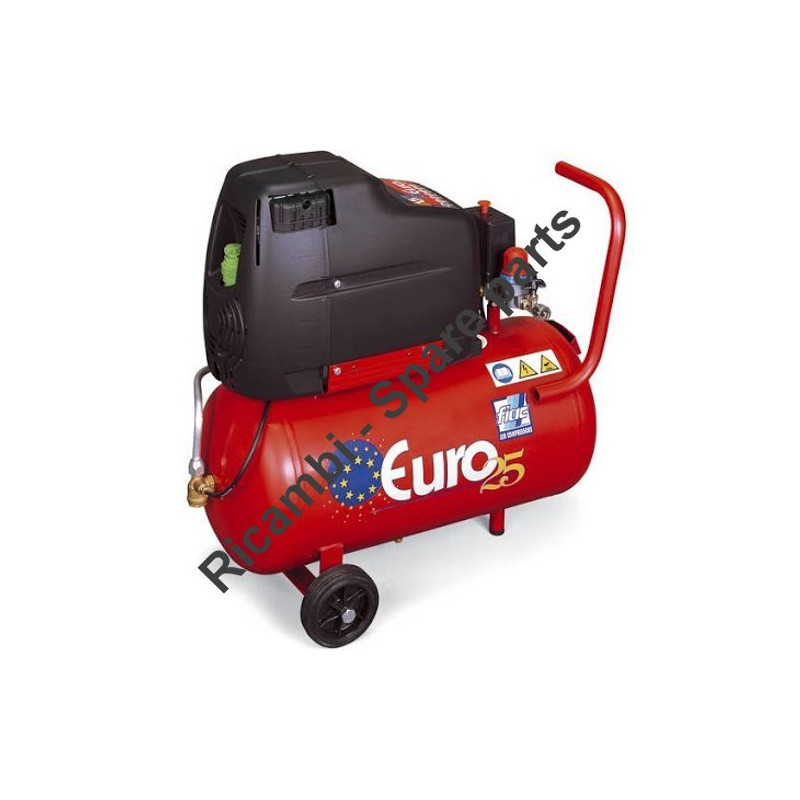

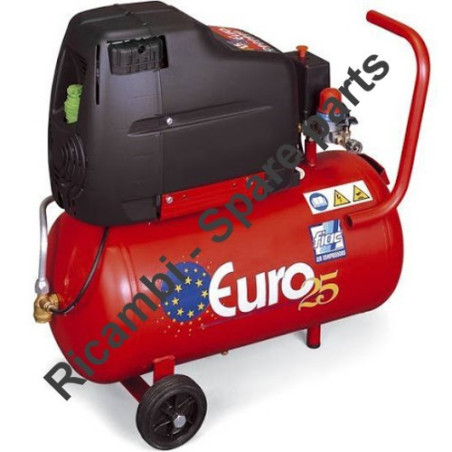

FIAC Spares for Air Compressor EURO 25 HP2
€1.48
Tax included
FIAC Spares for Air Compressor EURO 25 HP2
We are FIAC original spare parts Distributors and service center. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for piston Air Compressor FIAC EURO 25 HP2 - SINGLE PHASE V230-50/1 VALID FROM 14/03/2003
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spares for Air Compressor EURO 25 HP2
We are FIAC original spare parts Distributors and service center. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for piston Air Compressor FIAC EURO 25 HP2 - SINGLE PHASE V230-50/1 VALID FROM 14/03/2003
In the following table, look for the type of the Air Compressor and the respective parts of the code.
| FIAC EURO 25 HP2 MONOFASE-SINGLE PHASE V230-50/1 | ||
| # | Part NUm. | Description |
| 1 | 7012010000 | Screw - Vite ø 3.9x19 "B" UNI 6954 |
| 2 | 7210010000 | Intake filter - Filtro aspirazione |
| 3 | 7458340000 | Filter plate - Piastrina filtro |
| 4 | 4081010000 | Set of valve - Kit valvole |
| 5 | 7011290000 | Screw - Vite T.E. M6x35 UNI 5737 |
| 6 | 7084080000 | Joint - Raccordo |
| 7 | 7570530000 | Head - Testa |
| 8-10 | 4083280000 | |
| 12-41 | Set of gaskets - Kit guarnizioni | |
| 9 | 7458020000 | Valve plate holder - Piastra valvole |
| 11 | 7575280000 | Cylinder - Cilindro |
| 13 | 4080230000 | Piston rings - Kit segmenti |
| 14 | 7220260000 | Piston - Pistone |
| 15 | 7050210000 | Piston pin - Spinotto |
| 16 | 7041010000 | Ring - Anello |
| 17 | 5050150008 | Con rod - Biella |
| 18 | 7015020000 | Stud bolt - Prigioniero |
| 19 | 7150820000 | Motor housing - Carenatura motore |
| 20 | 7181060000 | Oil level - Asta livello olio |
| 21 | 7650140000 | Carter cover- Coperchio carter |
| 22 | 7011460000 | Screw - Vite T.E. M6x15 TAP - TITE |
| 23 | 7012100000 | Screw - Vite ø 3.9x16 "B" UNI 6954 |
| 24 | 7078650000 | Gasket - Guarnizione |
| 25 | 5041320008 | Cranshaft - Albero a gomito |
| 26 | 7060200000 | Bearing - Cuscinetto 6204 |
| 27 | 5070350008 | Carter - Carter |
| 28 | 7660270000 | Rotor - Rotore |
| 29 | 4013280000 | Motor - Motore V230-50/1 |
| 30 | 7020070000 | Nut - Dado M8 UNI 5587 |
| 31 | 7150830000 | Compressor housing - Carenatura compressore |
| 32 | 7060010000 | Bearing - Cuscinetto 6203 zz QE6 |
| 33 | 7015140000 | Tension rod -Tirante |
| 34 | 7201280000 | Fan - Ventola |
| 35 | 7012070000 | Screw - Vite T.C. 4x8 TAP - TITE |
| 36 | 7071100000 | MIM ring - Anello MIM |
| 37 | 7031020000 | Washer - Rondella ø 4 UNI 3703 |
| 38 | 7640150000 | Cover - Calotta |
| 39 | 7310320000 | Capacitor - Condensatore 25 µF |
| 40 | 7196000000 | START valve - Valvola START |
| 41 | 7210430000 | Intake filter cover - Coperchio filtro aspirazione |
| 50 | 5157310008 | Tank - Serbatoio CE |
| 51 | 7091240000 | Rubber - Gommino |
| 52 | 7360020000 | Rubber - Gommino |
| 53 | 7130160000 | Discharge tap - Rubinetto spurgo 3/8"G |
| 54 | 7260160000 | Wheel - Ruota |
| 55 | 7018290000 | Screw - Vite M10x60 |
| 56 | 7329070000 | Infeed cable - Cavo alimentazione |
| 57 | 7020080000 | Nut - Dado M10 |
| 58 | 7090030000 | Plug - Tappo 1/2"G |
| 59 | 7190180000 | Non retur valve - Valvola di ritegno |
| 60 | 7230010000 | Rilsan hose - Tubo Rilsan |
| 61 | 7230090000 | Infeed hose - Tubo alimentazione |
| 62 | 7192430000 | Safety valve - Valvola di sicurezza |
| 63 | 7250740000 | Pressure switch - Pressostato |
| 64 | 7012240000 | Screw - Vite |
| 65 | 7081090000 | Joint - Nipplo 1/4" |
| 66 | 7110300000 | Pressure guage - Manometro |
| 67 | 7100640000 | Pressure reducer - Riduttore di pressione |
| 68 | 7130010000 | Tap - Rubinetto |
| 69 | 7012490000 | Screw - Vite |
| 70 | 7110240000 | Pressure guage - Manometro |
| 100 | 4082010000 | Set Plates/Valves - Kit Piastre/Valvole |
| 101 | 4190330000 | Set Con rod/Piston - Kit Biella/Pistone |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
