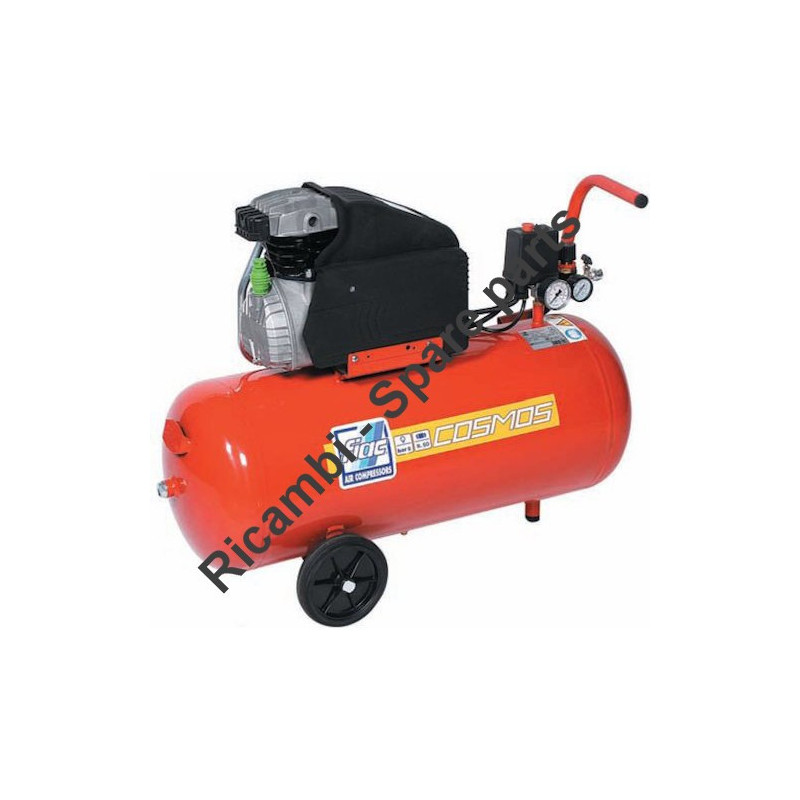

FIAC Spare Parts for Piston Air Compressor Cosmos 225 S
We are FIAC original spare parts Distributors and service center. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for piston Air Compressor COSMOS 225 S.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Piston Air Compressor Cosmos 225 S
We are FIAC original spare parts Distributors and service center. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for piston Air Compressor COSMOS 225 S.
In the following table, look for the type of the Air Compressor and the respective parts of the code.
| COSMOS 225 S data validità - da 10/01/2011 | ||
| Rif. | Cod. | Descrizione |
| 1 | 7011220000 | Screw M6X40 UNI-5737 |
| 2 | 7084040000 | Fitting "L" M3/8" |
| 3 | 7458340000 | filter plate |
| 4 | 7210010000 | filter element |
| 5 | 7210430000 | filter Cover |
| 6 | 7012100000 | screw Ø3,9X16 |
| 7 | 9100010190 | valve, start |
| 8 | 9101410070 | head |
| 8/1 | 9100010310 | Cylinder head gasket - FOR NEW HEAD ONLY |
| 9 | 9101410080 | Cylinder head gasket |
| 10 | 9100010240 | plate |
| 11 | 9100010080 | gasket |
| 12 | 9100010370 | valve |
| 13 | 9101410090 | gasket |
| 14 | 9101410060 | cylinder |
| 15 | 7020070000 | Nut M8 UNI-5587 |
| 16 | 7078150000 | gasket |
| 17 | 9100580020 | segment AC42 |
| 18 | 9100580050 | piston |
| 19 | 9100580090 | pin |
| 20 | 7041010000 | Seeger Ø12 |
| 21 | 5050150008 | piston rod |
| 22 | 9101720040 | cap |
| 23 | 7060200000 | bearing 6204 |
| 25 | 9101410050 | crank |
| 26 | 9100030090 | Hull in plastic |
| 27 | 9100010170 | Oil dipstick |
| 28 | 9101410020 | crankcase cover |
| 29 | 7012160000 | screw |
| 30 | 9700010187 | screw M5x14 |
| 31 | 9700000016 | O-Ring (110,7X3,53) |
| 32 | 9100270150 | Oil seal Ø20x47x7 |
| 33 | 9101720030 | CARTER GM 142 STATOR ALL. H75 |
| 34 | 9101720020 | ROTOR D.54,2X75 GM 142 |
| 35 | 9101720010 | STAT.AVV.GM 142 H75 ALLUM. |
| 36 | 7060010000 | Bearing 6203 ZZ 17:40:12 QE6 |
| 37 | 7310590000 | Capacitor MF.25 V450 |
| 38 | 9700010188 | nut M8 |
| 40 | 9100010060 | prisoner M6x139 |
| 41 | 9100010200 | Fan raff. |
| 42 | 7013060000 | Screw M4X8 UNI-8112 |
| 43 | 9100010050 | prisoner |
| 50 | 9700001718 | tank |
| 51 | 9100010750 | Cap M1 / 2 " |
| 53 | 9700000324 | drain tap |
| 54 | 9700001091 | WHEEL MCX20 --> 7290290000 D.175F15 |
| 55 | 9700001691 | Screw M10 × D15 |
| 56 | 7020080000 | Nut M10 UNI-5588 |
| 57 | 7030040000 | Washer Ø10 UNI-6592 |
| 58 | 7012290000 | Screw M5X20 TAP-TITE |
| 59 | 9700001301 | power cable |
| 60 | 7190180000 | Check valve MM 1.2"x3/8"-sX |
| 61 | 7230010000 | Rilsan tube Ø6X4 |
| 62 | 9700000327 | Nut 3/8 " |
| 63 | 9700000342 | tube feeding |
| 64 | 9700000325 | nut M10 |
| 65 | 7041070000 | Ogiva tube Ø10 |
| 66 | 9700000303 | Safety Valve M1/4-9 bar |
| 67 | 9700000388 | Pressure Switch |
| 68 | 9700000330 | Fitting MM 1/4" |
| 69 | 7100640000 | Pressure reducer |
| 71 | 9700000276 | universal tap |
| 72 | 7110240000 | Gauge Ø40-1/8" |
| 73 | 7110300000 | Gauge Ø50-1/4" |
| 74 | 7360010000 | Rubber foot |
| 75 | 7011050000 | Screw M6x30 UNI-5739 |
| 76 | 7030190000 | Washer Ø6,4X18X1,5 UNI-6593 |
| 77 | 9100930130 | knob |
| 78 | 7021010000 | Nut M6-7473 UNI |
| 79 | 9700010186 | washer Ø6 |
| 001A | 9700010186 | washer Ø6 |
| 017A | 9100580030 | segment ROS42 |
| 017B | 9100580040 | segment ROF42 |
| 027A | 9700010215 | O-RING X OILDIPSTICK |
| 038A | 9700010184 | washer Ø8 |
| 042A | 9700010183 | washer OD 4 |
| 054A | 9700001721 | wheel cover |
| 055A | 9700001692 | Plastic nut |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
