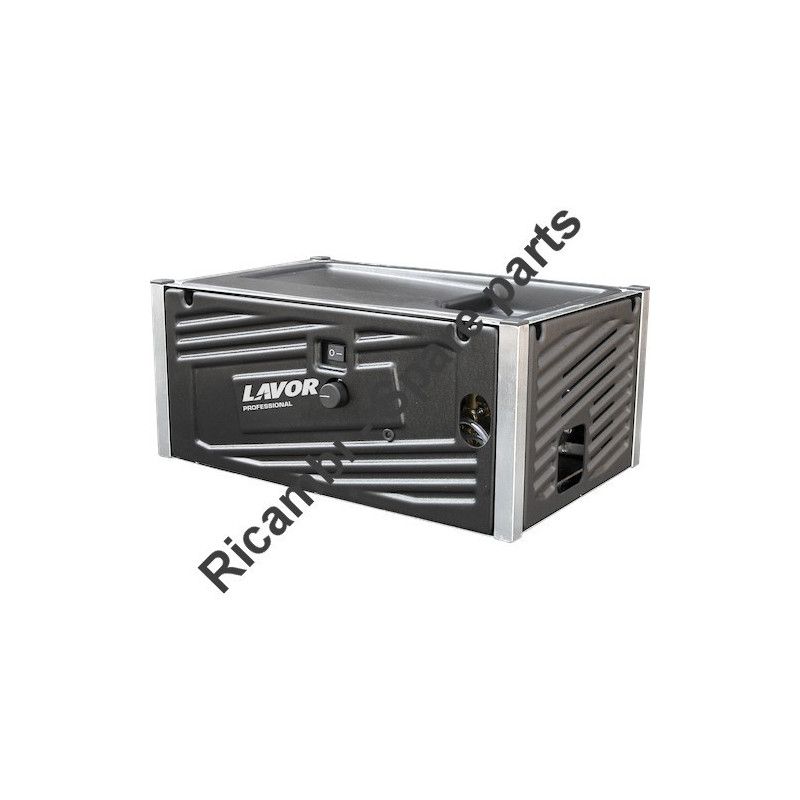

Lavor Original Parts for Pressure Cleaner MCHPV 1515LP - 8.626.0002
€66.81
Tax included
Lavor Original Parts for Pressure Cleaner MCHPV 1515LP - 8.626.0002
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Lavor Original Parts for Pressure Cleaner MCHPV 1515LP - 8.626.0002
Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002.
In the following tables, look for the spare part and its respective code.
| Pressure Cleaner MCHPV 1515LP 400-4157SC1 - 8.626.0002 - CHASSIS Pag.1 | ||
| # | Part Num. | Description |
| 001 | 4.613.0308 | UPPER COVER -BLACK- |
| 002 | 6.605.0070 | ELECTRICAL BOX x MICH. KIT |
| 003 | 3.401.0139 | DOUBLE-POLE SWITCH COMAREL 280218 BLACK |
| 004 | 3.403.0156 | DELAY T.S. CIRCUIT BOARD FOR COLD WATER ( VERTIC. ) |
| 005 | 3.402.0001 | Substituted by 3.402.0002 REMOTE CONTROL SWITCH 24H |
| 006 | 3.402.0044 | THERMIC RELE' DPER14 7-10A |
| 007 | 4.607.0508 | CONTROL BOX BRACKET |
| 008 | 4.608.0231 | SMALL TANK CAP LWS FOR PROF. PRESS. CLEANERS |
| 009 | 4.608.0230 | SMALL TANK LWS FOR PROF. PRESSURE CLEANERS |
| 010 | 3.749.0458 | VALVE 3/4M 29015008 |
| 011 | 4.618.0147 | Substituted by 4.618.0130 LOW PRESSURE HOSE L=700 |
| 012 | 4.613.0306 | MOTOR PANEL -BLACK- |
| 013 | 4.613.0307 | MAIN SWITCH PANEL |
| 014 | 5.613.0268 | CHASSIS |
| 015 | 3.099.0026 | ANTI SHOCK SUPPORT D.30X20XM8 |
| 016 | 4.607.0387 | SUPPORT PLATE MOT. R.A. |
| 017 | 4.613.0304 | INLET PANEL -BLACK- |
| 018 | 4.607.0532 | BRACKET |
| 019 | 4.613.0305 | LARGE PANEL -BLACK- |
| 020 | 4.607.0531 | SMALL TANK BRACKET |
| 021 | 4.618.0148 | LOW PRESSURE HOSE L=700 |
| 022 | 4.008.0031 | INLET WATER FILTER H2O D.16 CONICAL |
| 023 | 3.099.0203 | CIRCULAR SUPPORT FOOT M10 SH55(50x20PM10x28) |
| 024 | 3.105.0003 | DETERGENT REGULATING COCK WITHRUBBER HOLDER D.7 |
| 025 | 5.601.0443 | MOTORPUMP |
| Pressure Cleaner MCHPV 1515LP 400-4157SC1 - 8.626.0002 - MOTORPUMP Pag.2 | ||
| 001 | 5.601.0443 | MOTORPUMP |
| 002 | 5.606.0108 | MOTOR LW R.A 400/50 D.152X125 |
| 003 | 3.099.0805 | RING 61x51x0,4 H.3,5 |
| 004 | 3.001.0066 | RADIAL SPHERE BEARING 6305 2RSKBC (25x62x17) |
| 005 | 3.001.0009 | BEARING 6007-2Z |
| 006 | 4.605.0070 | CABLEHOLDER M22 |
| 007 | 4.618.0118 | LOW PRESS. PIPE L=300 INLET-COIL MOT.R.A 1/2F |
| 008 | 4.618.0136 | LOW PRESSURE HOSE |
| 009 | 4.605.0072 | MOTOR FRONT FLANGE D.152 X PUMP D.61 |
| 010 | 6.605.0071 | Substituted by 6.605.0223 WATER COOLED MOTOR HOSE HOLDER KIT |
| 012 | 5.699.0009 | Substituted by 6.605.0186 PUMP LW 200/15 1450 SX |
| 013 | 4.605.0081 | JOINT DIAM.24 MOTOR SIDE |
| 014 | 4.605.0082 | JOINT DIAM.24 PUMP SIDE 00 |
| 015 | 4.605.0083 | MOTOR/PUMP FLANGE |
| 016 | 3.099.1501 | FEATHER KEY |
| 020 | 3.100.0235 | Substituted by 4.606.0281 JOIN 45' 1/2M 3/4 |
| 021 | 6.605.0084 | KIT N 8 RUBBER ELASTIC COULING |
| 022 | 3.107.0006 | D.40 0/300 BAR 1/8 GLYCERIN MANOMETER |
| Pressure Cleaner MCHPV 1515LP 400-4157SC1 - 8.626.0002 - PUMP Pag.3 | ||
| 000 | 5.699.0009 | Substituted by 6.605.0186 PUMP LW 200/15 1450 SX |
| 001 | 4.605.0059 | BEARING FLANGE |
| 002 | 6.605.0050 | O-RINGS KIT |
| 004 | 3.099.0510 | FEATHER KEY 8X7X35 UNI 6604A |
| 005 | 6.605.0029 | LWB BEARINGS KIT |
| 006 | 6.605.0051 | PLUNGER RODS LWB KIT |
| 007 | 4.607.0313 | SHAFT LAVORWASH CODE 4.607.0313 |
| 008 | 4.605.0057 | LWB CRANKCASE |
| 009 | 6.605.0025 | LWB PISTONS D.20 KIT |
| 010 | 5.609.0147 | Substituted by 6.605.0026 LWB COMPLETE CONNECTING ROD |
| 011 | 4.605.0058 | LWB REAR CRANKCASE COVER ESP.00 |
| 012 | 3.099.0003 | OIL LEVEL INDICATOR SLNS-3/8 HOBBY |
| 013 | 3.002.0004 | SCREW STEI 3/8 G.DIN 906 (OIL LOAD CAP) |
| 014 | 4.605.0060 | BEARING FLANGE |
| 015 | 6.605.0041 | WATER SEALS + BUSHES KIT |
| 016 | 6.605.0048 | LWB BUSHES KIT |
| 017 | 6.605.0047 | LWB WATER SEALS KIT |
| 018 | 4.606.0161 | G3/8 CAP |
| 022 | 4.606.0149 | SUCTION/DELIVERY VALVE CAP LWB |
| 023 | 3.200.0185 | O-RING GASKET 20.29X2.62 NBR 90 SH |
| 025 | 6.605.0042 | SUCTION/DELIVERY VALVES KIT LWB |
| 026 | 3.099.0978 | OIL CAP (L66 STICK) |
| 027 | 6.605.0031 | LWB PISTON BUSHES KIT |
| 029 | 4.606.0167 | HOLED VALVE CAP 1/4 LWB |
| 031 | 4.606.0162 | HEAD PUMP LAVOR LINE WITHOUT/VALVE |
| 033 | 3.699.0042 | MULTITRACTOR STOU 15W40 OIL |
| 037 | 6.605.0034 | PISTON SCREWS KIT LWB |
| 038 | 6.605.0052 | BEARING SPACER KIT LWB |
| Pressure Cleaner MCHPV 1515LP 400-4157SC1 - 8.626.0002 - VALVE L3 Pag.4 | ||
| 001 | 6.005.0220 | KIT 203 LW VALVE GUIDE LWS18 |
| 002 | 6.005.0200 | KIT 186 MAX PRESSURE VALVE |
| 003 | 4.606.0192 | BODY VALVE LAVOR L3 |
| 004 | 4.607.0053 | Substituted by 4.606.0213 SUCTION HOLED CONNECTION 1/2 |
| 005 | 3.004.0037 | WASHER 1/2 21X27 SP.1.5 |
| 006 | 4.607.0052 | Substituted by 4.606.0212 HOLED CONNECTION 3/8 |
| 007 | 3.004.0036 | COPPER WASHER 3/8 17X22 SP.1.5 |
| 008 | 6.005.0130 | KIT 121 LW COMPLETE BY-PASS PUMP INTEGRATED VALVE |
| 009 | 6.005.0120 | KIT 111 PRESSURE REGULATOR FOR BRASS HEAD |
| 010 | 4.006.0023 | SCREW PLUG 1/8 EXAGONAL HEAD |
| 012 | 5.609.0158 | ASSEMBLY CONNECTOR 1/8 G + CAPM7 TS |
| 013 | 5.609.0107 | BOX+MICRO+CABLE 3X1 FOR TS BRASS HEAD '99 |
| 020 | 5.609.0183 | Substituted by 6.605.0080 L3 VALVE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
MCHPV 1515LP - 8.626.0002
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N LAVOR:
- LAVOR S/N START WITH (8. ) and have 8 DIGITS
