FIAC Pump Unit S13 - S14 Spare Parts

Genuine Parts FIAC for Air compressors with Pump Units  S13 / S14 M/S HONDA for use where there is no available electric power supply.

Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines.
ITEM CODE: 7011220000
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

FIAC Pump Unit S13 - S14 Spare Parts

Genuine Parts FIAC for Air compressors with Pump Units  S 13-14 M-S HONDA_12-2008_StandAlone for use where there is no available electric power supply.

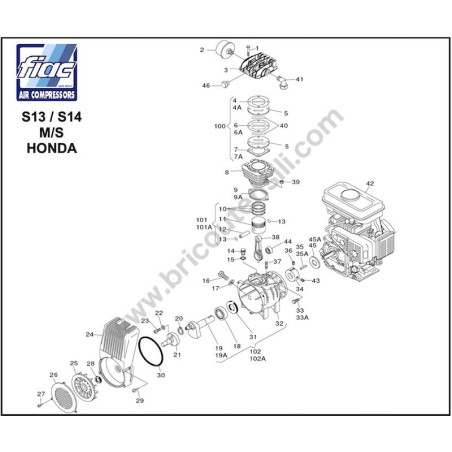

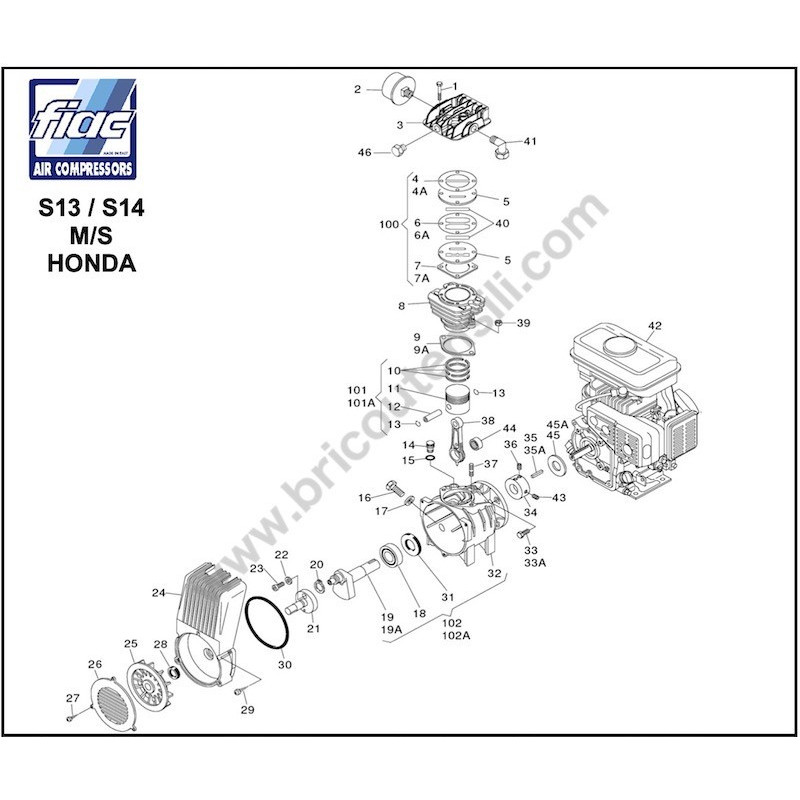

In the following table, look for the type of the air compressor and the respective parts of the code.
Pump Units S13 / S14 M/S HONDA

FIAC Pump Unit S 13-14 M-S HONDA_12-2008_StandAlone Spare Parts
# Part Num. Description
1 7011220000 Screw
2 7210800000 Intake filter
3 5030220008 Head
4
7-9 4082200000 Set of gaskets
4A
7A-9A 4082330000 Set of gaskets
5 Valve plate
8 7575240000 Cylinder - DISCONTINUED
10 4080020000 Piston rings
11 7220020000 Piston
12 7050020000 Piston pin
13 7041010000 Ring
14 7098010000 Breather pipe plug
15 7070010000 Gasket
16 7090090000 Plug
17 7072010000 Gasket
18 7060060000 Bearing
19 5040710008 Crankshaft S13 - Honda - DISCONTINUED
19A 5041280008 Crankshaft
20 7040040000 Seeger
21 5040720008 Fan shaft
22 7030030000 Washer
23 7010420000 Screw
24 5080060008 Conveyor
25 7200150000 Fan
26 7248060000 Grill
27 7012060000 Screw
28 7071260000 Oil Seal
29 7012240000 Screw
30 7070250000 O-Ring 4500
31 7071090000 Oil-Seal SMIM
32 5070260008 Carter
33 7011090000 Screw
33A 7011970000 Screw
34 7040510000 Fixing ring
35 7051250000 Key
35A 7051280000 Woodruff Key
36 7016100000 Screw
37 7015020000 Stud bolt
38 5050091008 Con rod unit
39 7020070000 Dado
40 4081050000 Set of valve
41 7084040000 Joint
42 HONDA petrol eng. Motore a scoppio HONDA
43 7016190000 Screw
44 7061010000 Cage Bearing DB 20x12
45 1127040017 Spacer
45A 7040200000 Spacer
46 7090080000 Plug
100 4082660000 Set valves plates
101 4190090000 Set Con rod/Piston Kit Biella/Pistone (S 13)
101A 4190090000 Set Con rod/Piston Kit Biella/Pistone (S 14)
102 4280500000 Carter/Shaft unit
102A 4280800000 Carter/Shaft unit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
S13/S14 M/S HONDA
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS APPROX.
MORE INFO:
info@bricoutensili.com
New

Download

Fiac S13 - S14 M-S Honda Drawing

Fiac S13 - S14 M-S Honda Drawing

Download (296.39KB)
