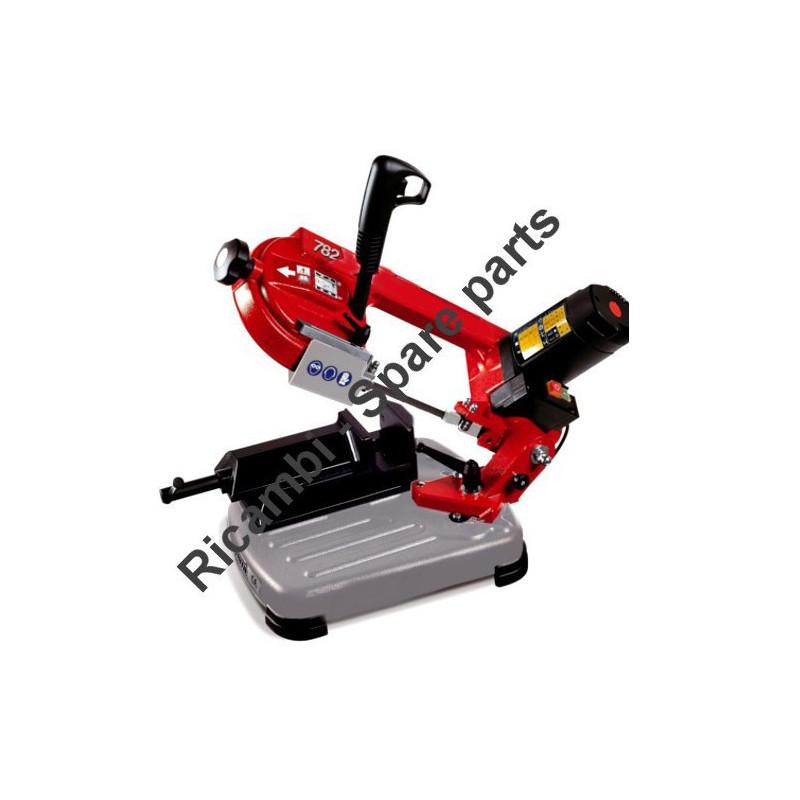

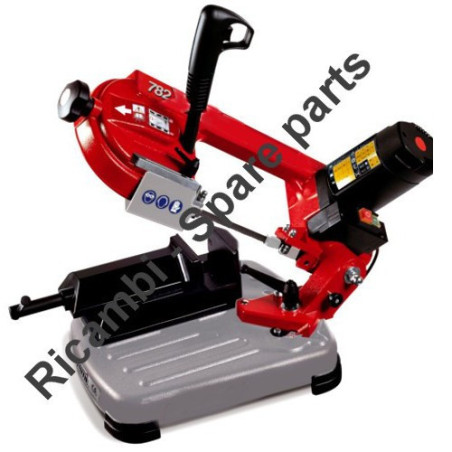

Femi Spare Parts for Band Saw 782-8484620
€18.10
Tax included
Femi Spare Parts for Band Saw 782-8484620
We are Dealers of FEMI original spare parts at low at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Band Saw 782 - 8484620.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Femi Spare Parts for Band Saw 782-8484620
We are Dealers of FEMI original spare parts at low at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Band Saw 782 - 8484620.In the following table, look for the model of the Band Saw and the respective parts of the code.
| Band Saw 782-8484620 | |
| Part Num. | Description |
| 5050121 | HANDLE BASE |
| 0802317 | SWITCH |
| 5050122 | HANDLE COVER |
| 0147000 | HAND LEVER |
| 0120706 | PLAIN WASHER |
| 5130732 | BLADE GUIDE -- -> 7132502 - DISCONTINUED |
| 5870847 | CABLE |
| 5142070 | LEVER |
| 0129004 | INOX STEEL WASHER |
| 5181622 | SLIDING PROTECTION |
| 0102106 | CAP NUT |
| 0120206 | WASHER |
| 0590624 | BALL BEARING |
| 0129004 | INOX STEEL WASHER |
| 0174022 | NEEDLE |
| 0730609 | CAGE BEARING |
| 5120638 | SPACER |
| 0600607 | BALL BEARING |
| 7213007 | STRAIGHT GEAR GROUP |
| 7213001 | GEAR GROUP |
| 0155140 | THICKNESS WASHER |
| 0730609 | CAGE BEARING |
| 5100064 | SCREW |
| 5100065 | SCREW |
| 5182837 | MOTOR COVER |
| 5112021 | MOTOR FAN |
| 5182838 | MOTOR COVER |
| 7820104 | ELECTRONIC SPEED REGULATOR |
| 5182005 | BAFFLE |
| 5850111 | FAN WITH MAGNETIC RING |
| 5850005 | BRUSHES SUPPORT |
| 5061038 | RUBBER BUSHING |
| 0816005 | RADIO INTERFERENCE SUPPRESSOR |
| 5850109 | BRUSHES |
| 7013130 | ROTOR |
| 0130502 | THERMOSTAT SUPPORT |
| 5024111 | STATOR |
| 7801612 | MOTOR 230V ASSY |
| 0816003 | THERMOSTAT |
| 5061039 | RUBBER BUSHING |
| 5182522 | GEAR COVER |
| 0155013 | ELASTIC RING |
| 0570627 | BALL BEARING |
| 7213003 | FIRST GEAR GROUP |
| 0606202 | BALL BEARING |
| 0155140 | THICKNESS WASHER |
| 0155136 | THICKNESS WASHER |
| 0730810 | CAGE BEARING |
| 0102106 | CAP NUT |
| 0120206 | WASHER |
| 5154103 | CABLE LOCKING DEVICE |
| 5181016 | BLADE CLEANER |
| 5130733 | BRACKET |
| 5100064 | SCREW |
| 5100065 | SCREW |
| 0311080 | EXAGONAL HEAD SCREW |
| 0129004 | INOX STEEL WASHER |
| 0590624 | BALL BEARING |
| 0129004 | INOX STEEL WASHER |
| 0174022 | NEEDLE |
| 5120638 | SPACER |
| 0600607 | BALL BEARING |
| 0155142 | THICKNESS WASHER |
| 5214019 | DRIVING WHEEL |
| 5181623 | PROTECTION |
| 5124062 | WASHER |
| 0596002 | BALL BEARING |
| 5214225 | FREE WHEEL |
| 5130734 | WHEEL GUIDE |
| 5120663 | SPACER |
| 5001564 | SHAFT |
| 5137869 | WHEEL SUPPORT |
| 0179901 | NEEDLE |
| 0400604 | SCREW |
| 5081005 | SPRING |
| 0140074 | HANDWHEEL |
| 5100506 | BLADE TENSIONING SCREW |
| 5081021 | SPRING WASHER |
| 5042718 | BAND SAW BODY + COMPLETE FRONT BLADE GUIDE |
| 7130563 | COMPLETE VICE |
| 5152586 | VICE JAW |
| 5042727 | SLIDING VICE |
| 5100320 | SCREW |
| 5063034 | BUSH |
| 0063041 | BUSH |
| 0101408 | SELF-LOCKING NUT |
| 0155150 | THICKNESS WASHER |
| 5130416 | PLATE |
| 5130428 | SLIDING VICE PLATE |
| 5152586 | VICE JAW |
| 5150005 | VICE PIN STOPPER |
| 5130426 | PLATE |
| 5130427 | PLATE |
| 5142014 | LEVER |
| 5150005 | VICE PIN STOPPER |
| 5042728 | VICE BODY |
| 0150701 | CYLINDRIC PIN WITH SLOT |
| 5137842 | BASE FOOT |
| 5133635 | BAND SAW BASE |
| 0401001 | SCREW |
| 0080261 | SPRING WASHER |
| 7130535 | ROD STOP GROUP |
| 5401319 | GRADUATE PLATE |
| 0402905 | RIVET |
| 5124029 | ECCENTRIC |
| 0063042 | BUSHING |
| 0140076 | HANDWHEEL |
| 0222021 | O-RING SEAL |
| 5171043 | LOCKING PIN |
| 0102110 | CAP NUT |
| 0120710 | PLAIN WASHER |
| 7133603 | SWIVEL SUPPORT GROUP |
| 0151409 | SNAP RING |
| 0120710 | PLAIN WASHER |
| 0147002 | HAND LEVER |
| 0155143 | THICKNESS WASHER |
| 5080116 | SPRING |
| 0063027 | BUSHING |
| 0311080 | EXAGONAL HEAD SCREW |
| 0816004 | RADIO INTERFERENCE SUPPRESSOR |
| 5154501 | CABLE LOCKING DEVICE |
| 5870843 | CABLE |
| 0802606 | SWITCH |
| 7890101 | CLAMP GROUP |
| 0802314 | SWITCH |
| 5182520 | SWITCH COVER |
| 5182521 | SWITCH COVER |
| 0802319 | SWITCH |
| 0120706 | PLAIN WASHER |
| 0596002 | BALL BEARING |
| 0155152 | THICKNESS WASHER |
| LAMAFERRO | BLADE 1335x13x0,65 |
